Modelo 3D Parametric Bracket por ArkansasModeler no Printables

Descrição

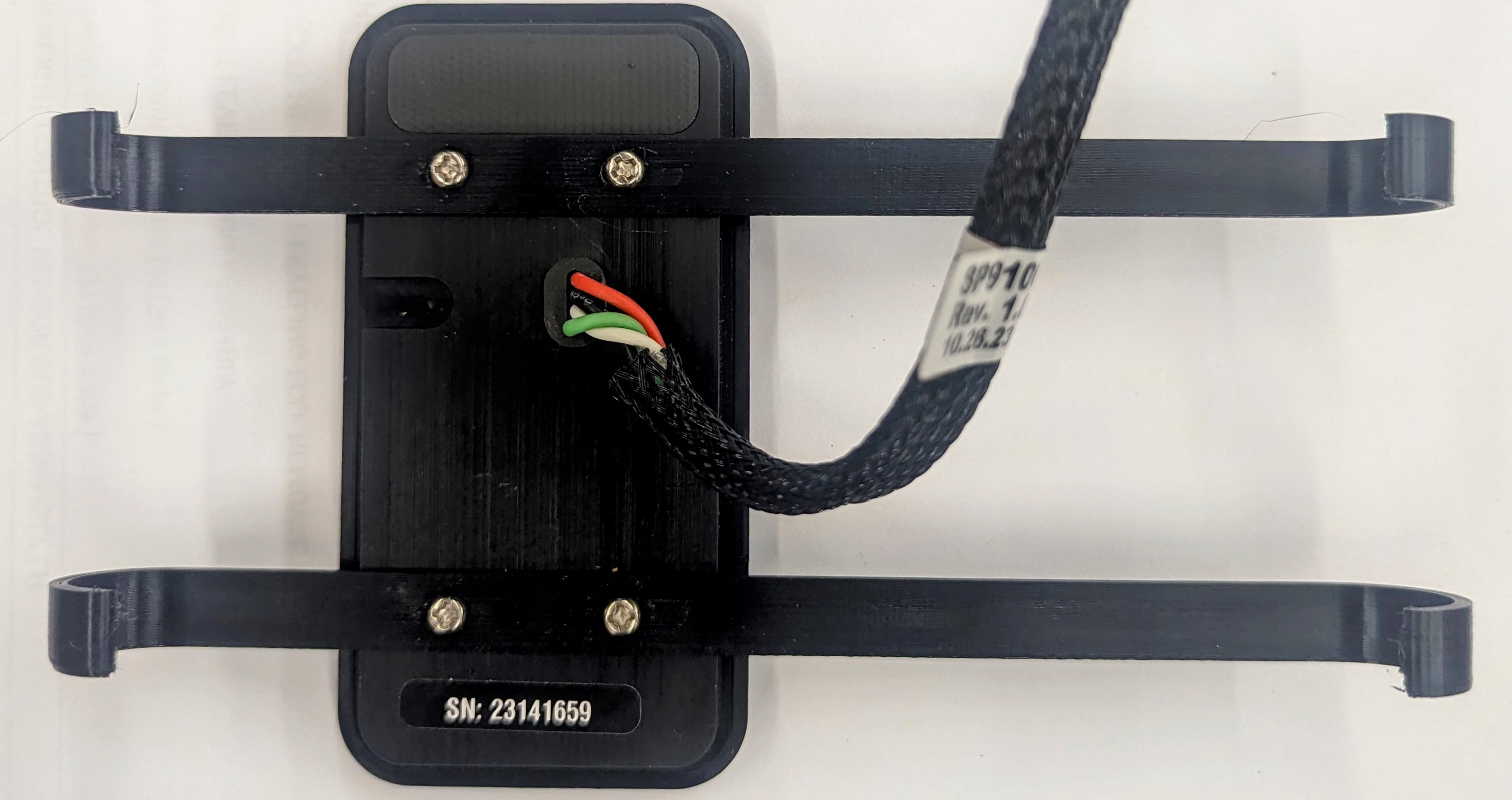

I needed a bracket/clip to hold a Switch-Pro (don't ask) to my visor. I produced a fully parametric design in Fusion. It's dimensions can be changed to create most any-sized bracket/clip for supporting relatively light objects.

Changeable parameters are:

  • Bracket length, width, and thickness
  • Loop size
  • Hole size and location
  • Hole count and spacing

The two things that cannot be changed are (1) removing the bottom loop (It can be removed/cut in the slicer.) and (2) changing the loop's profile.



Printables

Parametric Bracket

Publicado em 5 de mai de 2024

0
Curtidas
10
Downloads
Categoria Mechanical Parts
Tags
hook bracket visor
Licença Creative Commons — Attribution — Share Alike
Arquivos (3)
Switch Pro Display Support.3mf 36.5 KB
Switch Pro Display Support.stl 30.2 KB
Switch Pro Display Support.f3d 69.1 KB
