cloud box

modular and with optional magnets to lock into position

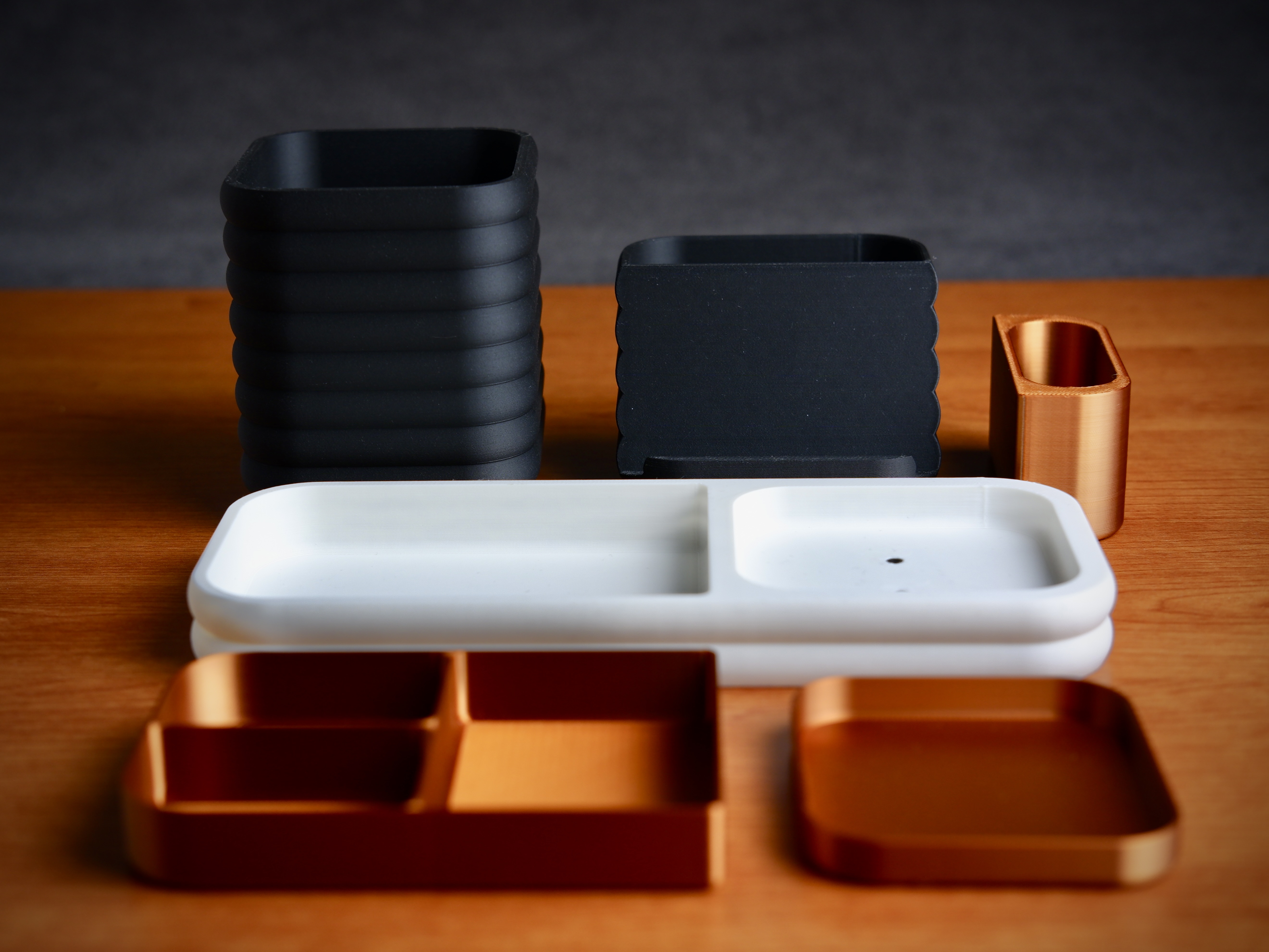

this is a modular design that consists of:

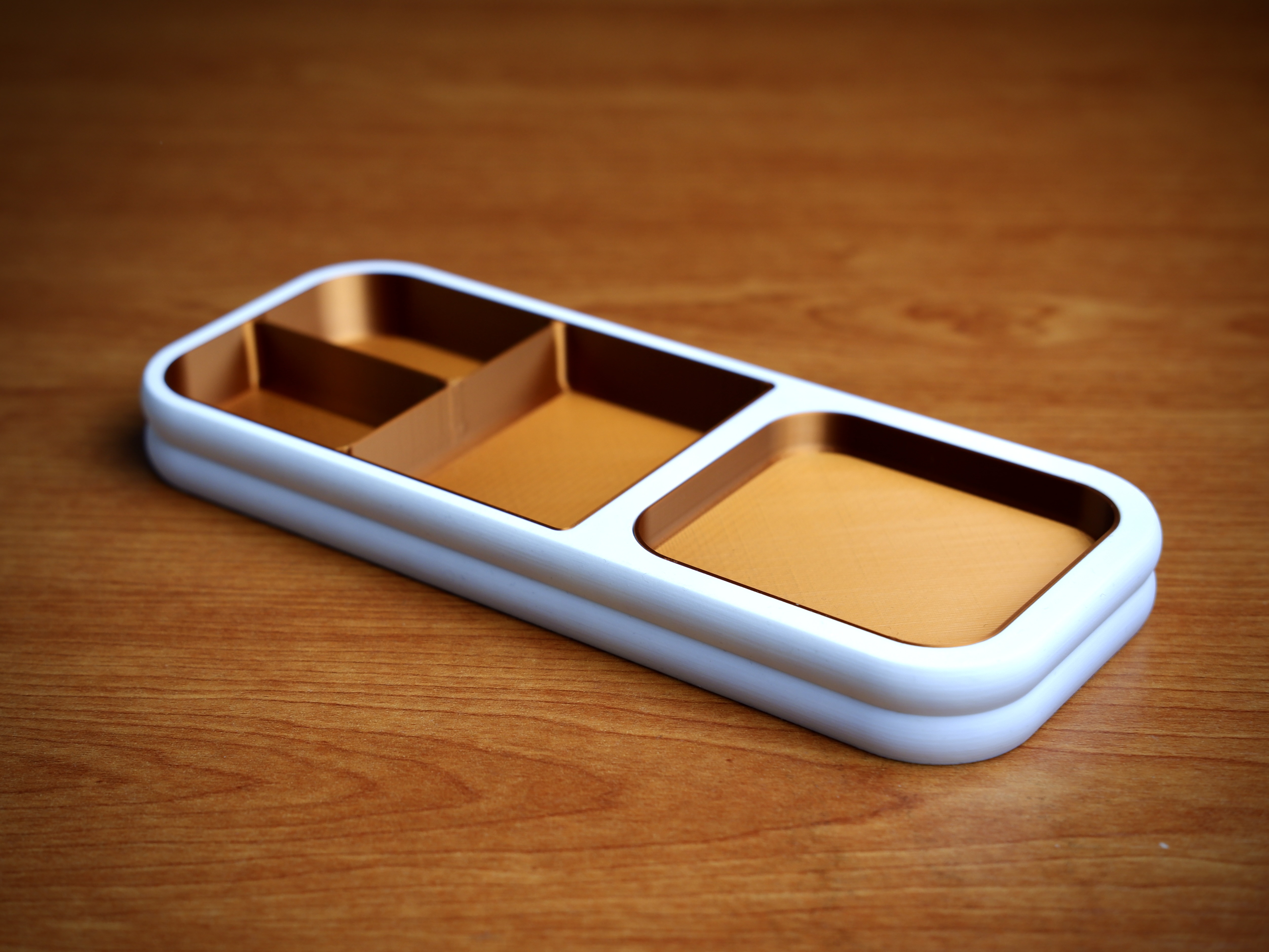

• base (use of 4mmx2mm magnets optional)
• main insert · 3 options
• secondary insert · optional

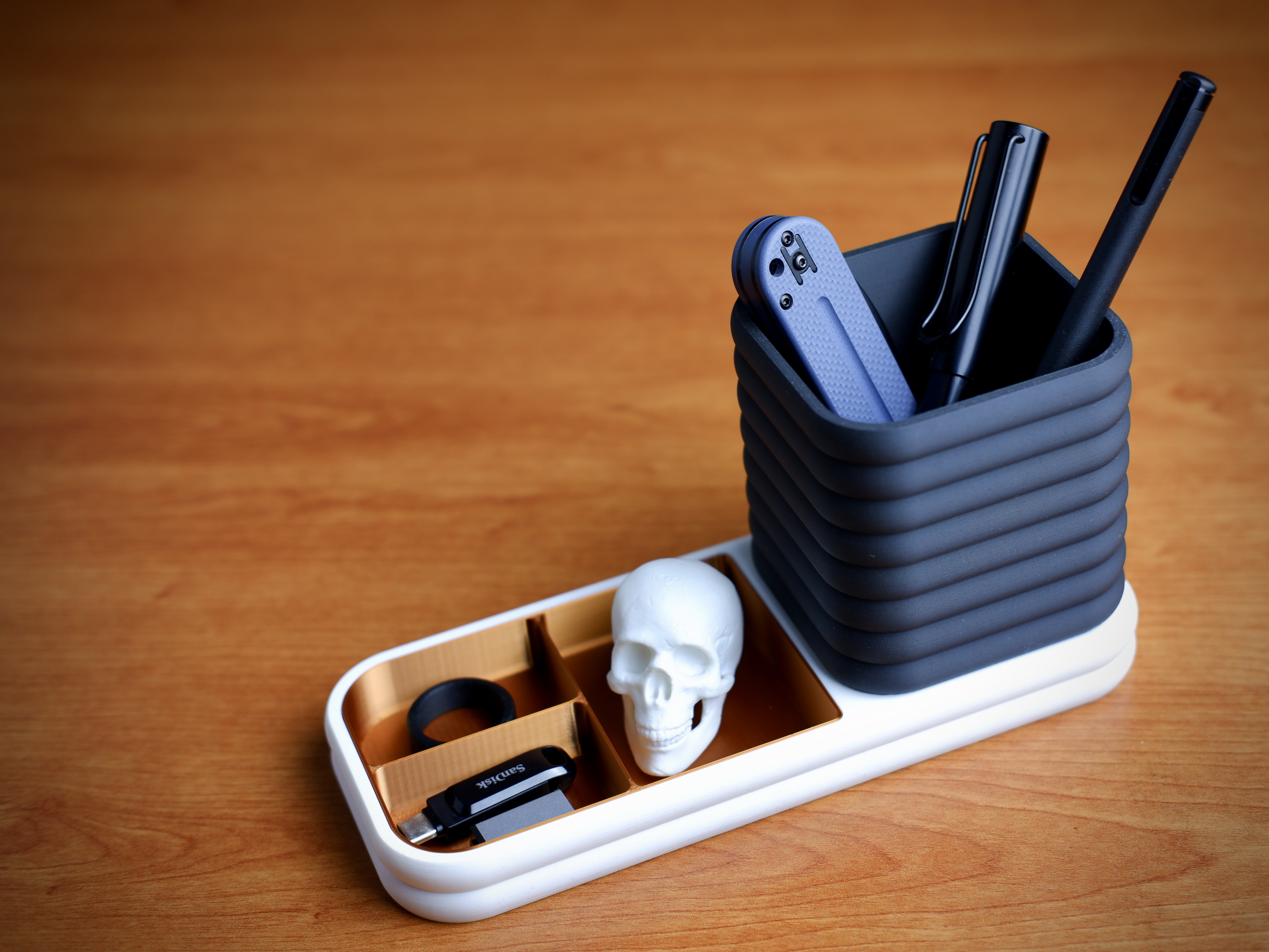

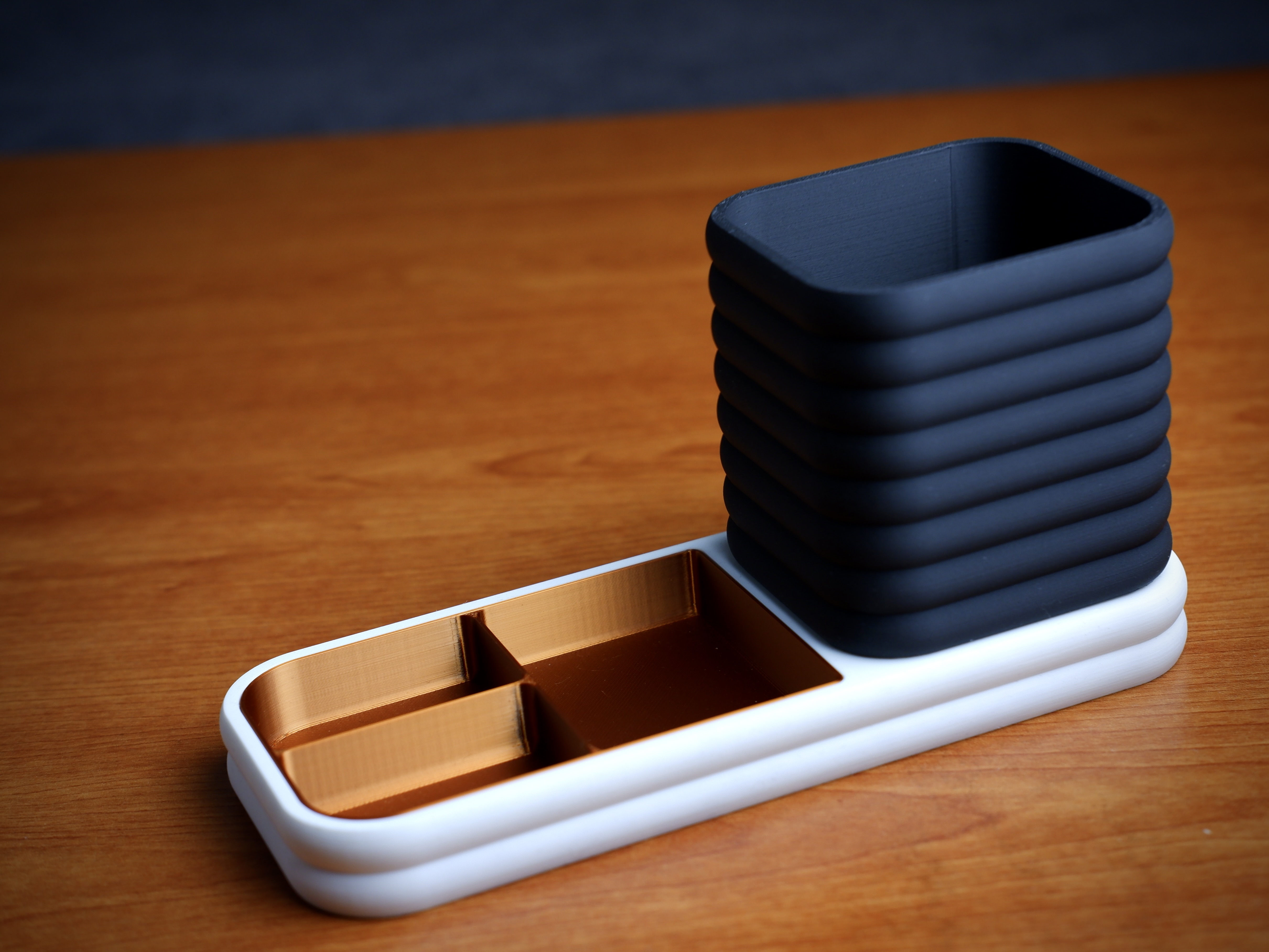

• pen holder (use of 4mmx2mm magnets optional)

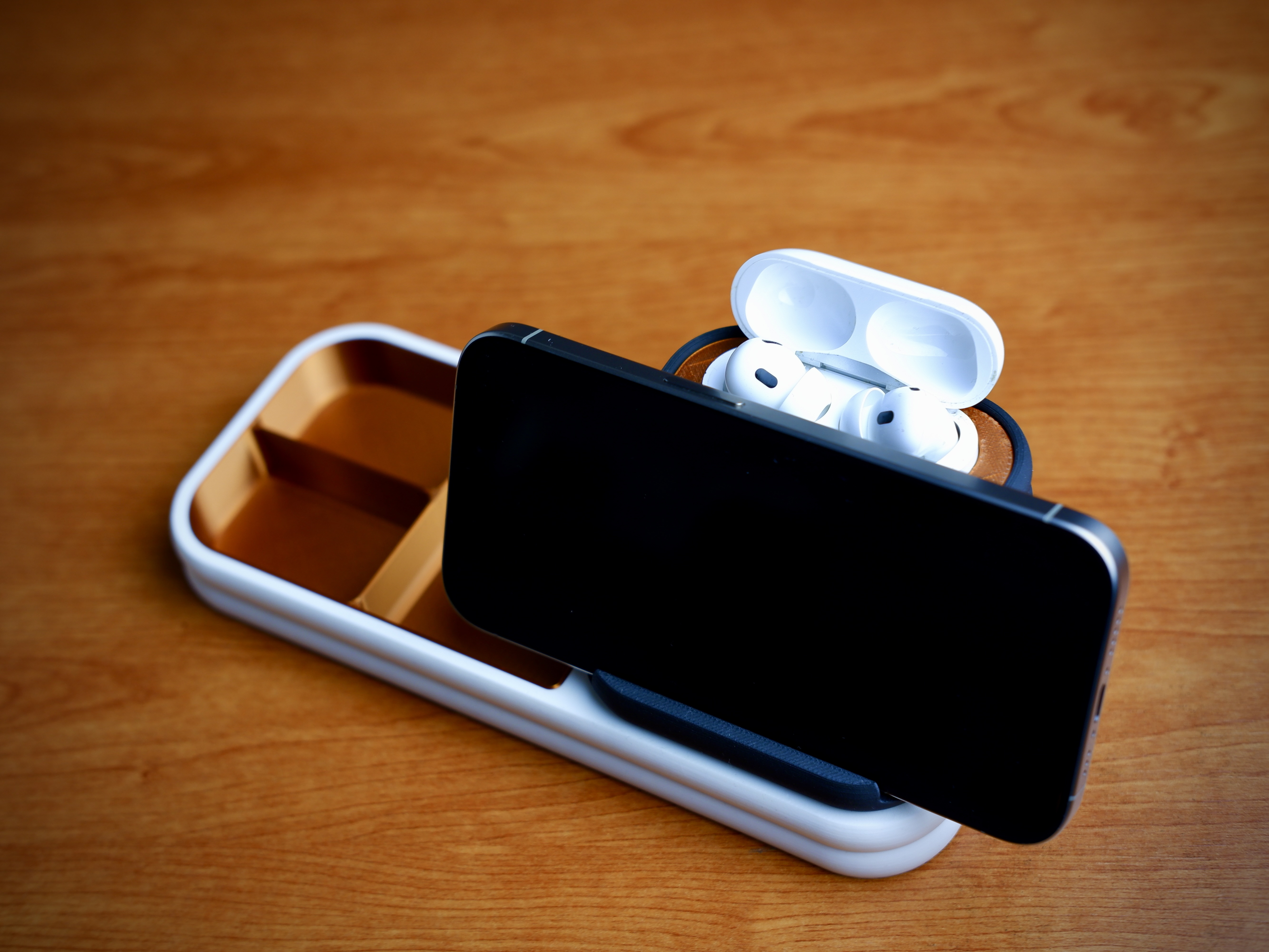

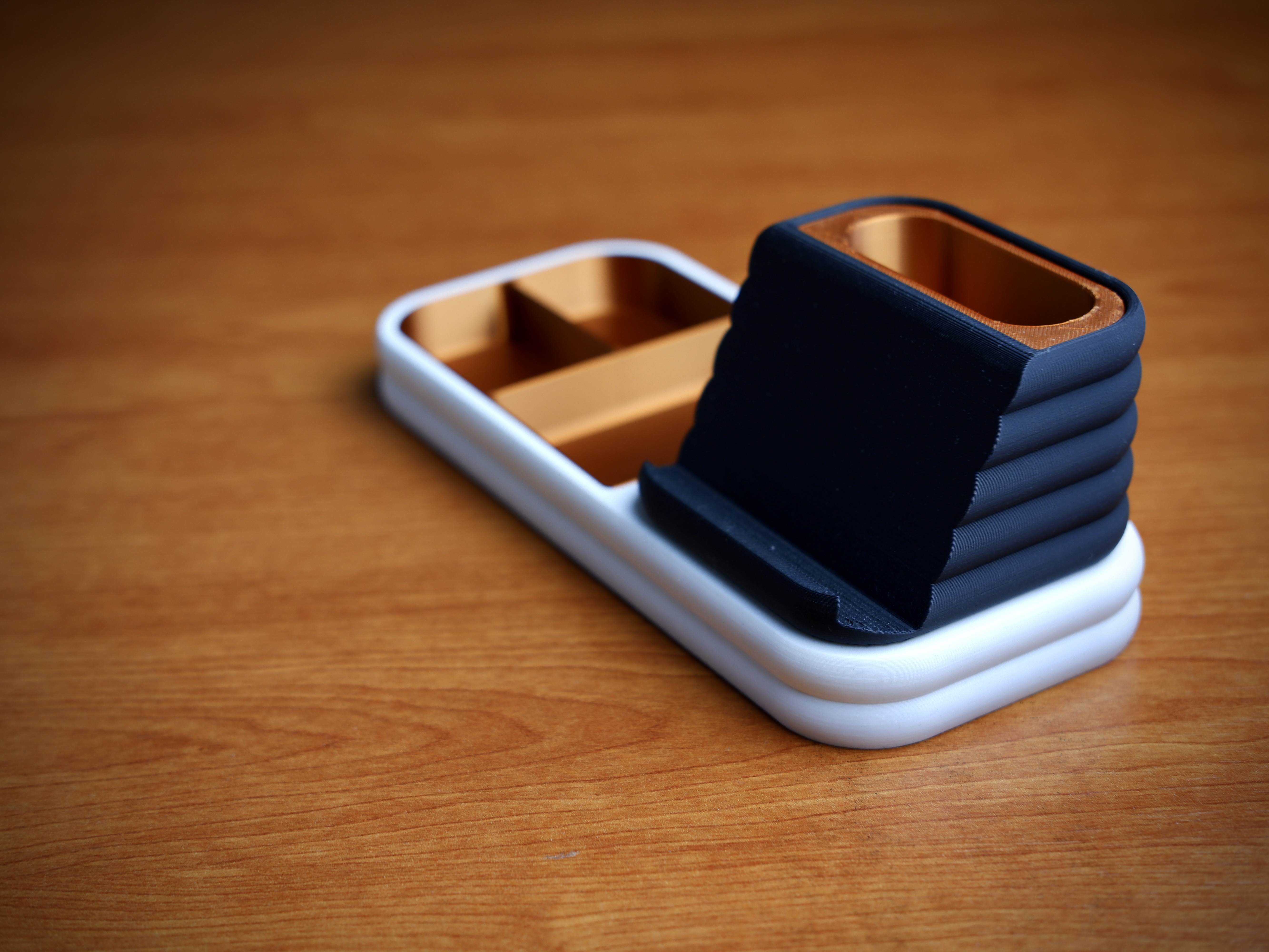

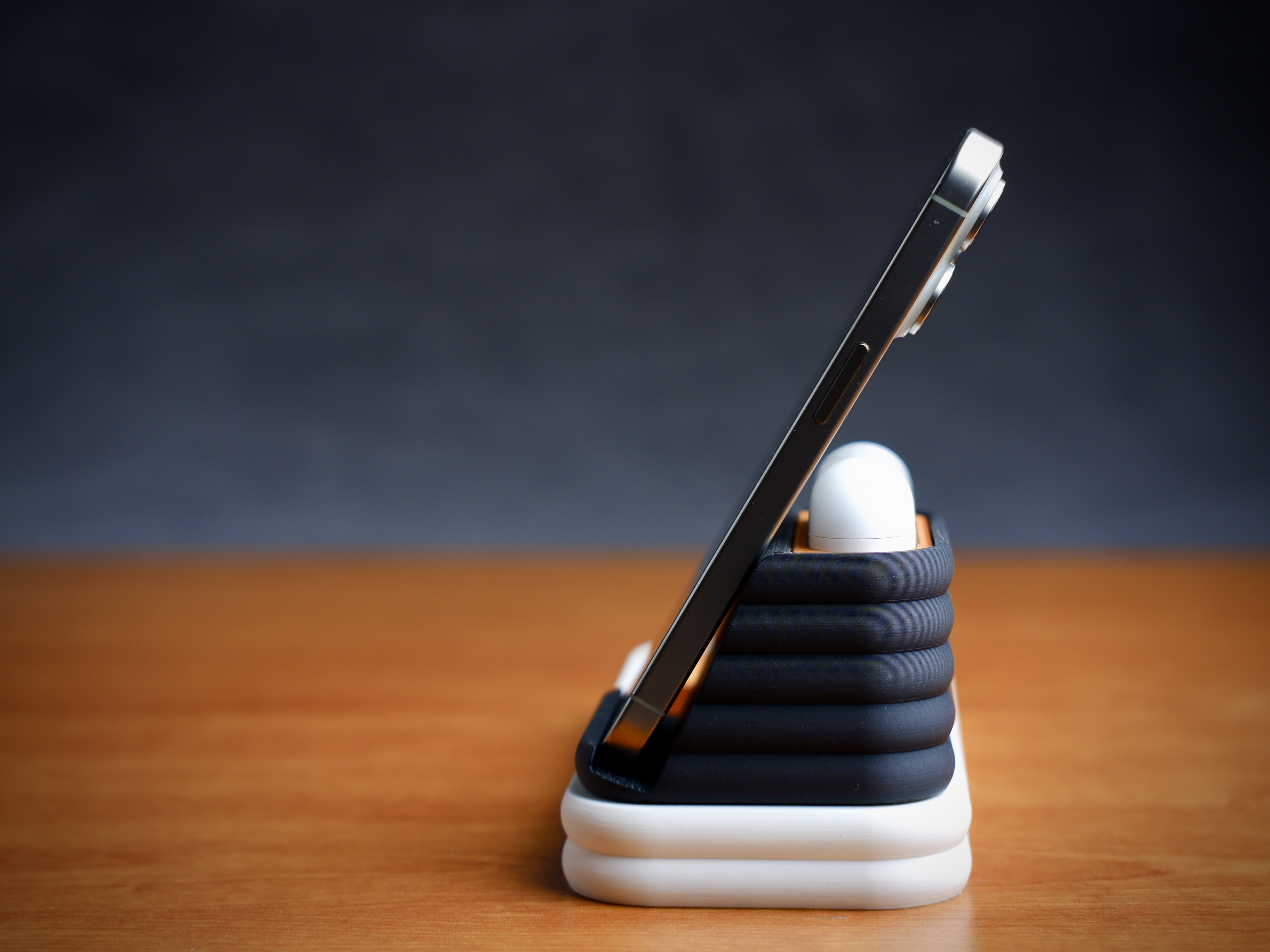

• phone holder with storage compartment (use of 4mmx2mm magnets optional)
• airpods pro insert · optional

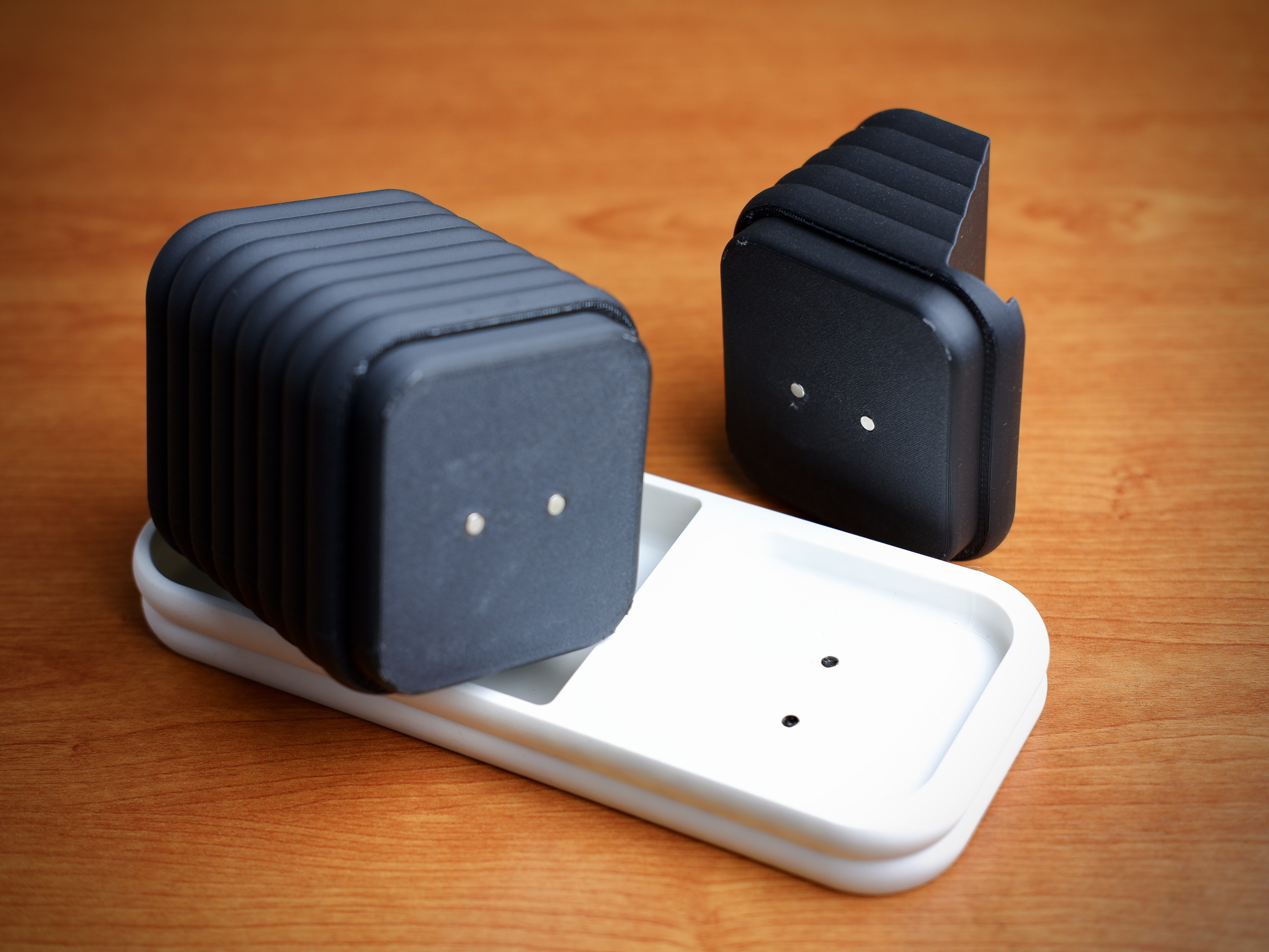

If you choose to, you'll need 6 4x2mm magnets to achieve the same result as shown in the pictures, as well as some drops of super glue to ensure they really stay in their position and don't get pulled away from the slot.

notes

• please make sure that you are very mindful of the polarities of the magnet when assembling and gluing in their spots as you want to make sure that each section atracts and not repels the one that will sit above/below
• inserts are designed with small tolerances to ensure a perfect tight fit, so make sure that you have your machine calibrated and filament dry so that you don't run into any tolerance issues
• this is a perfect companion to another of my models, cloud box · magnetically stackable · modular
• also including STLs as some users experience issues with 3mf files from bambu studio

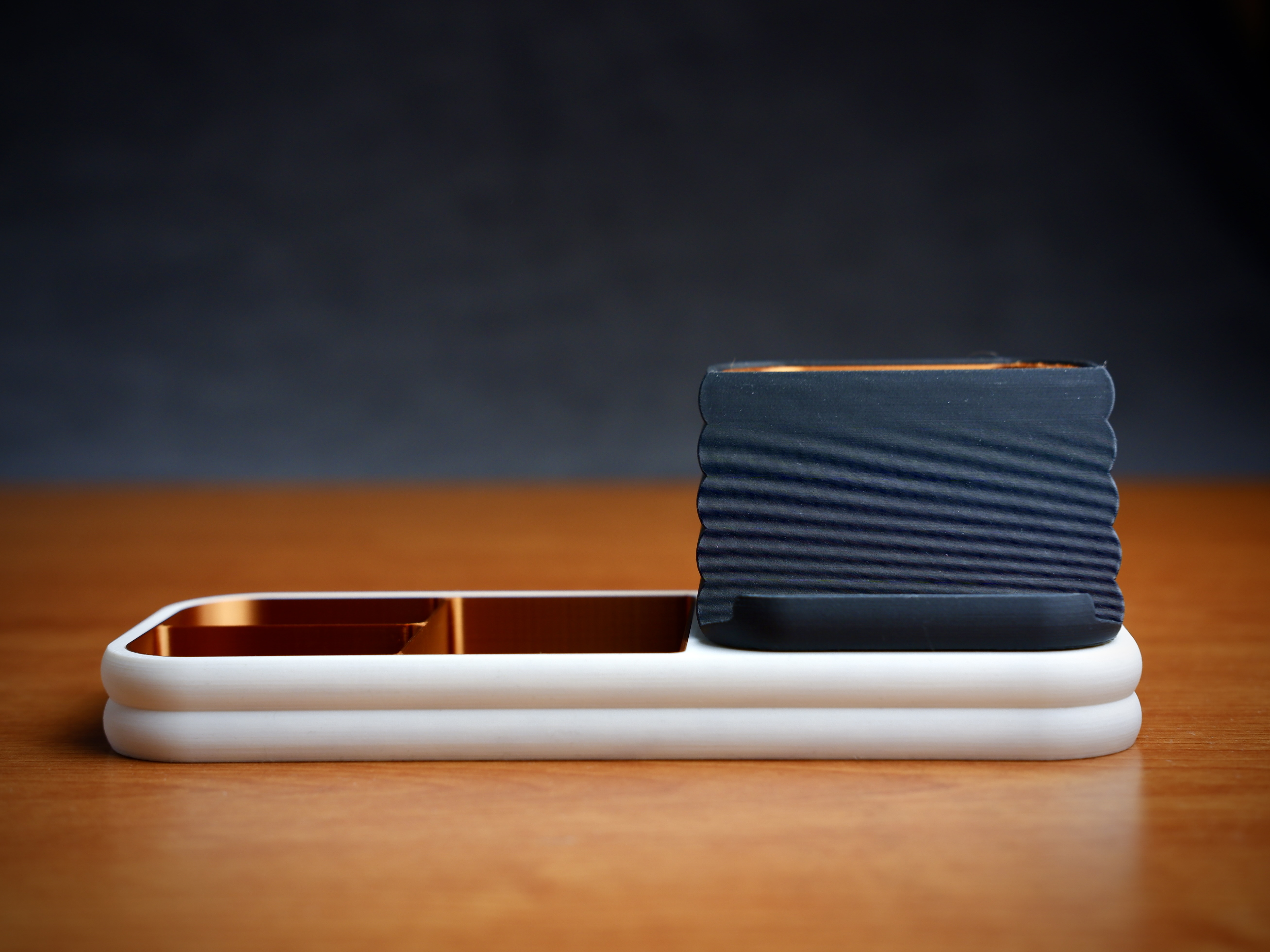

photos show printed in matte white pla, matte black pla and bronze silk pla

• 0.20mm layer height
• 15% cubic infill
• supports needed on pen holder and phone holder with support blocks on the magnet slots

commercial licence membership available on my patreon

buy me a coffee

note: all photos uploaded are of the actual printed model, taken inside a lightbox or in home studio
