Notice!

This is only compatible with Python for the original AMS. Please view my other designs for designs supporting other AMS systems, there are plenty.

Support

All my designs and mods on Printables are free to use and remix. They have a non-commercial license. If you enjoy this or any of my other designs you can send me a small donation using the link below. Thanks :)

[https://www.paypal.me/humebeamengineering](https://www.paypal.me/humebeamengineering)

About

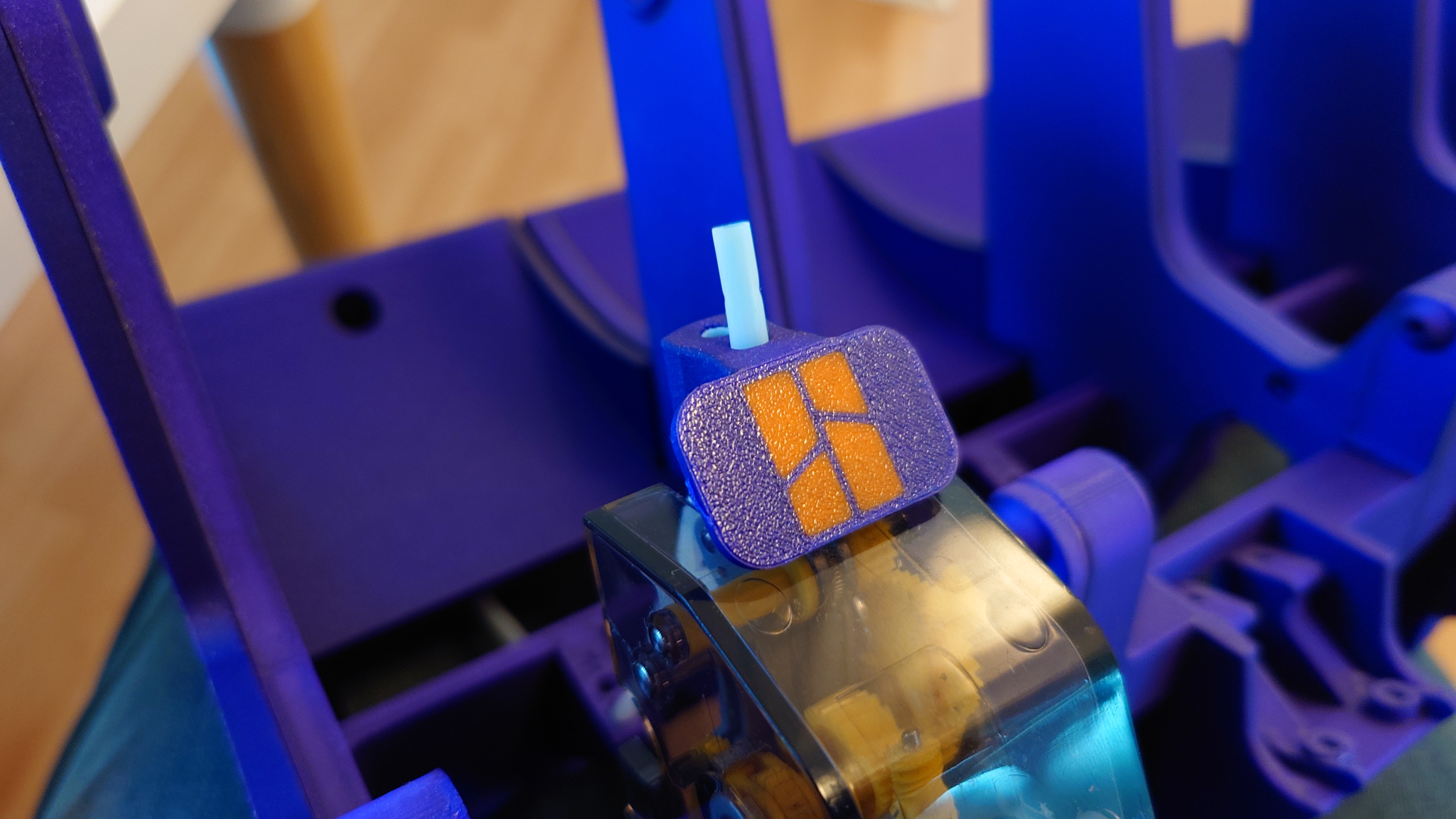

These are enlarged PTFE load buttons for Python. They're designed to both save the AMS funnels and improve ergonomics and they have an additional PTFE route for the external spool function of Python AMS so you can easily load the spool either through the AMS or outside it (for abrasive filaments for example).

It is not compatible with the stock AMS as they are too tall. For stock AMS or Hydra. / Hydra PRO use the Hydra - PTFE Load Buttons that have a slimmer profile.

Print Settings

Print them in the direction I have set them with the button flat on the bed. Use a layer height of 0.20 mm or lower. Normally you don't have to use any supports but if you like you can use some tree supports for the little locking tab near the top.

You can paint the logo in the slicer if you like (Use the Paint Bucket Tool):

Installation

Press the bottom of the feeder and at the same time install the button. Once done, press down the PTFE tube a little to lock it in place, don't push it down too far though.
