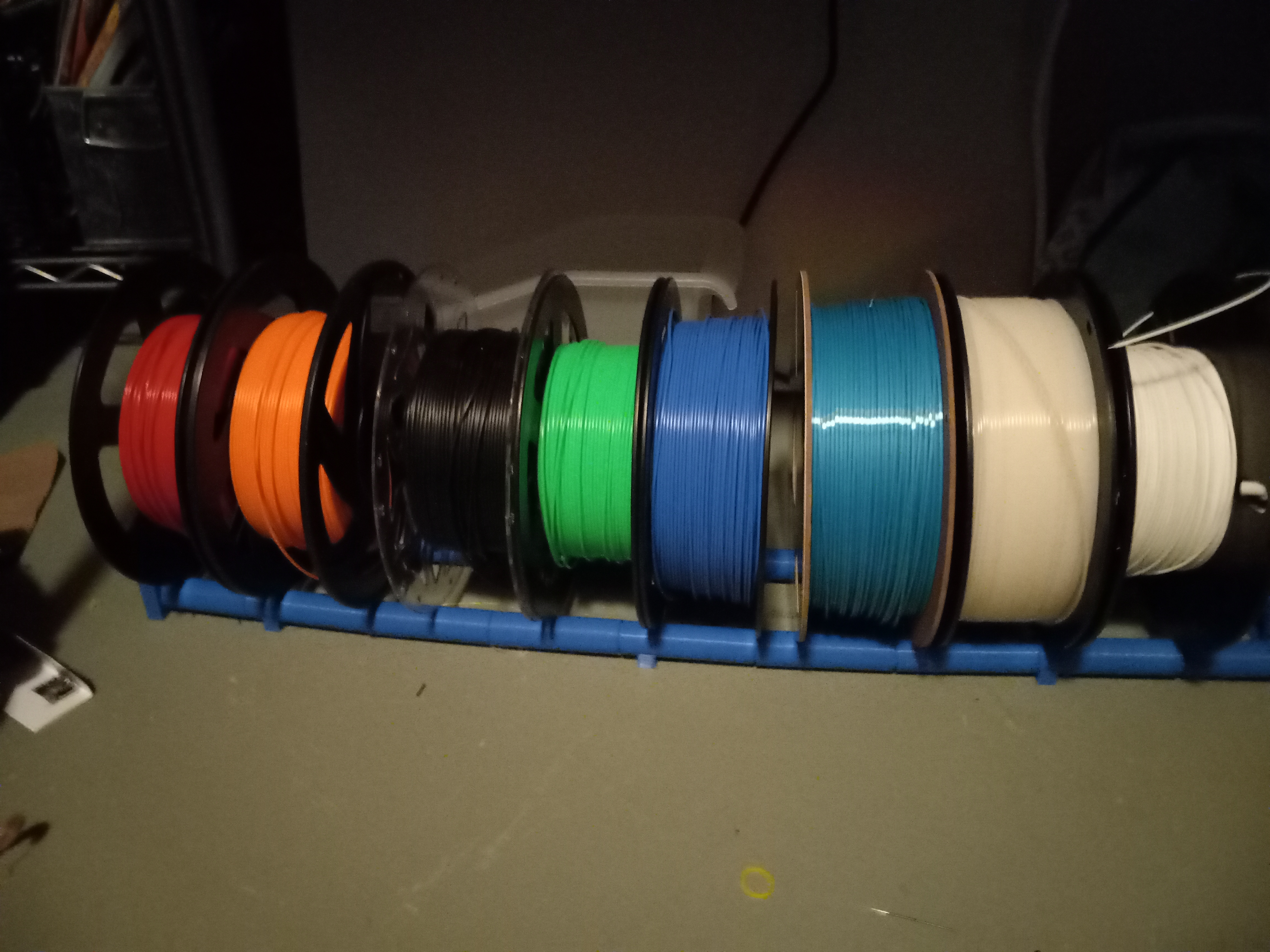

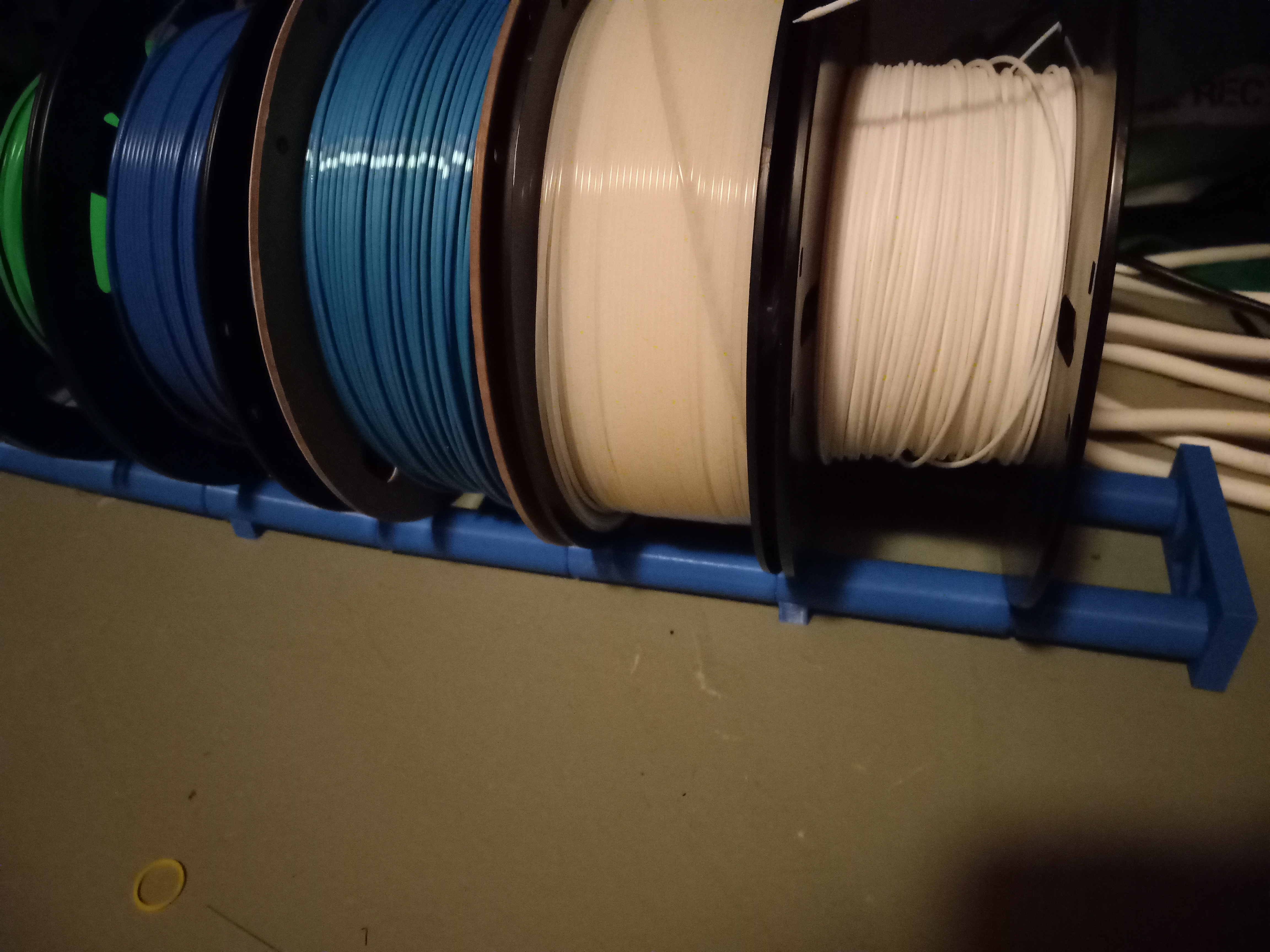

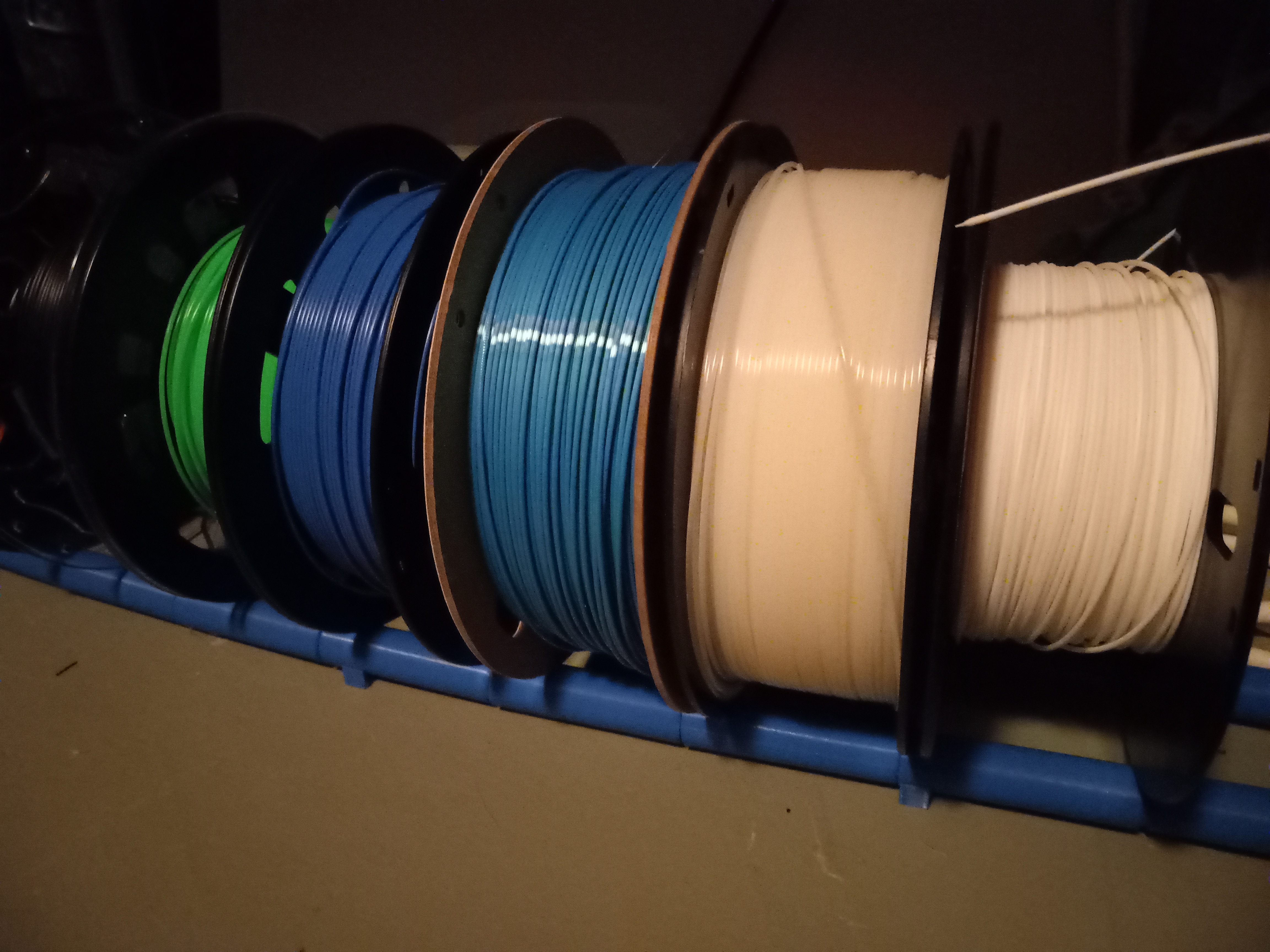

A nice sturdy 100% 3D printed place to hold some of your filament

why?

I created this project when my filament started rolling everywhere all over the floor. Somehow in the doorway? I started searching for a good filament spool holder. All of them had a wooden or metal pole supporting the filament. I wanted a 100% 3D PRINTED filament holder, so I decided to design one myself

all of this would not be possible without without [https://www.tinkercad.com/](https://www.tinkercad.com/) (tinkercad)

Part's functions V 1.00

side support:

hold the poles together:

connects to end pole

center pole support:

prevents the pole from bending to the ground:

connects to center pole

pole ends:

the endcaps of the poles that create a flat ends:

connects to center pole and side support

center pole:

can be linked together to create longer or shorter poles:

connects to center pole support and pole ends.

Part's functions V 1.25

side support:

hold the poles together has part of the pole:

connects to center pole

center pole support:

prevents the pole from bending to the ground:

connects to center pole

center pole:

can be linked together to create longer or shorter poles:

connected to side support

My print settings

supports: only "Center pole.stl"

nozzle: 0.2mm

Infill: 50%

Infill pattern: lines

Filament: Blue Sunlu PLA

most of these settings vary depending on your printer

I have no Idea if it works on resin printers too, but it is open for testing(notify me if resin works)
