UPDATE 06/2026

Added an update version of the 1:24 scale stand, added some guides to the front and back posts so they get aligned easier. Also made the parts look a bit nicer with some chamfers. These changes will be added to the other sizes as well. A 1:32 scale stand is in the works as well.

Enjoy!

____________________________________________________________________________________________________

UPDATE 01/2026:

Added a 1:43 scale version, Please check the dimensions before printing!

Dimensions are as following:

• Wheelbase between 42.5 mm and 76.5mm

• Base width 46 mm (still should be fine for wider cars as long as the tires are on the pad.)

____________________________________________________________________________________________________

UPDATE:

Added a 1:18 scale version of the model. Please check the dimensions before printing because I don't have a 1:18 model and can not check if the dimensions are right!

Dimensions are:

• Wheelbase between 100mm and 191.5mm

• Base width is 112mm

I also updated the mounting for this version. The nut goes into the top and a 8mm M3 is screwed in from the bottom.

Mind the print orientation, no supports are needed!

____________________________________________________________________________________________________

I was in need of a nice stand for my model F1 cars, I was not able to find the right size on here so I decided to make my own.

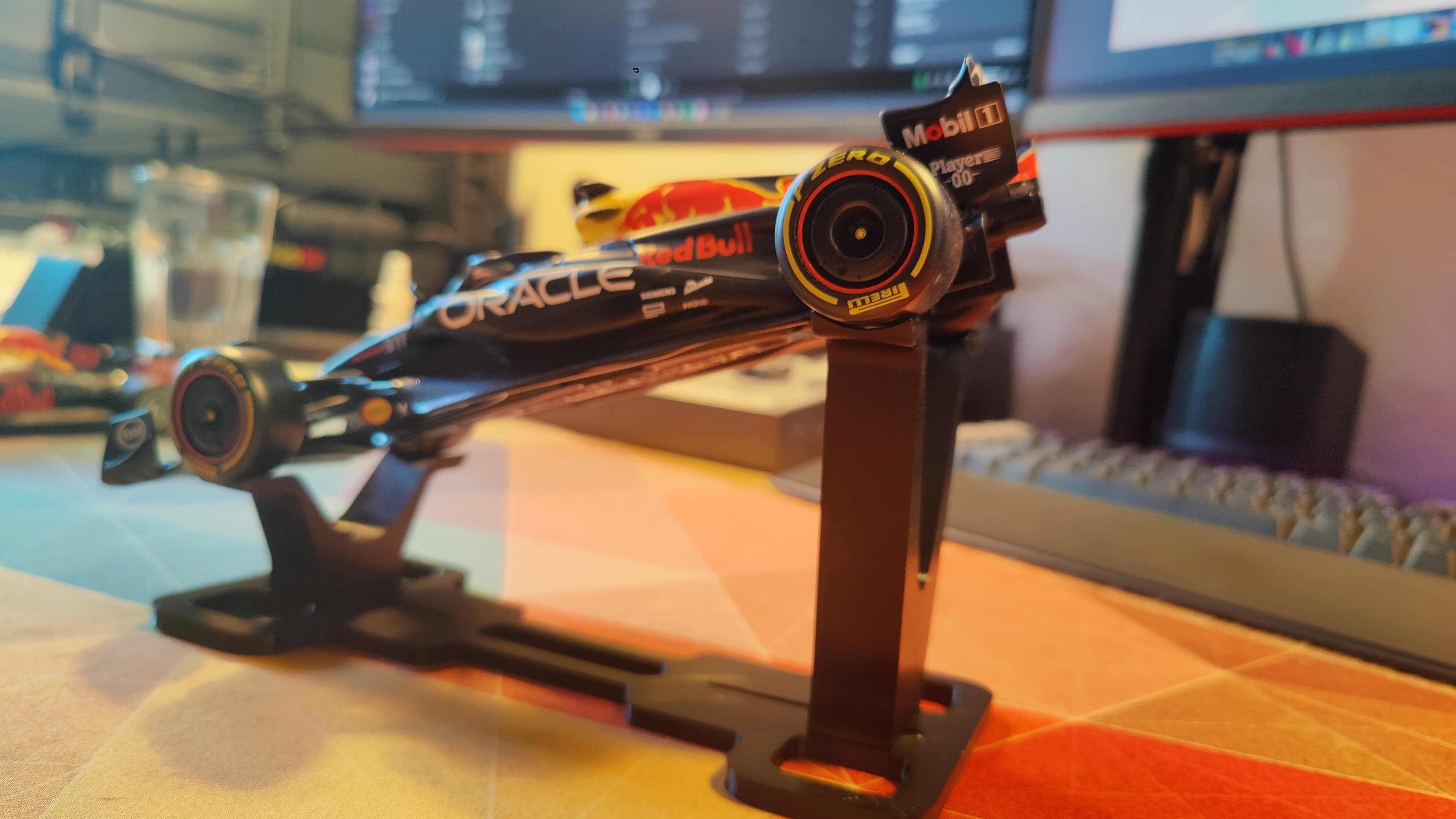

The cars I own are Bburago 1:24 models of the Formula one car drive by Max Verstappen. I have a smile shrine in my closet to worship…. no just kidding, I have a nice display for the models but not much space.

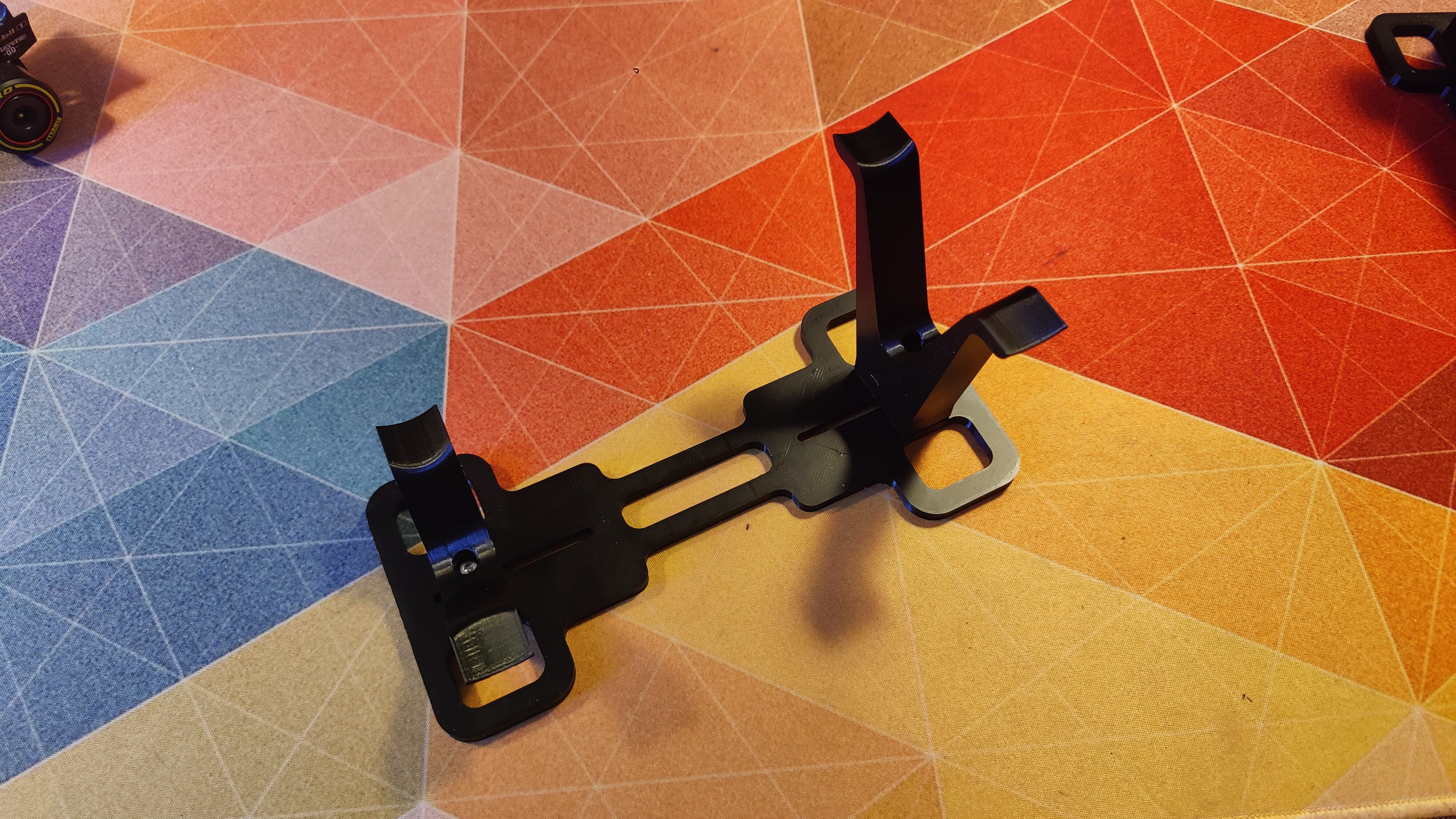

The stand is adjustable, maximum wheelbase is 180mm and the width of the pads is 80mm. The height of the front is 35mm from the base and the back is 85mm from the base.

It's also possible to use two high or two low parts to set up the car.

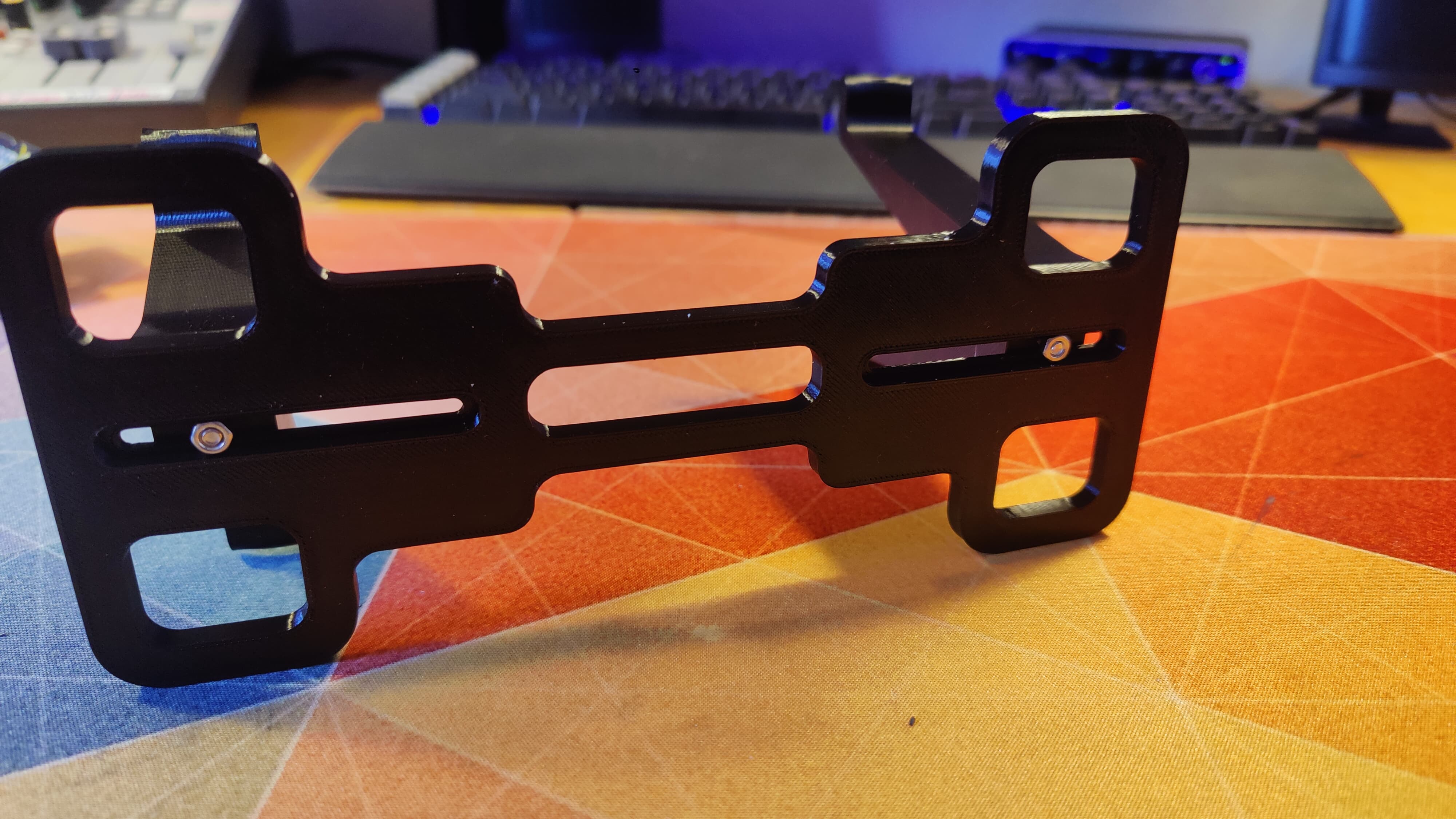

They are put together using 2xM3 nuts and 2x M3x16 bolts.

Enjoy!
