Modelo 3D Raspberry Pi HQ Camera Stand with Ring Light por jlorenzi no Printables

Descrição

I started playing around with OctoPrint and it's incredible. You can get so much more out of your printer with OctoPrint, I highly recommend it.

It runs on a Raspberry Pi, and I had a spare one with a basic Raspberry Pi camera sitting around, so I installed the OctoLapse plug-in and got some nice time-lapse videos out of it, but I needed a stand for the Pi camera. I designed one in Fusion 360 that just slides around the Prusa LCD screen and it worked well.

I ended up replacing the standard def camera with the Raspberry Pi HQ camera and redesigned the mount for that camera, which has your standard 1/4-inch tripod mount on it.

Next I needed better lighting, so I bought this ring-light for $10.

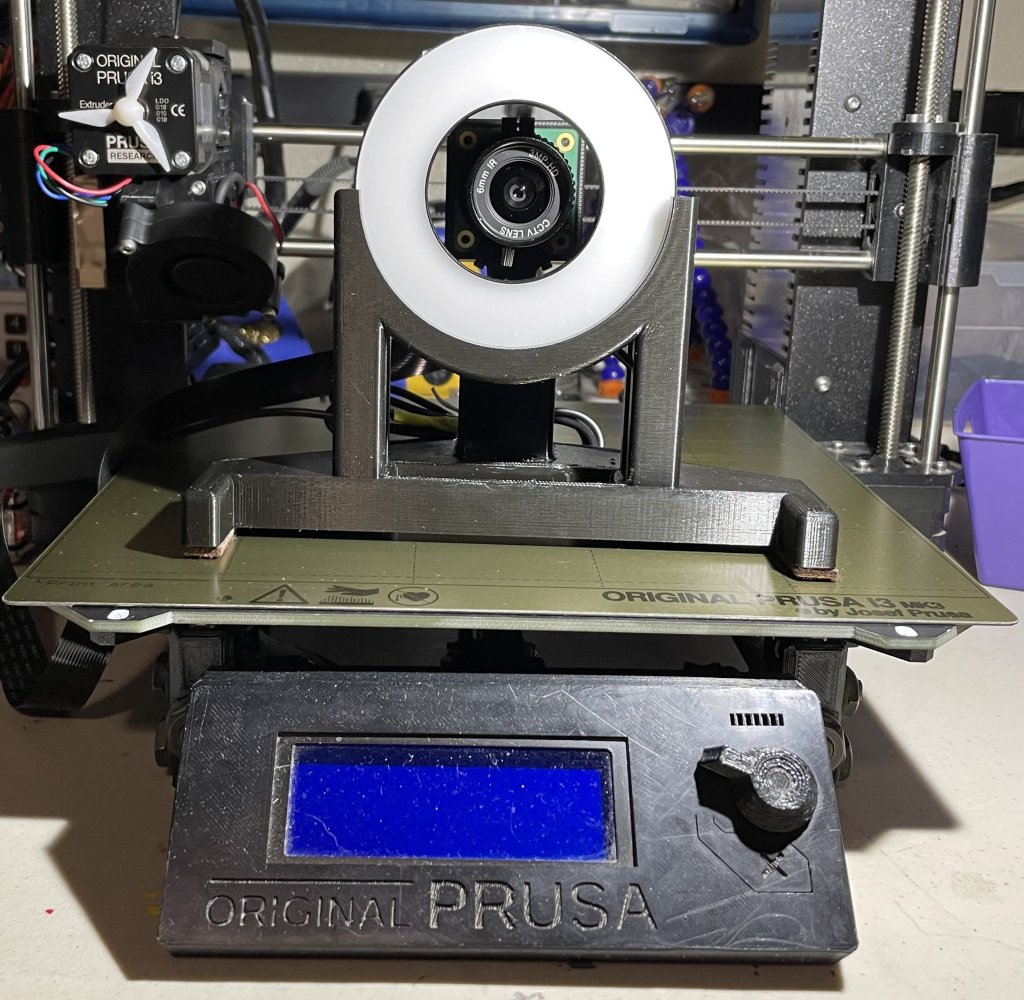

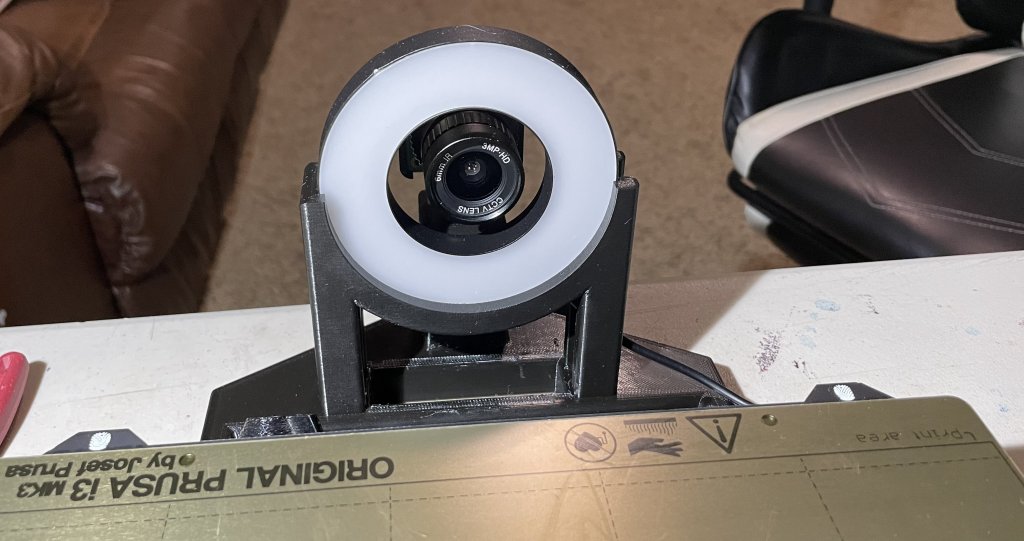

I redesigned the camera stand a second time to hold the ring-light, but I needed to remove the flexible gooseneck from it. I modified the ring light by carefully cutting away the flexible gooseneck holder right below where it goes into the light, then cut the wire to pull it free, and then re-solderied the wire.

In the end it came out great, I was really happy with it and I'm getting nice time-lapse videos that are well lit.

I'm including the Fusion 360 file in case anybody needs to modify it. Keep in mind I'm not great at Fusion 360.

You need to enable supports everywhere, but the other settings like layer height and infill don't really matter. I used 0.15 layer height with 20% infill.


Printables

Raspberry Pi HQ Camera Stand with Ring Light

Publicado em 11 de nov de 2021

6
Curtidas
23
Downloads
Categoria Accessories
Tags
camera light ring raspberry pi
Licença Creative Commons — Public Domain
Arquivos (2)
Webcam Stand with Ring Light.stl 424.4 KB
Webcam Stand.f3d 275.7 KB
