Modelo 3D Multi Level Stackable Cure Tower por Bg Jinx no Printables

Descrição

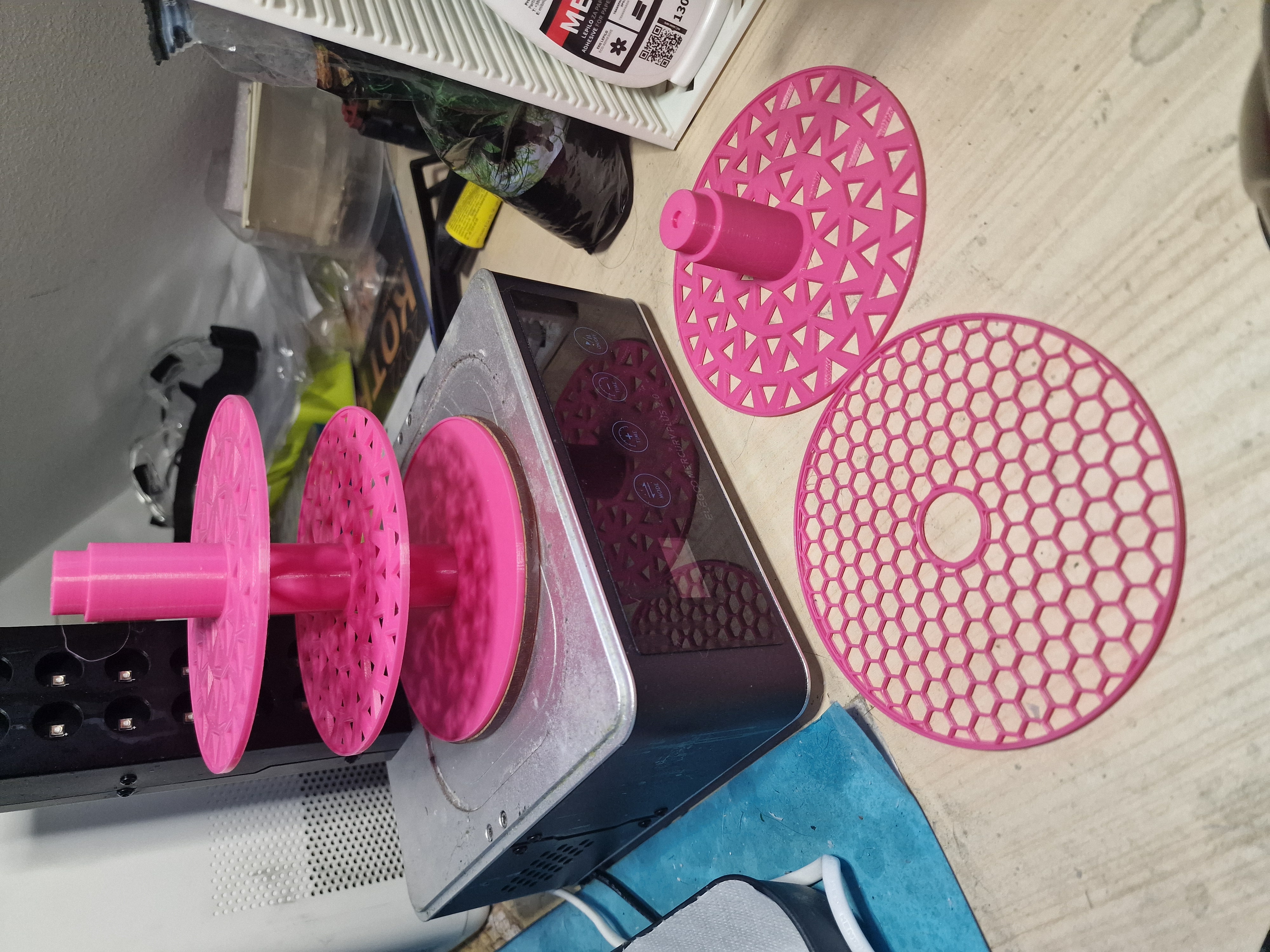

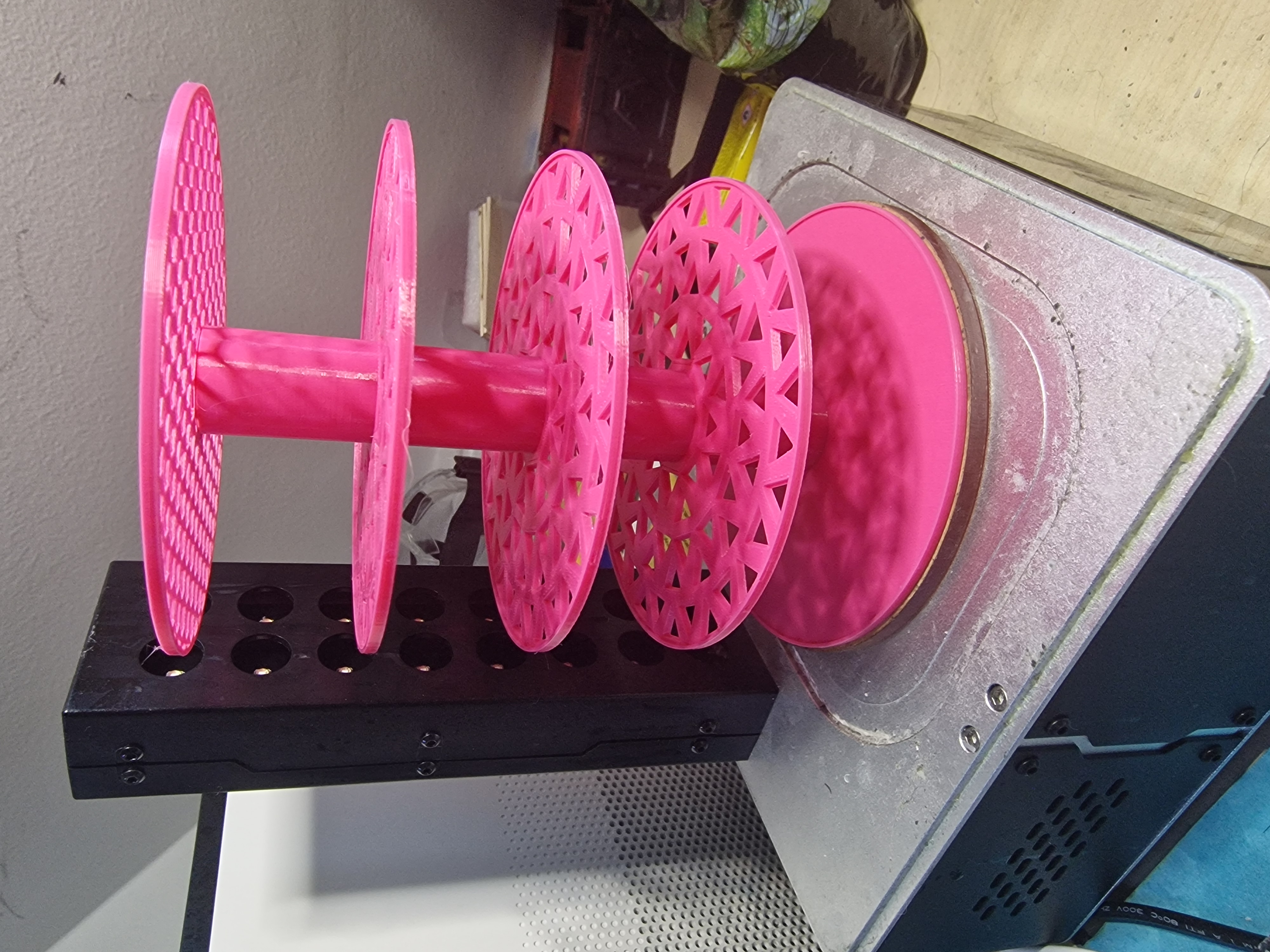

Easy to print and assemble Stackable tower for curing multiple small prints at the same time.

  1. Option one - Magnetized - ready for 5x1 or 5x2mm magnets - super sturdy assembly, but requires a little bit of Supports. Can be printed in 3 parts Bot + Mid + Disc, or only stack a few Bot parts one on top the the other + 1 Disc for the Top.
  2. Option two - No magnets - also No supports needed. Tolerance is 0.4 between each level.

Both Bot parts come pre - punched.
But if you think you want even more light to go through - print in 3 parts (with Mid and Disk) and adjust the Discs to have 0 top and 0 bottom layers, this way you control the infill density only.

All the Bottoms and Disks have a small raised edge which is exactly 0.96mm - so two walls on a 0,4 nozzle.

This one is sized up for Anycubic Mercury Plus, but if someone needs - I can make different sizes on demand.

Printables

Multi Level Stackable Cure Tower

Publicado em 29 de abr de 2024

9
Curtidas
33
Downloads
Categoria Anycubic Parts & Upgrades
Tags
stackable tower anycubic stack cure washandcure mercury2plus
Licença Creative Commons — Attribution — Noncommercial
Arquivos (5)
Cure_tower_Disc.stl 131.5 KB
Cure_tower_Mid_NoMag.stl 311.2 KB
Cure_tower_Mid.stl 288 KB
Cure_tower_Bot_NoMag.stl 1.9 MB
Cure_tower_Bot.stl 2.4 MB
