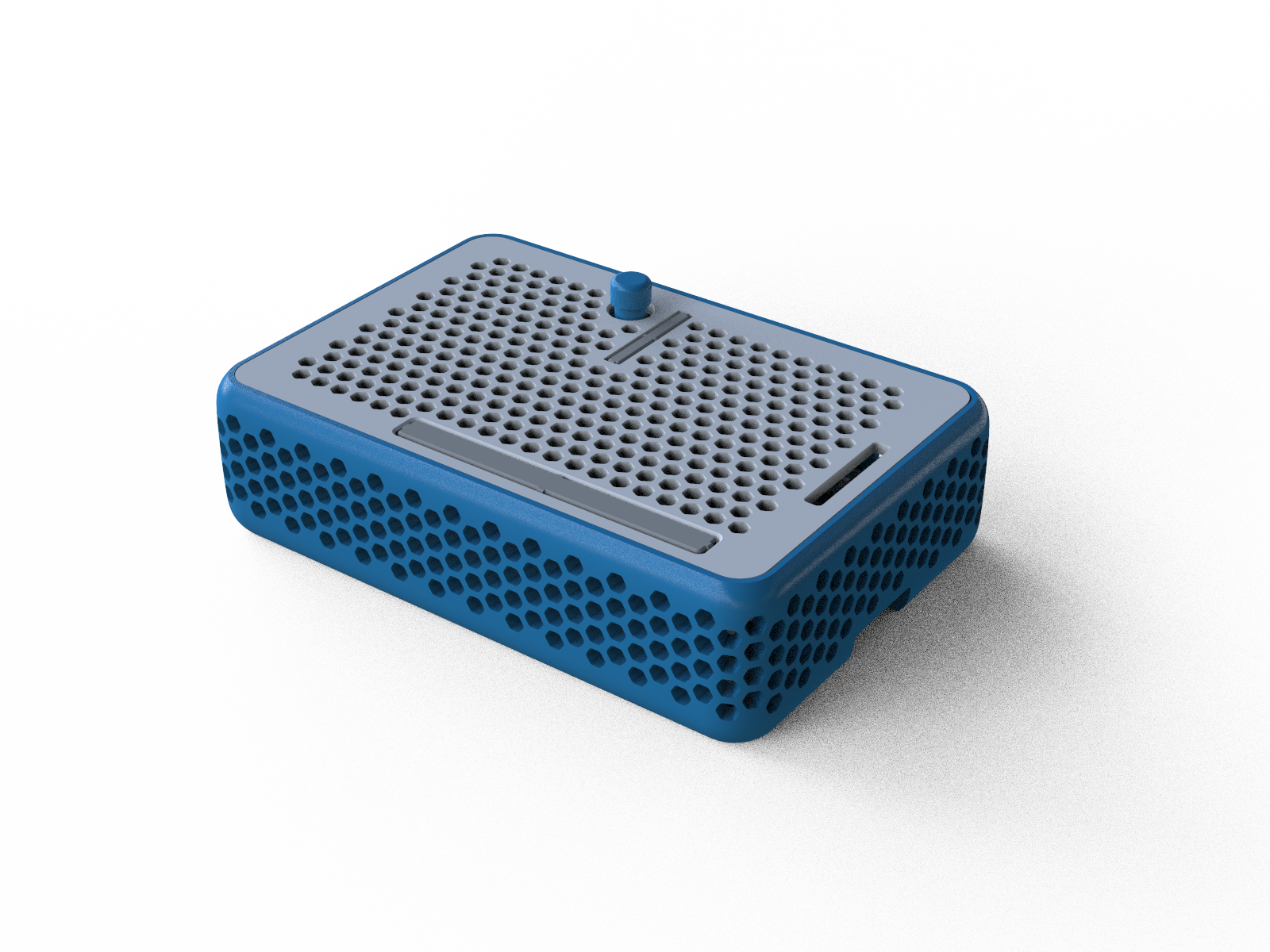

Vented Case, SnapTop...

This case is built for a cooler CPU when active cooling is used... derived from the need to cool the Pi 4B, The case requires a fan for significant cooling.

This case will not cool the sbc by itself, but the venting helps when a fan is used.

Fan mount top available... Requests taken and if there is a common fan used a cover will be generated... please send suggestions.

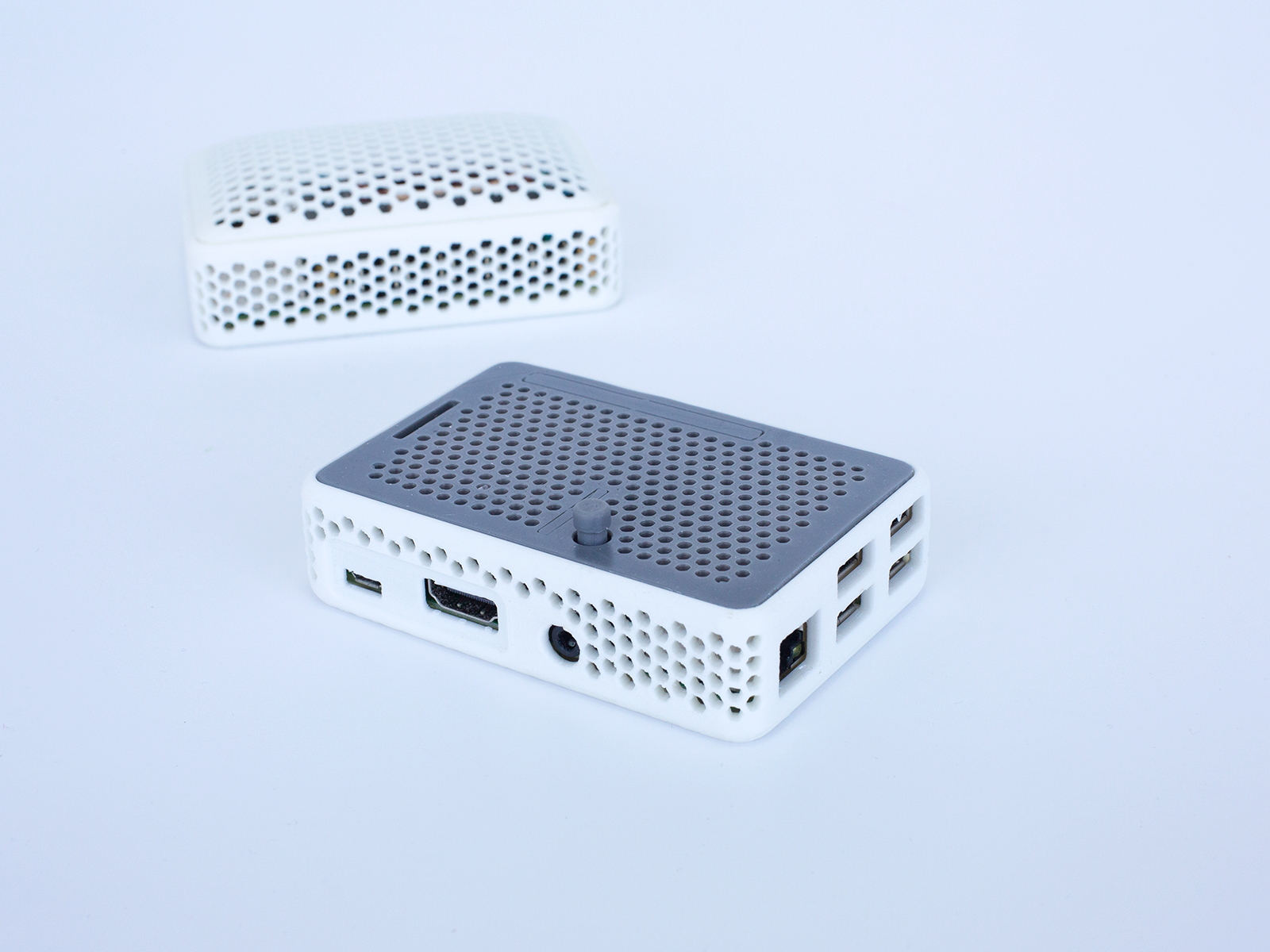

IO supports included will snap out, but leave small marks. see photos.

Screws

Pi takes M2.5 (a set of 4 screws and nuts needed... 4 standoffs and another set of 4 screws for Hat Boards) . The platform for the MLB is a snug fit, so it is possible to skip the screws).

Print instructions

Please NOTE!   Remove the MicroSD Card before assembly and disassembly!

ABS, prints with popout supports for io.

Repaired Case inner surface trim.... case-pi3b-hex2B.stl
