Descrição
See also: Strain wave gearing - Wikipedia
Remarks on Printing
- Part “FlexSpline” should preferably be printed in PETG
- Part “Roller” should be printed 21 times (plus optinal spares)
- Part “Screw” shold be printed 4 times. Can be replaced by M6x14 machine screws.
Assembly Guide

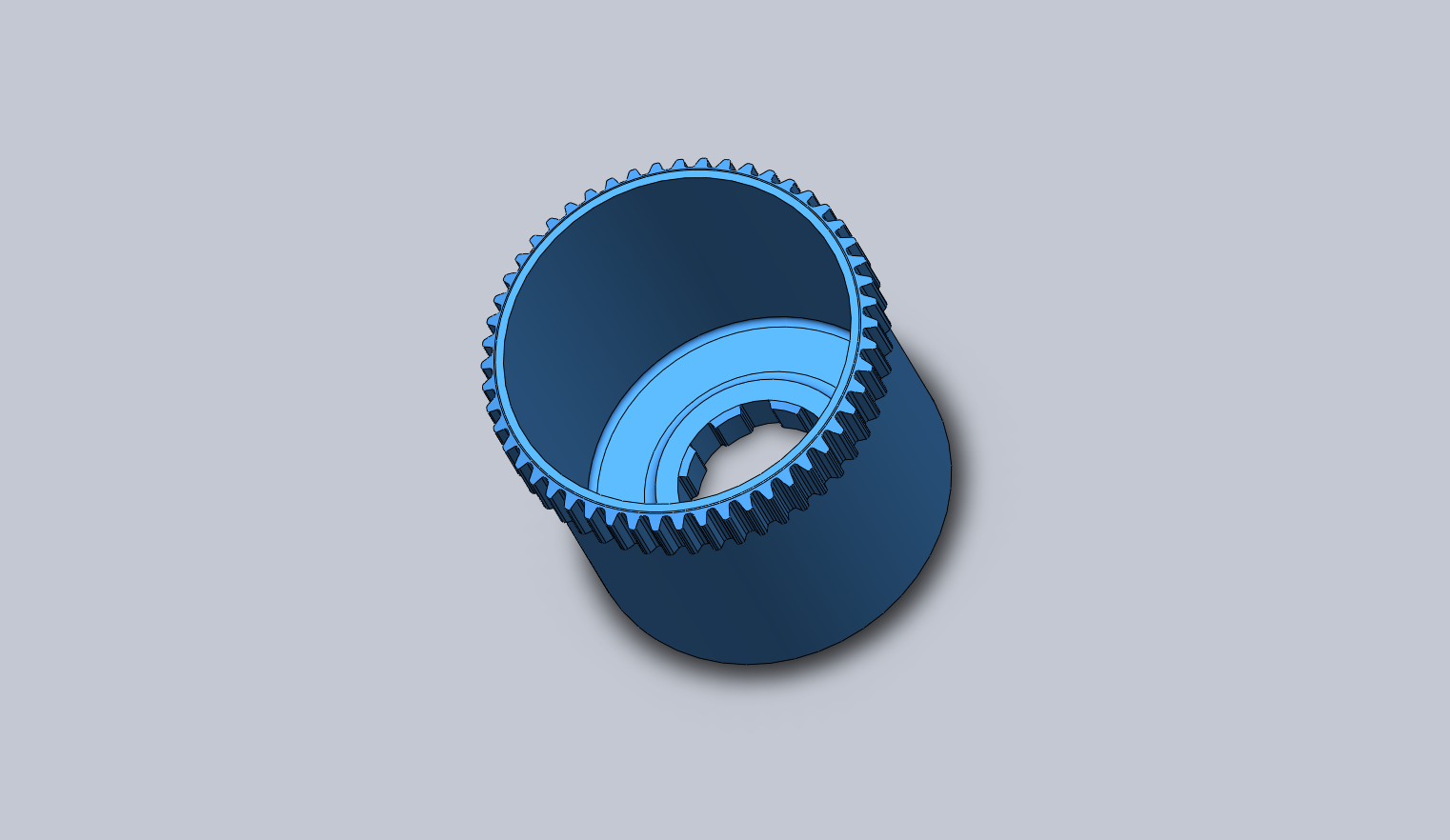

First take the flex-spline:

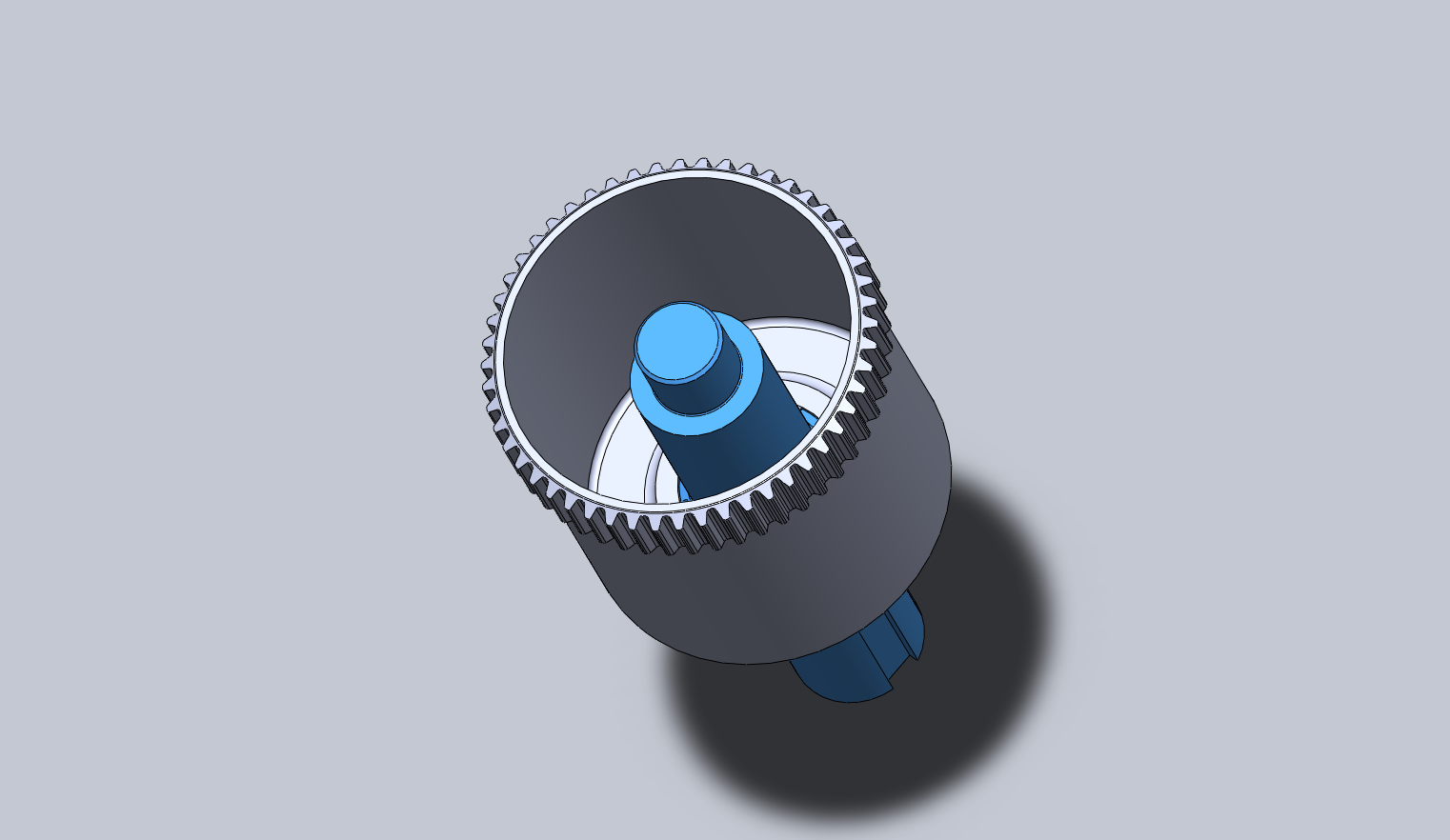

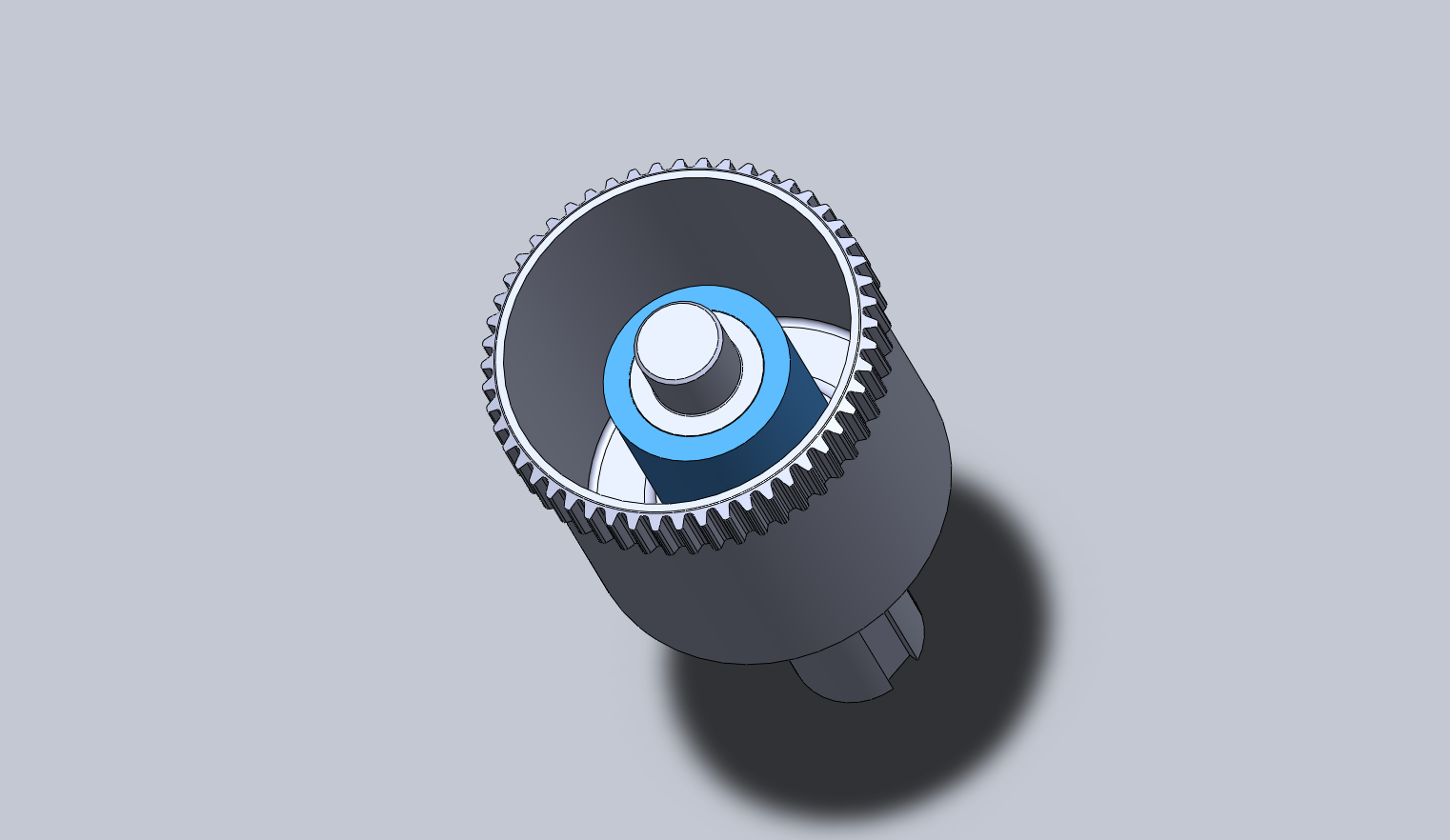

Insert the output shaft from the backside:
Put in the spacer piece:

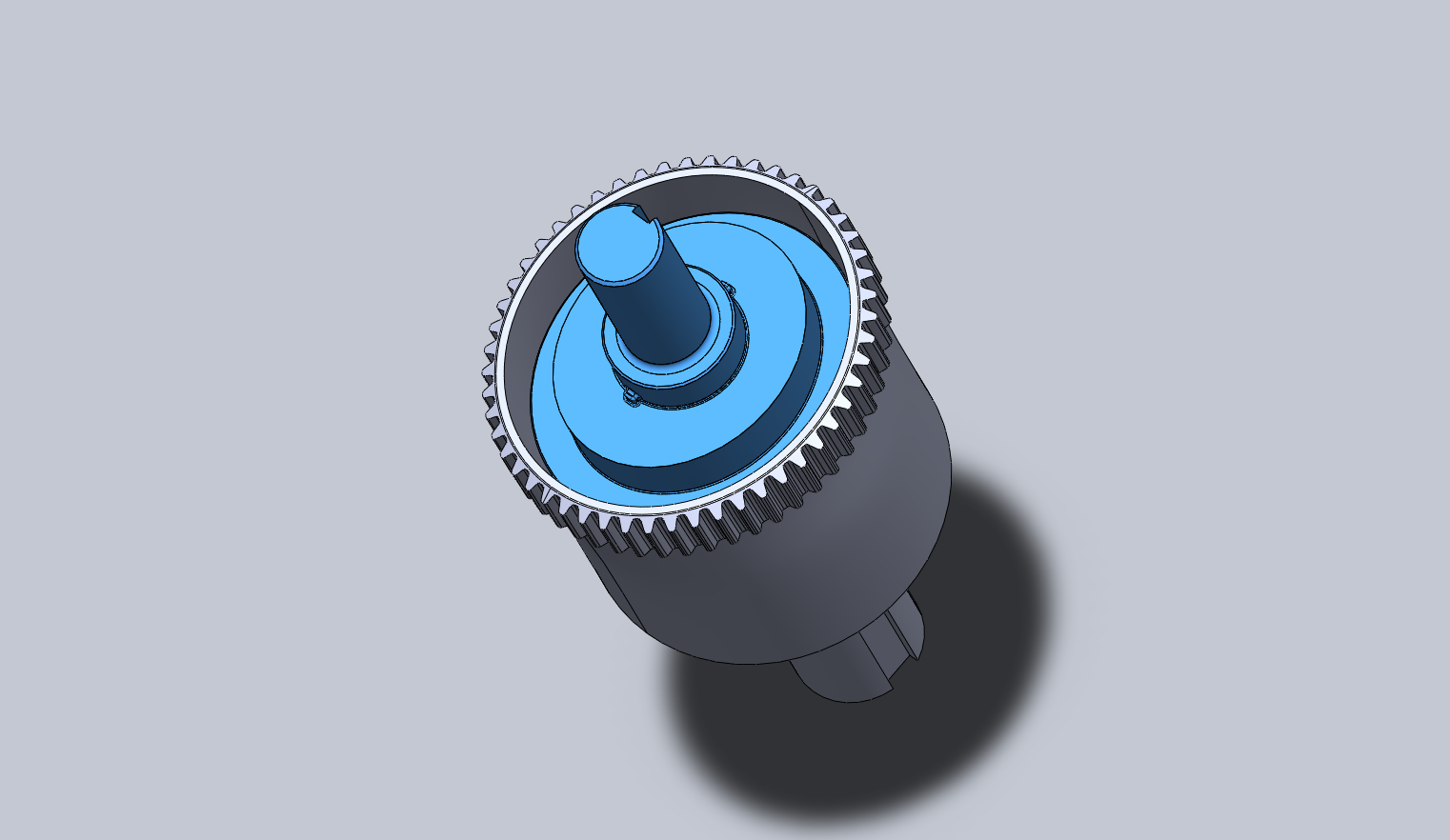

Mount the base of the wave generator:

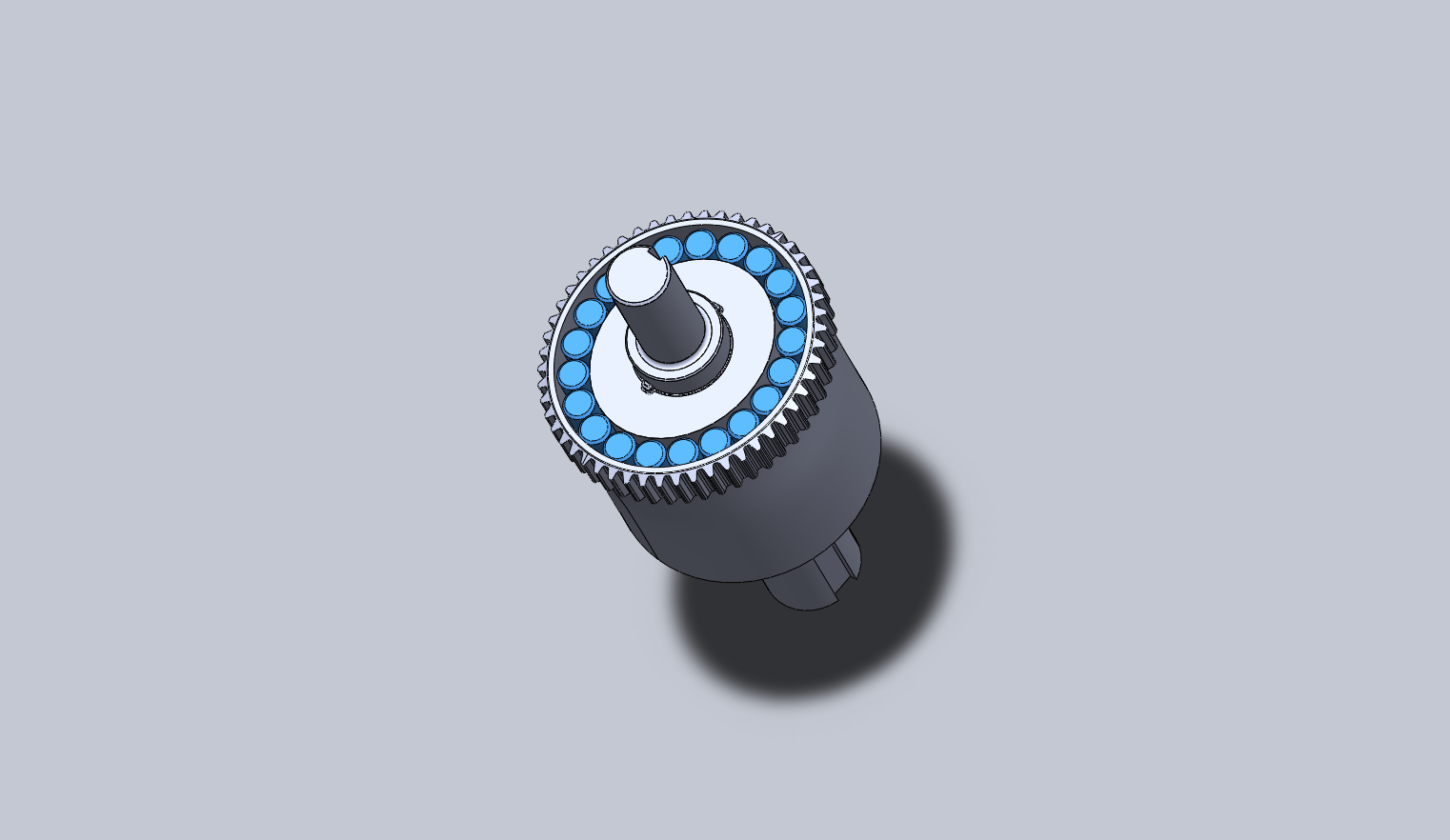

Insert the 21 roller pieces:

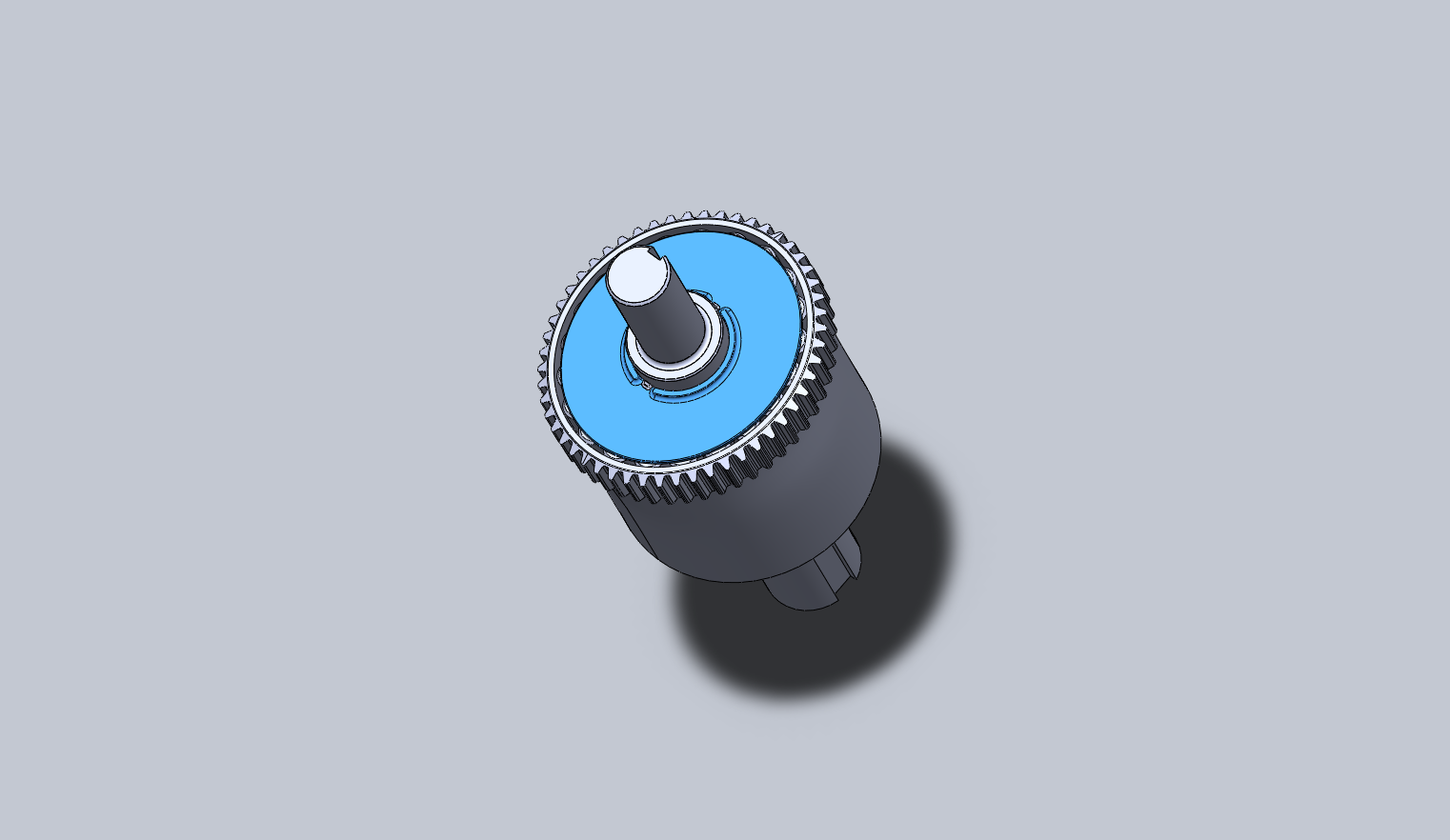

Put on the cover on the wave generator:

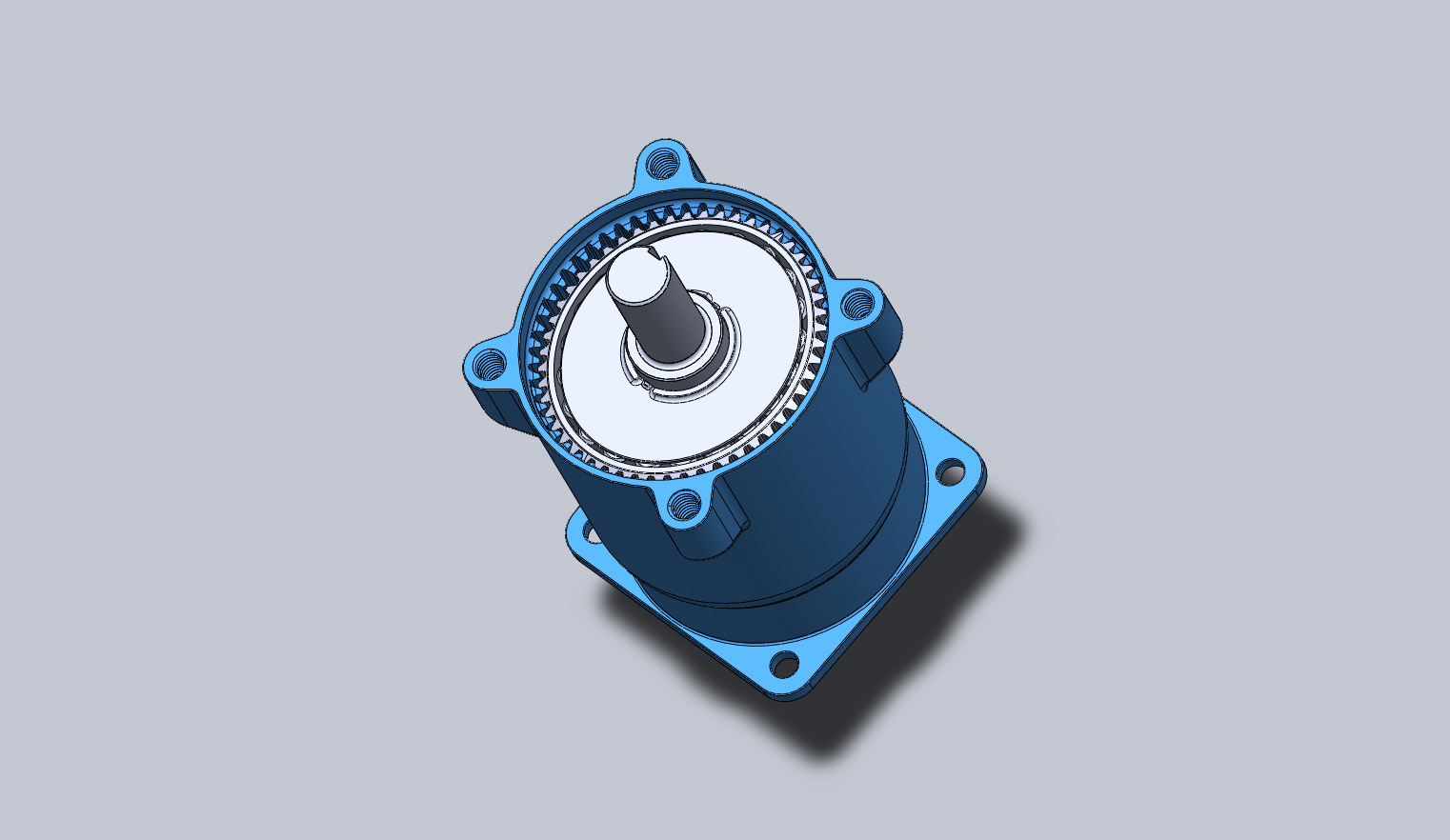

Place the whole assembly in the housing:

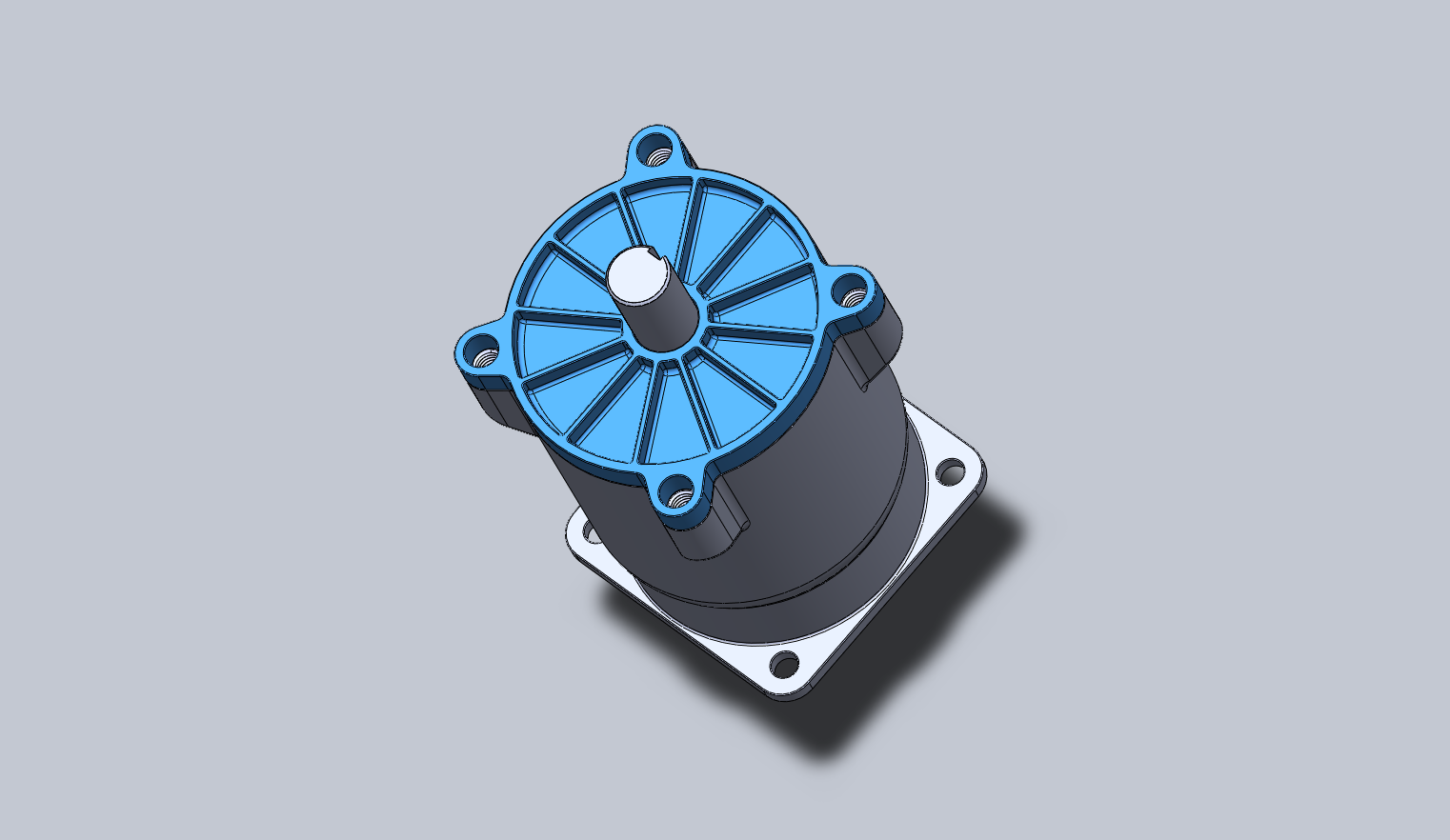

Put on the lid:

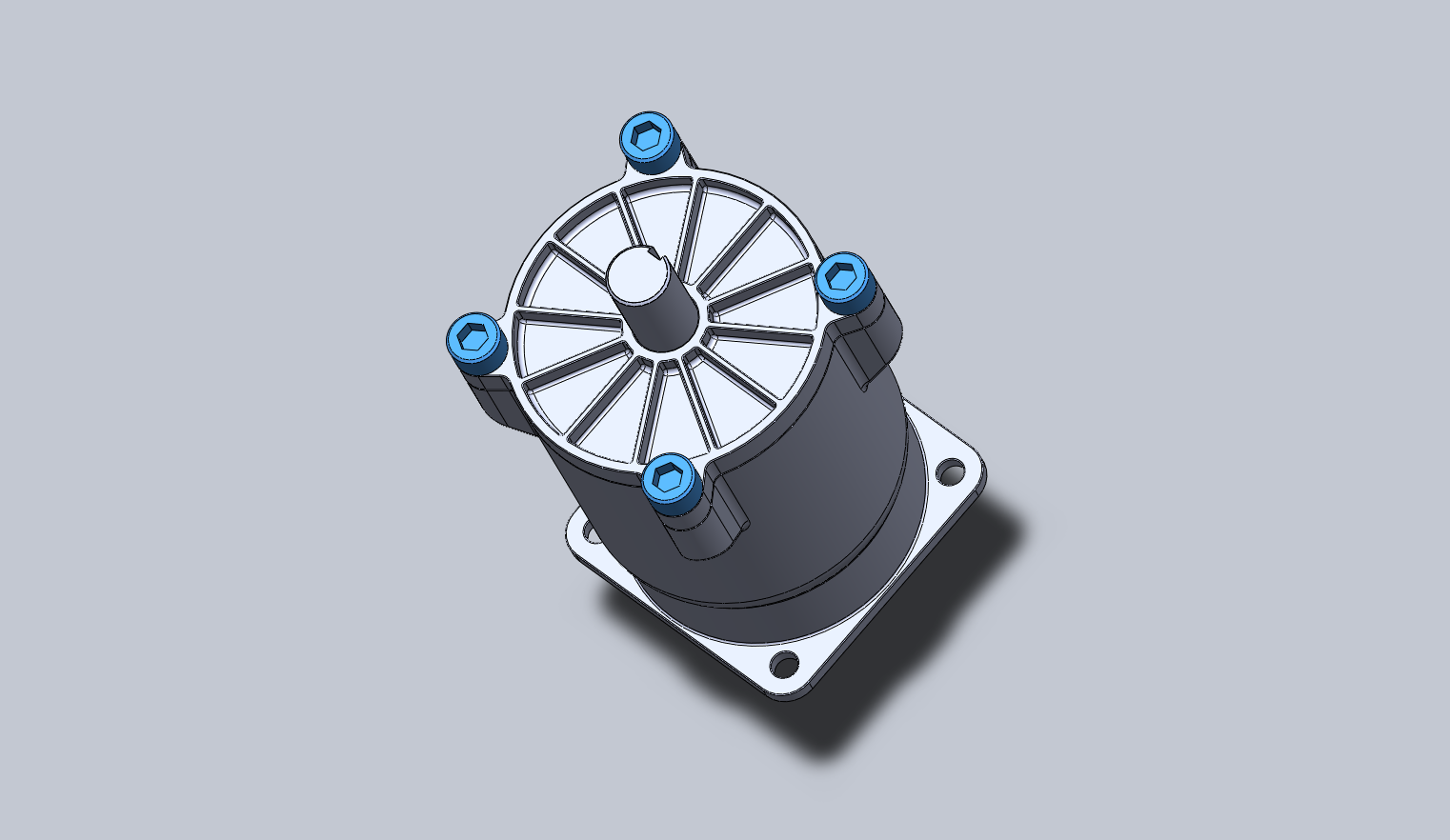

Fix the lid using the 4 crews:
Cross-Section View
4
Curtidas
85
Downloads
Categoria
Engineering
Tags
mechanical
gearbox
harmonicdrive
Licença
Creative Commons — Public Domain
