Modelo 3D Reprap graphic smart controller case por Will no Printables

Descrição

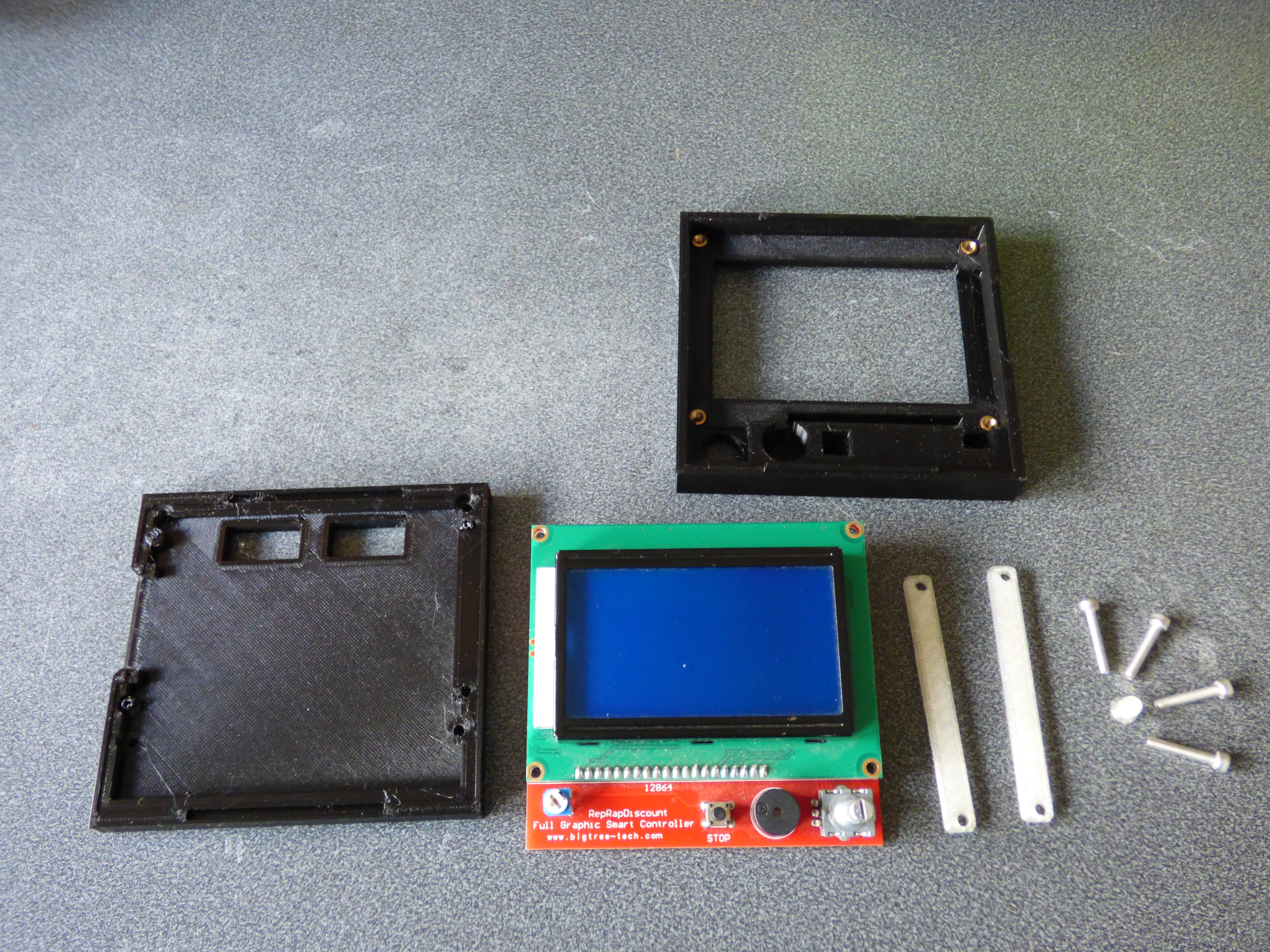

A case for reprap full graphic smart controller. This has four M3 mounting holes on the back so that you can create your own mount.

The mount stl file is included mostly for you to use as referance inorder to make your own mount.

Print two of the spacers and one of everything else except the mount.

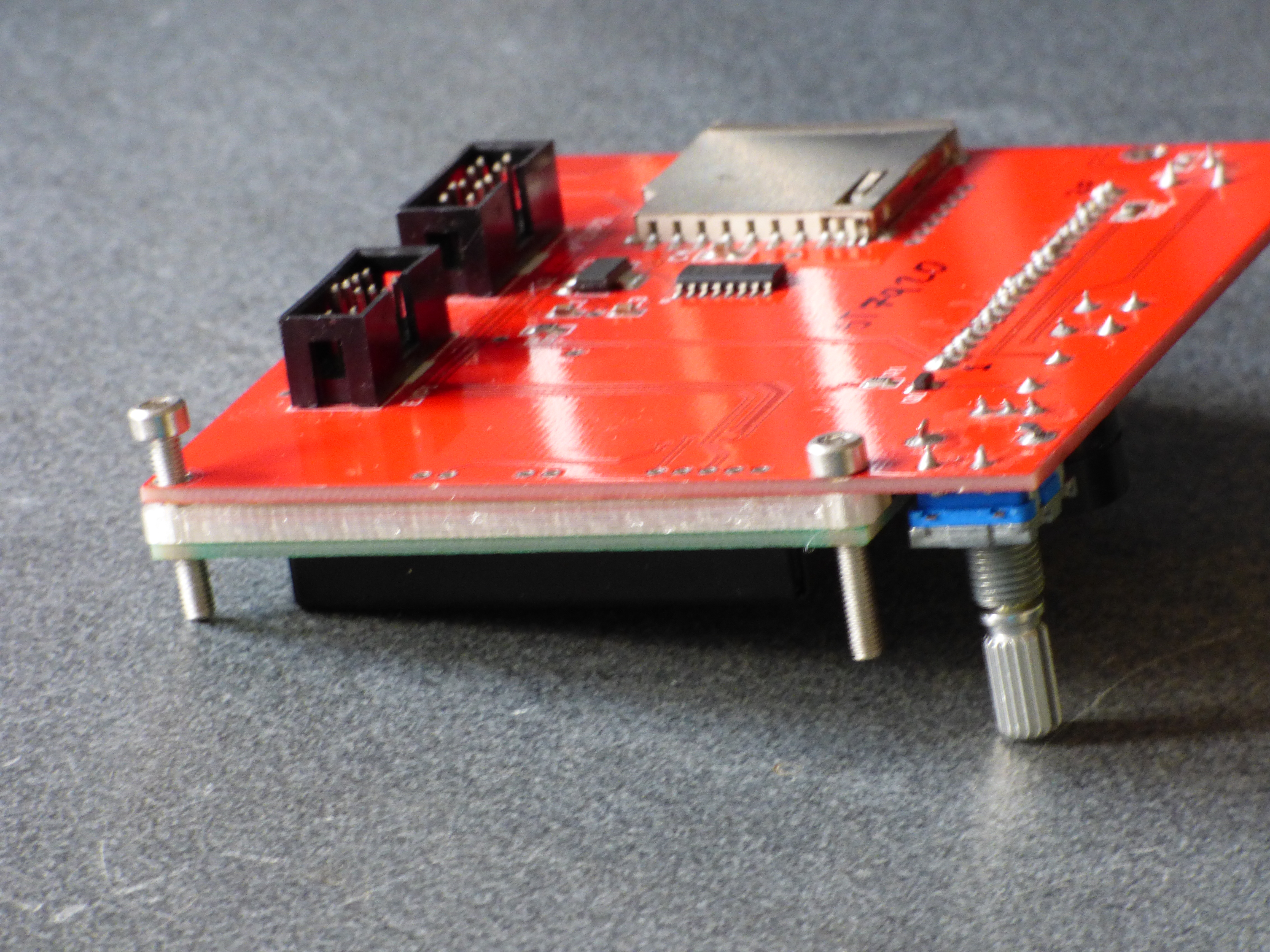

The Spacers are designed to go between the two PCB, just to prevent crushing the boards when you screw it together. You might need to adjust the thickness of these in prusa slicer, just unlock the scale and adjust the Z height to what you need.

You will also need

8 x M3 heat set inserts with an outside diameter of 5.4mm.

4 x M3 x 18 screws to seel the cover

4 x M3 screws to attach the LCD to your custom mount, Length depends on your design.



I've included a basic mount with the critical dimentions on it, also a PDF file with the same dimentions on it.

Printables

Reprap graphic smart controller case

Publicado em 24 de abr de 2024

2
Curtidas
24
Downloads
Categoria Other Printer Parts & Upgrades
Tags
reprap lcd lcdcover reprapdiscount graphic
Licença Creative Commons — Public Domain
Arquivos (5)
Case base.stl 101.8 KB
Mounting plate.stl 144.4 KB
Case lid.stl 1.6 MB
Spacer.stl 88.6 KB
Button.stl 876.7 KB
