Modelo 3D Prototype Smooth Beams Large Holes por NotLikeALeafOnTheWind no Printables

Descrição

Update: Added 3in, 4in 5in, 7in, 8in, 9in, 10in, 11in and 12in

Update: Added an 8in version of the beam.

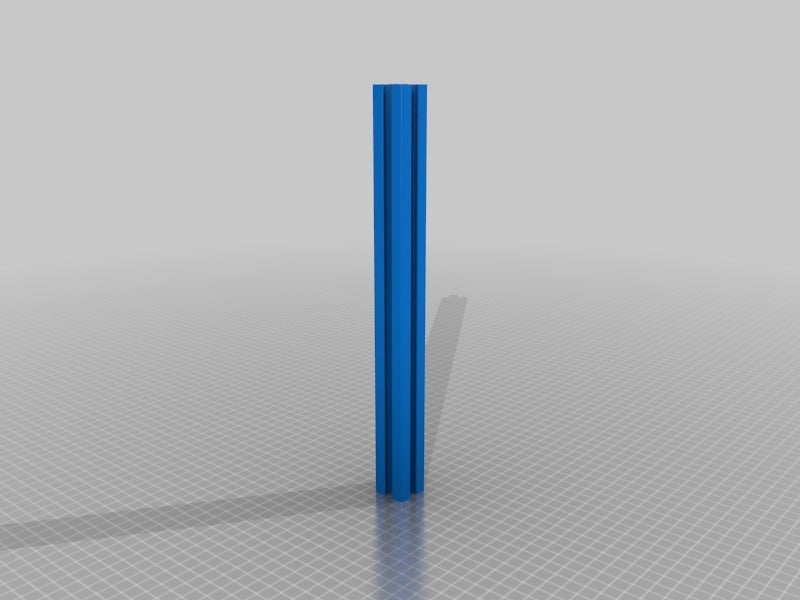

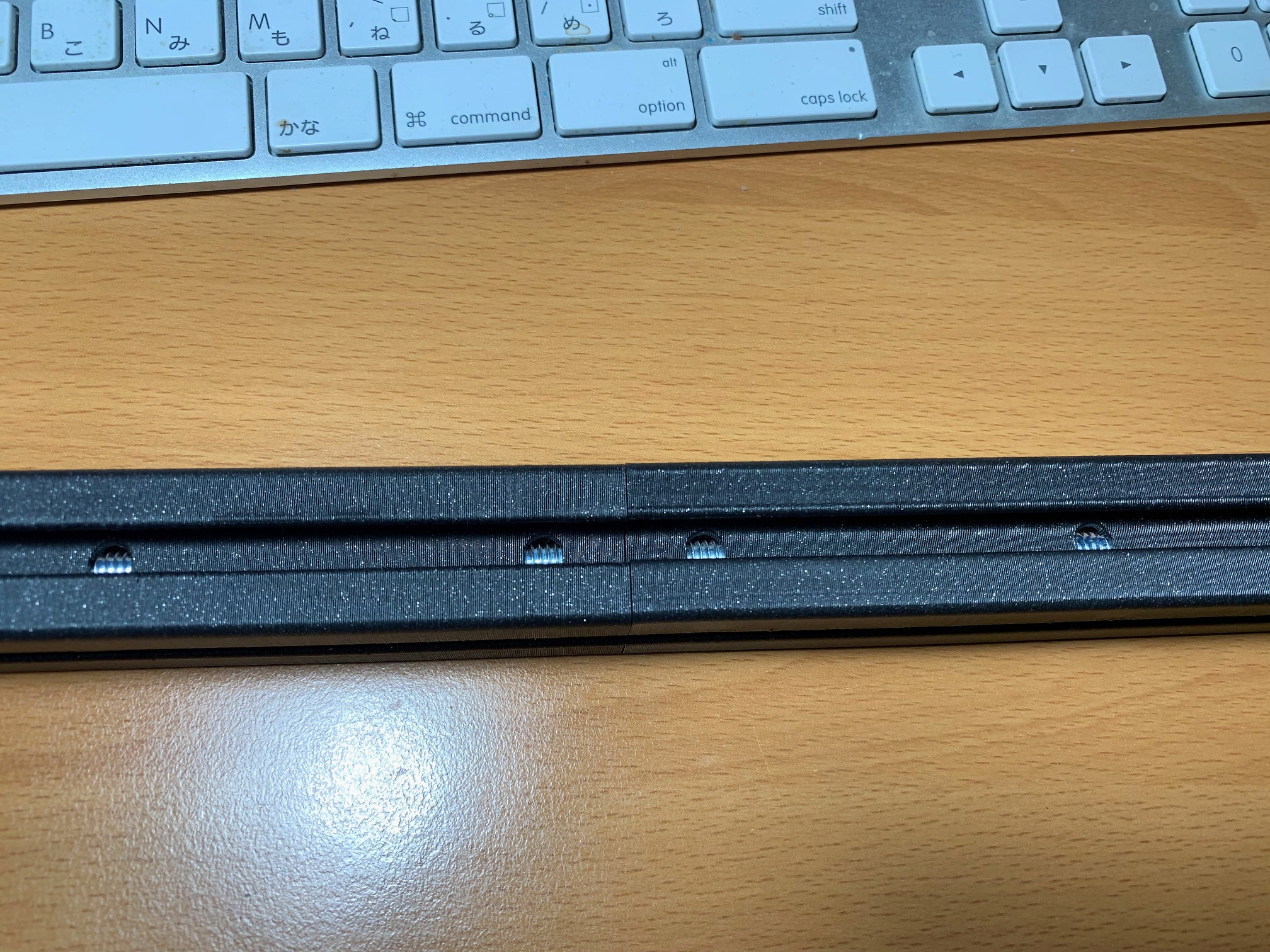

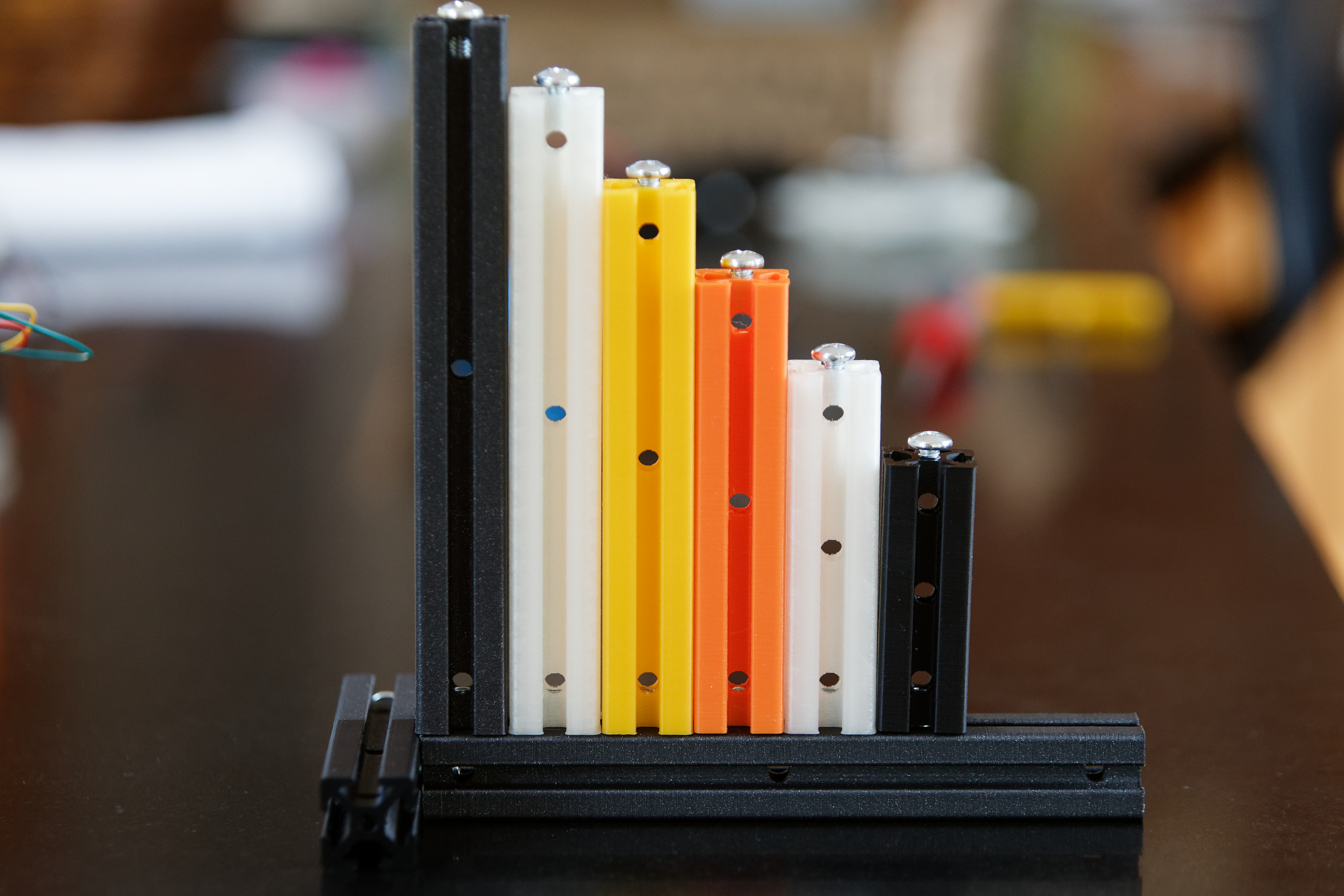

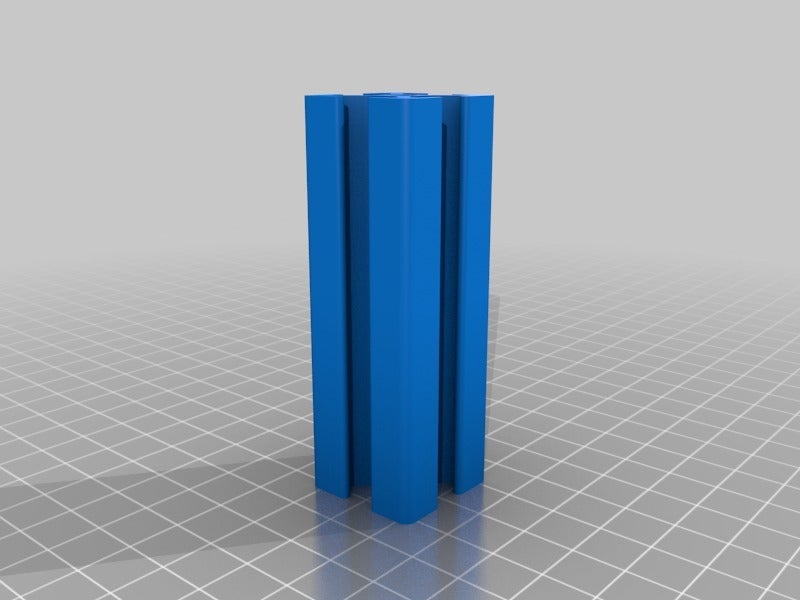

A 6in series 10 compatible beam for rapid prototyping. The beam has holes positioned at 0.5in from both ends as well as in the center (3in.) The holes are large enough for a standard phillips head screwdriver. The ends of the beam at taped for a 1/4-20 fastener. It is compatible with 8020 series 10 end connectors and t-nuts. It is also possible to use a standard 1/4-20 pan head screw.

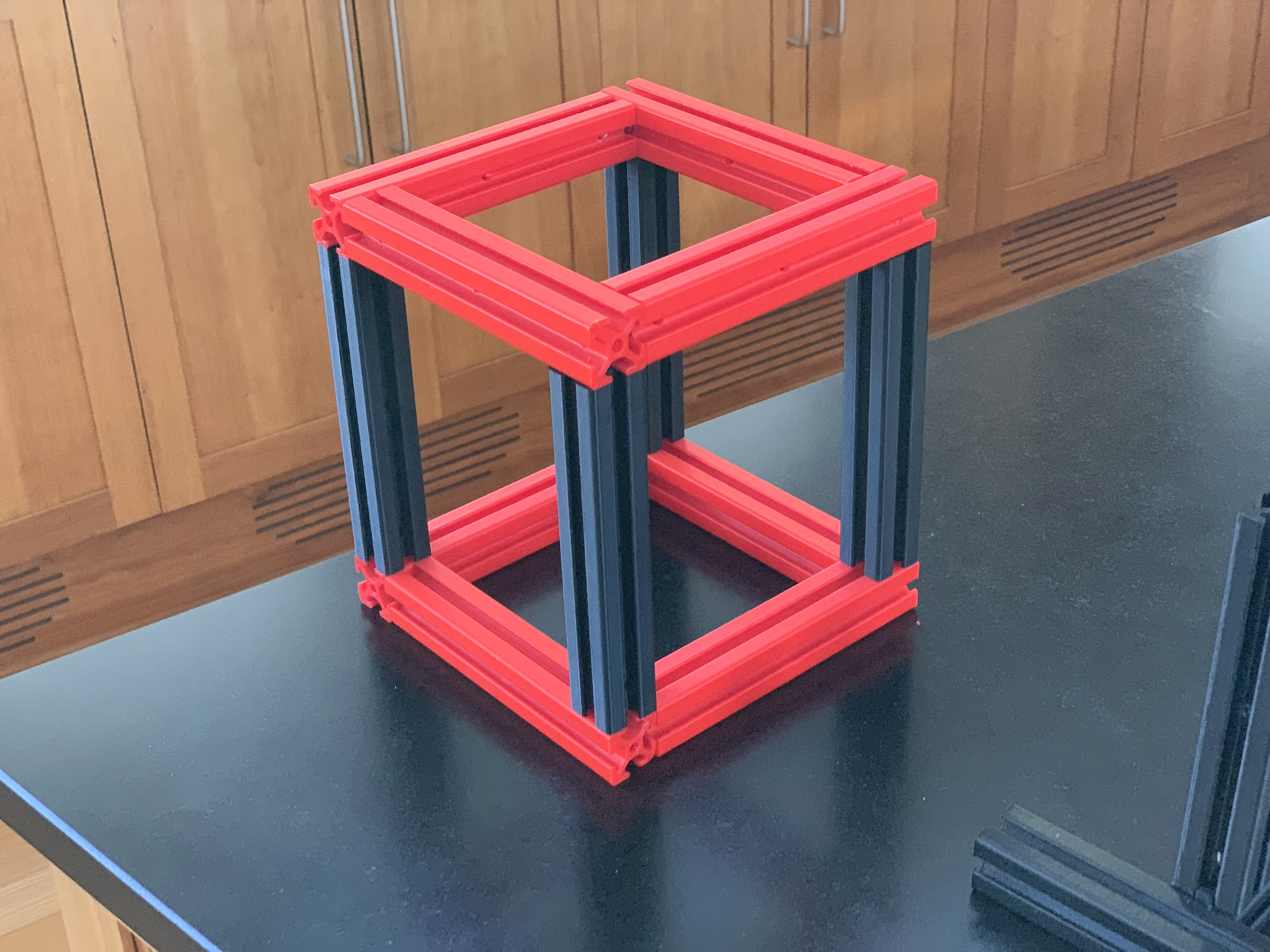

These beams work fine for light duty mock ups of sensor mounts, but are not recommended for real loads.

Print instructions

Unassociated tags: t slot
Category: 3D Printer Parts

Printables

Prototype Smooth Beams Large Holes

NotLikeALeafOnTheWind NotLikeALeafOnTheWind (abre em nova aba)

Publicado em 21 de dez de 2019

17
Curtidas
140
Downloads
Categoria RC & Robotics
Tags
extrusion tslot prototyping thingiverse aluminumextrusion aluminiumprofile prototype 1010
Licença Creative Commons — Attribution — Noncommercial
Arquivos (18)
general_beam_smooth_8in_large_holes_v1_8522.stl 5 MB
8in_column_large_holes_v2_8522.stl 5 MB
12in_column_large_holes_v1_8522.stl 5.6 MB
9in_column_large_holes_v1_8522.stl 5.2 MB
7in_column_large_holes_v1_8522.stl 4.9 MB
10in_column_large_holes_v1_8522.stl 5.3 MB
5in_column_large_holes_v1_8522.stl 3 MB
3in_column_large_holes_v1.stl 2 MB
12in_column_large_holes_v1.stl 5.6 MB
11in_column_large_holes_v1.stl 5.5 MB
7in_column_large_holes_v1.stl 4.9 MB
5in_column_large_holes_v1.stl 3 MB
general_beam_smooth_6in_large_holes_v2.stl 3.2 MB
10in_column_large_holes_v1.stl 5.3 MB
8in_column_large_holes_v2.stl 5 MB
4in_column_large_holes_v1.stl 2.9 MB
9in_column_large_holes_v1.stl 5.2 MB
general_beam_smooth_8in_large_holes_v1.stl 5 MB
