Acoustic Levitator test dish

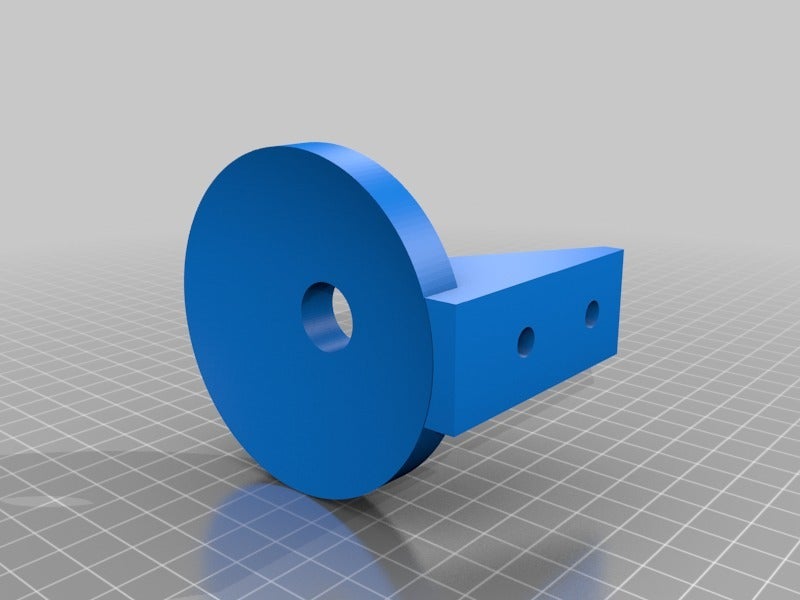

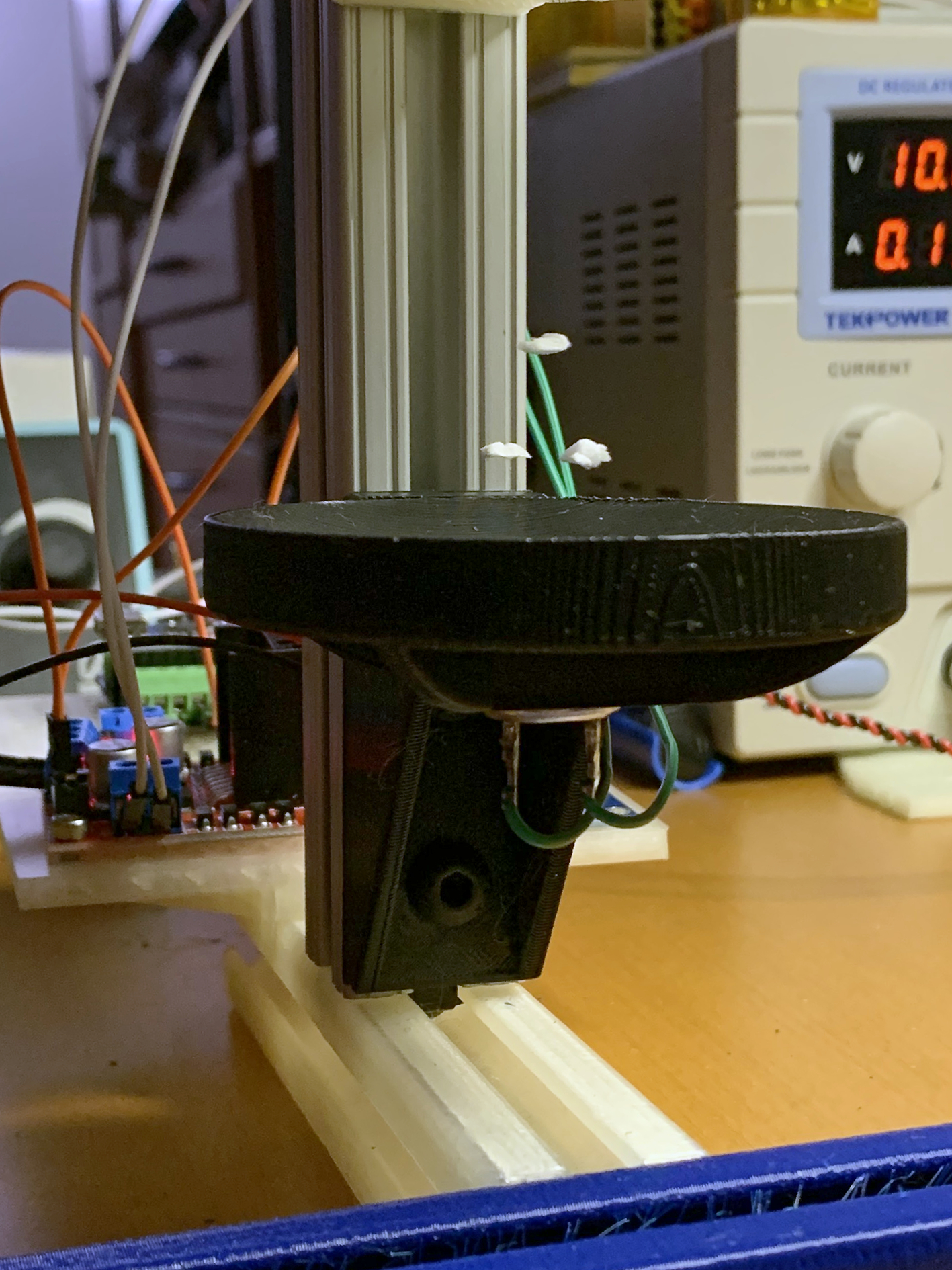

An alternate design for a mounting a transducer on a 8020 series 10 extrusion. This design is focused at approximately 89mm. A pair of them are used to create a version of the MiniLev found in Asier Marzo's instructable:

[http://www.instructables.com/id/Acoustic-Levitator/](http://www.instructables.com/id/Acoustic-Levitator/)

The holes are sized for 1/4 - 20 screws. The design requires two 8020 T-nuts and screws.

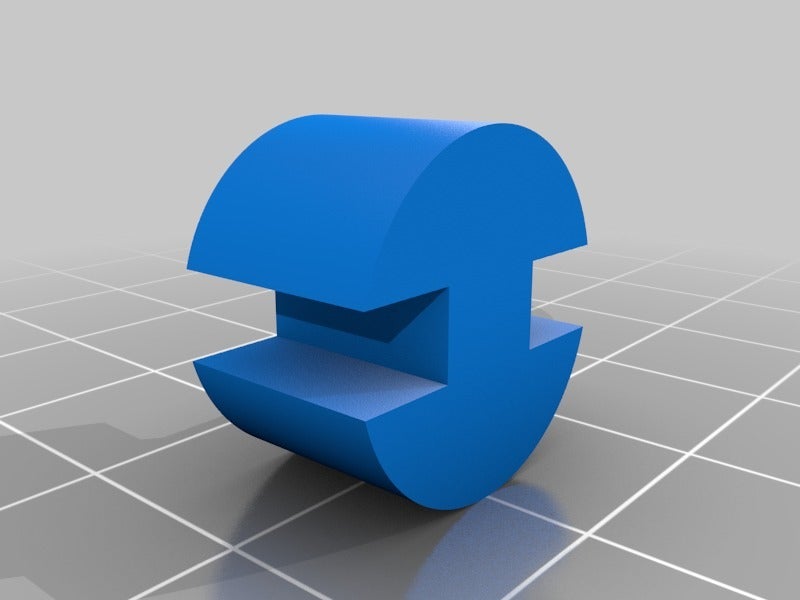

The transducer removal tool is a plug that will allow the transducer to be pushed back out of the mount.
