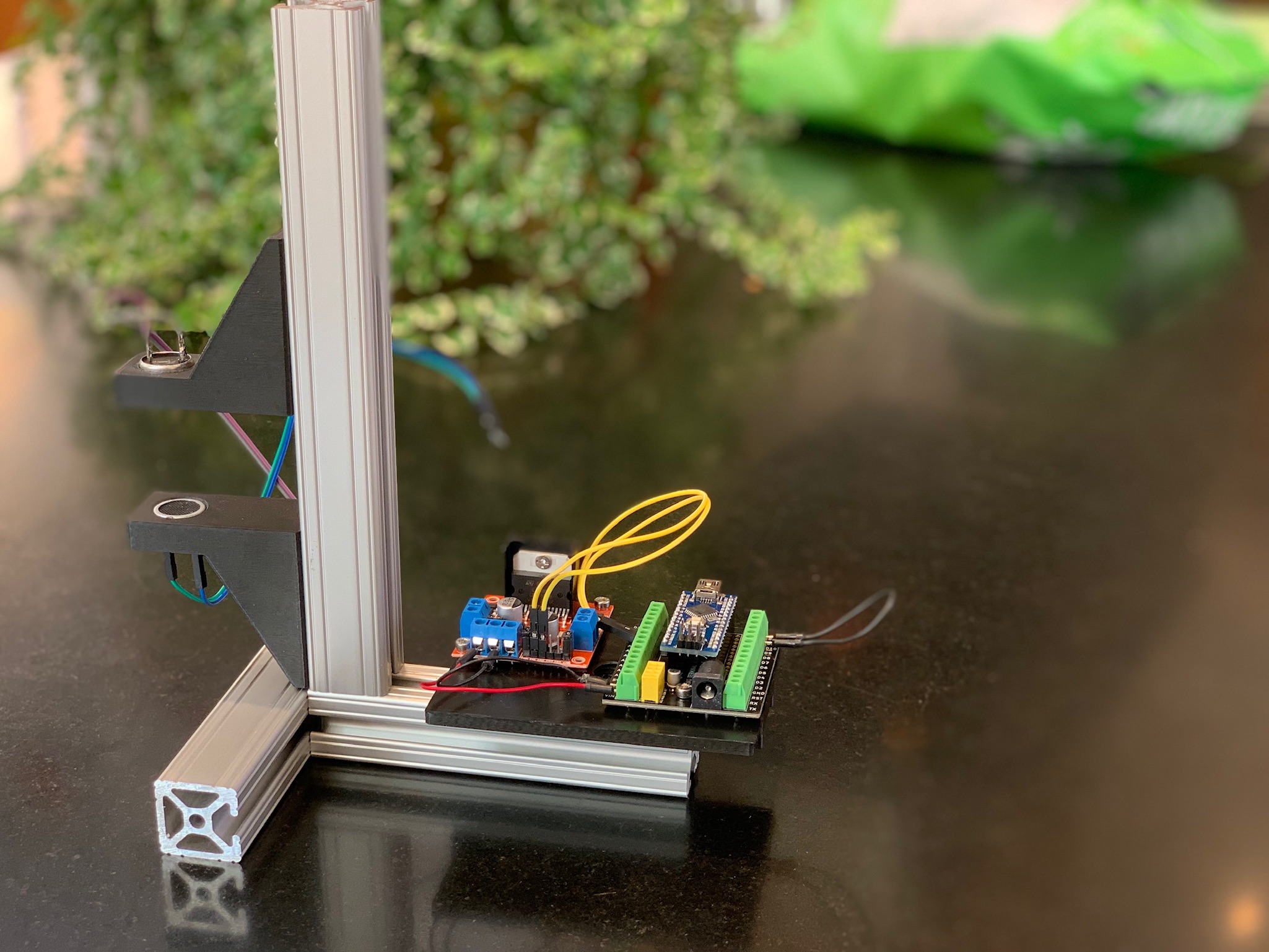

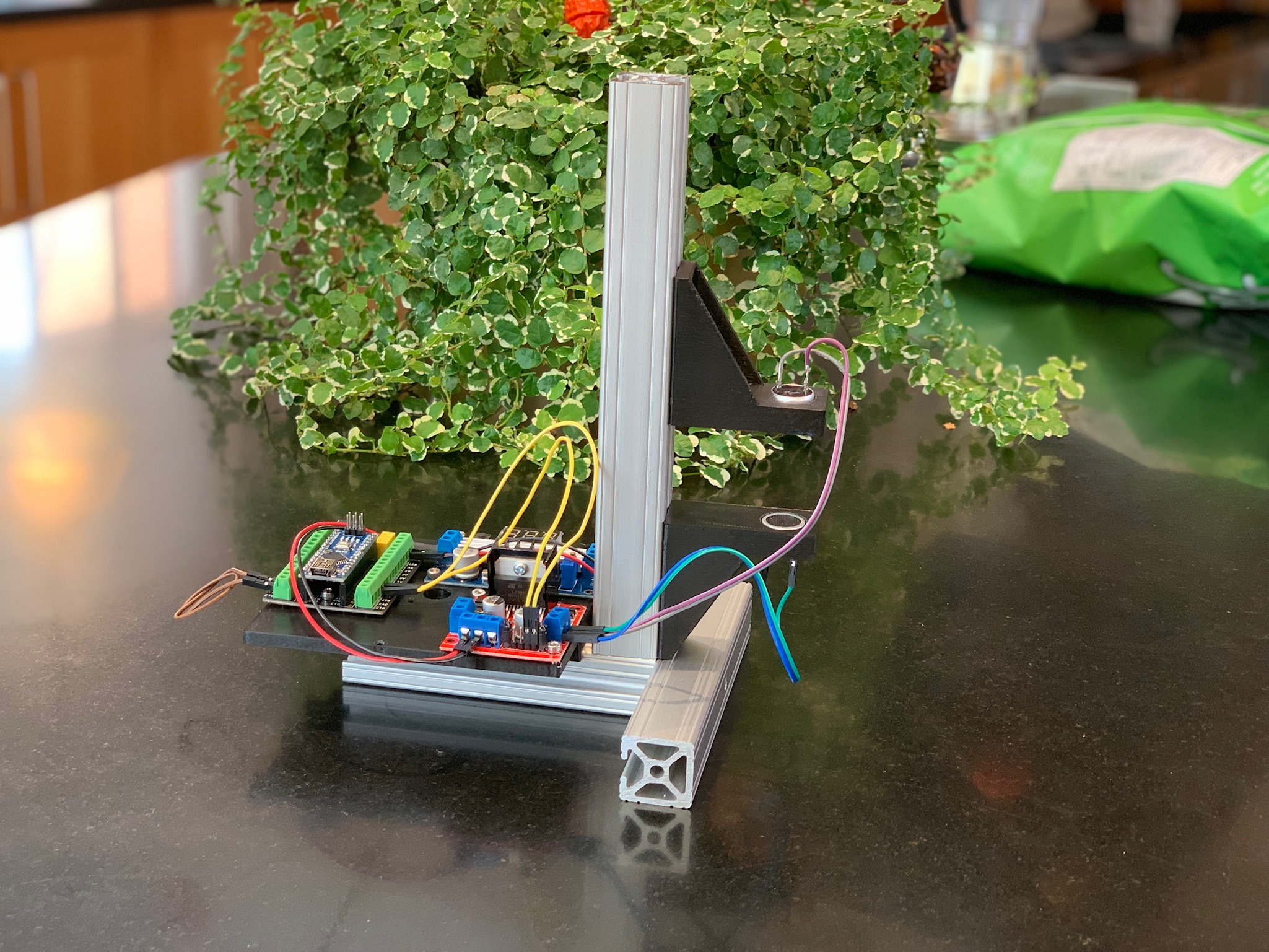

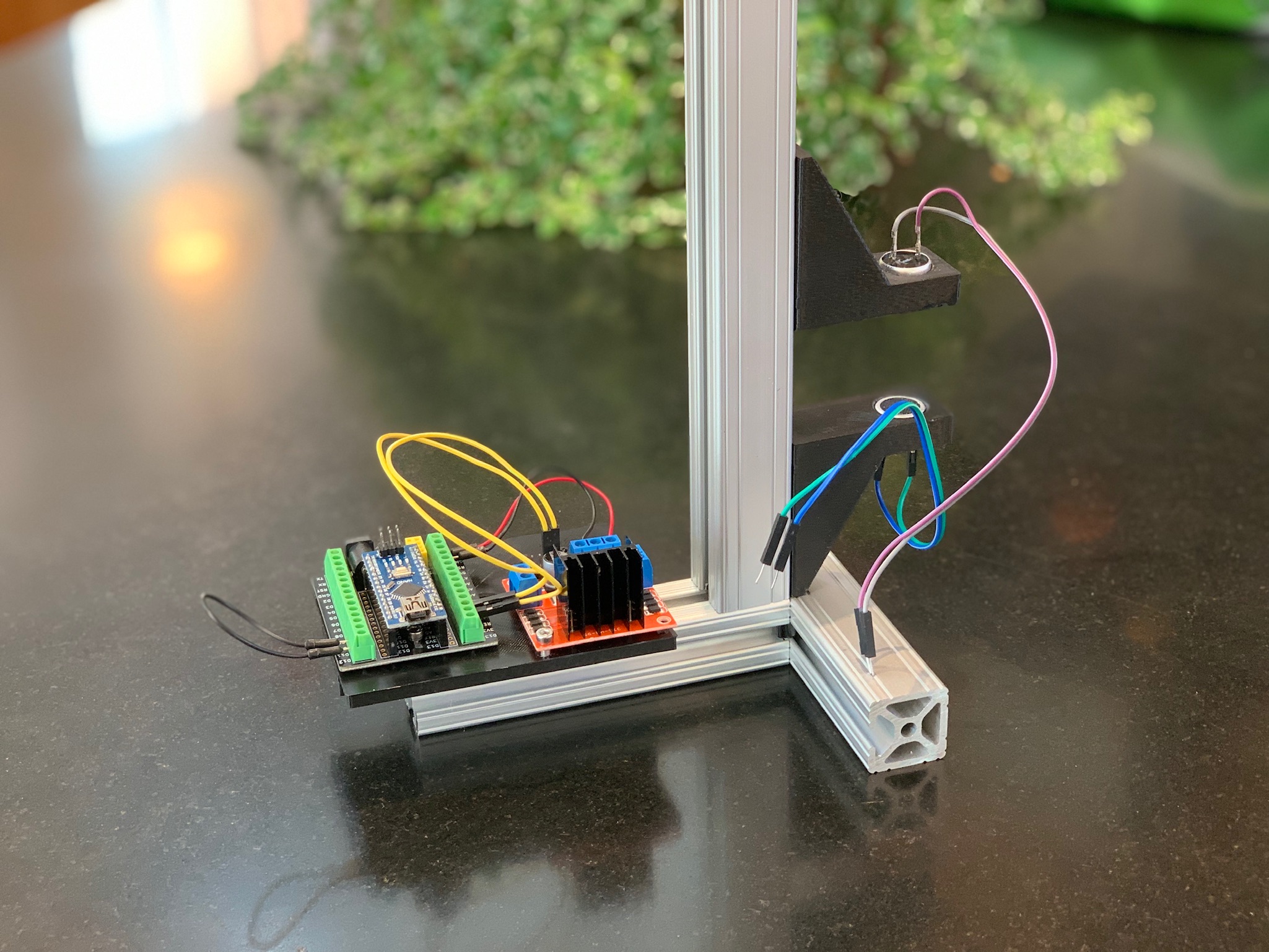

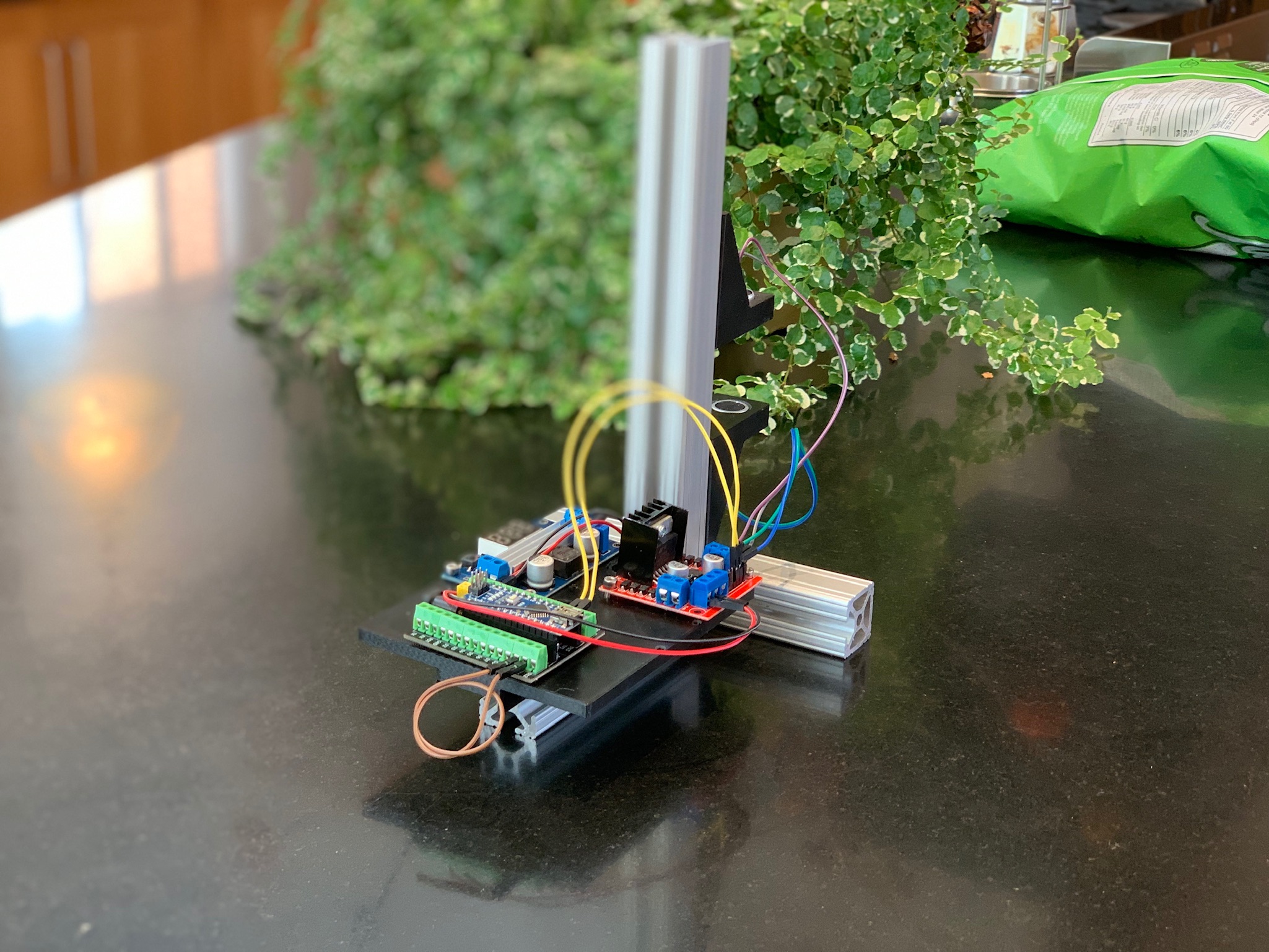

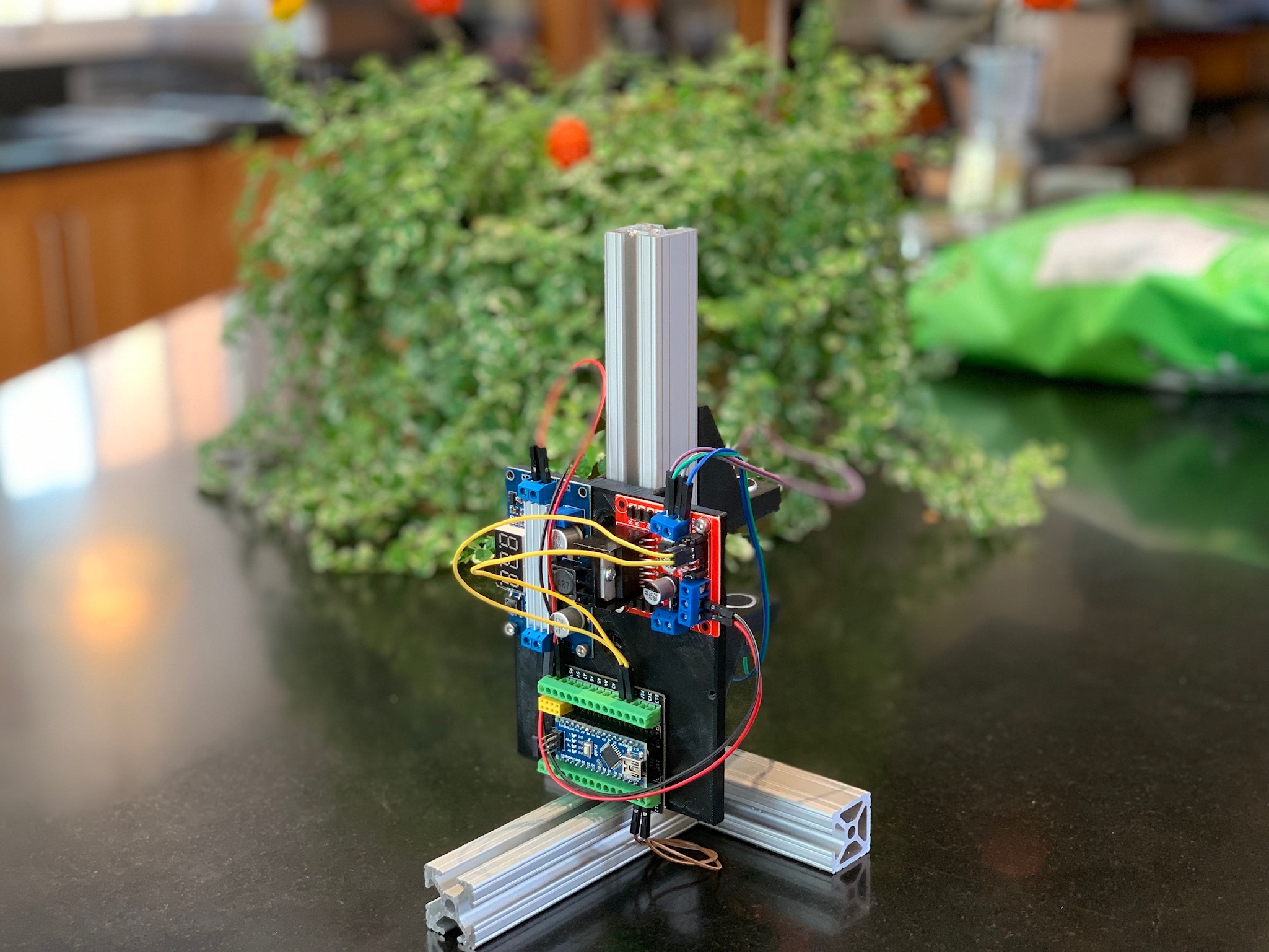

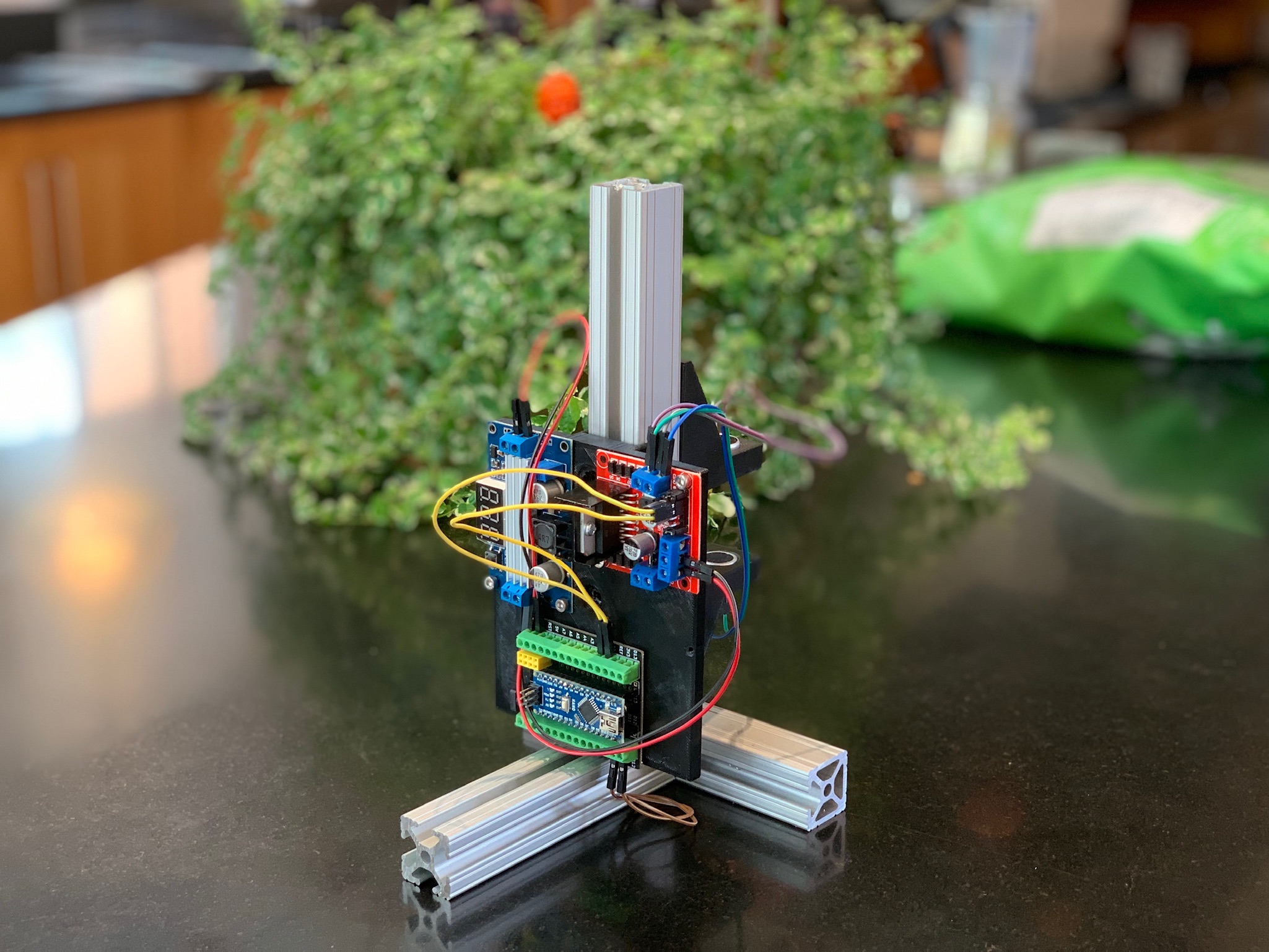

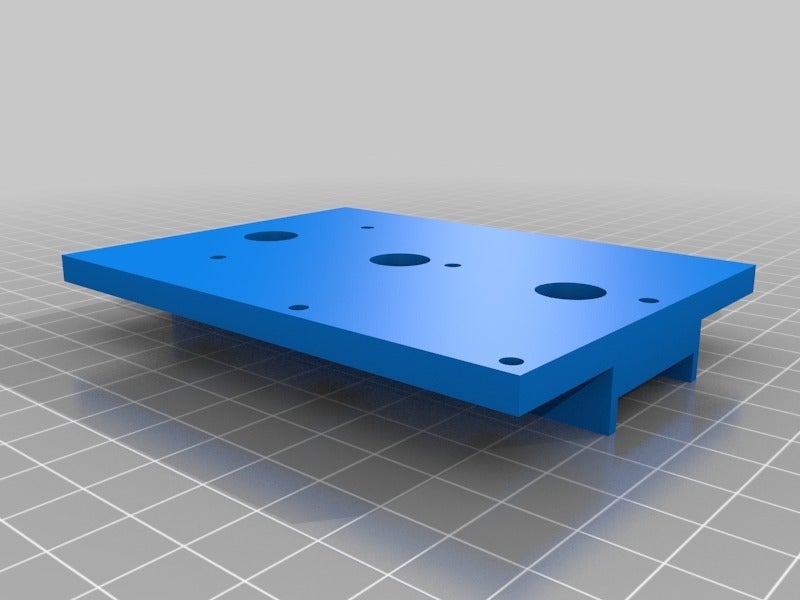

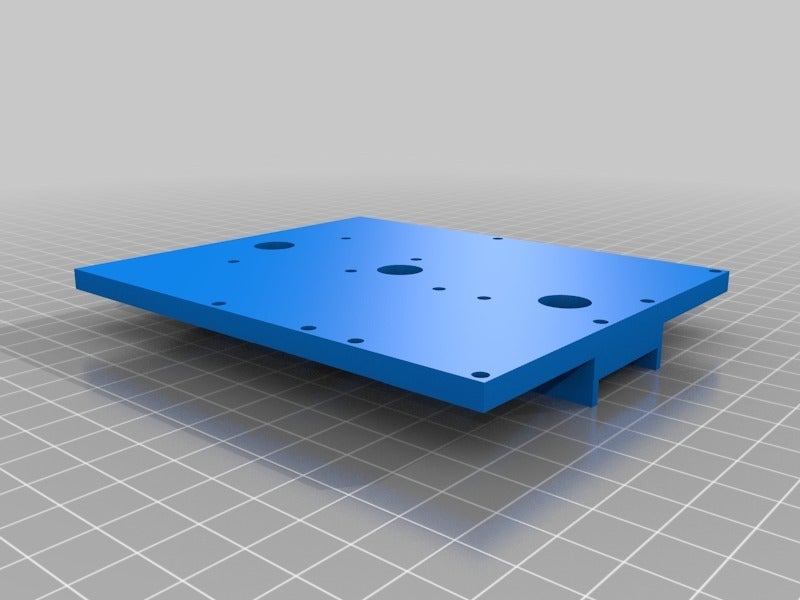

A mounting platform for the electronics associated with Asier Marzo's ([http://www.instructables.com/id/Acoustic-Levitator/](http://www.instructables.com/id/Acoustic-Levitator/) ) Mini Lev. Two versions are provided for projects with and without a voltage converter.

To simplify wiring the Arduino Nano is mounted on a terminal block board. The board allows for assembling the project with out soldering and makes use of the barrel jack on the terminal board to connect to a power supply.

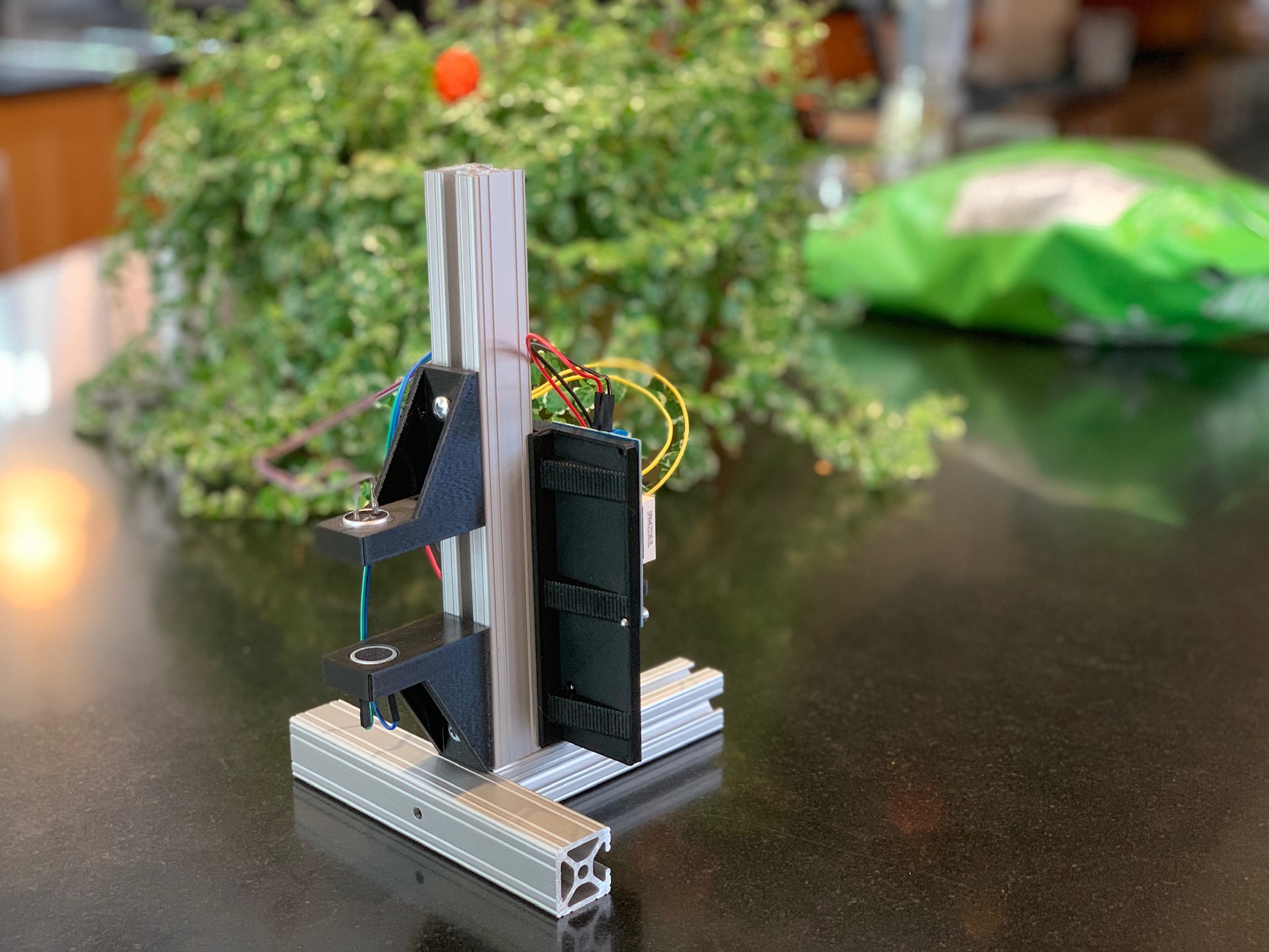

In addition to 3d printing the platform you will need a 1/4-20 screw and T-nut to attache it to the extrusion.

These are the links to the boards we used to size the hole placement. (Note: the tolerance on some of the low cost boards is not consistent from batch to batch.)
