Parametric table mount

This is a remix of 1llia's great Table mount extender model. The original model is a really great idea, but unfortunatelly it did not fit exactly to my needs, so I re-designed it from scratch.

You can download and print the original model from here: [https://www.printables.com/model/824233-table-mount-extender-clamp](https://www.printables.com/model/824233-table-mount-extender-clamp)

The extender part is now parametric, some small adjustment were made on the screw and a new part (extender mount) was added.

You can download the parametric Fusion 360 file, and 3 different printable versions:

• 150 mm with screw
• 200 mm with screw
• 250 mm with screw

Please note that different version can have different strength and weight capacity, be careful and test if before first use.

Update (2024.04.16)

I have re-uploaded all model files due to the folllowing changes:

• Fillet radius inside the frame was modified to 5mm to increase the strength of the model
• Outside fillet radius was cut to 1mm to have smoother fit to the desk
• Extender mount insert was tightened

Differences compared to the original model:

• the extender can be freely modified in Fusion 360 according to your needs

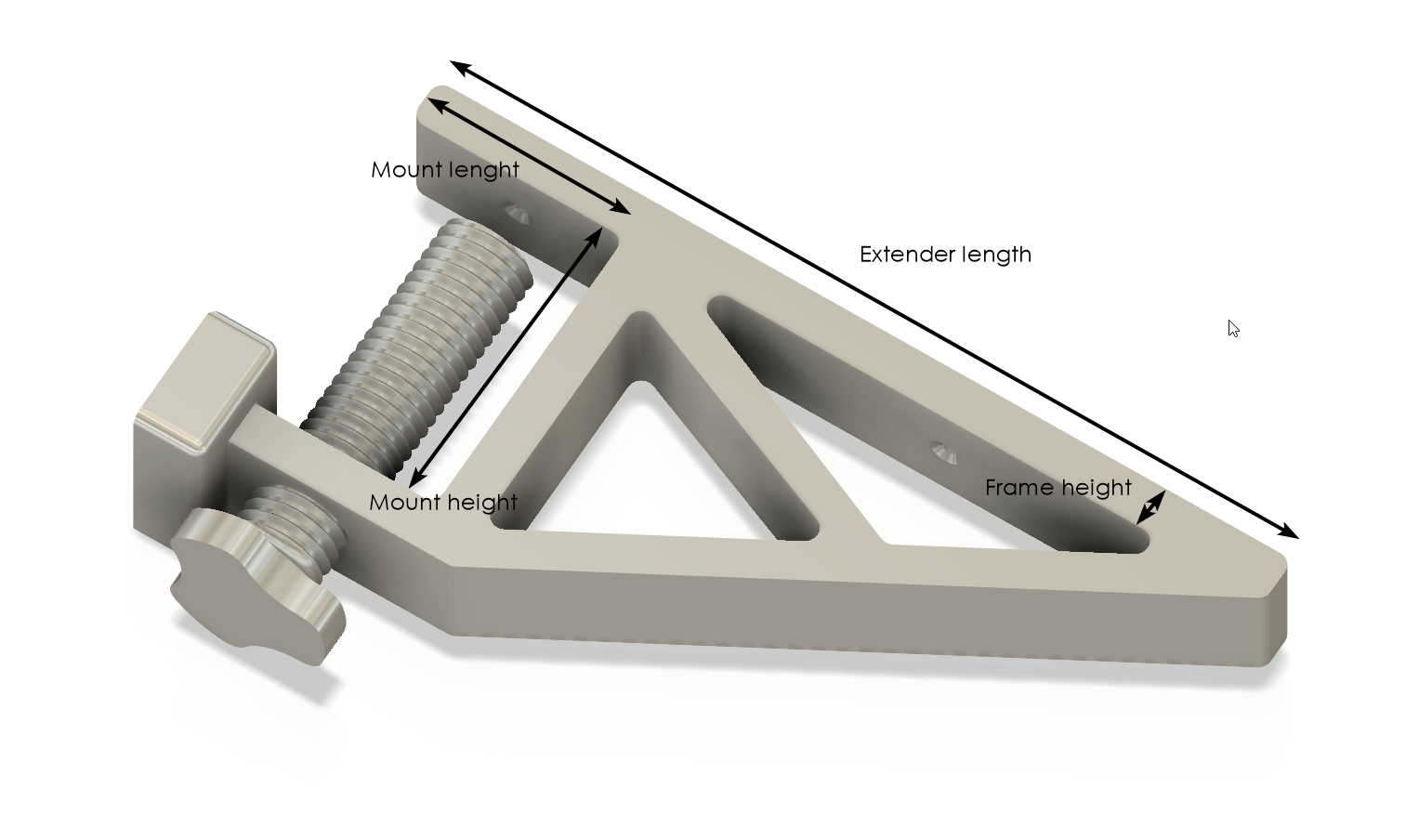

• you can adjust (for details see the attached pitcure):
  • the length of the extender (total length)
  • the length of the mount
  • the height of the mount
  • the height of the frame
  • screw diameter (board mounting screws)
  • countersink diameter of the screw (board mounting screws)
• two holes were added for easy mounting the board to the model
• the screw was slightly modified
  • different design

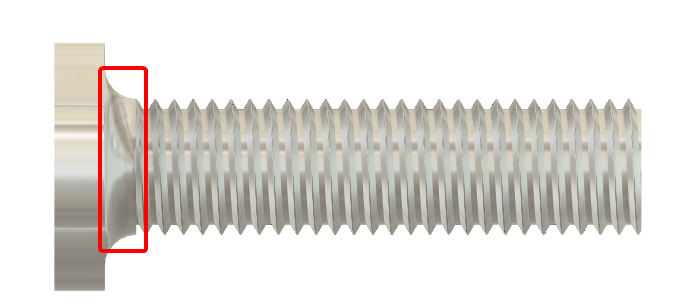

  • 5 mm fillet was added to the neck of the screw to make it more robust
• added an extender mount to the model for special purposes when you need additional support (like in my case)

Adjust the parameters:

Import the f3d file in Fusion 360. Click on the Modify menu and select Change Parameters.

In the popup window you can adjust the necessary changes.

Print instructions:

Same as the original model.

• Material: PETG / ABS / ASA
• Layer high: 0.2 - 0.28 mm for the main body and 0.2 mm for the screw
• Infill: at least 15% and honeycomb type (gyroid works as well, tested)
• Walls: at least 3
• Top/Bottom: also at least 3 layers
