Hi there,

This is a stand for the VOXbox V2 you probably never heard of.

It is made by a German company named Reinecker and handled as a medical device for people unable to read due age or blindness.

[http://www.reineckervision.de/produkte/vorlesesysteme-vox/voxbox-pro/](http://www.reineckervision.de/produkte/vorlesesysteme-vox/voxbox-pro/)

This device is actually just a special case for a PC with some fancy buttons and a magnetic mounted arm holding a web cam. It is running Linux and using well known software components for scan to text and text to speak conversion.

The design is simple and clean. Even a 97 year old without any computer experience can read newspapers and letters with it.

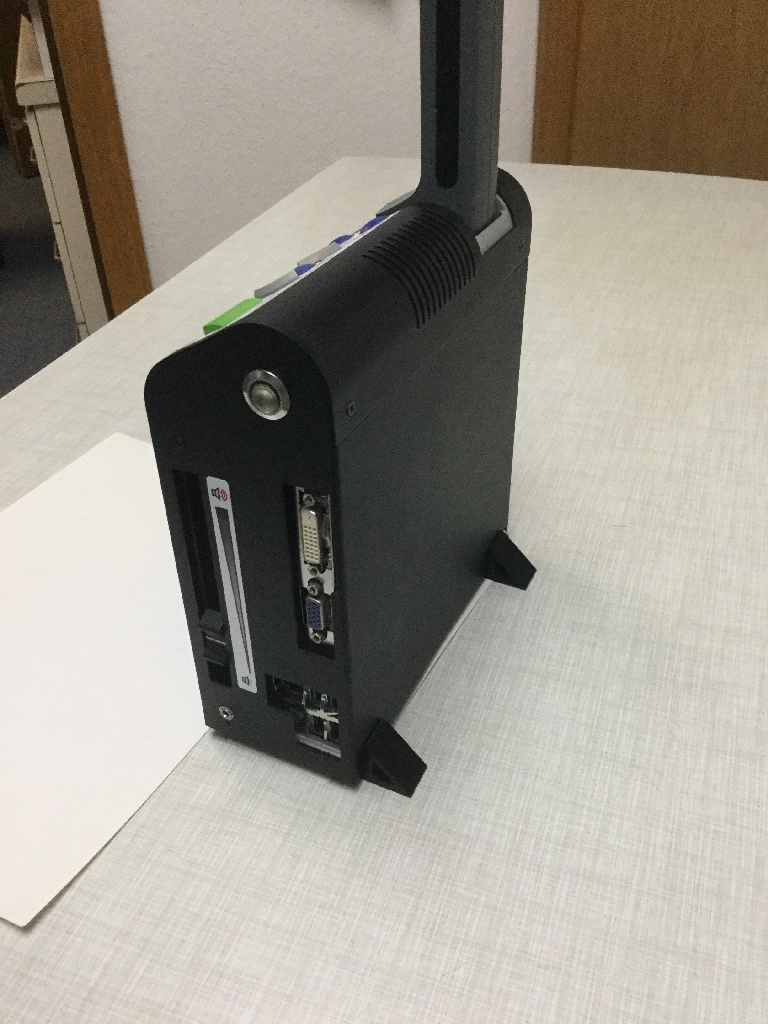

The VOXbox V2 just has a stupid design flaw. Since the arm is hanging over the scan area and the people using the device are (nearly) blind, hitting the arm just a little topples the entire device over. I did not check any more recent versions of the device, but a simple stand to flip or pull out on the back would have fixed it.

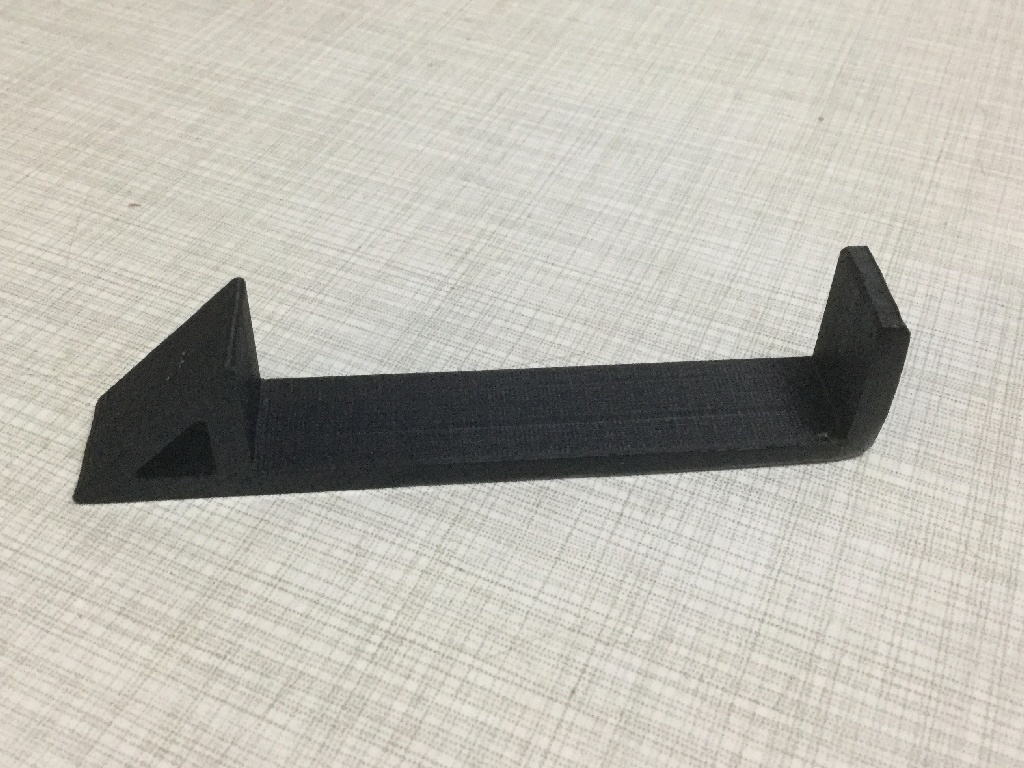

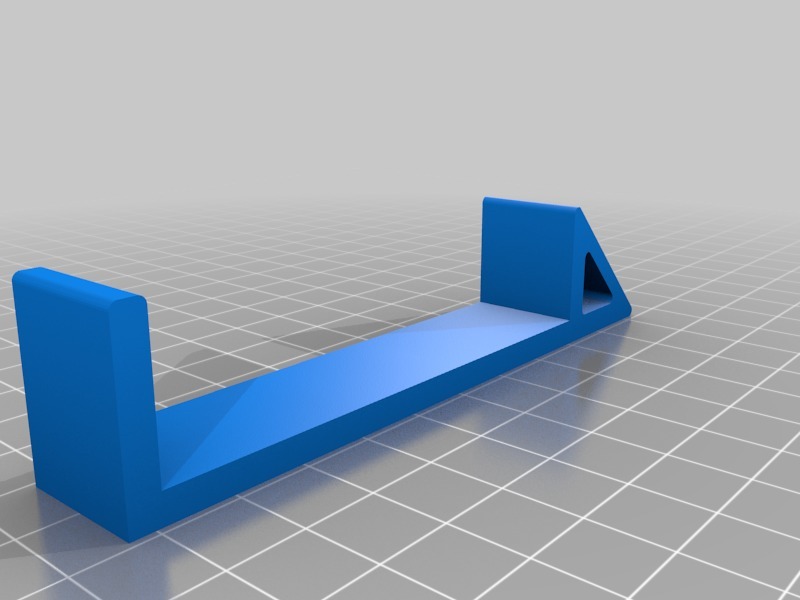

This inspired me to use my newly achieved FreeCAD skills to make my own stand.

I included the source files, so you can modify and edit it for other models or different devices.

Happy printing!

Print Settings

Printer:

Anet A8

Rafts:

No

Resolution:

45%
