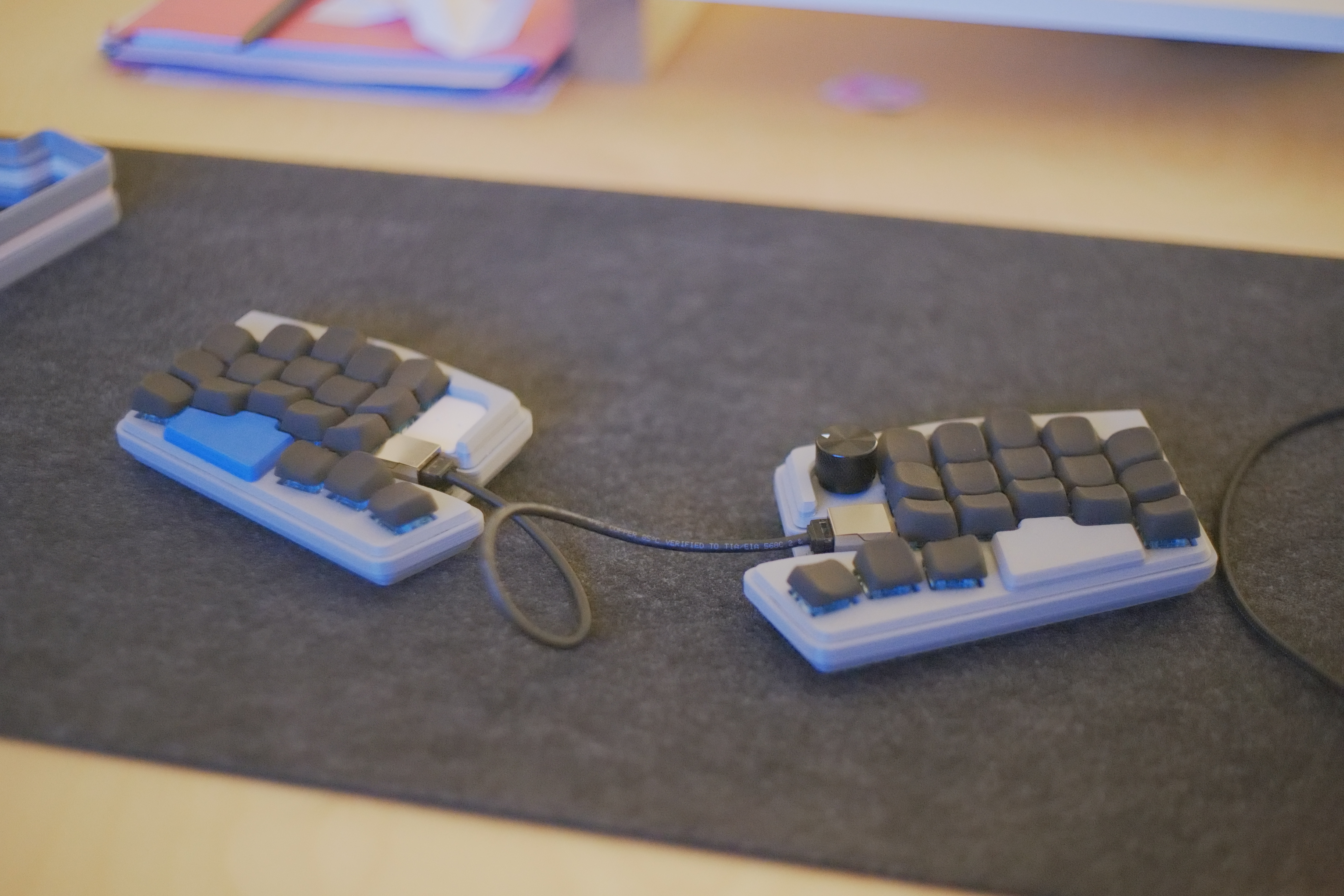

I built a Cheapino split keyboard ([https://github.com/tompi/cheapino/](https://github.com/tompi/cheapino/)) and needed a protective, portable case solution. My design features:

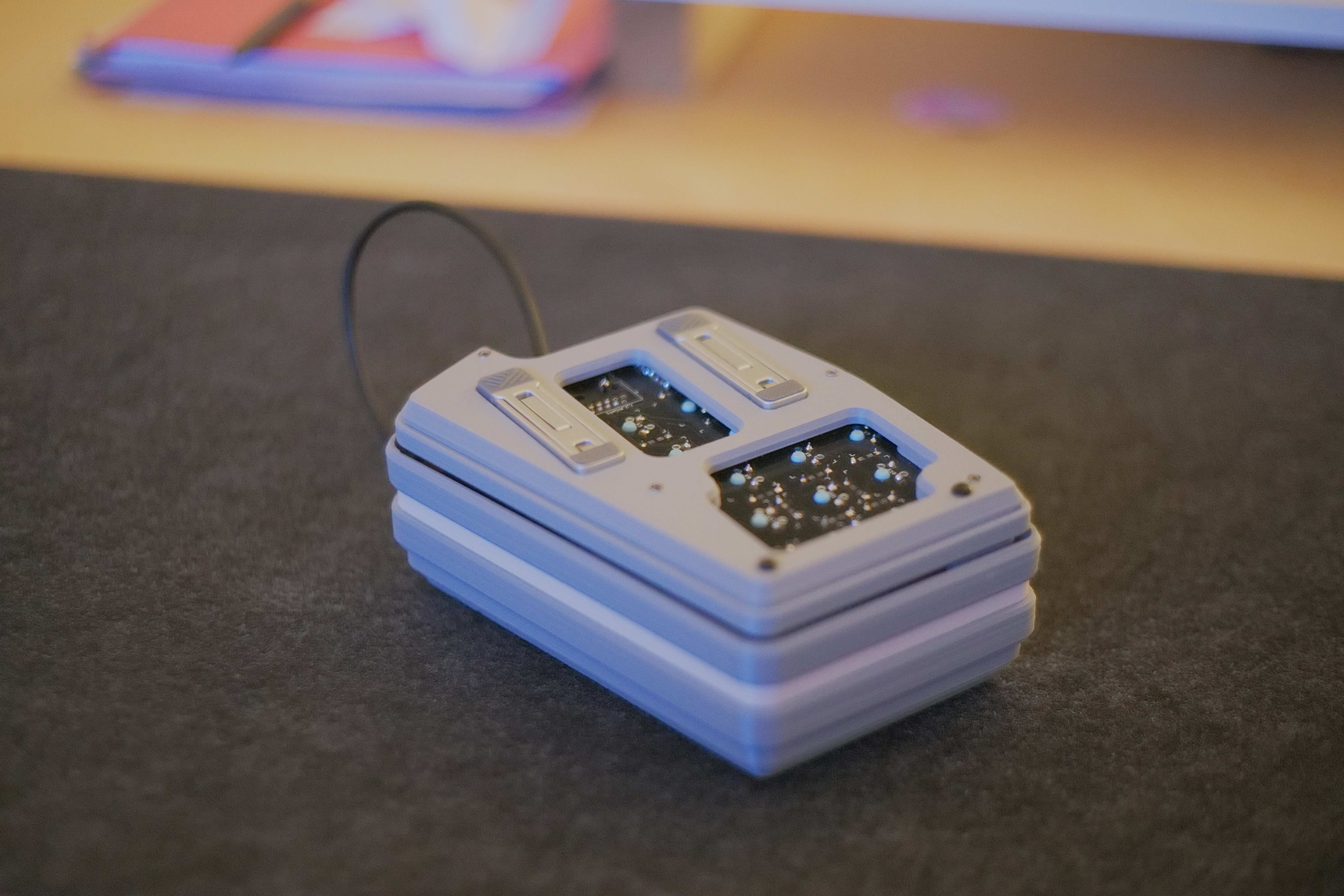

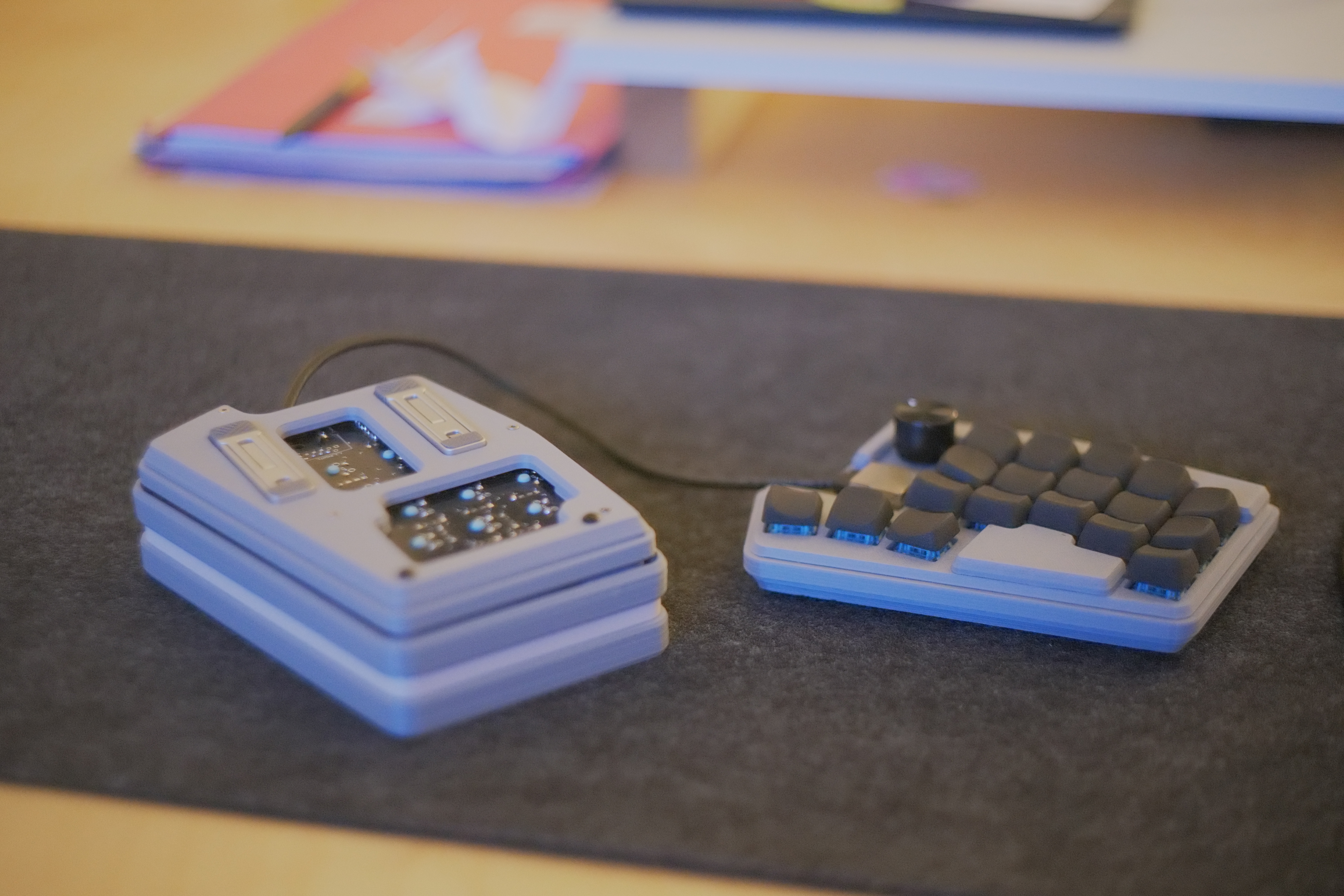

- Magnetic Connection: Strong magnets securely attach the two halves for safe transport, protecting keys and switches.
- Adjustable Tenting: Integrated mounts for AliExpress feet ([https://de.aliexpress.com/item/1005005605228469.html](https://de.aliexpress.com/item/1005005605228469.html)) provide three different ergonomic angles.
- Customizable: Spacer adapts the cover height to your chosen keycaps.
- Easy Printing: Designed for successful prints without supports (brim recommended to reduce warping).
- Secure Assembly: M2 screws and threaded inserts ensure a sturdy build.
Printing Instructions:
- Bottom: As is
- Plate: Upside down
- Top: Upside down
- Frame: As is
- Cover: As is
- Cover MCU: Upside down
Let me know if you'd like to share images of your build!
23
Curtidas
144
Downloads
Categoria
Other Gadgets
Tags
mechanicalkeyboard
splitkeyboard
tenting
cheapino
Licença
Creative Commons — Attribution — Noncommercial
Arquivos (14)
cover_spacer.stl
104.1 KB
top_lower_right.stl
156.3 KB
cover_left.stl
312.3 KB
frame_left.stl
197.2 KB
frame_right.stl
189.3 KB
bottom_right.stl
275.9 KB
plate_left.stl
359.8 KB
top_lower_left.stl
156.3 KB
cover_mcu.stl
60.2 KB
cover_right.stl
327.1 KB
top_upper_left.stl
228.9 KB
bottom_left.stl
276.4 KB
top_upper_right.stl
224.1 KB
plate_right.stl
379.6 KB
