Type: Mack Stryker Coaster

Scale: 1:32

Size: ~ 26 cm x 4,5 cm x 16 cm

Printer: Original Prusa i3 MK3S+

Settings: 0.2 mm / 30%

Filament: 77 g (Footers: 21 g, Supports: 19 g, Track: 37 g)

Print Time: 9:59 h (Footers: 1:27 h, Supports: 2:21 h, Track: 6:11 h)

Difficulty: Hard

Instructions

I recommend using 1.0 mm wire to assemble the track. This makes the track more stable and easier to assemble. But it also works without wire.

Attention: Some of the individual parts are almost identical. But it is important to put them together in the correct order.

Track

Print all the required parts and assemble them as shown in the picture. Use wire inside the tubes and glue to assemble the individual parts. You will need support structure to print the parts. There must be no support structure in the holes for the wire! The organic support structure worked best for me.

You need:

• 1 x T01 - T08
• 4 x Beam
• 28 x Wire 1.0 mm (~ 10 mm long)

Supports

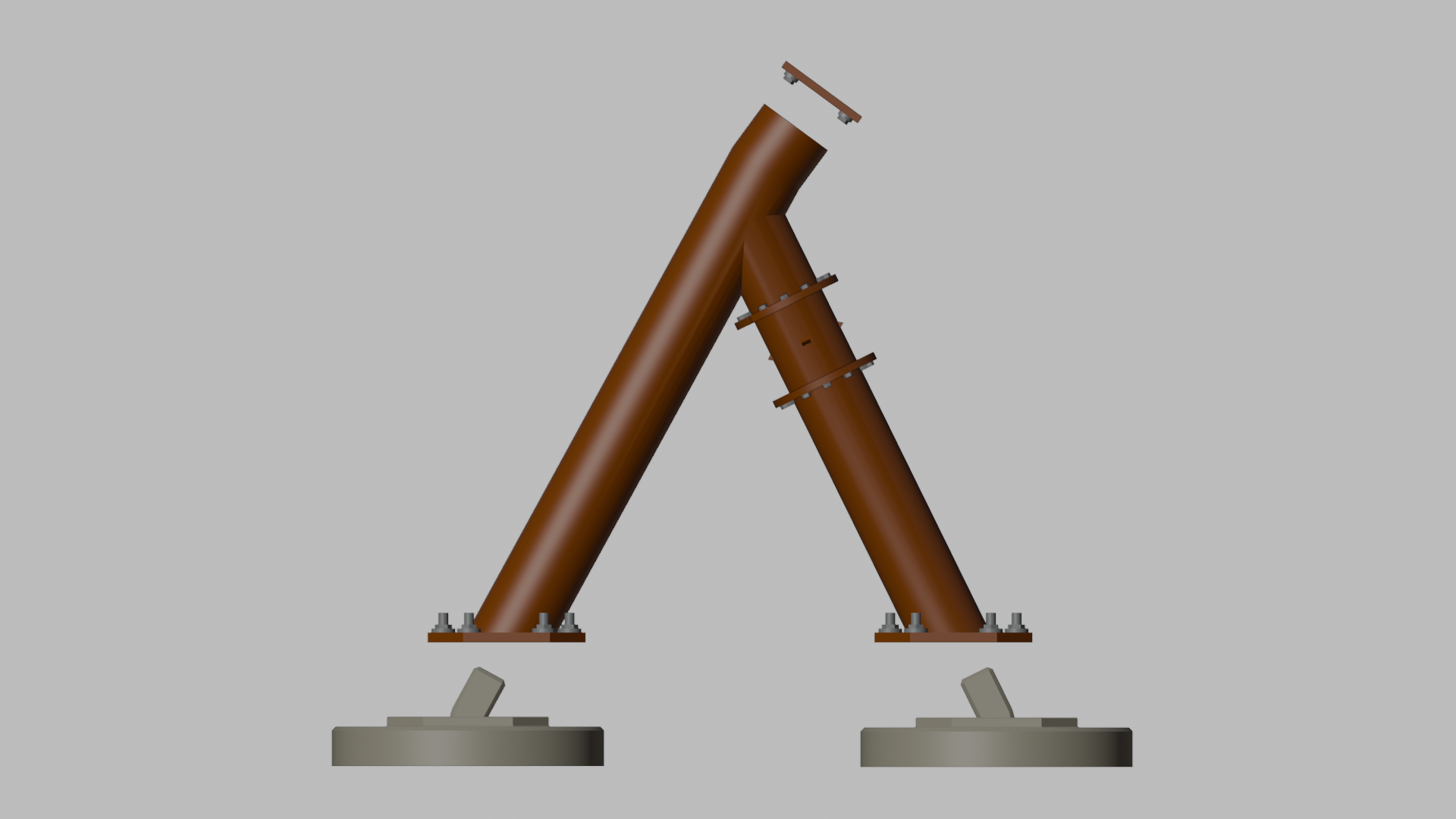

Print all the required parts and assemble them as shown in the picture. Use glue to assemble the individual parts. Make sure that the supports are positioned correctly before you glue them.

For S01 you need:

• 1 x F01
• 1 x S01
• 1 x SupportPlateR_040

For S02 you need:

• 1 x F02 & F03
• 1 x SupportPlateR_040
• 2 x SupportPlateC_038
