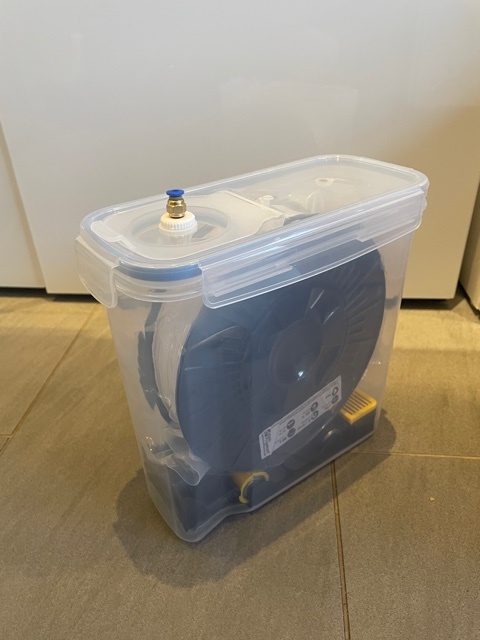

4L filament drybox

Background

The idea was to create a drybox with as few modifications to the food container as needed where the spool can be changed with ease.

Idea and Inspiration

This is a collection of things I've found to work well together and adopted them for a nice all-in-one set.

The base was inspired by mars gizmos design:
[https://www.myminifactory.com/de/object/3d-print-marsgizmo-filament-bunker-131183](https://www.myminifactory.com/de/object/3d-print-marsgizmo-filament-bunker-131183)

The spacer is a remix of this wedge:
[https://www.thingiverse.com/thing:4647864](https://www.thingiverse.com/thing:4647864)

The outlet screws used:
[https://www.thingiverse.com/thing:4667797](https://www.thingiverse.com/thing:4667797)

Parts to print

What you need:

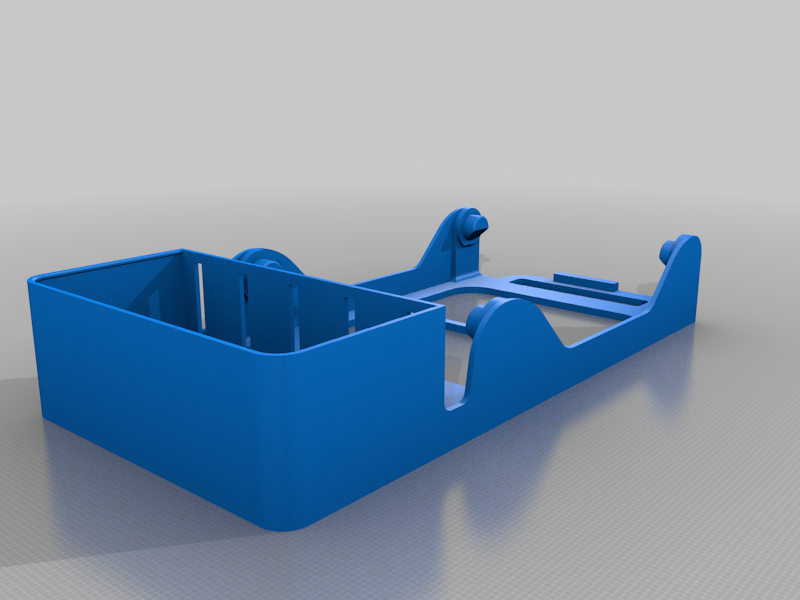

• Print the Filament Base first (without supports) - scale the model down to 10%

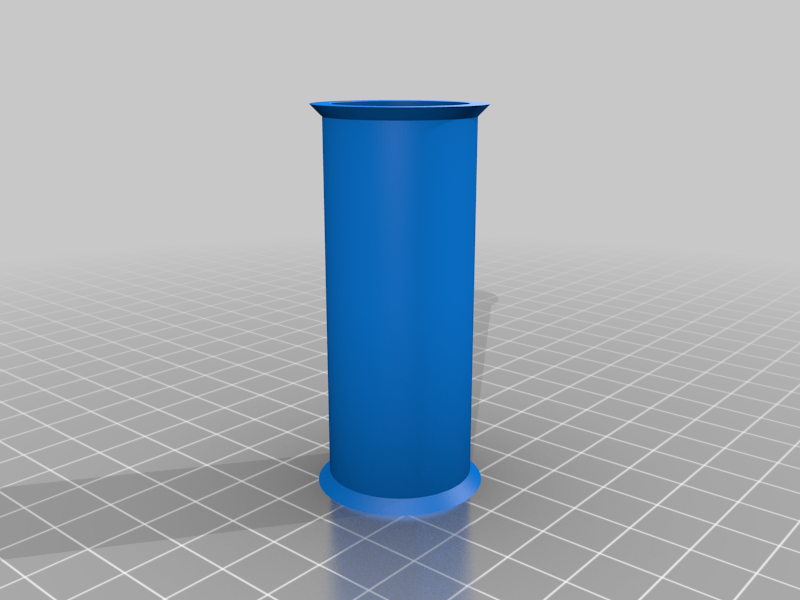

• Print 2 Roller

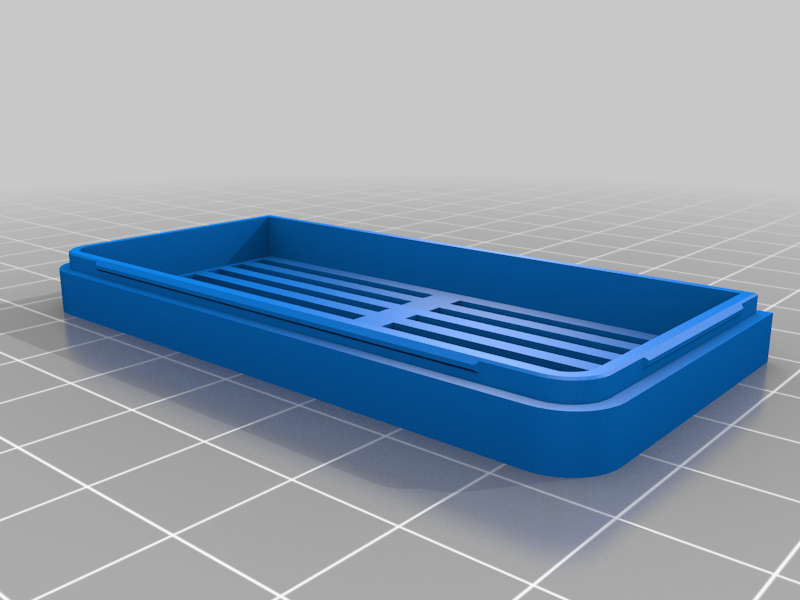

Print one Silica Lid and check if it snaps to the base
Depending on the filament you may need to resize it in small (0,5 - 1,5%) steps Optional but recommended:

Print the screws linked above
Depending on the filament I would recommend to scale the nut up a bit so the thread goes easy.

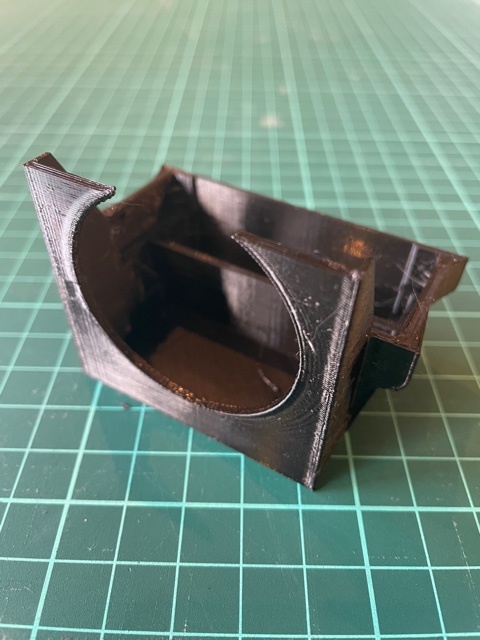

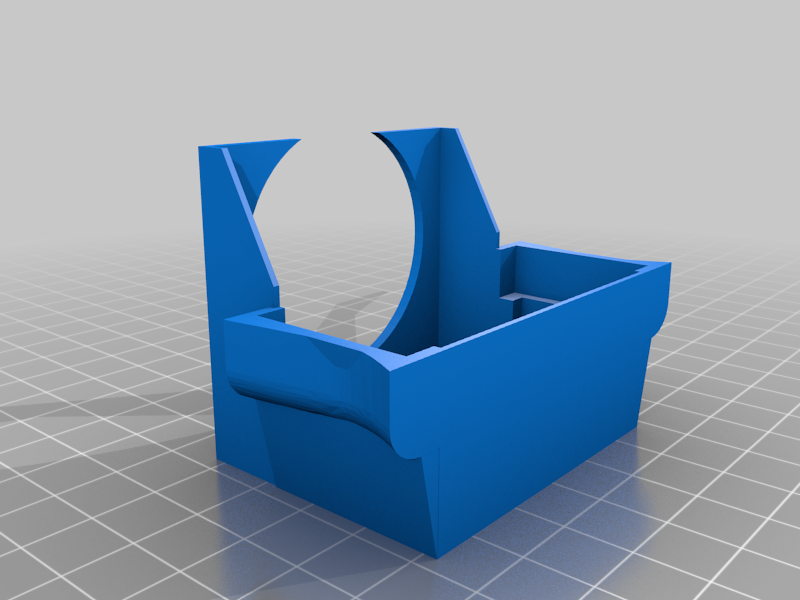

Print one Spacer for the temp-sensor/hydrometer
For bigger spools I'd recommend the original wedge above as it will push the sides better to fit bigger spools. ### Additional parts needed

1 Drybox

• 1 Hydrometer (optional)
• 4 608 ZZ Bearings
• 1 Compression Fitting (optional) Part list on Amazøn w. affiliate links:

Dryboxes:
amazon.de/gp/product/B08JTH2NZJ/ref=as_li_tl?ie=UTF8&tag=swooshy-21&camp=1638&creative=6742&linkCode=as2&creativeASIN=B08JTH2NZJ&linkId=29819cd04faf9df305e633c6a2204828

Hydrometer:
www.amazon.de/gp/product/B07JDSHD4Z/ref=as_li_tl?ie=UTF8&tag=swooshy-21&camp=1638&creative=6742&linkCode=as2&creativeASIN=B07JDSHD4Z&linkId=e5f668db36c015bbabac92739e4af127

Bearings:
amazon.de/gp/product/B08K936Y1Z/ref=as_li_tl?ie=UTF8&tag=swooshy-21&camp=1638&creative=6742&linkCode=as2&creativeASIN=B08K936Y1Z&linkId=5b89cee1cd0a113c97c02624f293fdc1

Compression-Fittings:
amazon.de/gp/product/B07P3BC4GQ/ref=as_li_tl?ie=UTF8&tag=swooshy-21&camp=1638&creative=6742&linkCode=as2&creativeASIN=B07P3BC4GQ&linkId=2daef8abc206fda31e794708d1e09812

Assembly

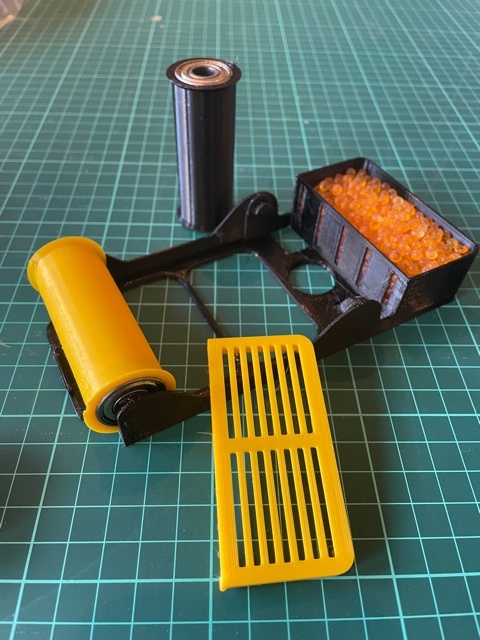

• Insert 2 Bearings into each roller
• Mount both roller to the base
• Fill the silica box in the base (approx 40g until full - way more than enough for 4L)
• Add the lid and set the whole base into the container

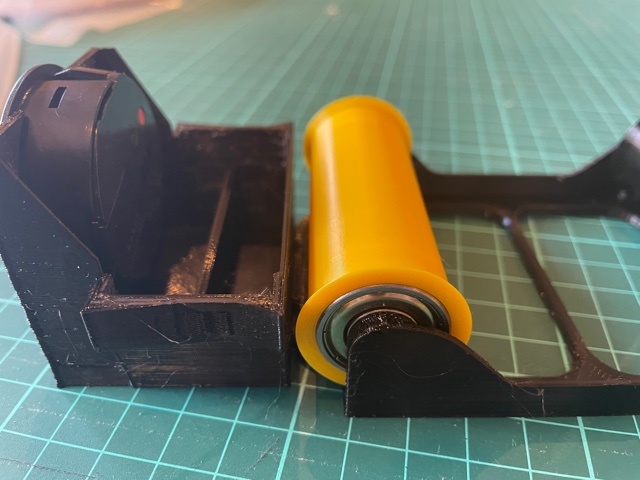

• Insert the hydrometer into the spacer-wedge

Install in front of the box where the grip is Optional:

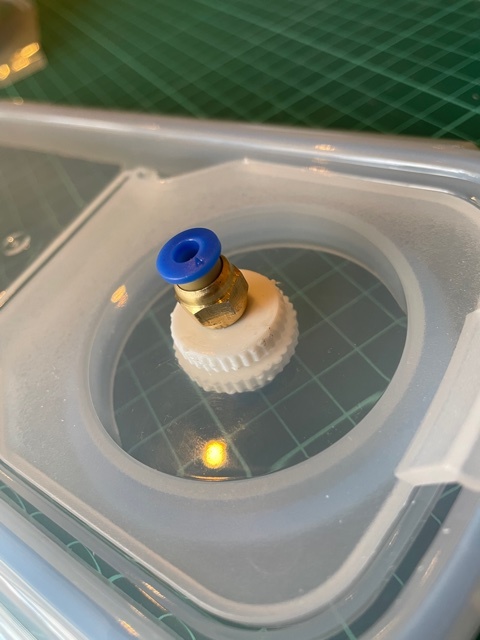

Drill 10mm hole where you want to guide your filament outside

• Install the printed screw
• Screw in the compression fitting

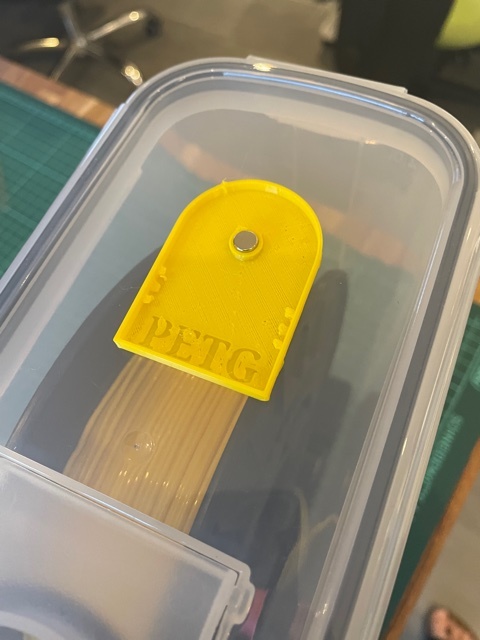

• You might also hotglue a small (6x3) magnet from the inside of the lid to attach a filament swatch from the outside :)

Print Settings

Rafts:

No

Supports:

No

Resolution:

0.2

Filament: 3DJake PETG black
