Bed Scraper

I was looking for a Bed Scraper with rounded corners on the blade, so that the print bed and parts are less likely to be damaged. I was surprised to find no models available, so I made my own. Everything was modelled in Fusion360.

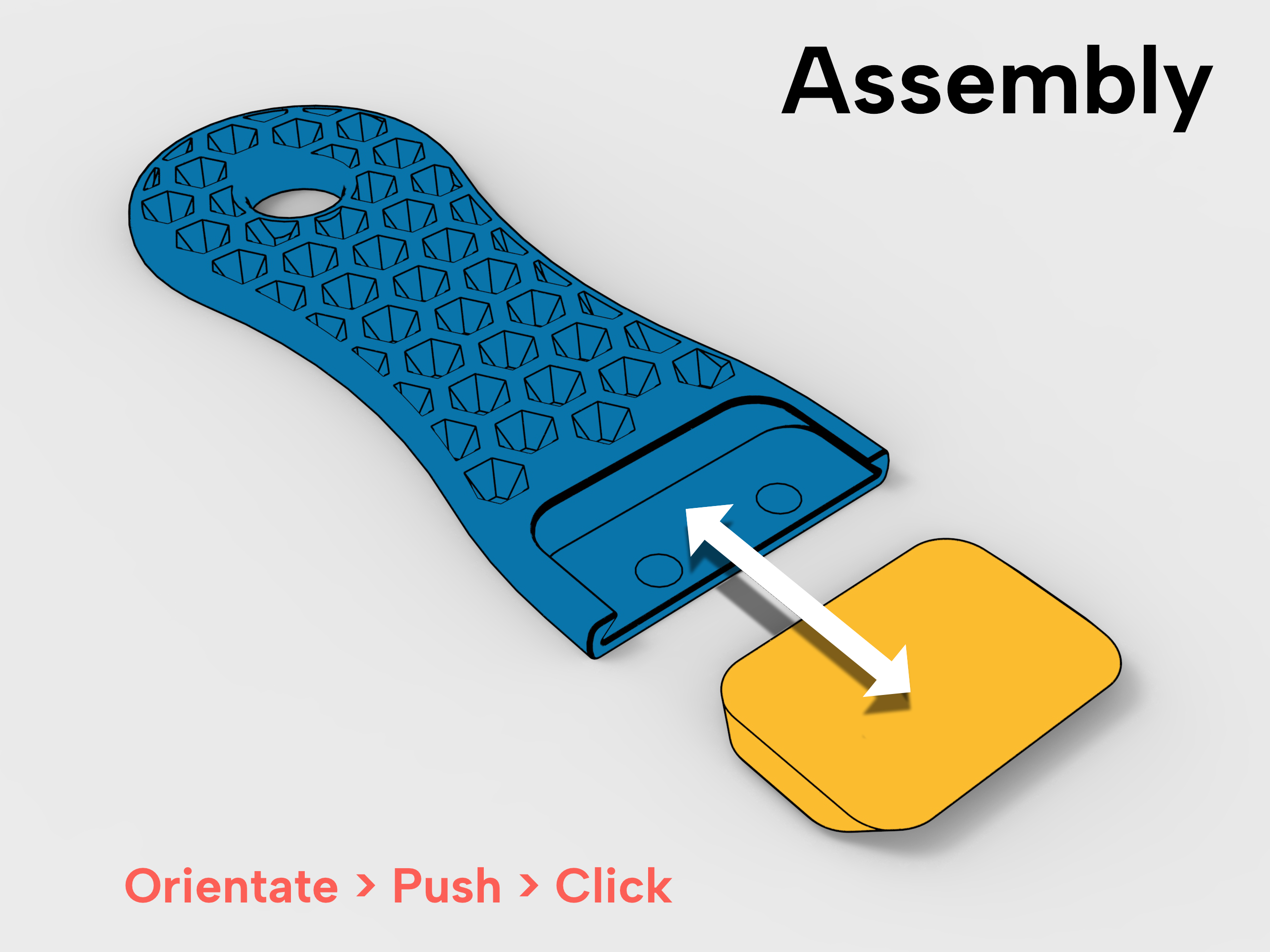

This version also has easily replaceable and double sided blades that have been optimised to use minimal material. They simply pull out and can be reversed or swapped , a new one can then be pushed back into place. I would recommend pushing down onto a hard surface to protect your fingers.

Handle	Blade

Nozzle: 0.4mm	Nozzle: 0.4mm
Layer Height: 0.20mm	Layer Height: 0.20mm
Infill: 25%	Infill: 25%
Notes: No Support or Brim Required	Notes: No Support or Brim Required. Smooth Print Plate will get sharper blade, but not required.

Material: PLA	Material: PLA
Weight: 11g	Weight: 1.7g

I hope you find this model useful. If so we would love it, if you can give us a LIKE.
You can also follow us on our YouTube Channel here.
