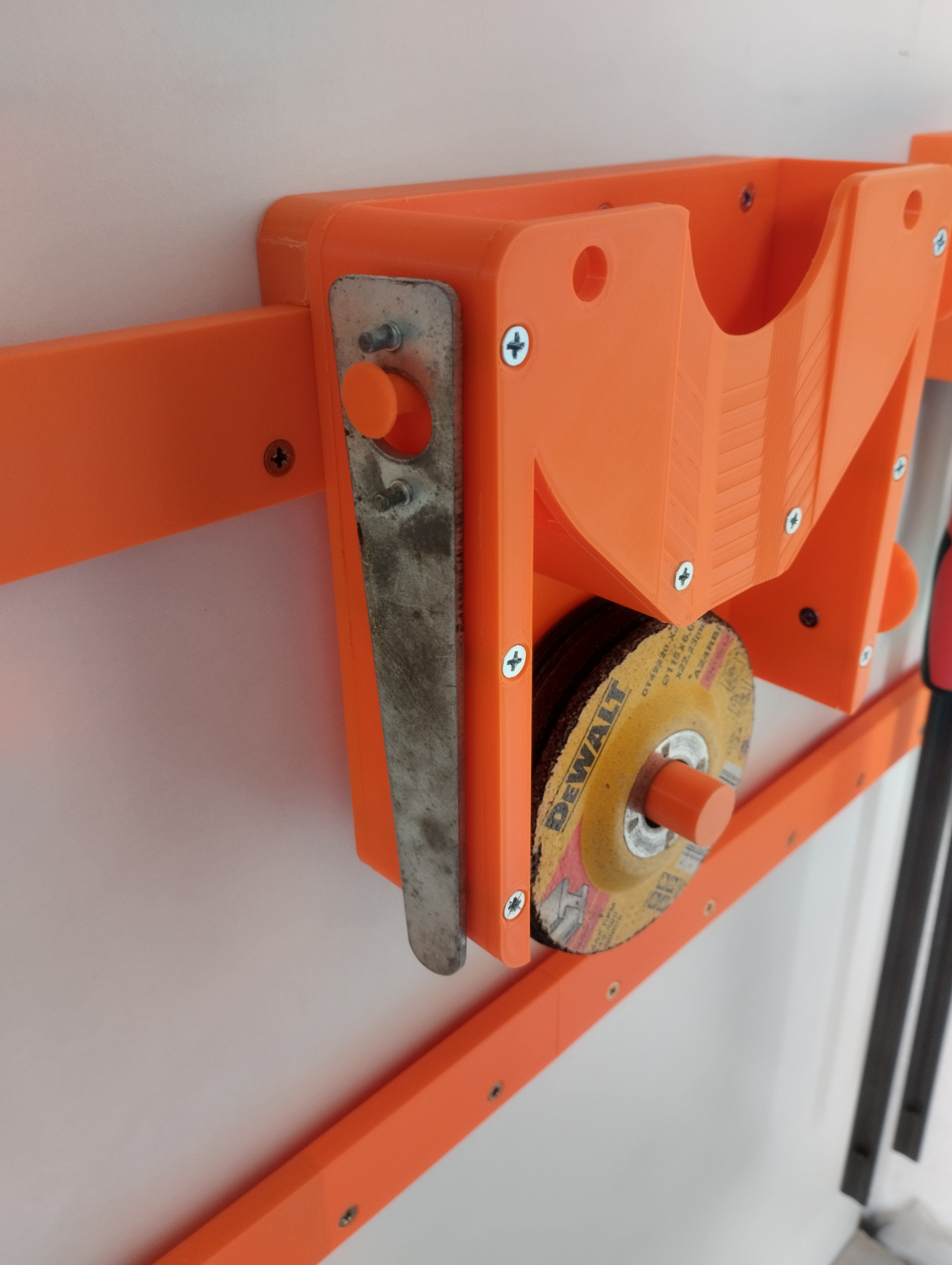

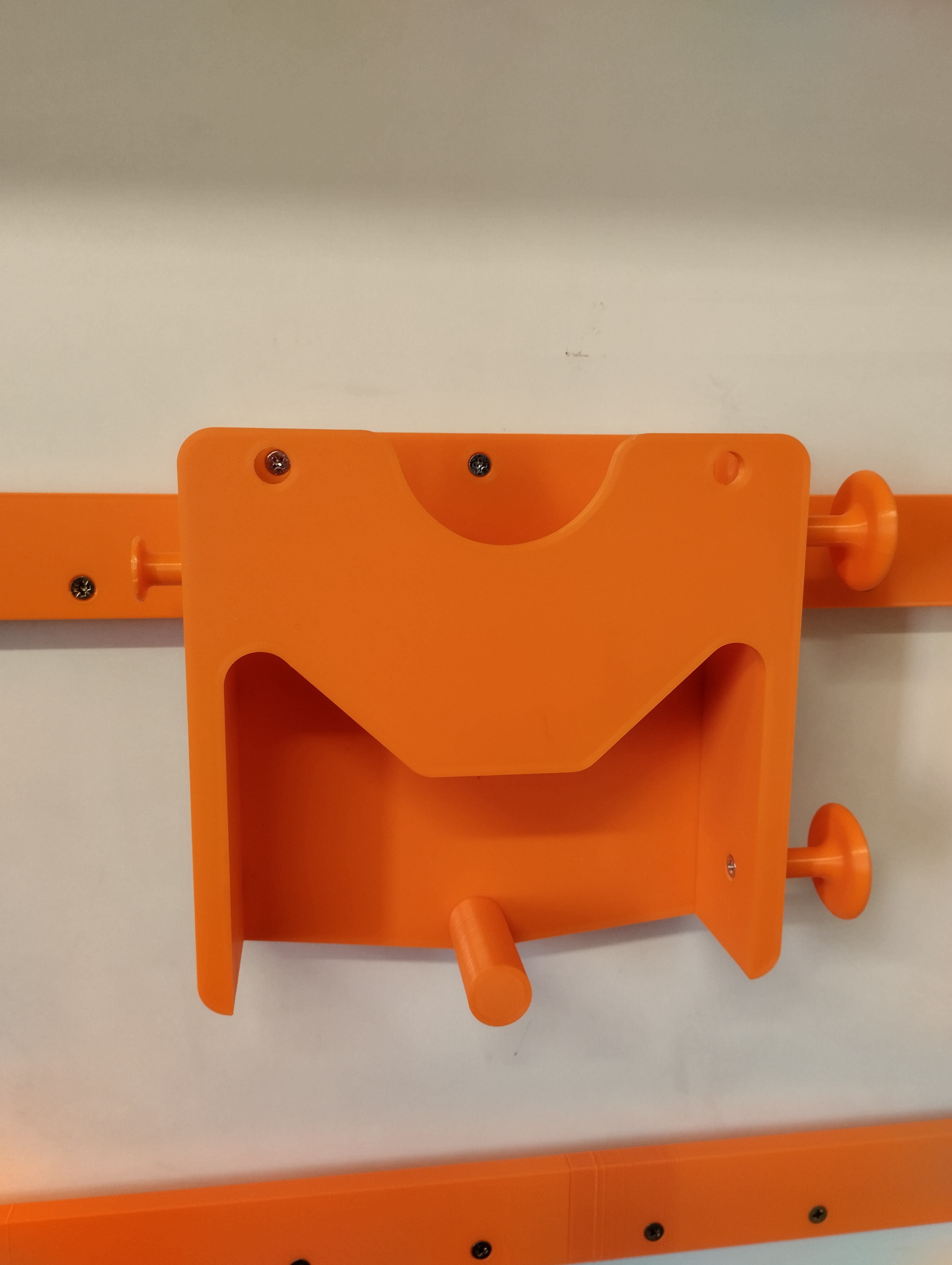

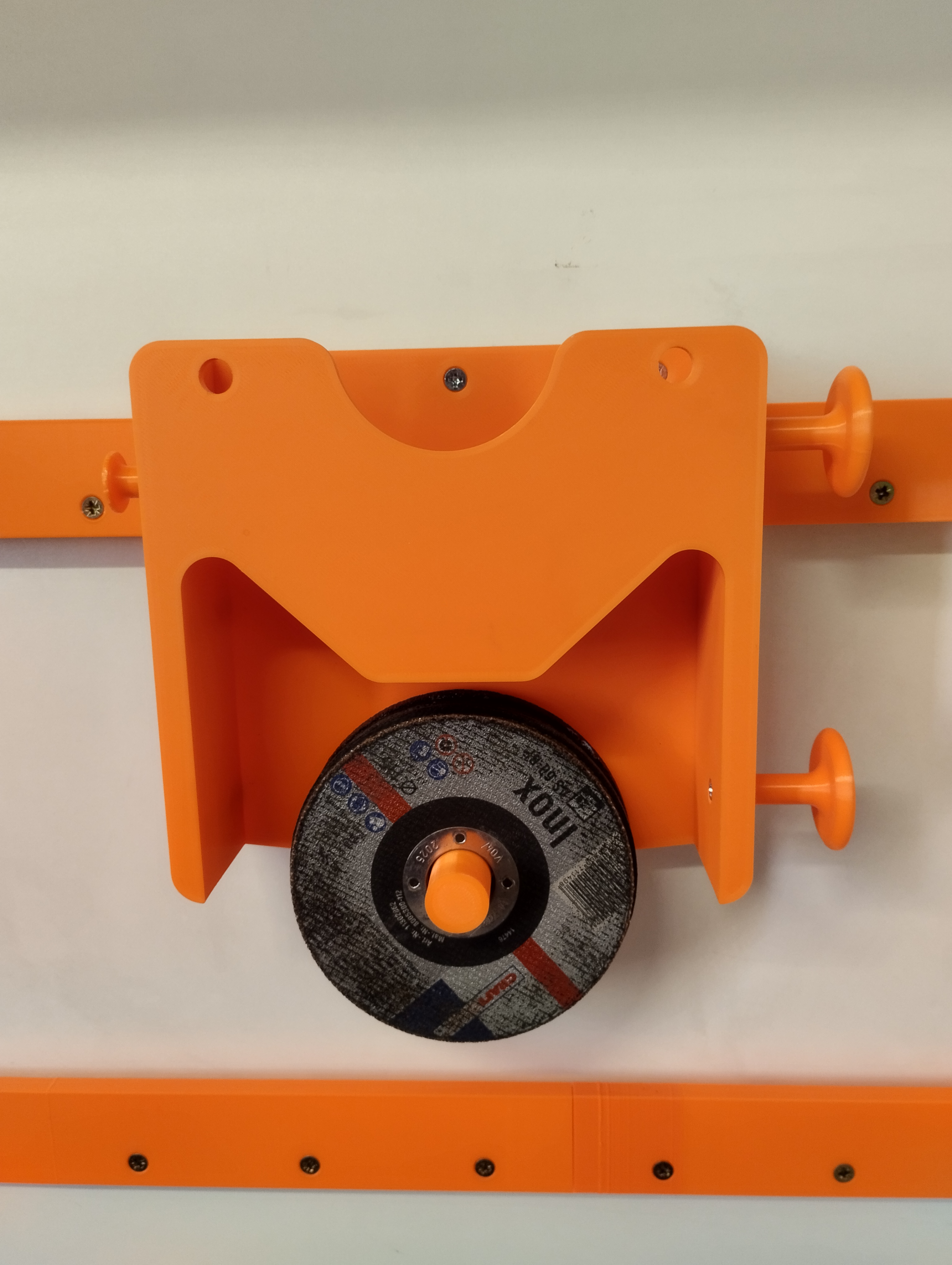

I designed an angle grinder holder Ø 125 mm for the wall. We will use M4x20 screws for connecting.  The disc holder and middle holder are mounted on the back part. The cable holders are mounted on the right part. The JIG holder is assembled with left part. Then we connect the  back part with left and right parts. And for the last time is connected front part. The wall holder is attached to the angle grinder holder using M4x20 screws and M4 nuts. The counter piece of the holder is installed on the wall using 4x30 wood screws, which you can find here: Board holder for storage tools.

Printing instructions for holder:

• filament PLA
• 0,2 mm layer height
• without supports
• infill 20%

Link for other tool holders:

• Makita drill, screwdriver, multitool and 18V Battery holder
• Clamp wall holder for Bessey GearKlamp
• Sander holder
• Screwdriver holder
• Pliers holder
• Hammers holder
• Wrench holder
