Modelo 3D Robot Arm por Carlos Ghost no Printables

Descrição

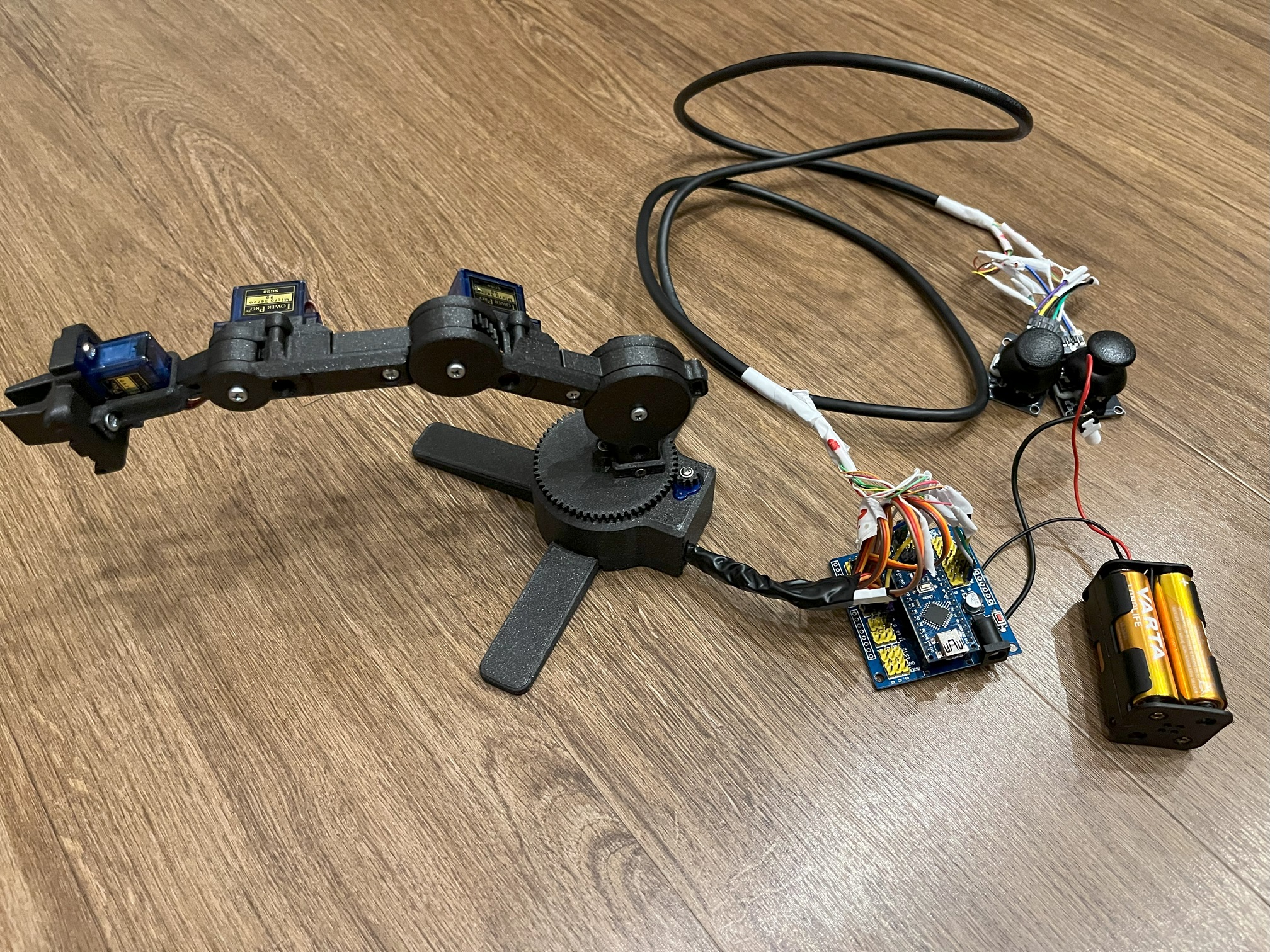

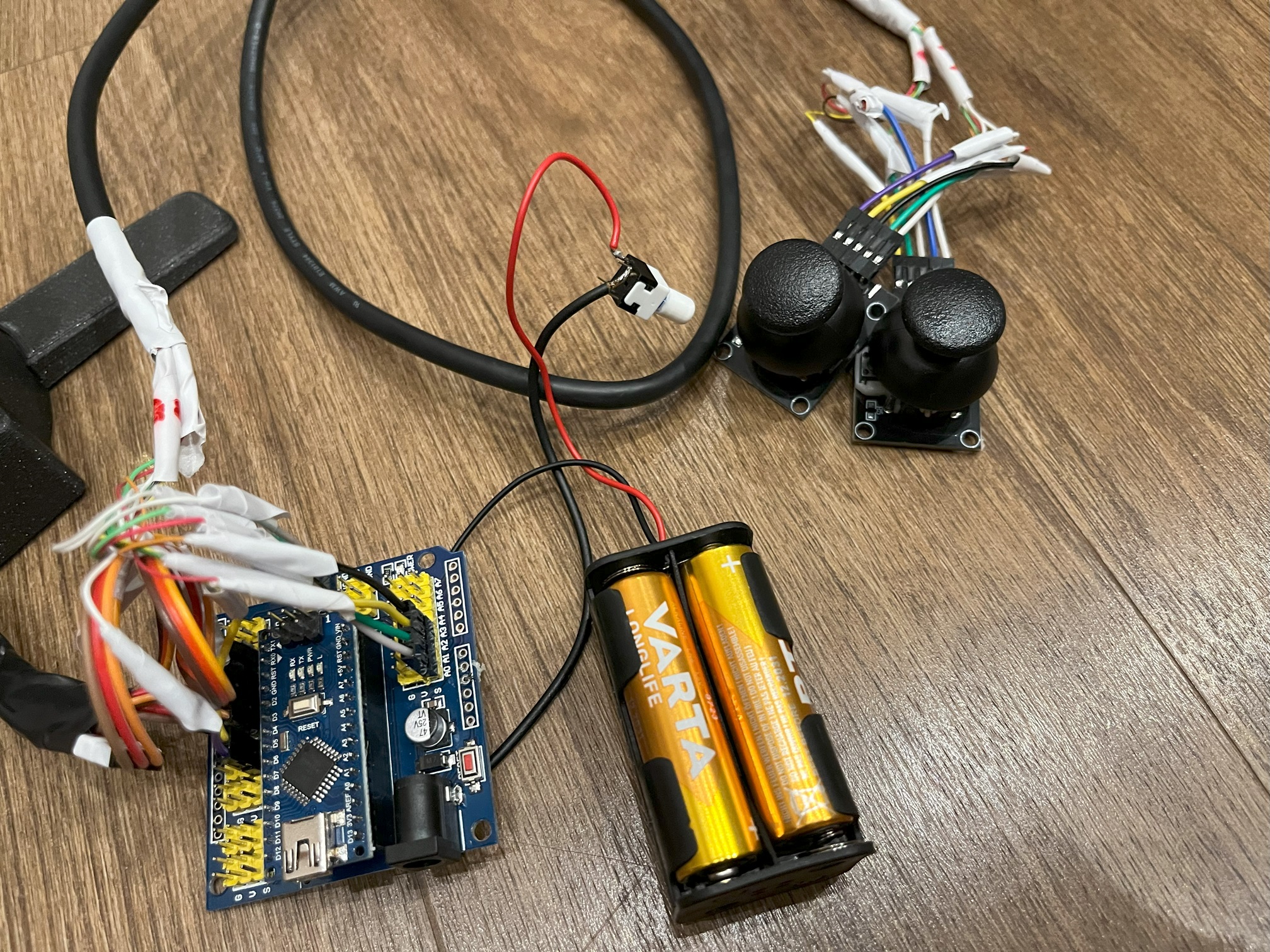

Robot Arm uses the most common SG90 mini-servo motors and was powered by Arduino Nano.

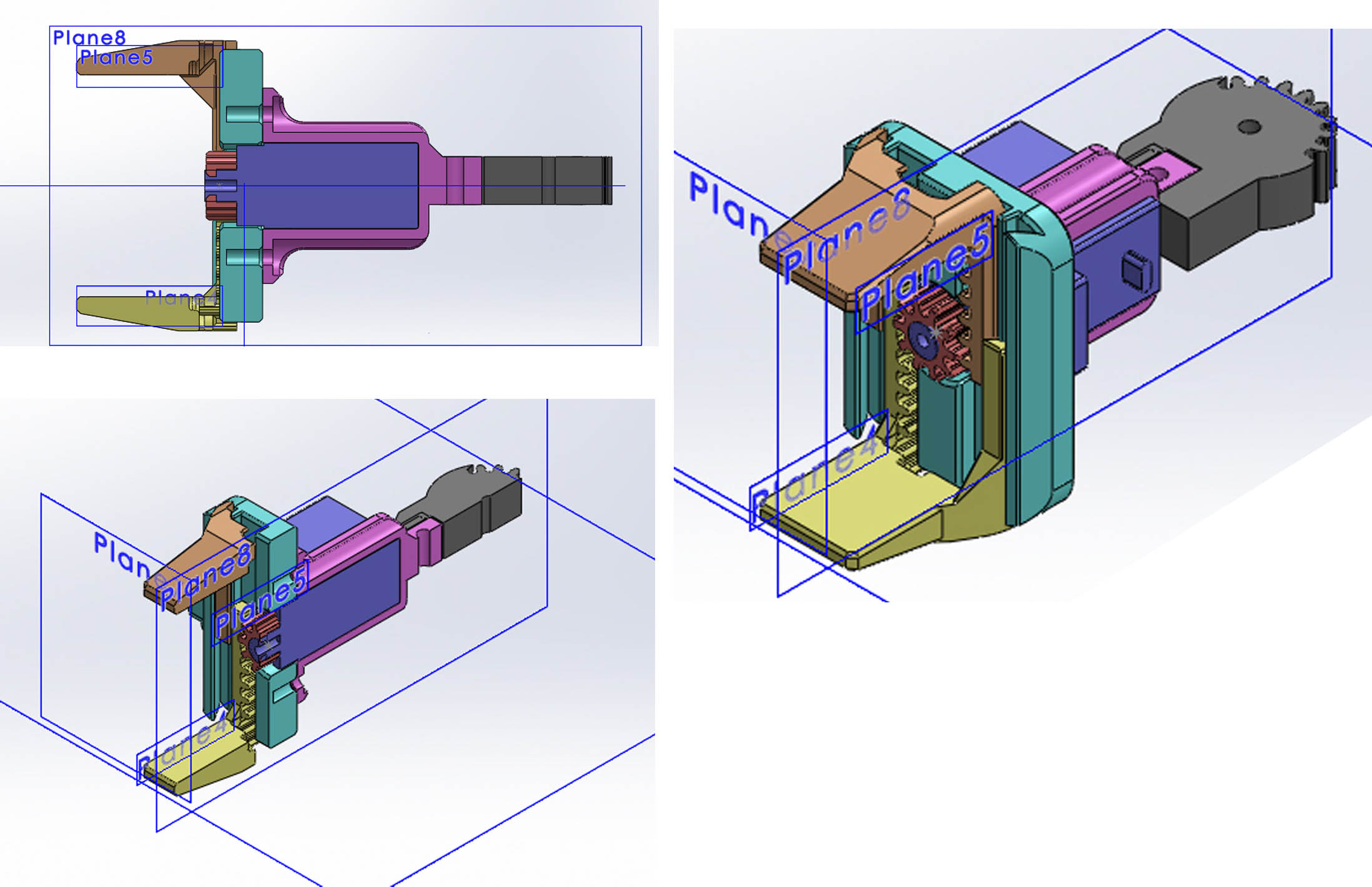

Robot is very good helper in holding various small things (e.g. Soldering, Lights etc.).

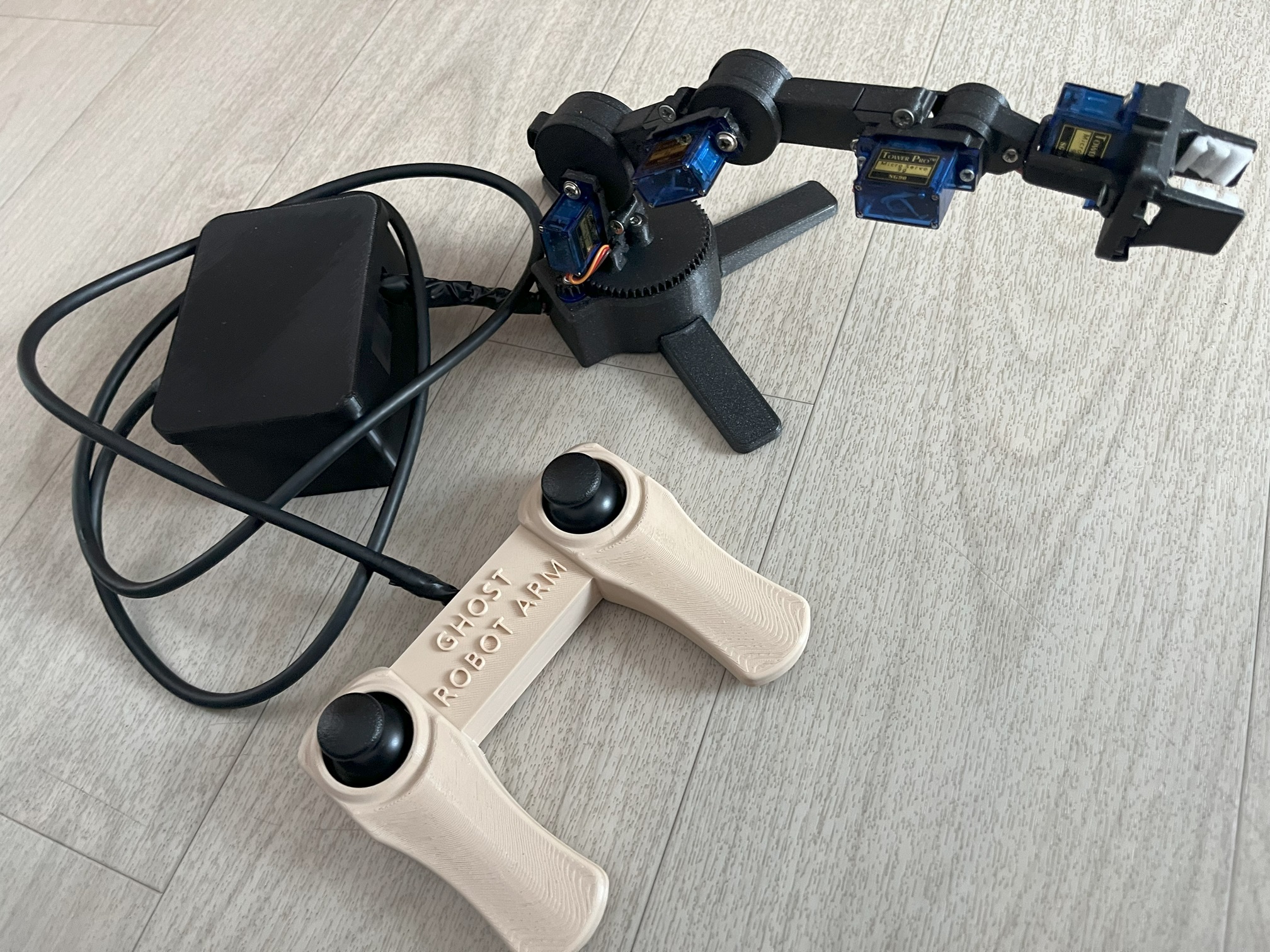

Control for Robot can be with Joysticks or directly program routine.

Each servo have added a different step-down gear to increase the torque and reduce the speed to a reason manner.



Engineering Notes:

The waist servo have a speed reduction of 1:2 and 90 degree of rotation.

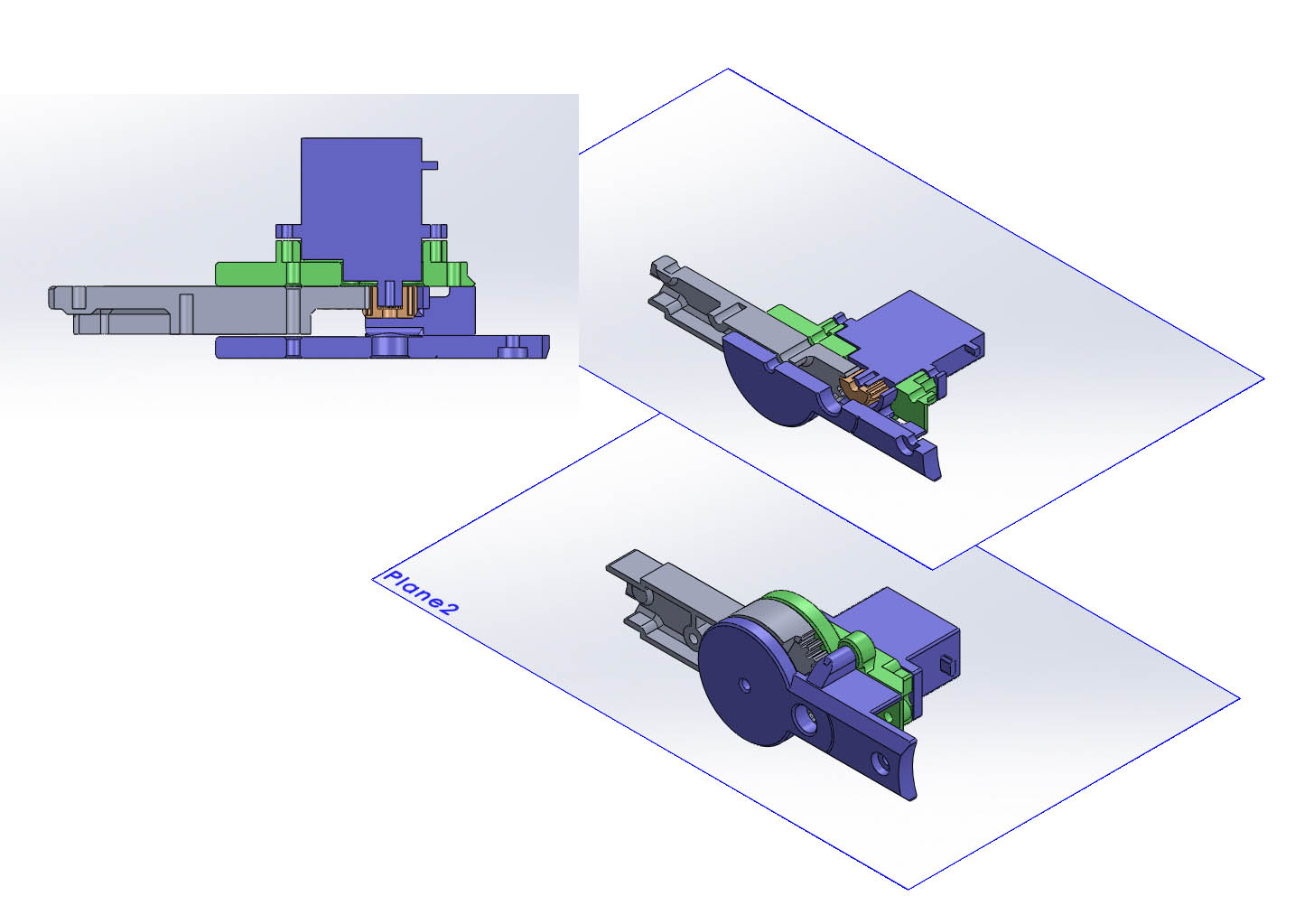

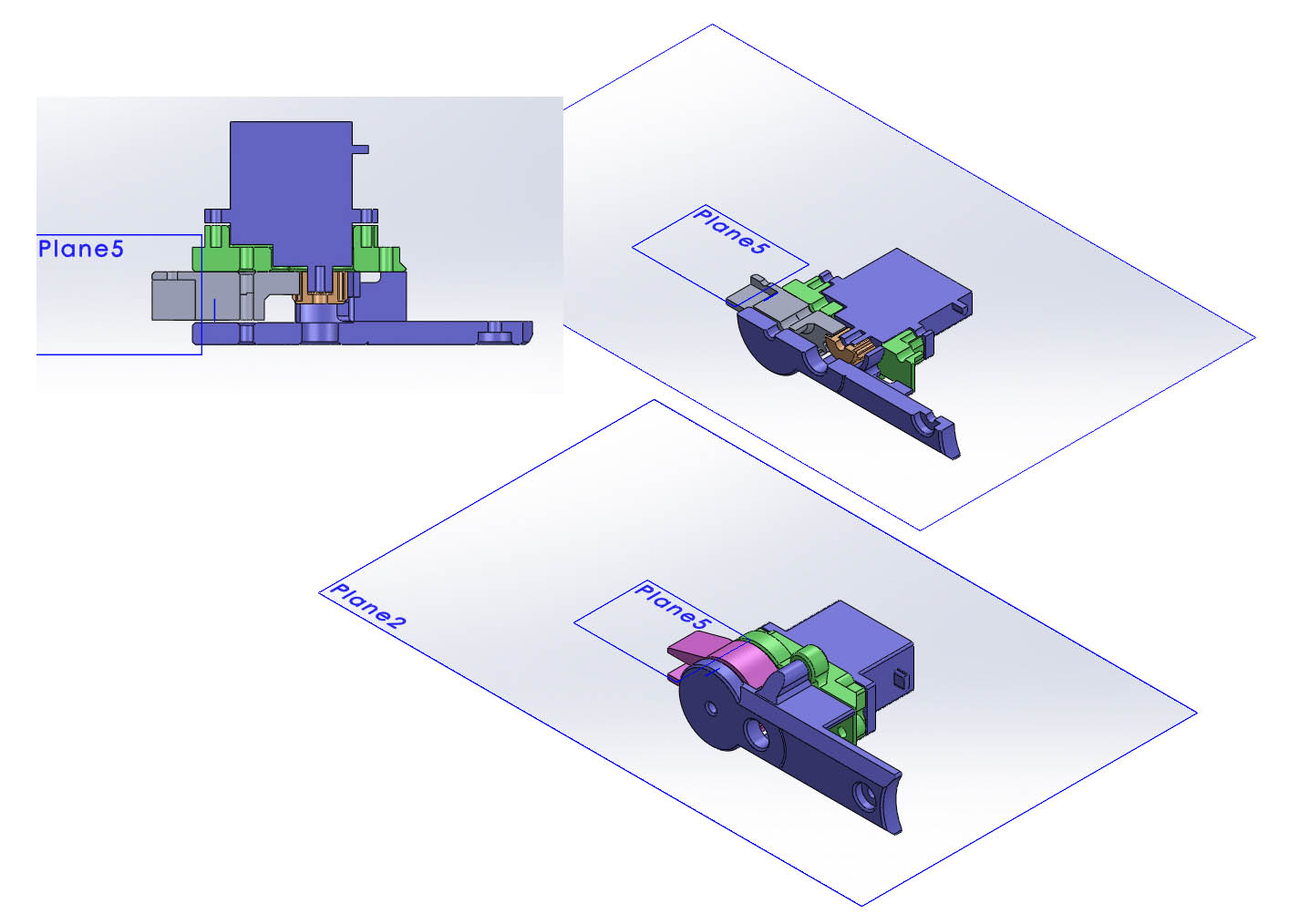

The upper arm servo have a speed reduction of 1:3 and 60 degree of rotation.

The lower arm servo have a speed reduction of 1:4 and 45 degree of rotation.

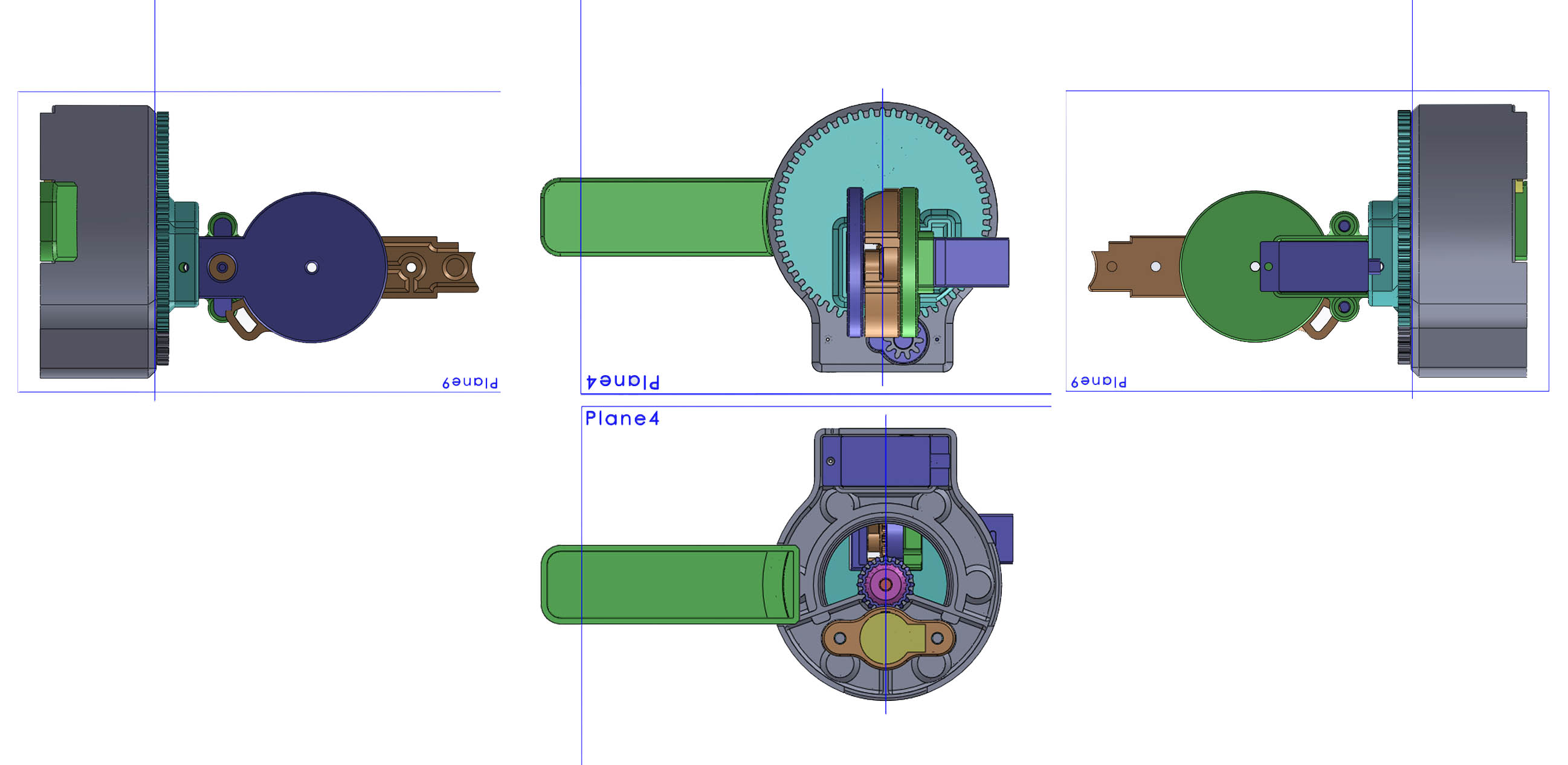

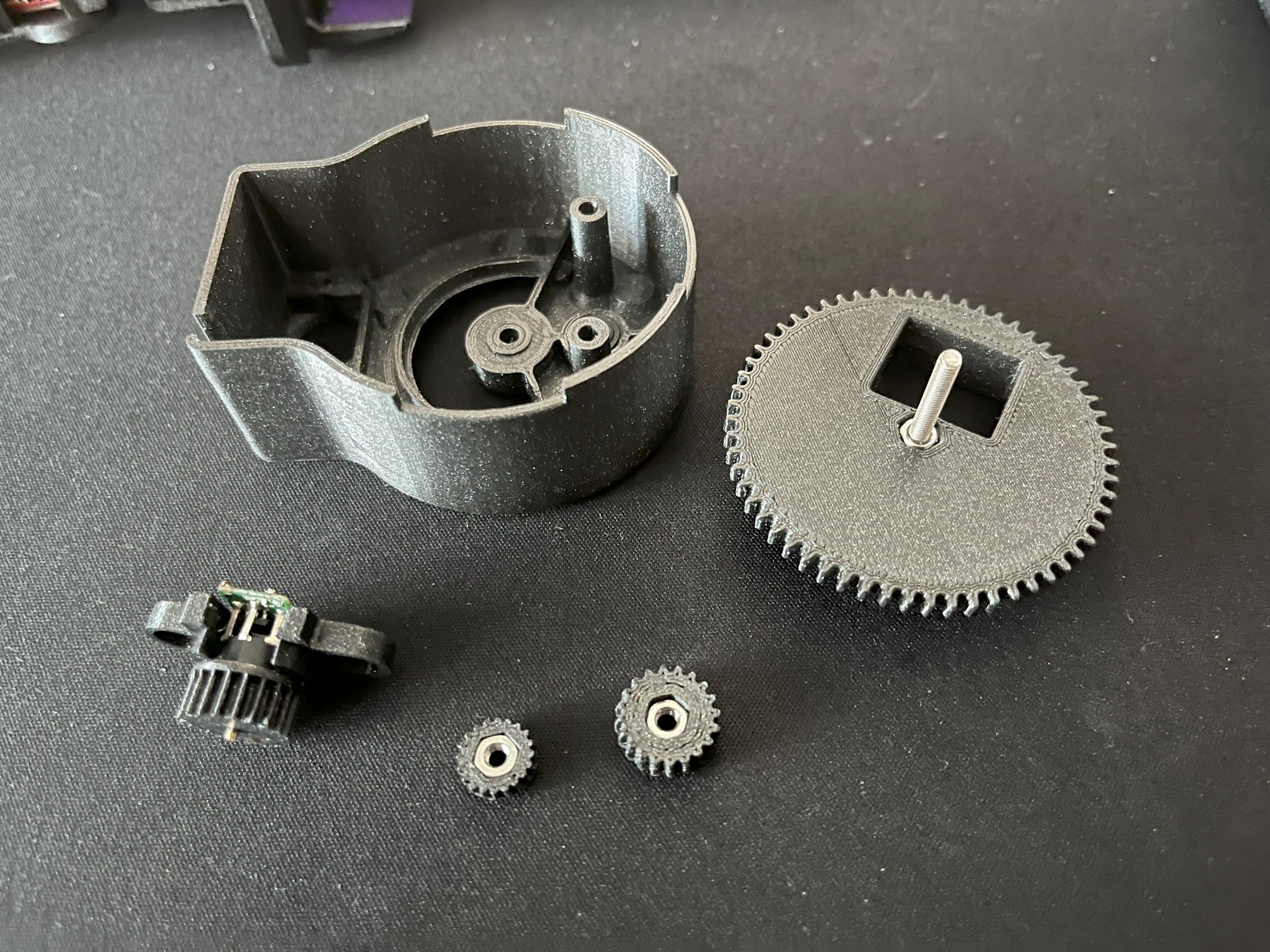

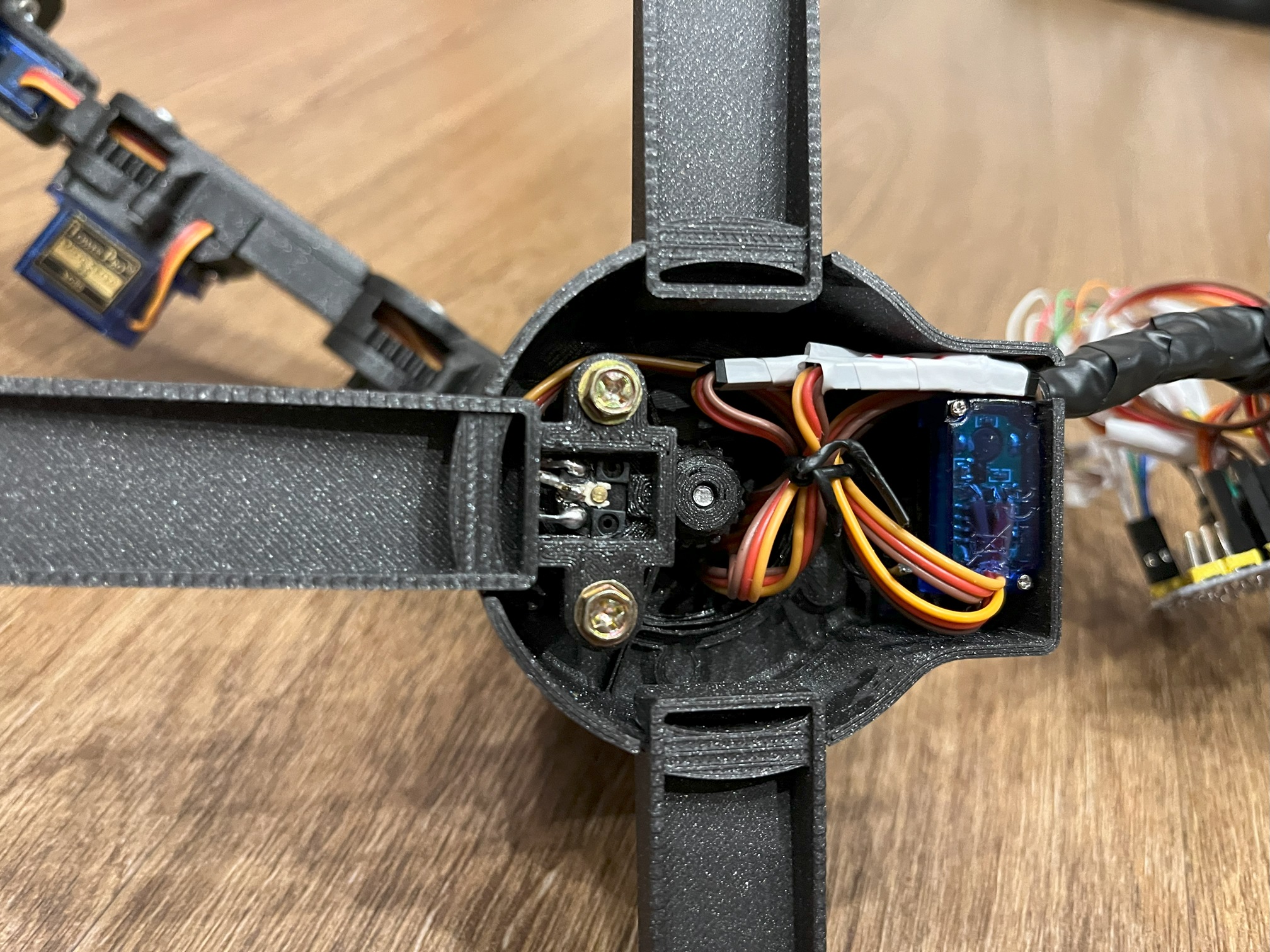

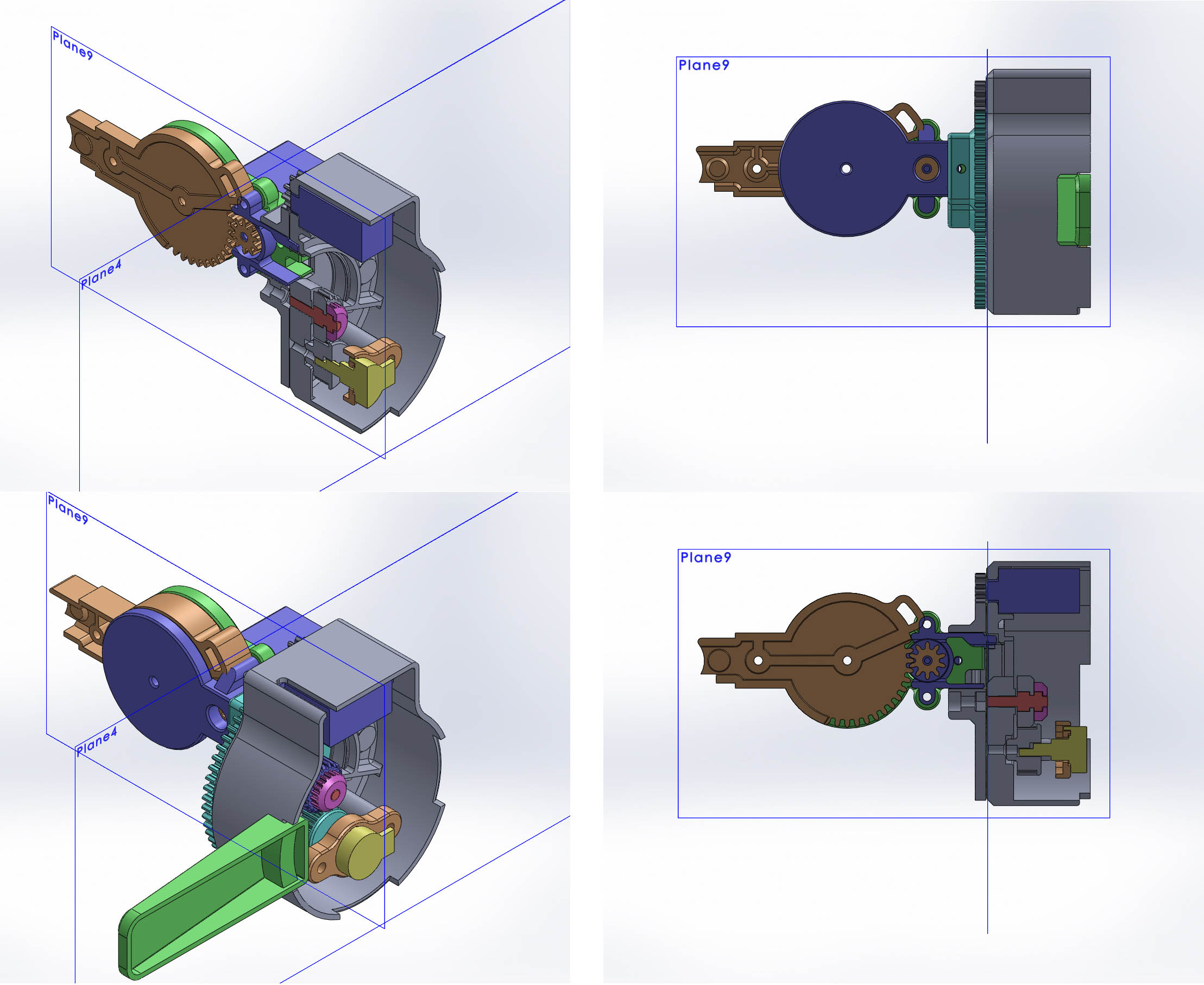

The base turning servo have a speed reduction of 1:5 and had extended the servo 5K VR from the servo in order to provide sufficient torque and 180 degree angle of rotation.

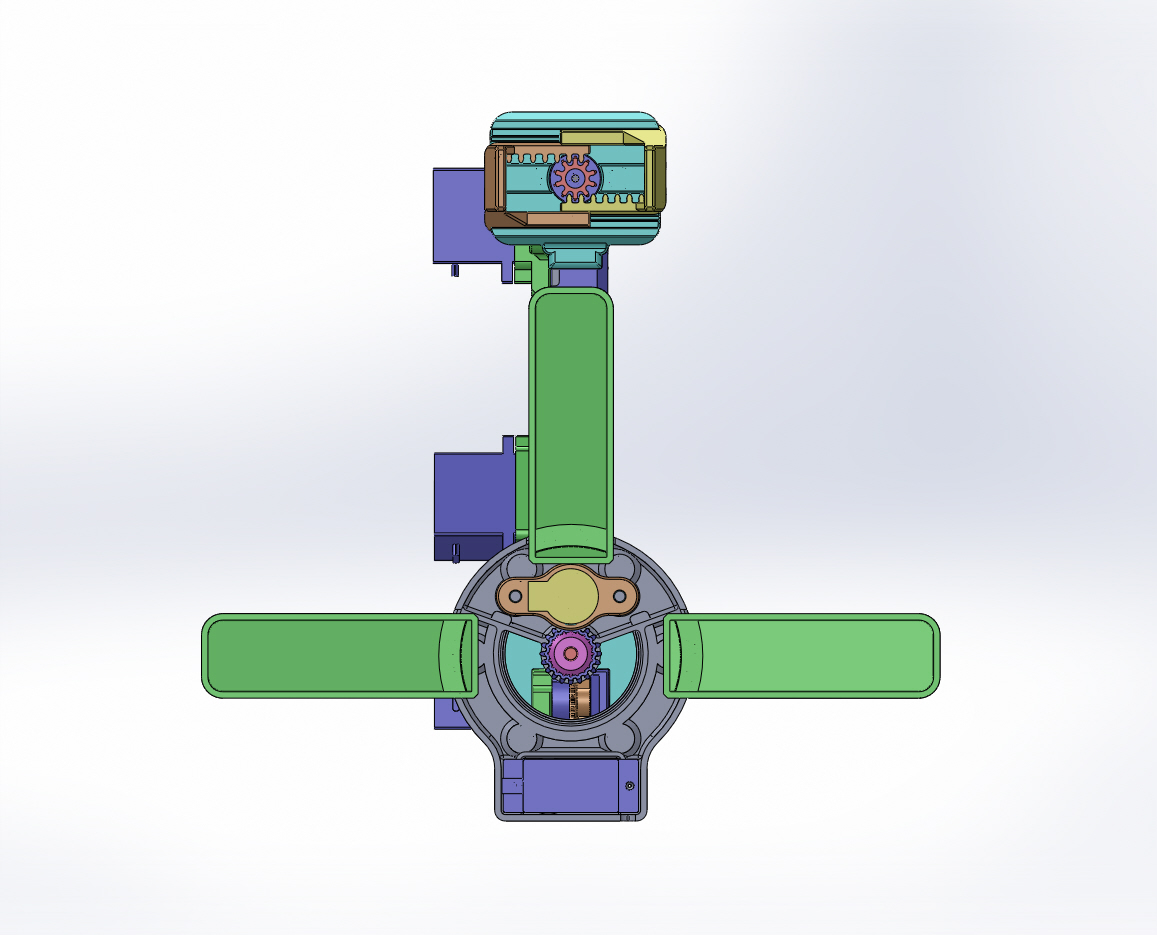

Six 4mm dia metal ball are required to support the base turning gear.

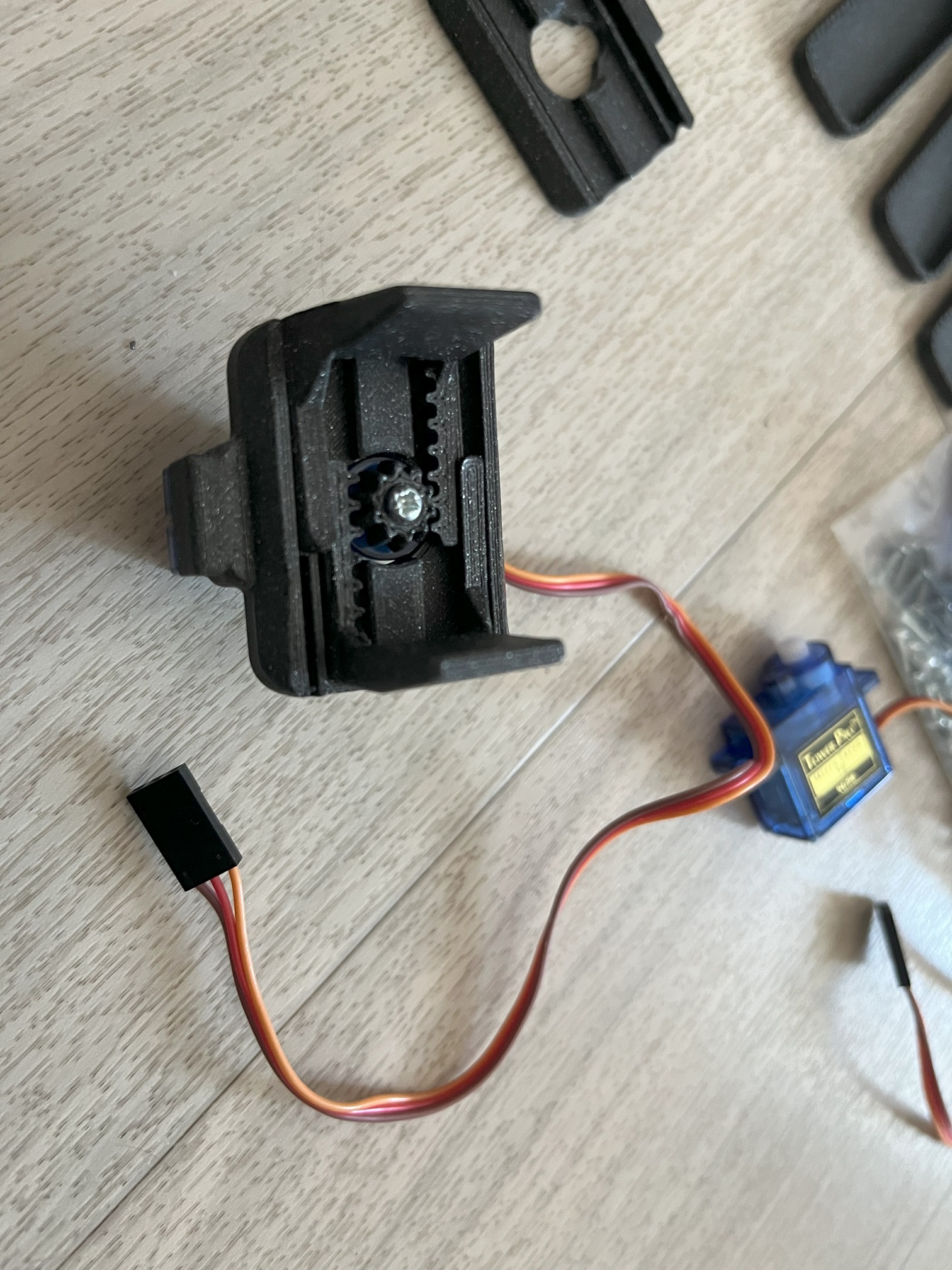

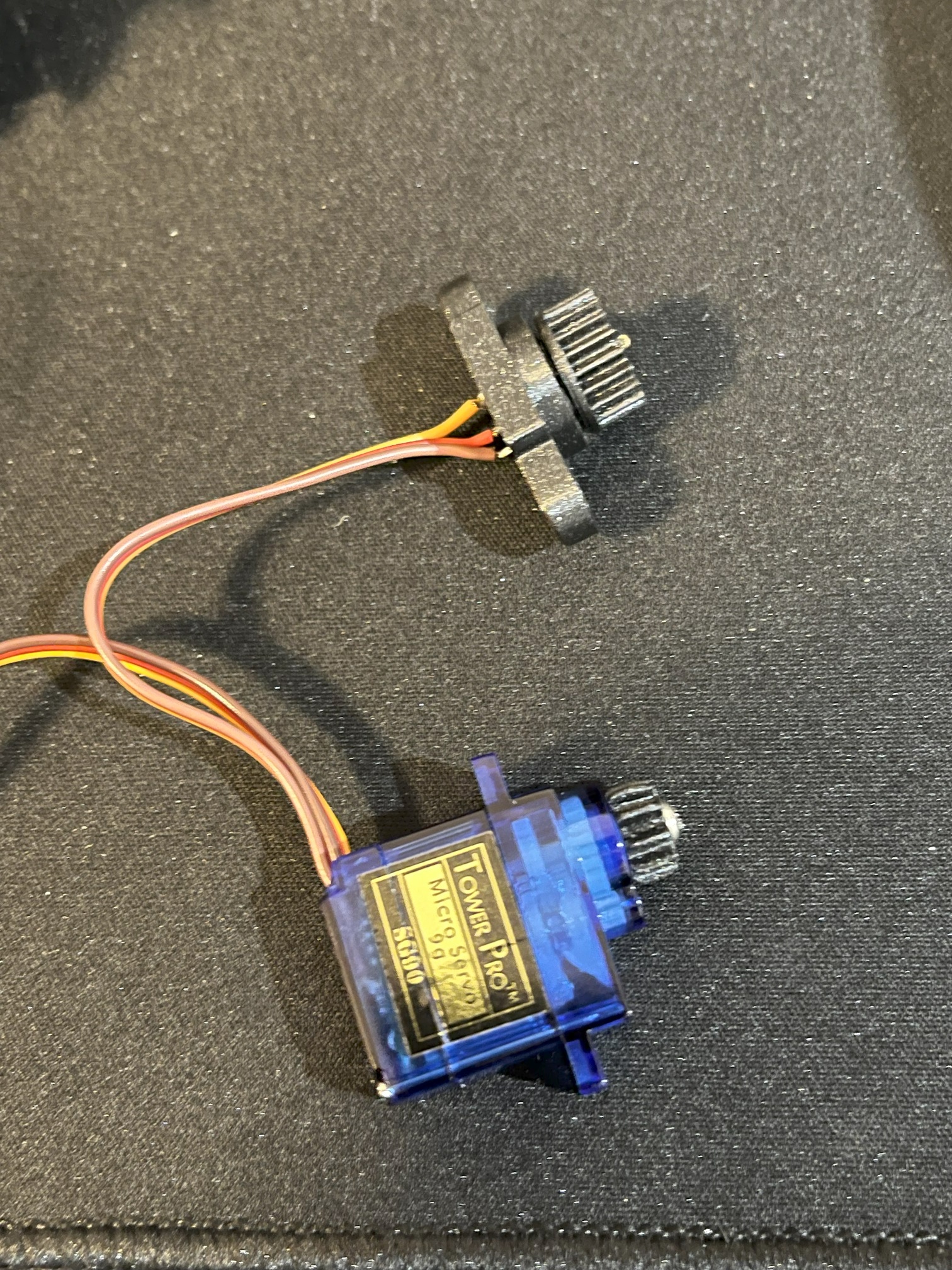

All servo motors are using the same gear of 9 teeth. This gear of 6 different tolerance/clearances are provided.

Material

  • 5x Servo SG90
  • 1x Hex Socket Head Cap Screw M2x10 DIN 912
  • 1x Button Head Screw Flanged M2.5x25 ISO 7380-2
  • 3x Hex Socket Head Cap Screw M2.5x20 DIN 912
  • 1x Hex Socket Head Cap Screw M2.5x15 DIN 912
  • 8x Hex Socket Head Cap Screw M2.5x8 DIN 912
  • 2x Hex Socket Head Cap Screw M3x10 DIN 912
  • 1x Hex Nut M2 DIN 934
  • 2x Hex Nut M2.5 DIN 934
  • 4x Self Locking Nut M2.5 DIN982
  • 2x countersunk head tapping screw 2.2x6 DIN 7982
  • 1x countersunk head tapping screw 2.2x8 DIN 7982
  • 6x metal balls with 4mm diameter

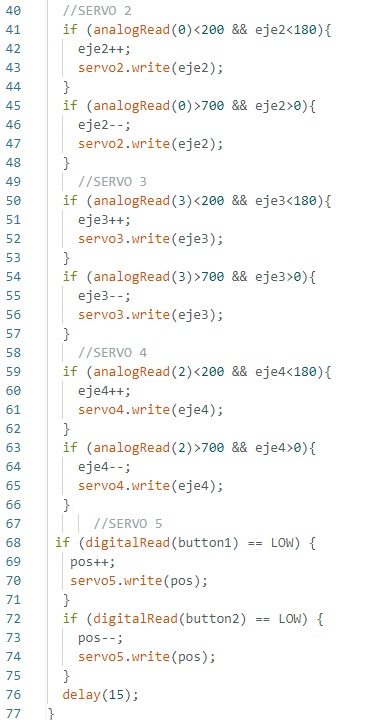

Program for Arduino in pictures.

Functions for Robto Arm:

     1.  Manipulation

GHOST Robot Arm - YouTube

Axis on Robot Arm (youtube.com)

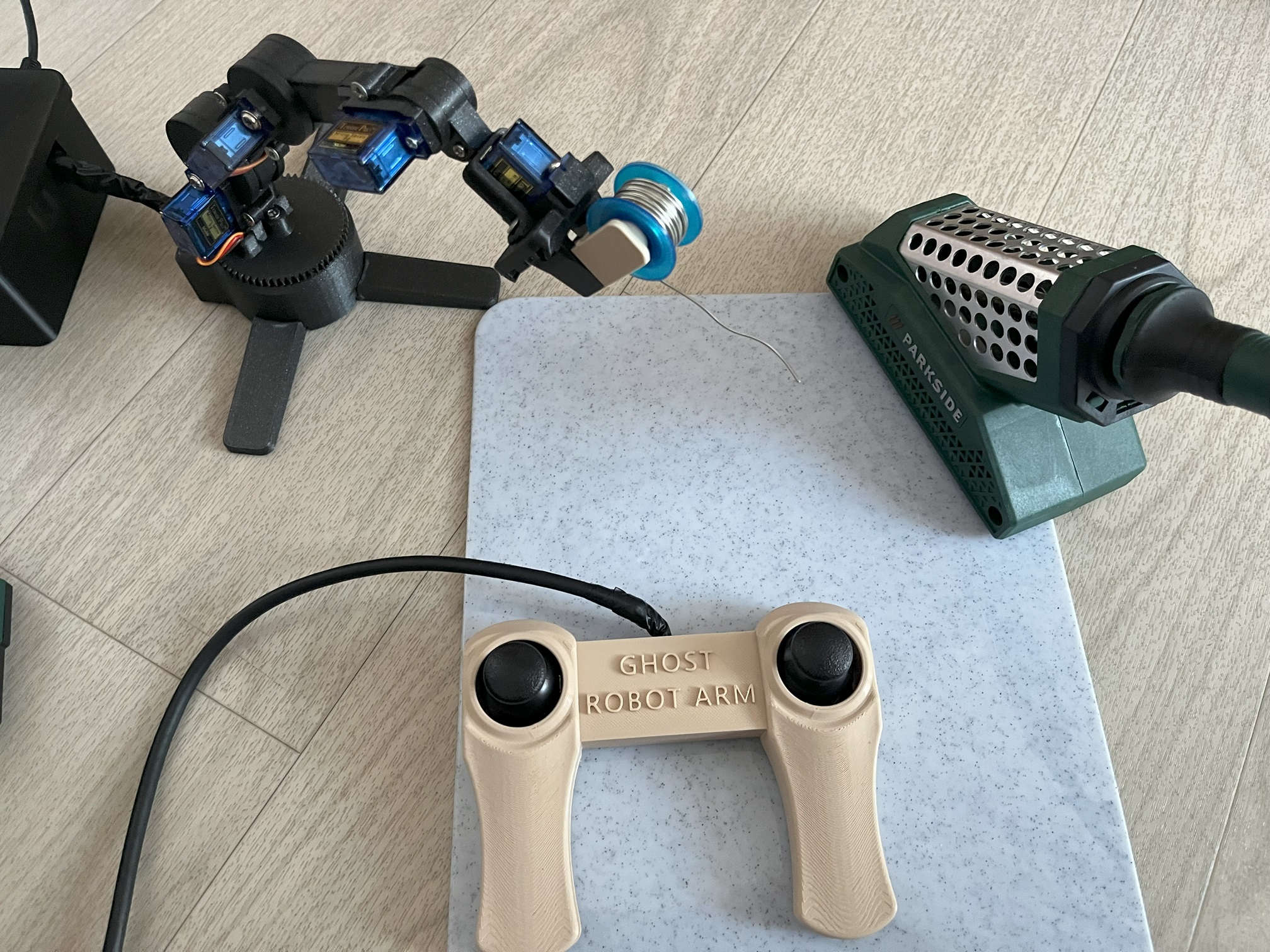

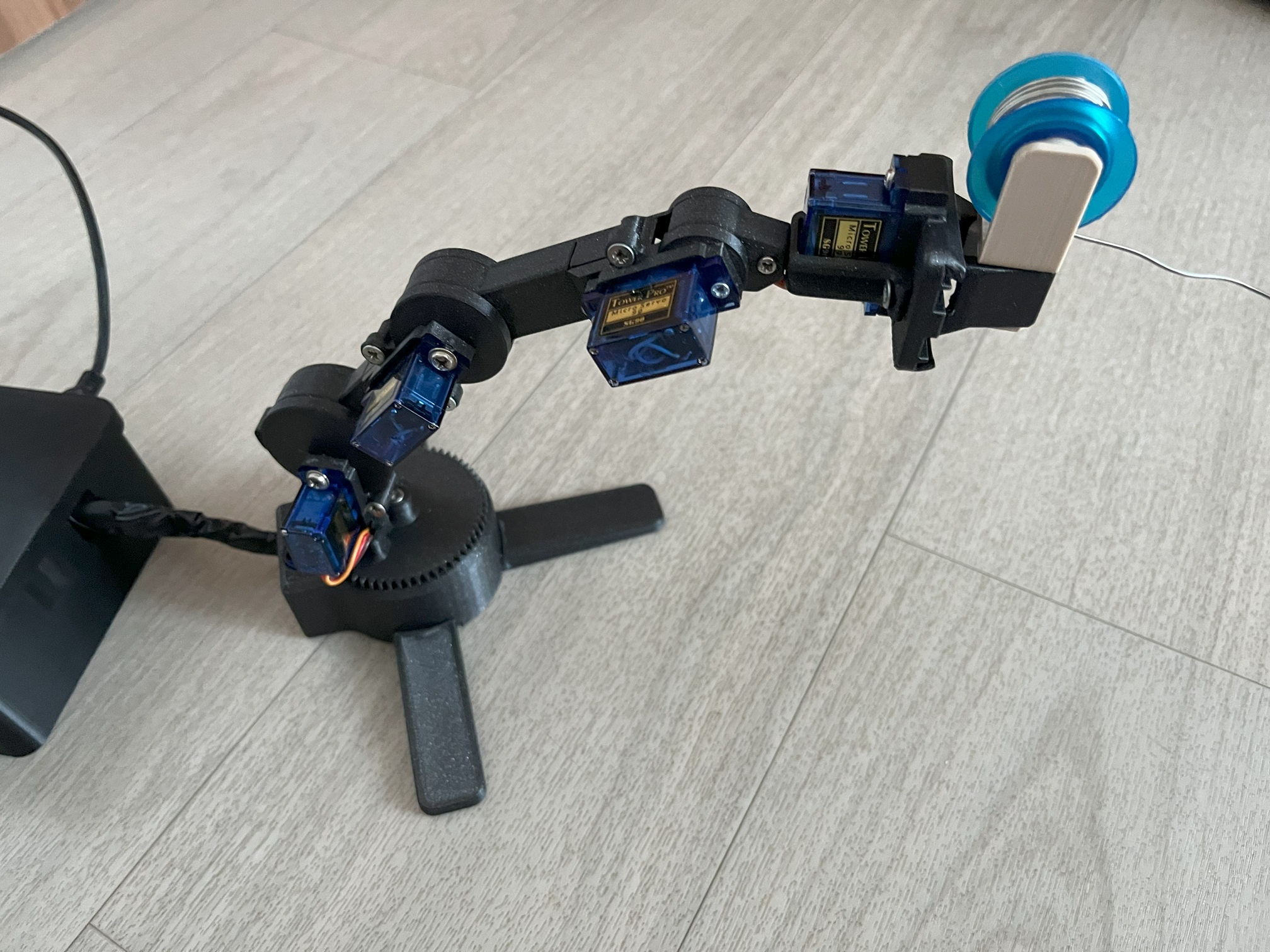

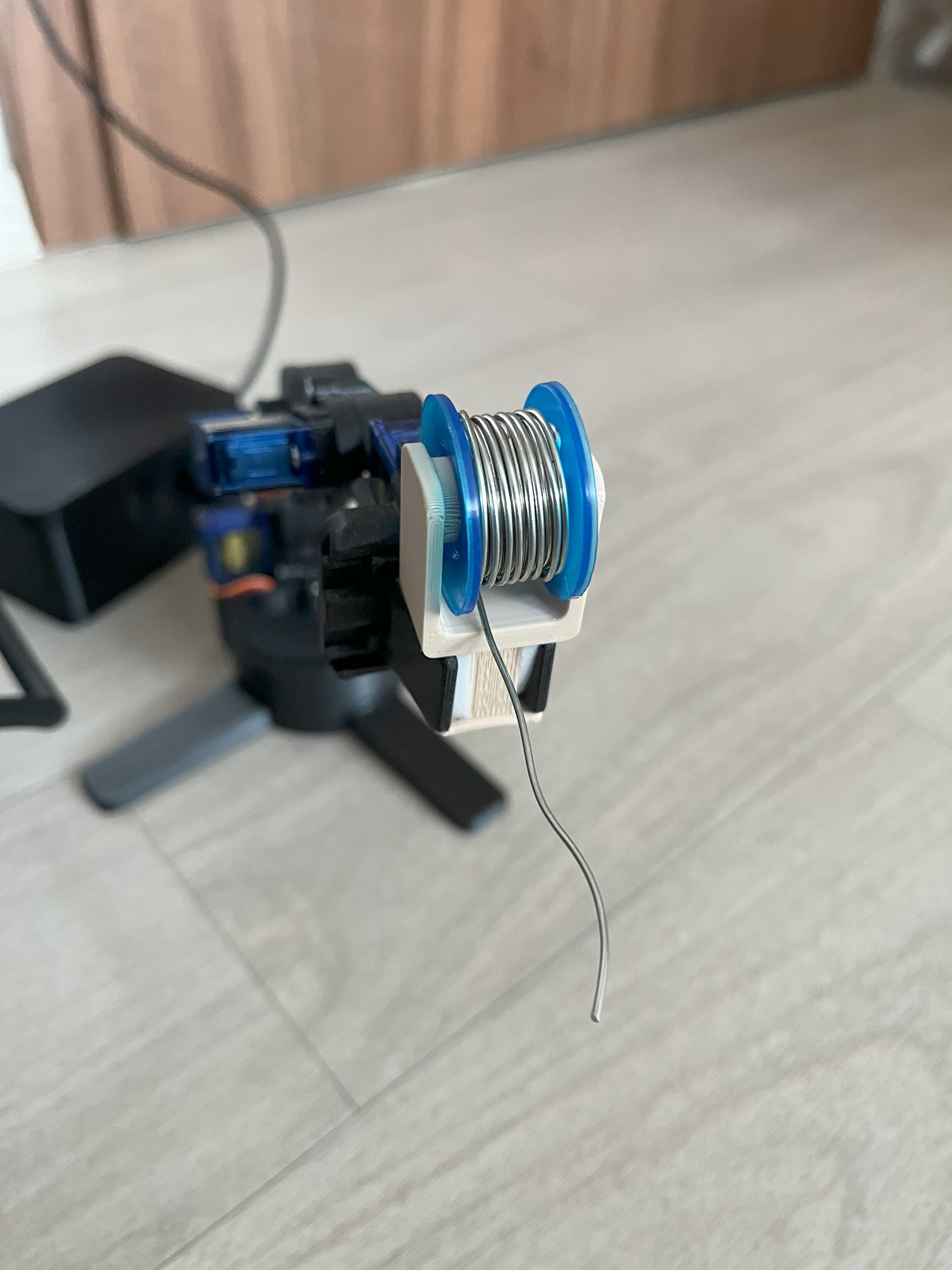

     2.  Holder for Soldering

Holder for Robot Arm (youtube.com)

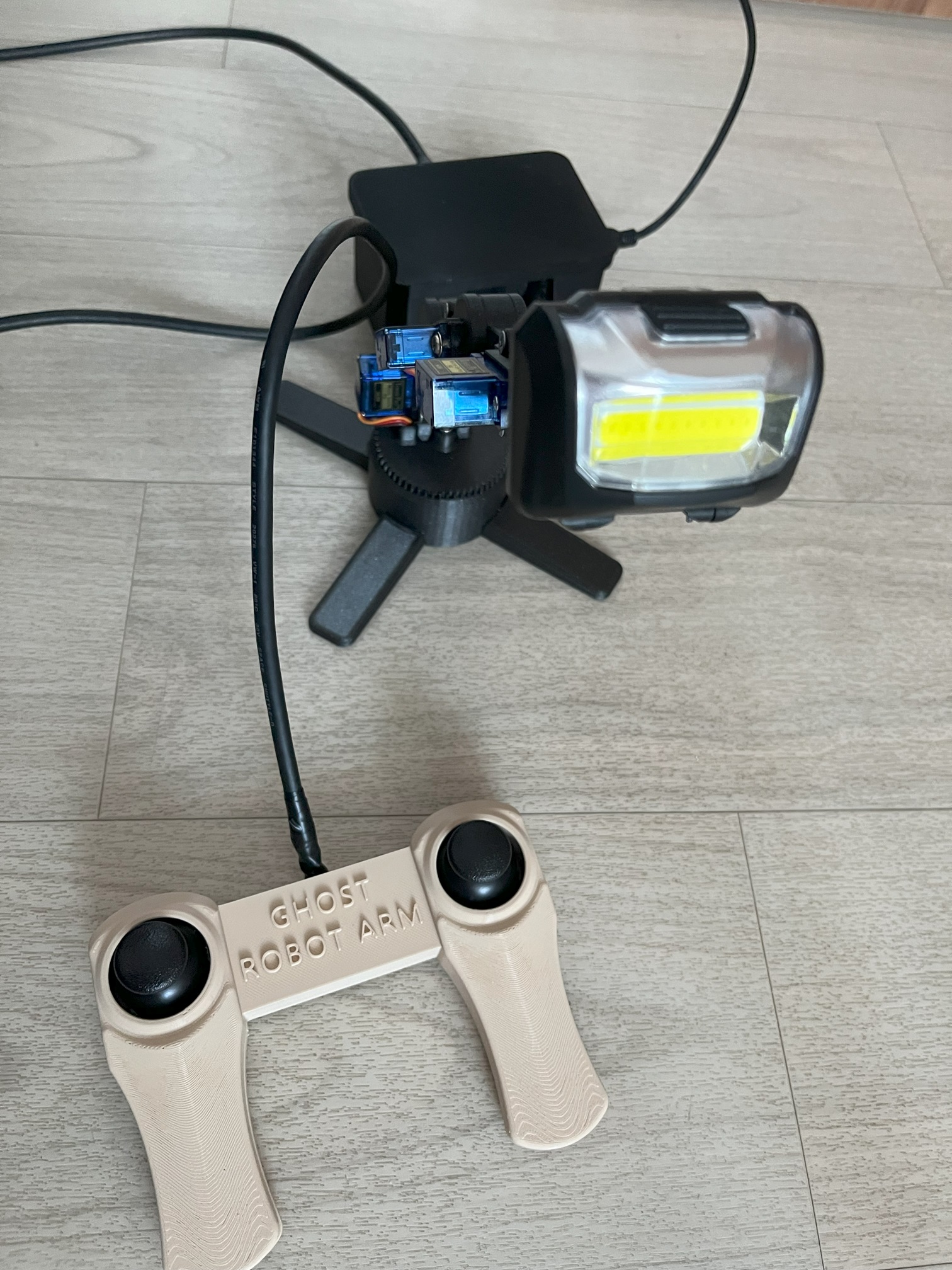

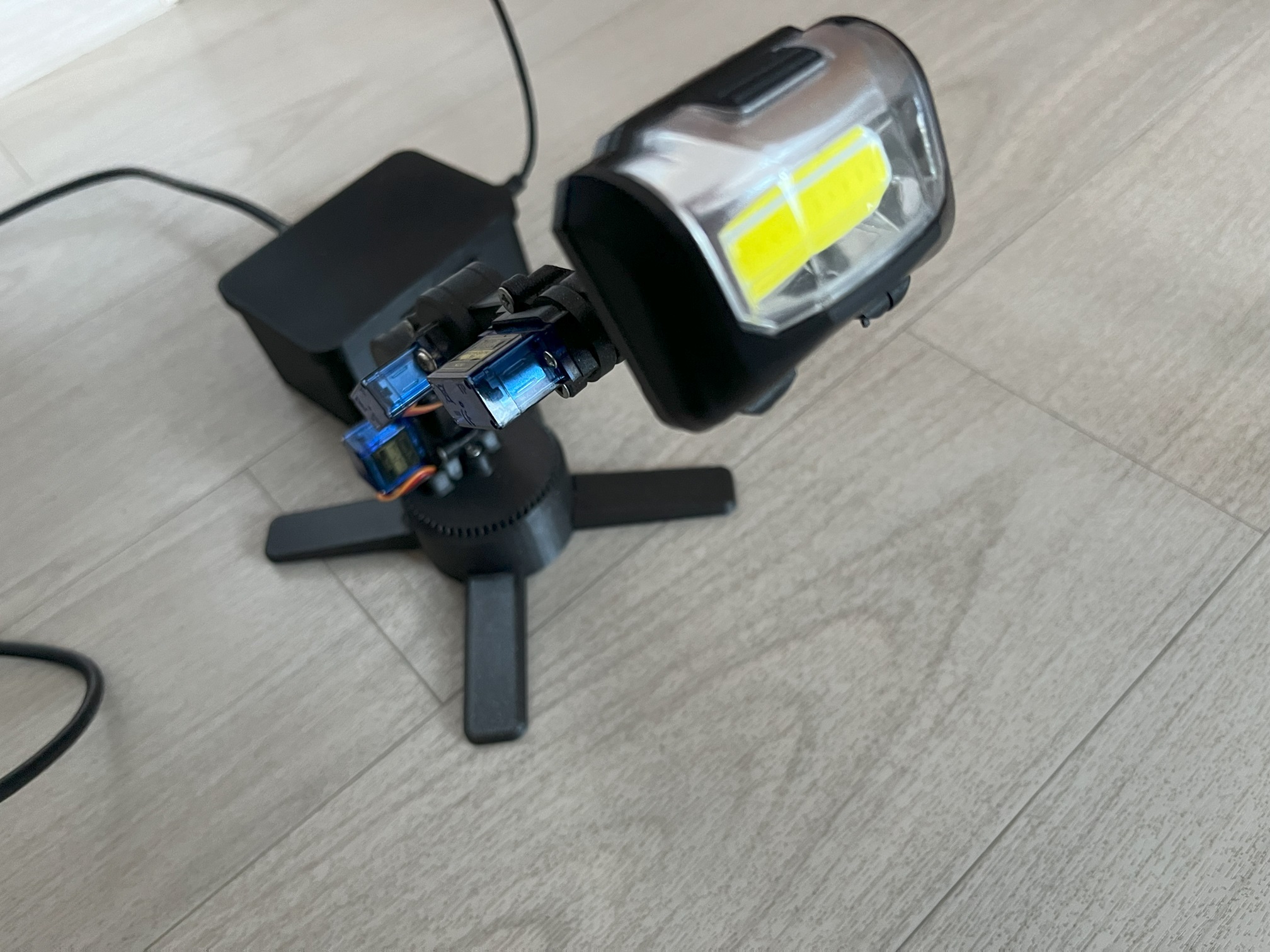

     3.  Holder for Light

Light for Robot Arm (youtube.com)

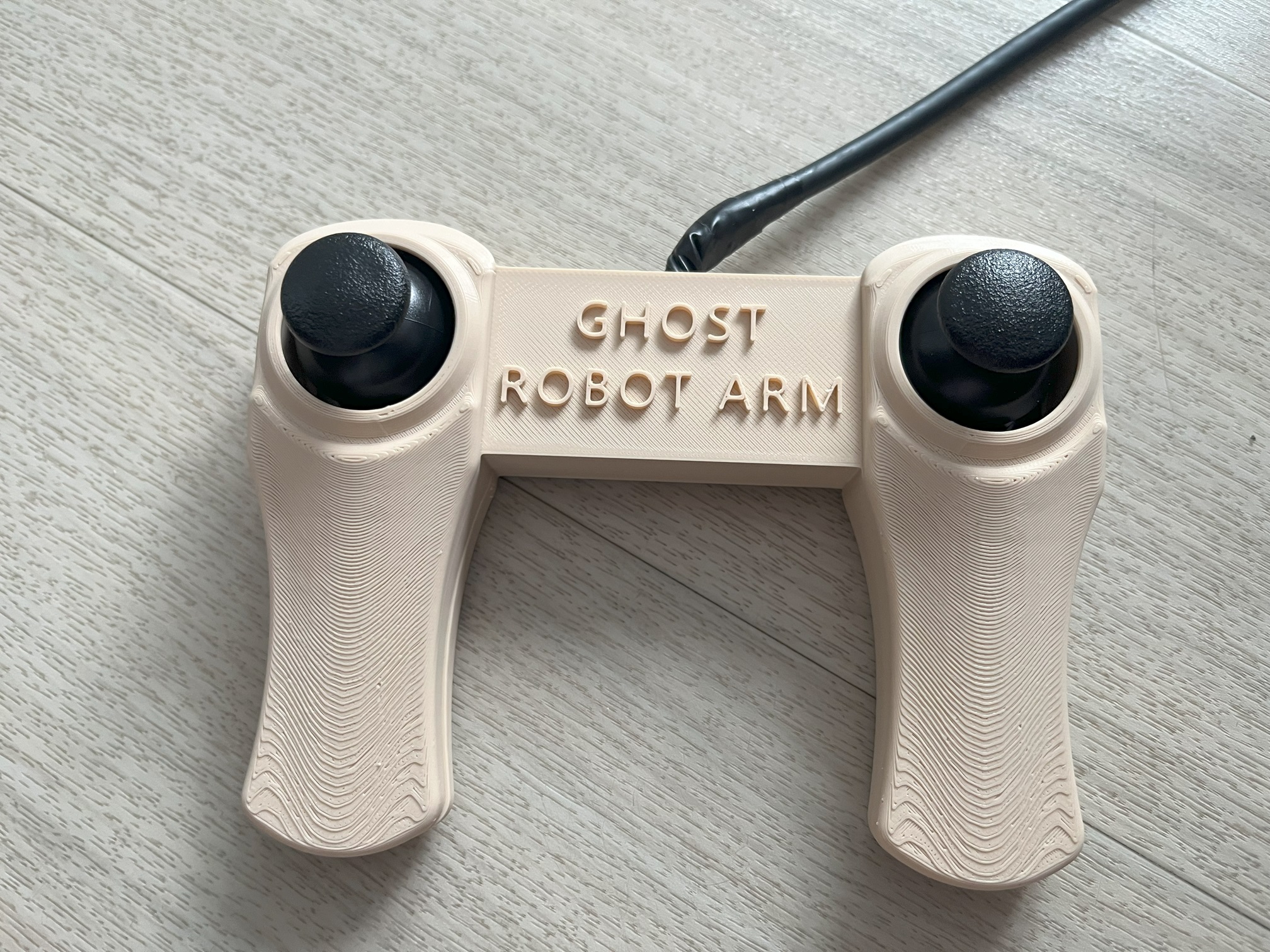

Joystick - Joystick for Robot Arm od autora Carlos Ghost | Stáhněte si zdarma STL model | Printables.com

Holder - Holder od autora Carlos Ghost | Stáhněte si zdarma STL model | Printables.com

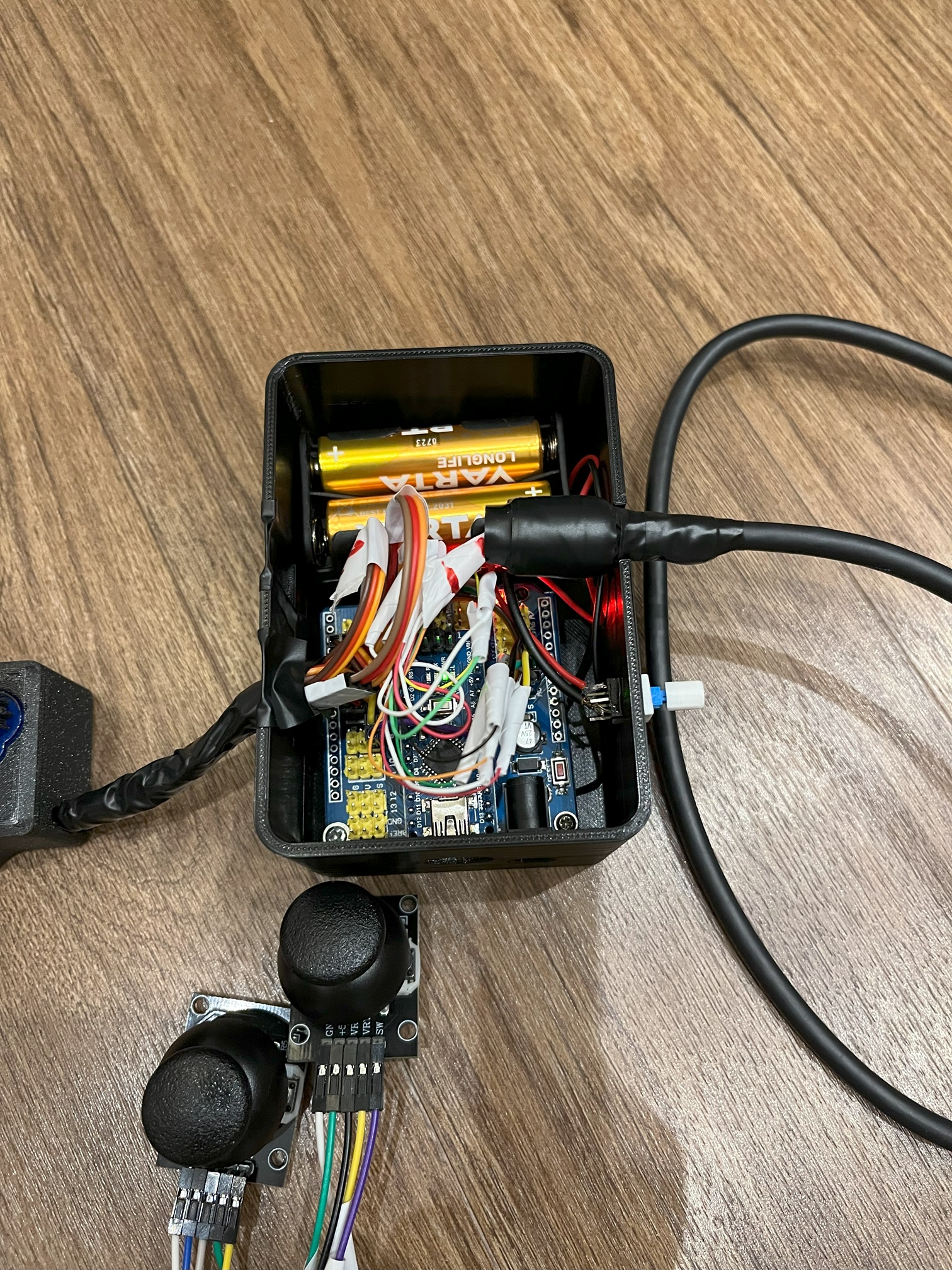

Box for Arduino and Battery - Box for Arduino od autora Carlos Ghost | Stáhněte si zdarma STL model | Printables.com

Enjoy!

Printables

Robot Arm

Carlos Ghost Carlos Ghost (abre em nova aba)

Publicado em 1 de jul de 2024

368
Curtidas
909
Downloads
3
Impressões
Categoria RC & Robotics
Tags
robot arm
Licença Creative Commons — Attribution — Share Alike
Arquivos (23)
7. Arm-L_leg_3pcs.STL 53.7 KB
8. Arm-L_middle.STL 234.8 KB
11. Arm-M_hsg1.STL 218 KB
12. Arm-M_hsg2.STL 175.4 KB
15. Arm-S_hsg2.STL 156.1 KB
16. Arm-S_middle.STL 133.6 KB
1. Arm-L_base.STL 805.9 KB
9. Arm-L_nutKnob.STL 176.6 KB
13. Arm-M_middle.STL 210.3 KB
2. Arm-L_baseTopGear.STL 544.7 KB
10b. Arm-L_VRmount_V3mod.stl 50.4 KB
21. LowerBearing.stl 40.5 KB
18. Clamp_main.STL 252.6 KB
6. Arm-L_hsg2.STL 270.3 KB
14. Arm-S_hsg1.STL 203 KB
19. Clamp_yMount.STL 141.1 KB
5. Arm-L_hsg1.STL 206.4 KB
4.Arm-L_gearVR.STL 199.5 KB
10. Arm-L_VRmount_V1mod.STL 89.9 KB
3. Arm-L_gearCenter.STL 180.6 KB
17. Clamp_jaw_2pcs.STL 180 KB
10a. Arm-L_VRmount_V2mod.stl 388.2 KB
20. Gear1s_5pcs.STL 873.7 KB
