Heyho

For a small project I did need some minimalistic brackets! Since I didn't particularly like most of the versions already available online, I quickly constructed a few myself and ended up installing this ones. After that Project I was asked to design a corner bracket in a similar way. So here it is!

Design Ideas

Round Corners


There are no hard edges to ensure a beautifully minimalist shape that no one can bump into unpleasantly :)

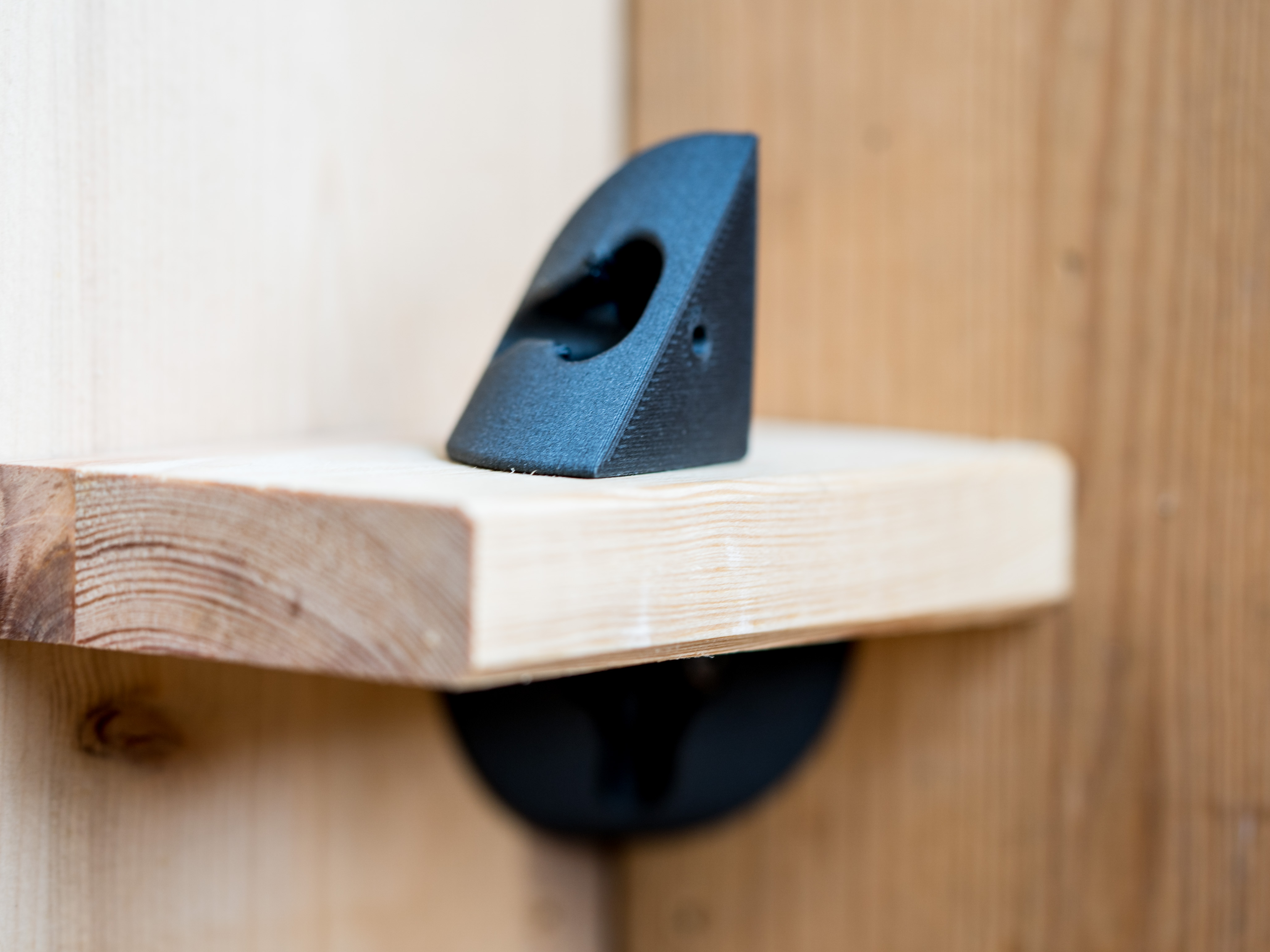

Hardware

Only 3 wood screws (contersunk as standard or flathead) are required for assembly. Two 4 mm ( x 20 mm +) screw to attach the angle and one 3 mm ( x 8 mm +) screw to attach the bracket.

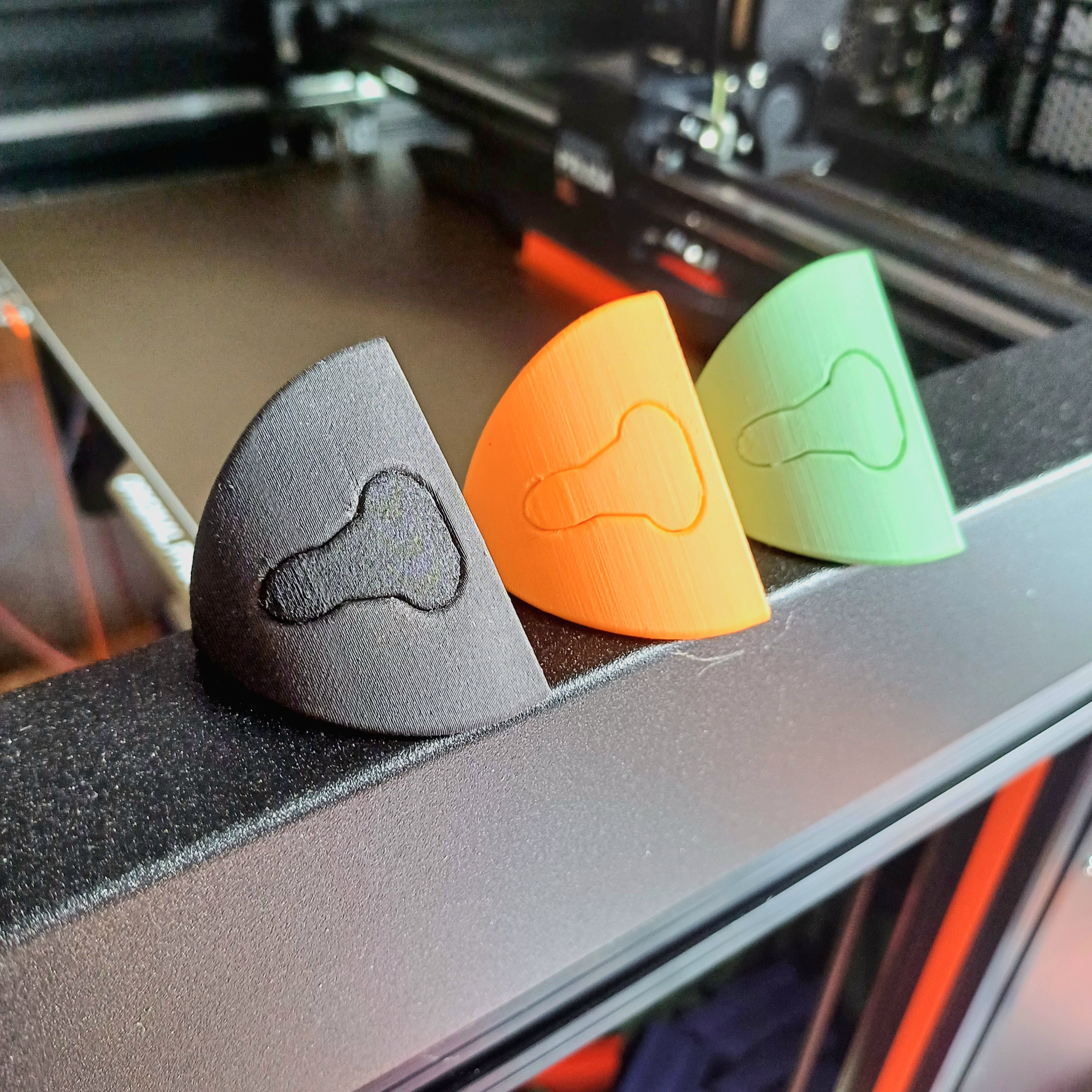

Cap
I Added 2 Cap versions. One that can be printed standing upright and one that can be printed lying down. The upright one  looks cleaner but eventually needs a brim. The lying one doesn't look that clean later on but is easier to print.

Scaling

You can scale the model up/ down if you like! But keep in mind that the Screw sizes will also change!


Print Instructions:

I printed the Brackets in 0,2 mm layer height, 30% Infill and 4 Perimeter with PETG. But PLA ore even more technical materials should work too :)

If you want to max out the stability then go for 100% infill.

Seams:

Have fun! And If you like my work share it and consider leaving a small donation so I can continue to publish my work!
