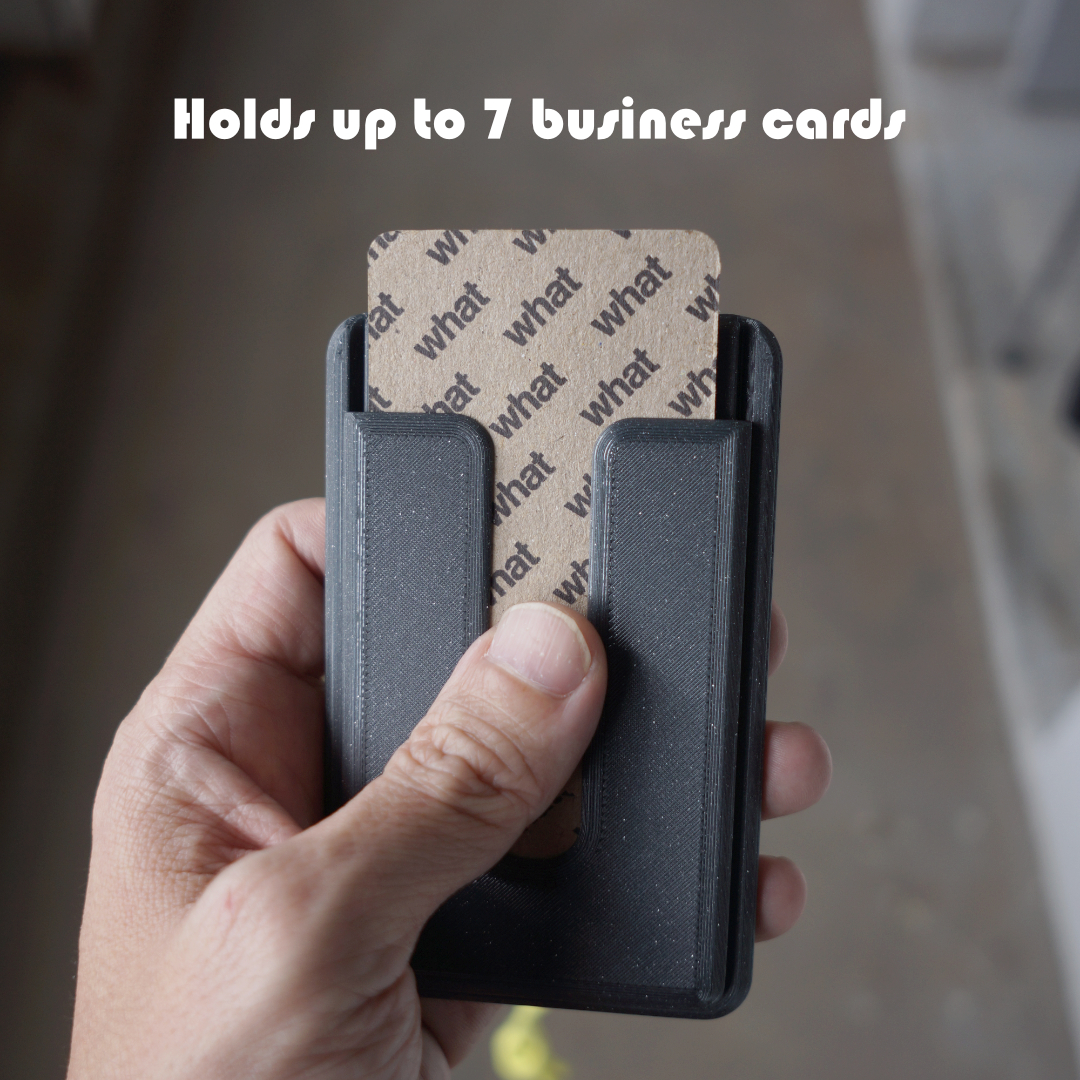

Yet another modular project: the ID card holder. If you find this useful, feel free to share with us what other modules you think would be great additions. We've included a card placeholder for those who only need to hold one ID or card to prevent it from moving around. Have fun! =)

Dimensions:

• Height - 110mm.
• Width - 70mm.
• Depth (without any attachment) - 6mm.

Suggested print settings:

• Layer height 0.2mm.
• Infill 30%.
• Perimeters: 5 (for strength).
• No supports needed.
• For long-term use, printing in PETG is highly recommended, as PLA degrades faster over time.

Assembly

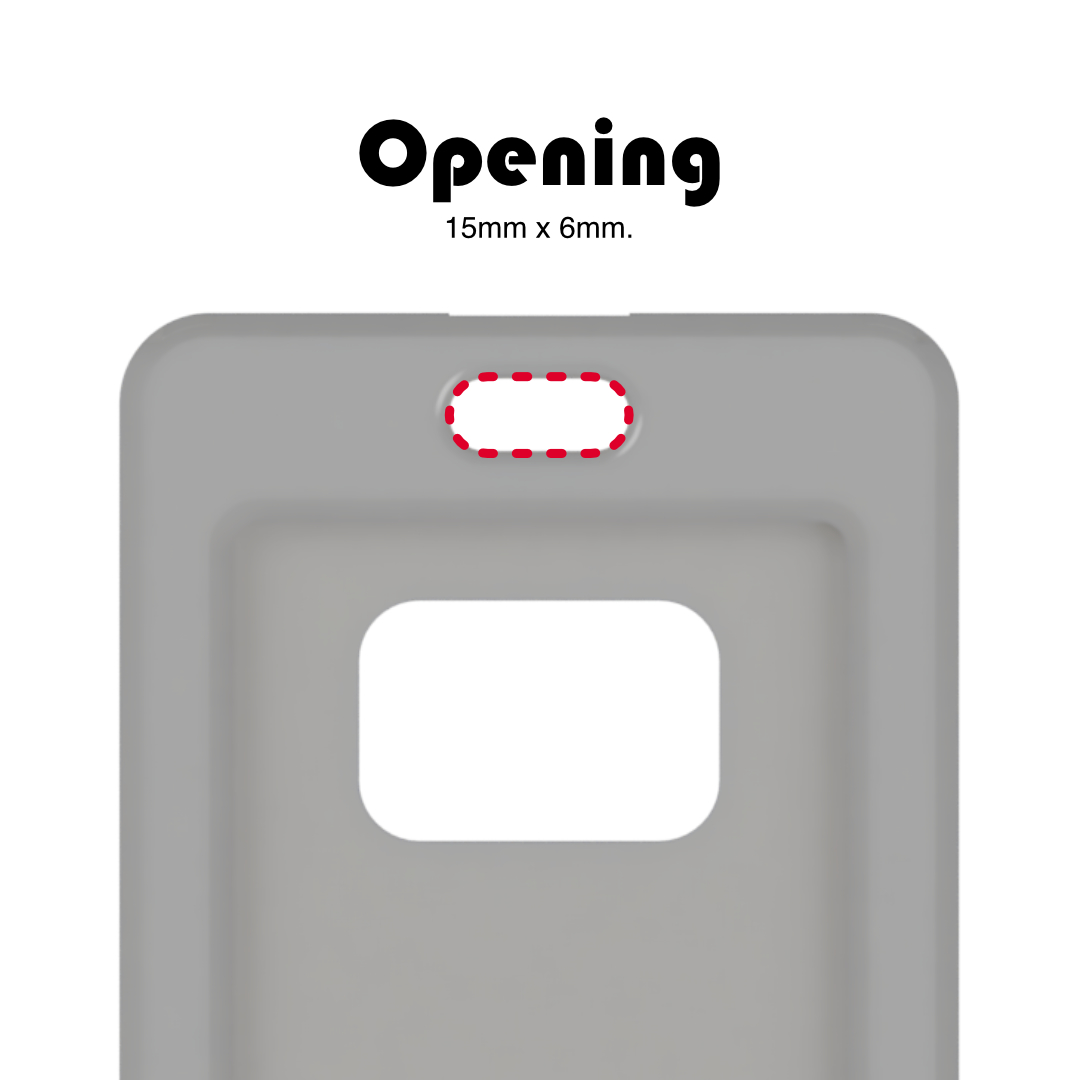

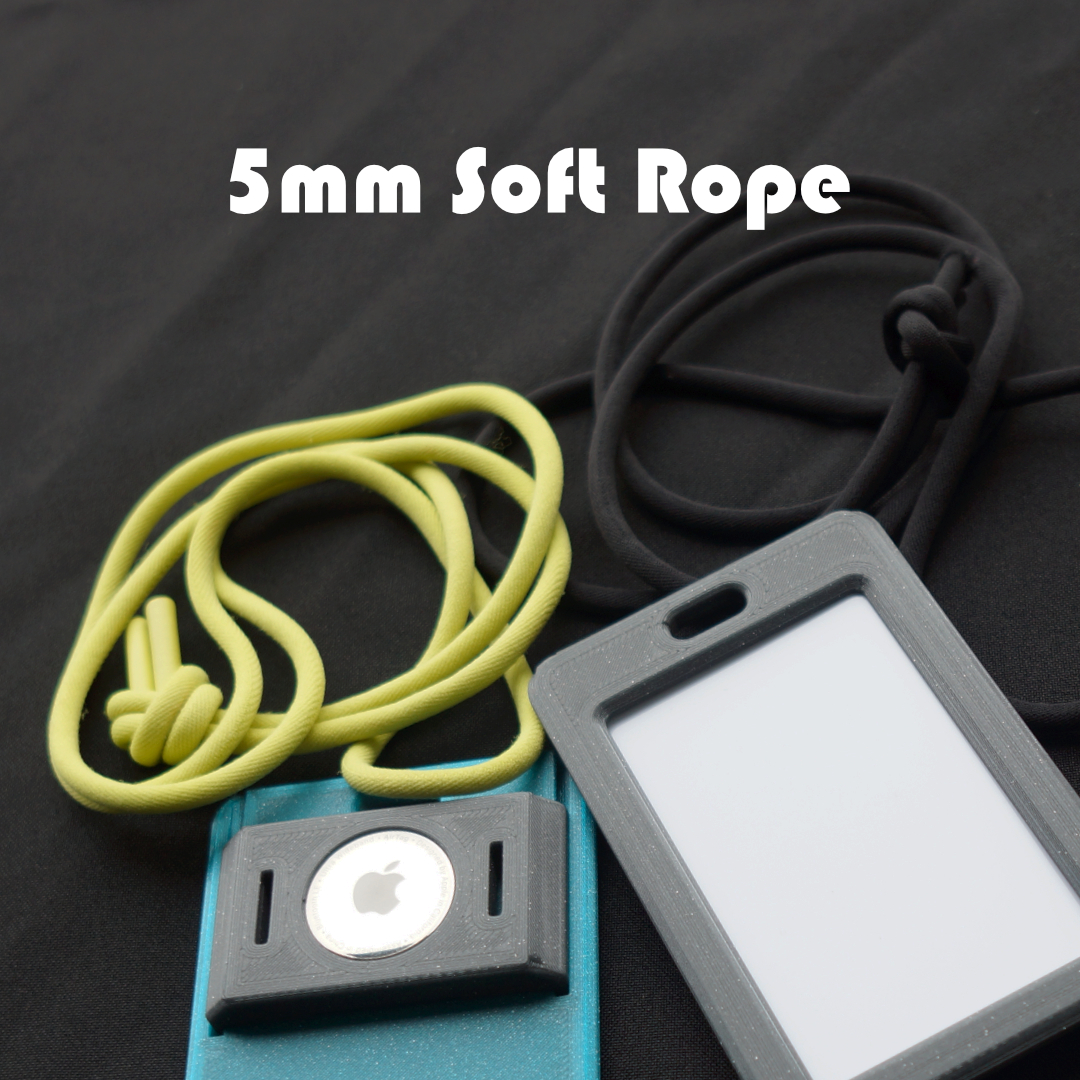

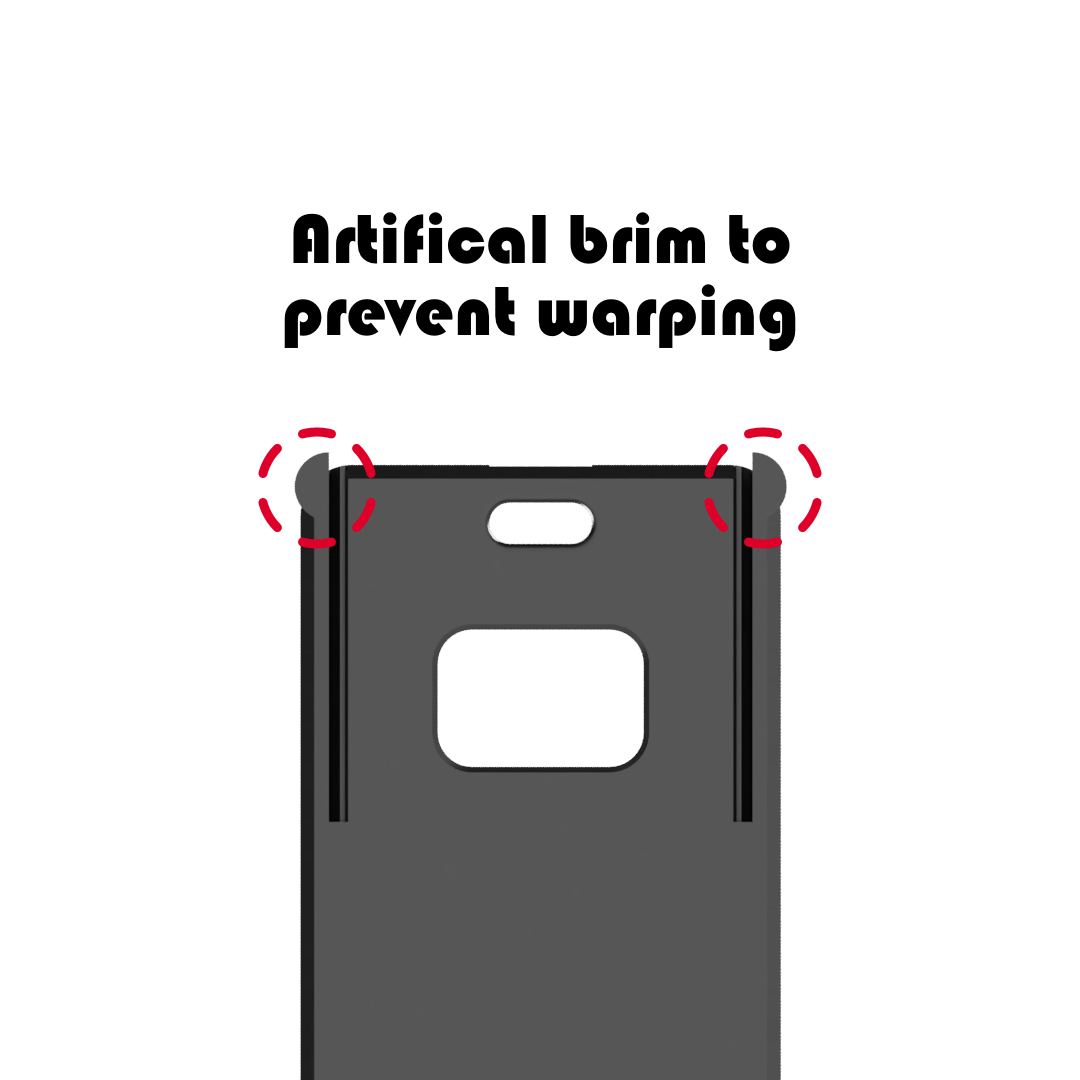

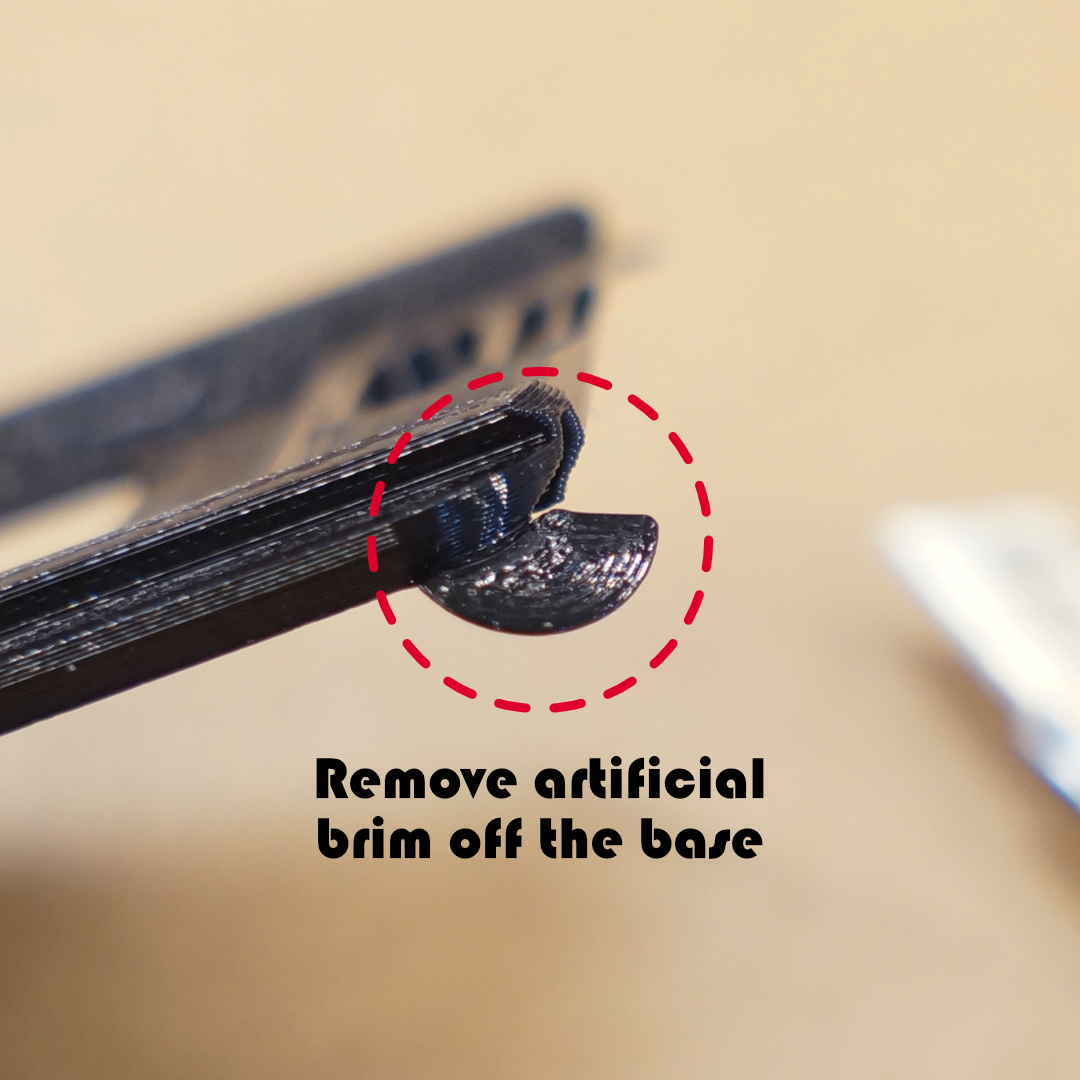

Snap the artificial brim off the base, then smooth the edges as needed. Slide the components together from top to bottom via the groove. Compatible with any lanyard fitting a 15mm x 6mm opening; our images feature a 5mm soft rope.

If you appreciate our designs, you can explore more of our gadgets HERE.

NOTE
Most of our designs are printed and tested on a Prusa Mini and MK4, so tolerances may vary with different brands. Tolerance issues may also occur between different materials; please fine-tune and adjust as needed. While we strive for a smooth experience, we appreciate your understanding if any tolerance issues arise.
