Modelo 3D A Multipurpose Tripod Stand por gillis no Printables

Descrição

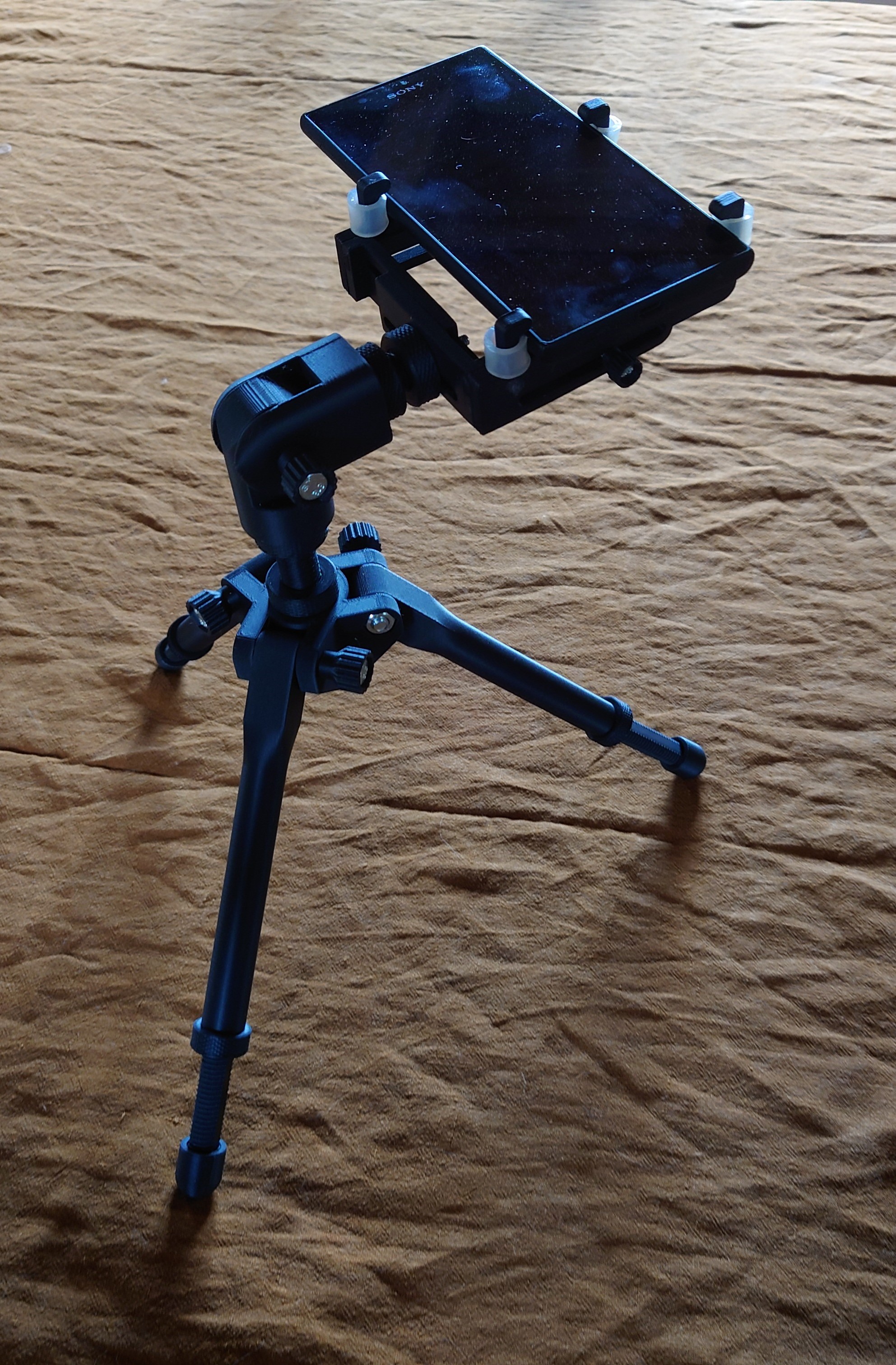

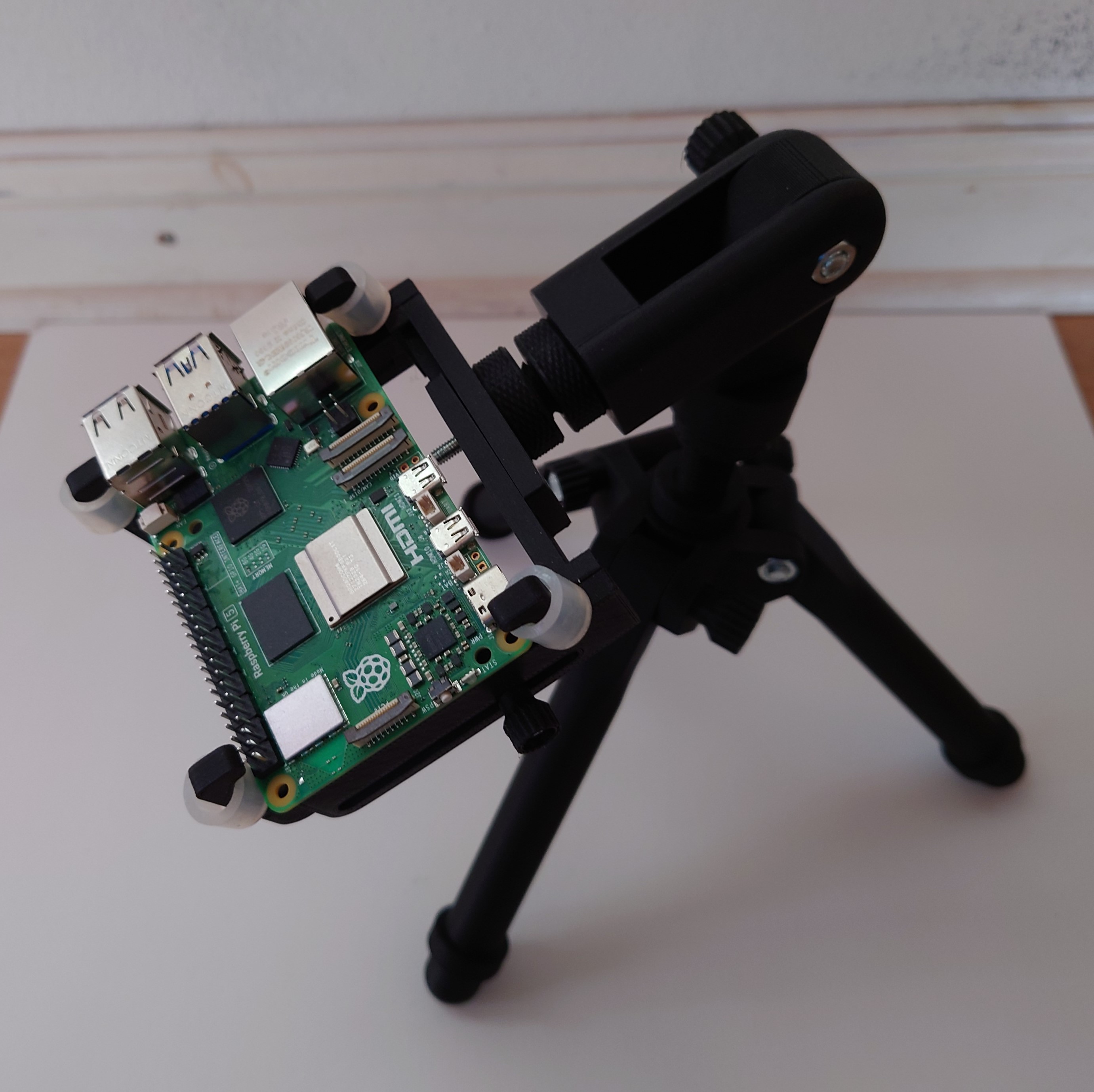

A tripod stand holder for soldering, mobile phone magnifier when soldering, or digital distance meter, holder for laser et cetera

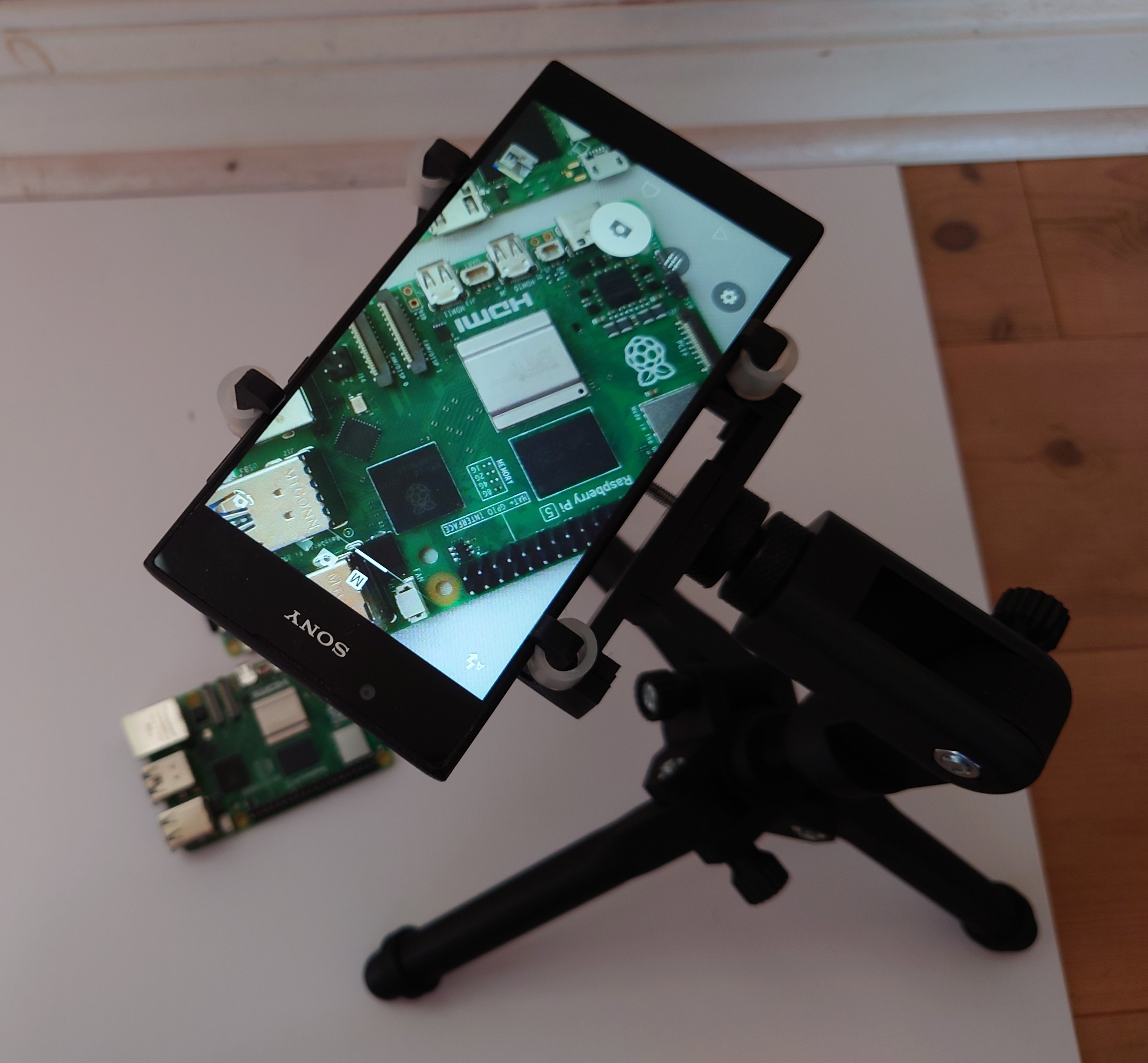

or … maybe a way to document your work by attaching a mobile phone/camera and take pictures along the way…

28 mars added stop nuts with wings, see under Accessories

also added 3MF_SwitchPlates and STL_SwitchPlates, Manfrotto and Velbon

Note that the screw to the knob to the switchplates is M4 round head (as the other M4). Don't tighten too much … you will notice …

31 mars added JointConnectionFixed for fixed angle in 15 degrees step, see under Accessories (and see images below)





Quite a few parts

First of all

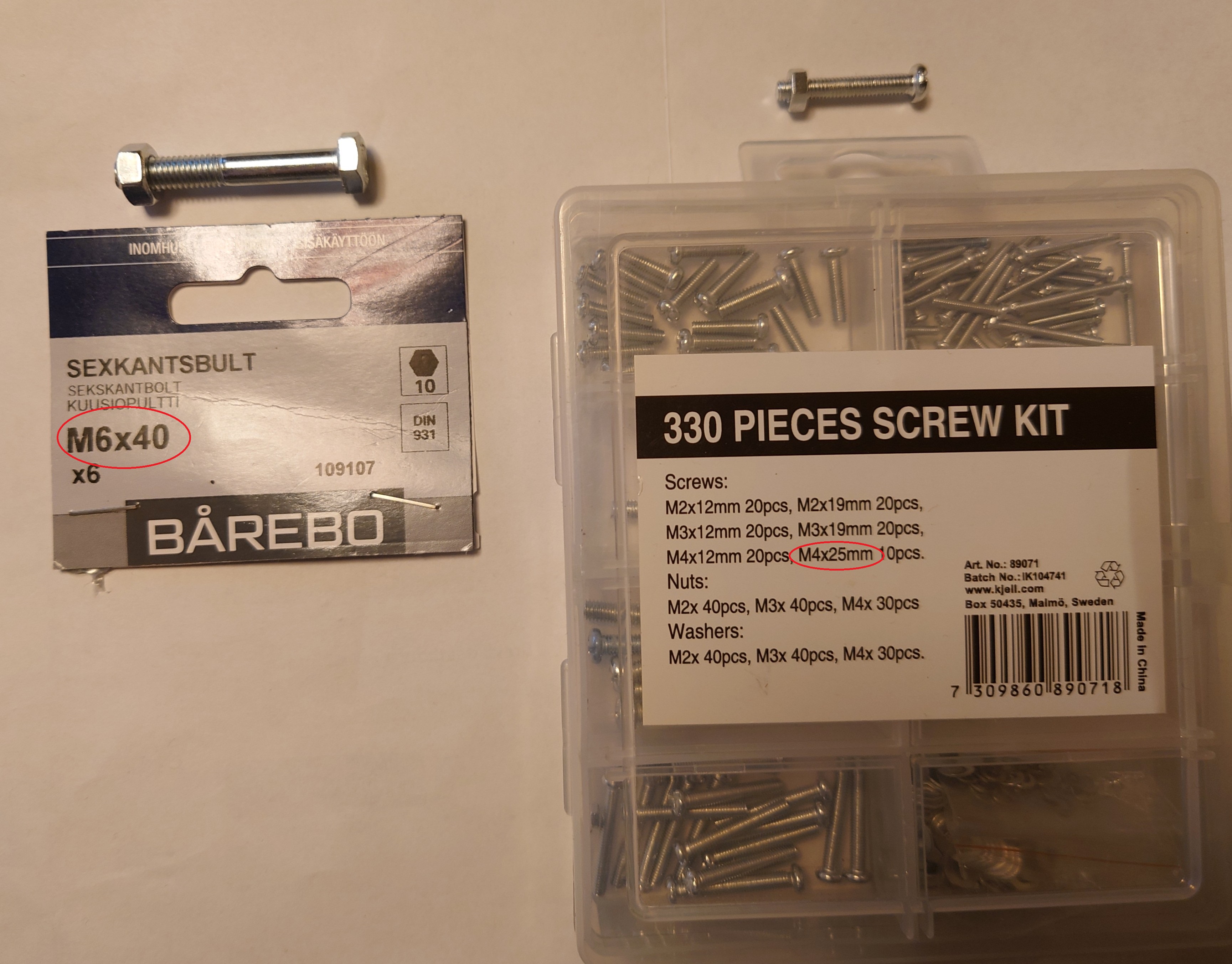

you need this hardware

4 screws and nuts M6 x 40 (hexagonal head for the screw)

3 screws and nuts M4 x 25 (round head for the screw and 19 mm should be enough)

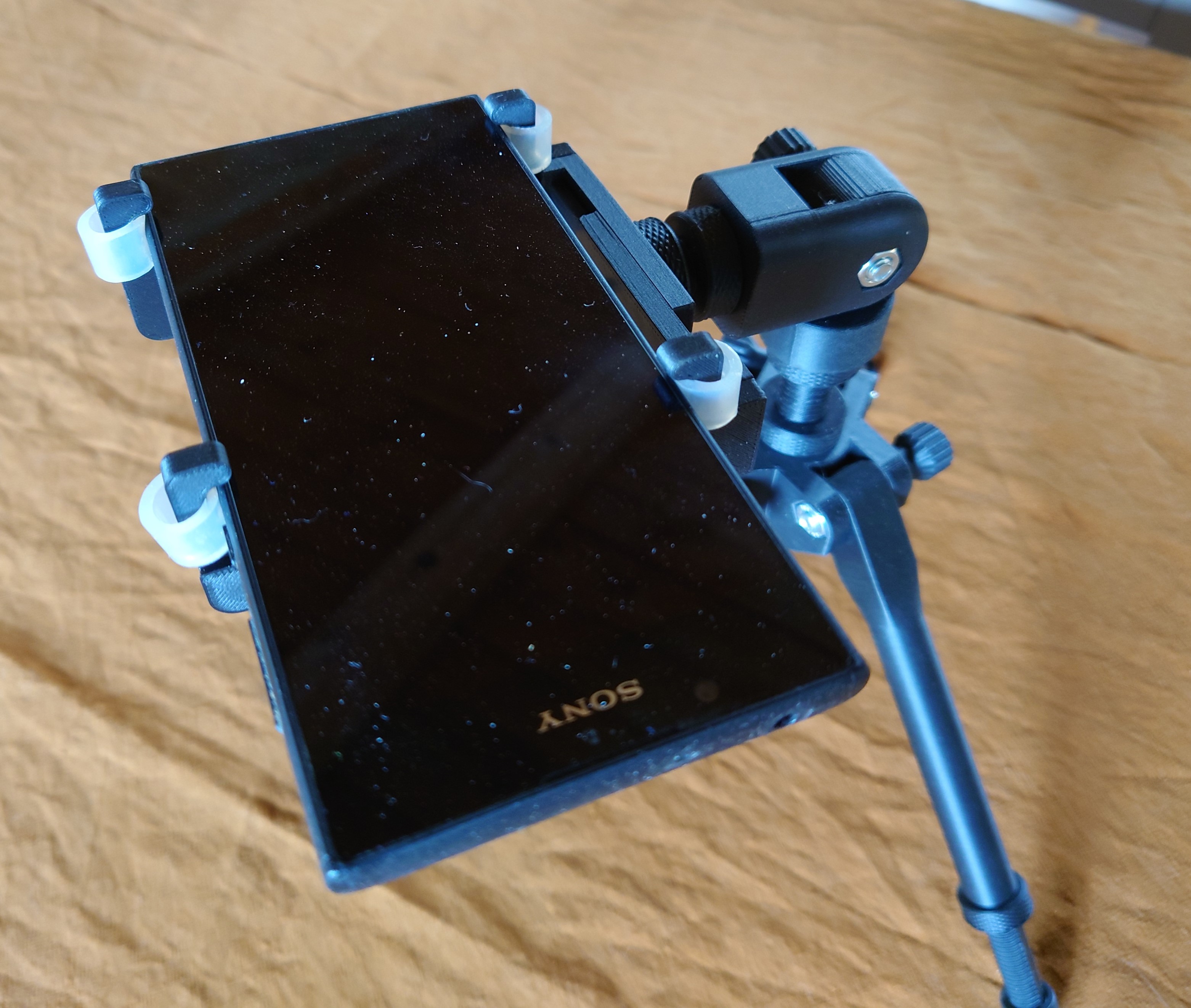

For the soldering item/phone stand I've cut 1 cm of a silicone hose (diameter 12mm outer, 8 mm inner) for each hook ( a common beer-maker hose :-))



Glue if neccessary (the phone stand)

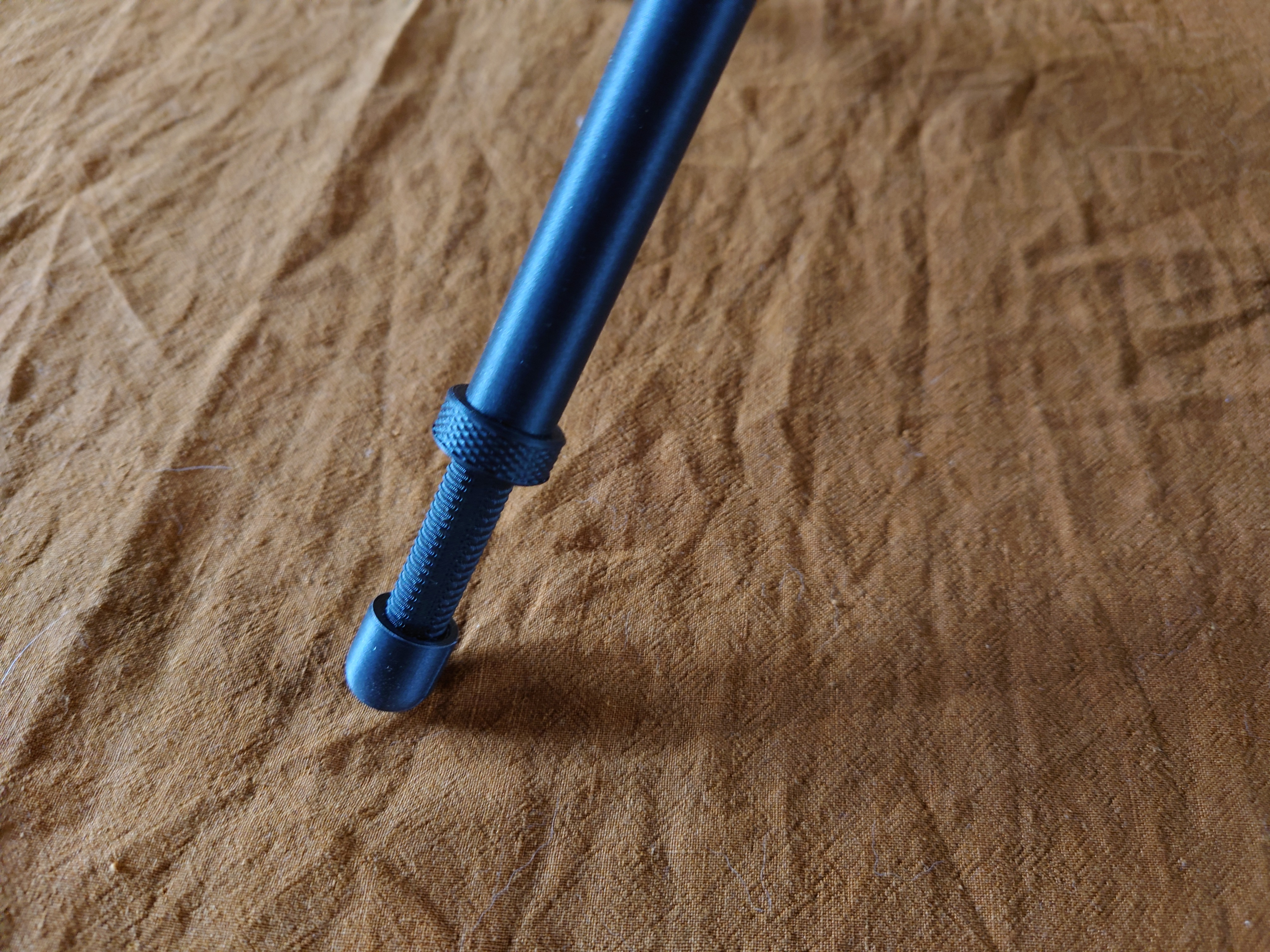

Leg

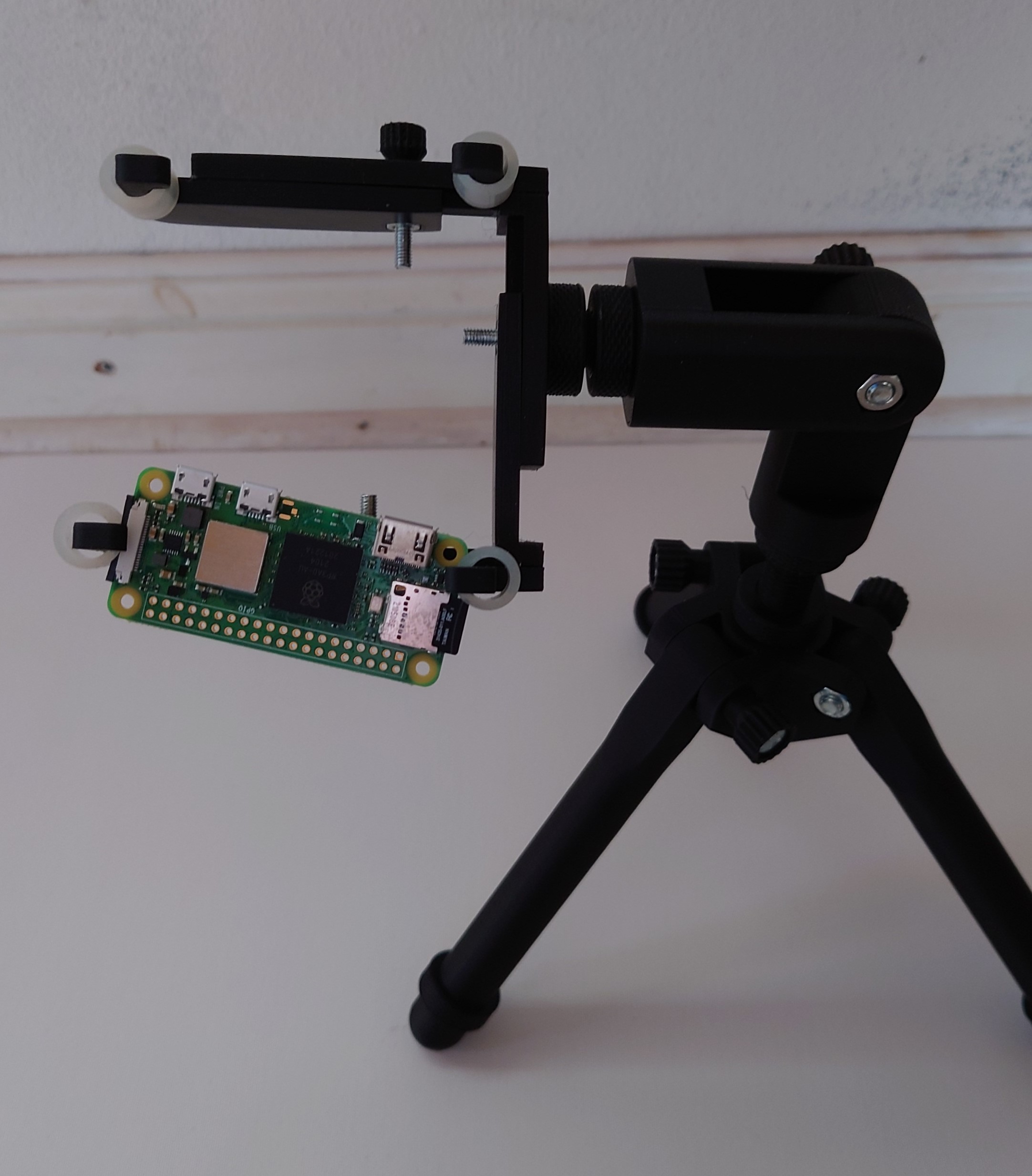

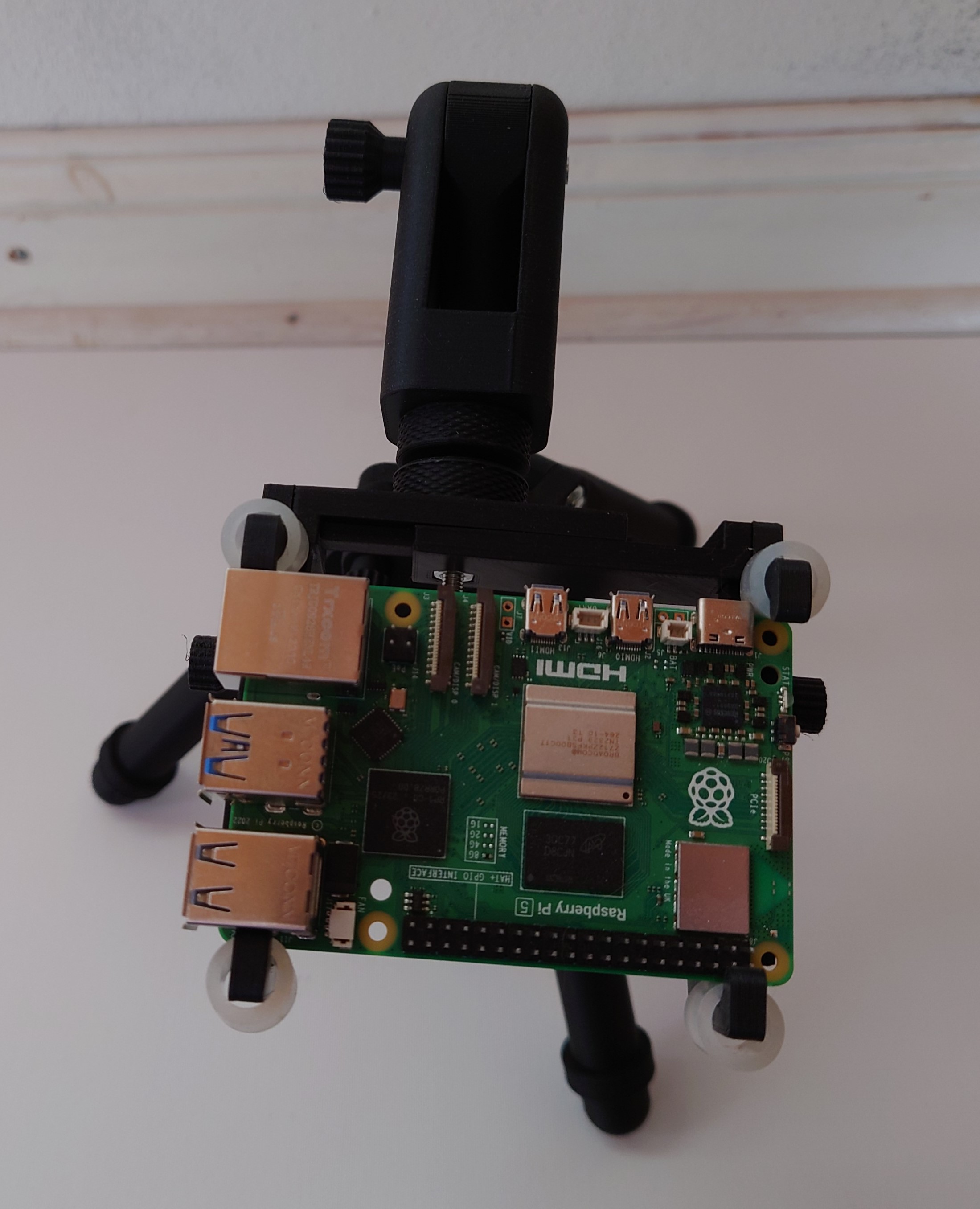

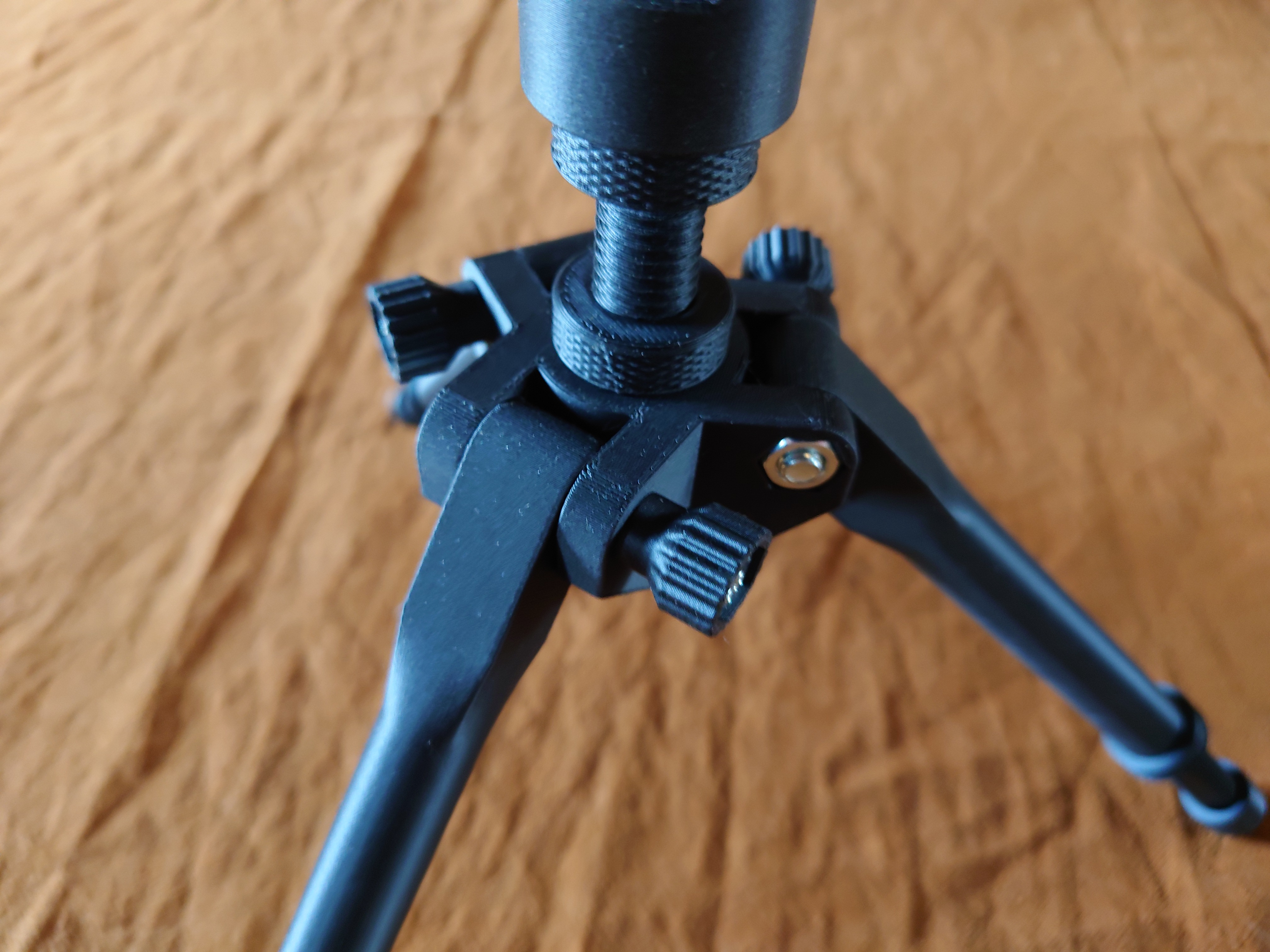

Body and Phoneholder

SwitchPlate



JointConnectionFixed



Other photos



Feel free

[https://www.paypal.com/paypalme/gillislindstrom](https://www.paypal.com/paypalme/gillislindstrom)

Printables

A Multipurpose Tripod Stand

gillis gillis (abre em nova aba)

Publicado em 15 de mai de 2024

300
Curtidas
373
Downloads
1
Impressões
Categoria Other Gadgets
Tags
video photos
Licença Creative Commons — Attribution — Noncommercial
Arquivos (68)
DeviceHolderScrew_50mm.3mf 1.3 MB
DeviceHolderSwitchPlate_Manfrotto.3mf 819.5 KB
DeviceHolderSwitchPlate_Velbon.3mf 701.1 KB
DeviceHolderScrew_50mm.stl 4.4 MB
DeviceHolderSwitchPlate_Velbon.stl 1.5 MB
DeviceHolderSwitchPlate_Manfrotto.stl 1.9 MB
DeviceHolderSwitchPlateKnob.stl 977.9 KB
StandTripod_COMPLETE.3mf 20 MB
PhoneHolder_COMPLETE.3mf 9.2 MB
StandTripodBody.3mf 541.7 KB
StandTripodBodyScrewCap_M6.3mf 932.1 KB
StandTripodScrew_80mm.3mf 1.4 MB
StandTripodLeg.3mf 554.2 KB
StandTripodFoot.3mf 558.1 KB
StandTripodStopNut_C.3mf 1.5 MB
StandTripodJointConnectionUpperLarge.3mf 597.7 KB
StandTripodJointConnectionLowerLarge.3mf 584.4 KB
StandTripodJointConnectionUpper.3mf 418.8 KB
StandTripodJointConnectionLower.3mf 415.2 KB
StandTripodJointConnectionFixed.3mf 651.9 KB
StandTripodJointConnectionJointLongFixed.3mf 1017.5 KB
StandTripodBallJoint.3mf 1.7 MB
StandTripodBallJointScrew.3mf 1.4 MB
StandTripodStopNut_B_4wings.3mf 999.7 KB
StandTripodStopNut_C_4wings.3mf 1.3 MB
StandTripodLegExtension.3mf 1.1 MB
StandTripodCennectorFtoF.3mf 805 KB
StandTripodExtenderConnector.3mf 745.9 KB
StandTripodScrew_80mm_horz.3mf 956.6 KB
StandTripodScrew_160mm_horz.3mf 1.2 MB
StandTripodScrew_160mm.3mf 2.1 MB
PhoneHolderArms.3mf 73.2 KB
PhoneHolderForScrewM4.3mf 1.4 MB
PhoneHolderAttachScrewForJoint.3mf 1.7 MB
StandTripodBody.stl 1.7 MB
StandTripodBodyScrewCap_M6.stl 3.7 MB
StandTripodLeg.stl 1.8 MB
StandTripodScrew_80mm.stl 4.7 MB
StandTripodStopNut_C.stl 5.3 MB
StandTripodFoot.stl 2 MB
StandTripodJointConnectionUpperLarge.stl 2 MB
StandTripodJointConnectionLowerLarge.stl 2 MB
StandTripodJointConnectionUpper.stl 1.5 MB
StandTripodJointConnectionLower.stl 1.4 MB
StandTripodJointConnectionFixedA.stl 1.1 MB
StandTripodJointConnectionFixedB.stl 1.1 MB
StandTripodJointConnectionJointLongFixedB.stl 1.7 MB
StandTripodJointConnectionJointLongFixedA.stl 1.7 MB
StandTripodBallJoint.stl 6.4 MB
StandTripodBallJointScrew.stl 5.2 MB
StandTripodStopNut_A.stl 1.2 MB
StandTripodStopNut_B.stl 4.2 MB
StandTripodStopNut_B_4wings.stl 3.7 MB
StandTripodStopNut_C_4wings.stl 4.7 MB
StandTripodLegExtension.stl 3.6 MB
StandTripodScrew_80mm_horz.stl 3.3 MB
StandTripodScrew_160mm_horz.stl 4.2 MB
StandTripodScrew_160mm.stl 7 MB
StandTripodExtenderConnector.stl 2.4 MB
StandTripodCennectorFtoF.stl 2.6 MB
PhoneHolderArmHorzBottom.stl 14.5 KB
PhoneHolderArmHorzTop.stl 15.3 KB
PhoneHolderArmUpperLeft.stl 32.7 KB
PhoneHolderArmLowerRight.stl 30.6 KB
PhoneHolderArmLowerLeft.stl 30.6 KB
PhoneHolderArmUpperRight.stl 32.7 KB
PhoneHolderForScrewM4.stl 5.6 MB
PhoneHolderAttachScrewForJoint.stl 6 MB
