Secret Box

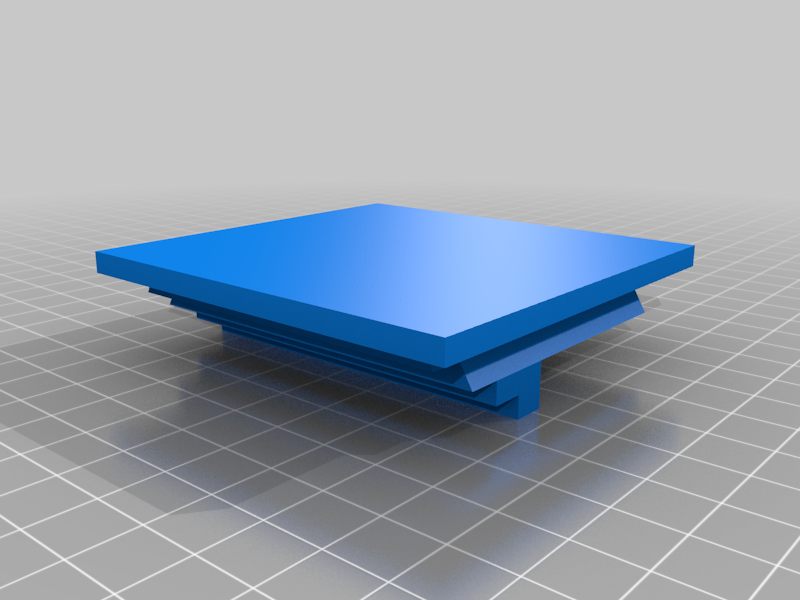

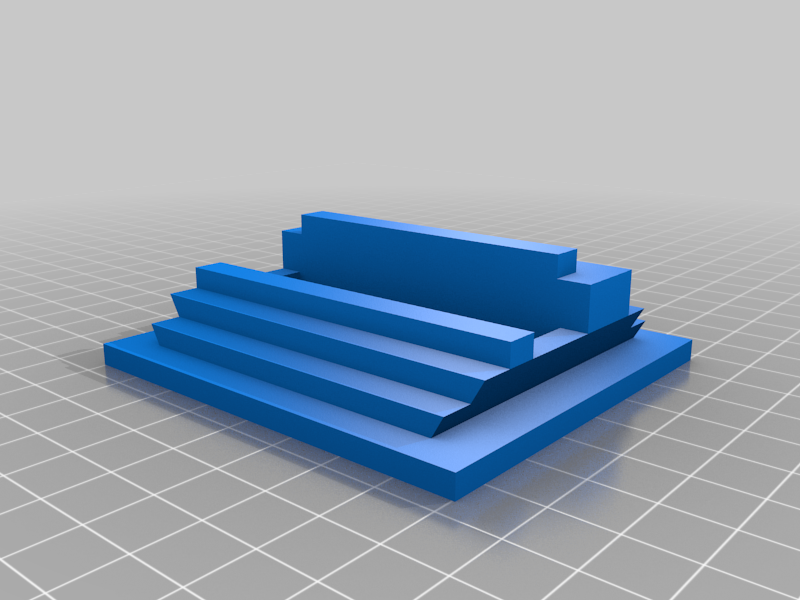

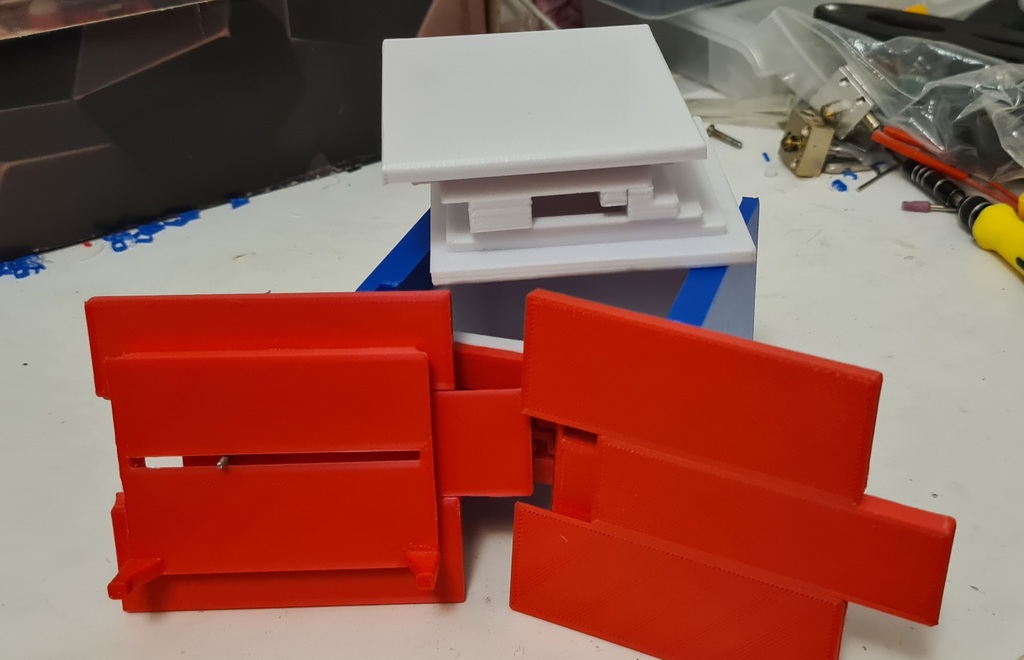

This Secret Box is designed as sample how the natural Japanese Secret Box is worked. And there is possibility to change secret: simply change secret plates on front and/or rear sides. Now there are 17 variants of the secret plates .

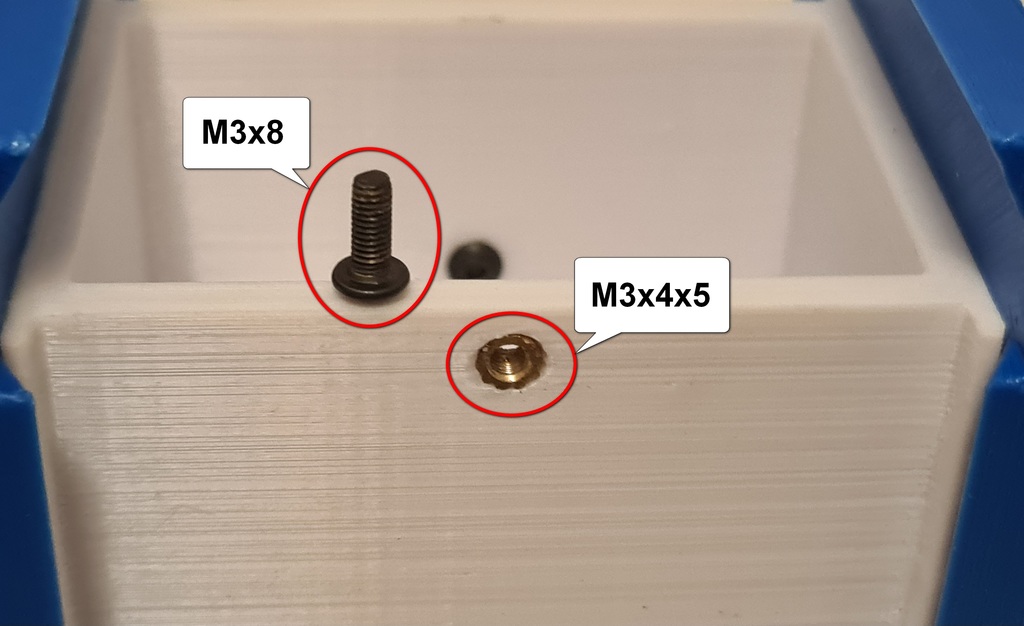

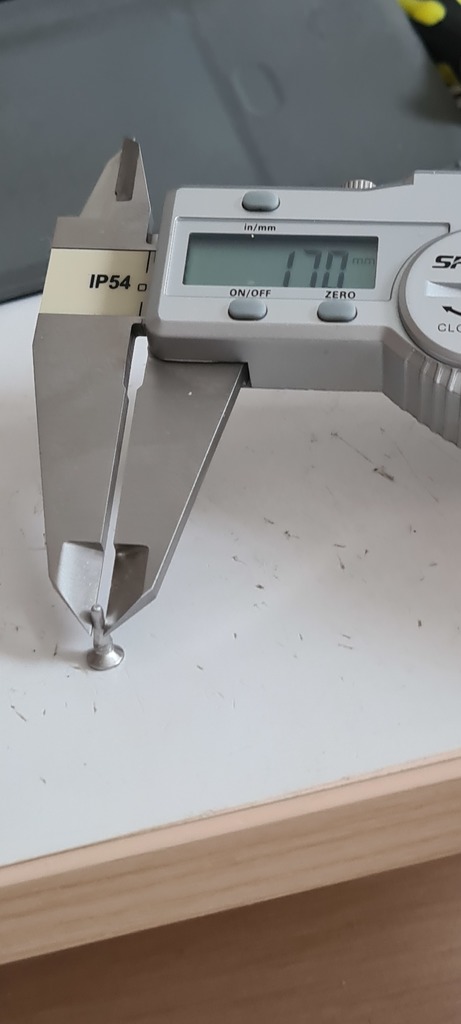

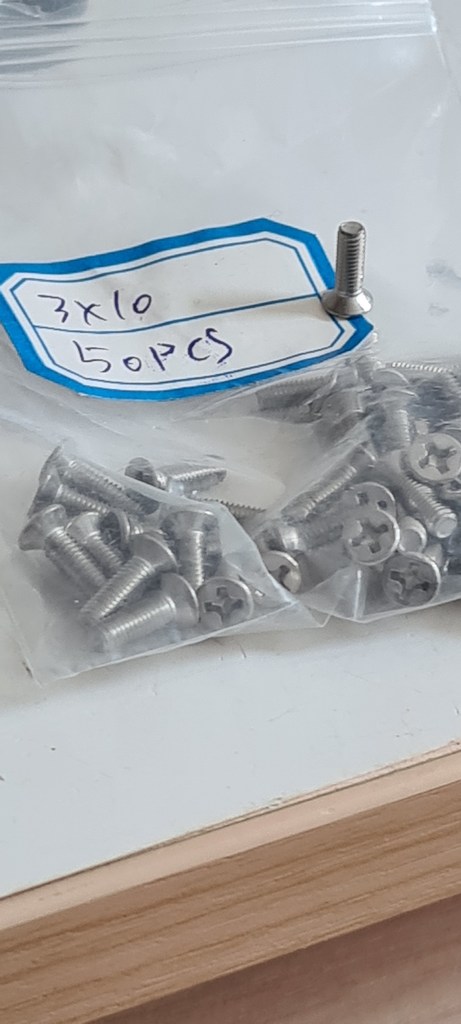

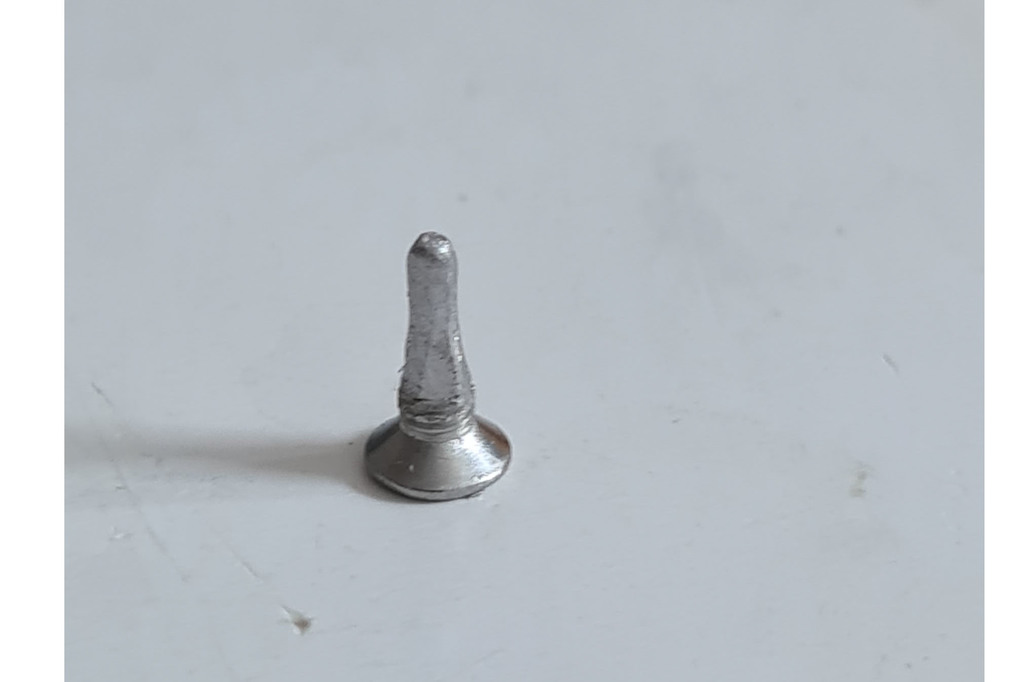

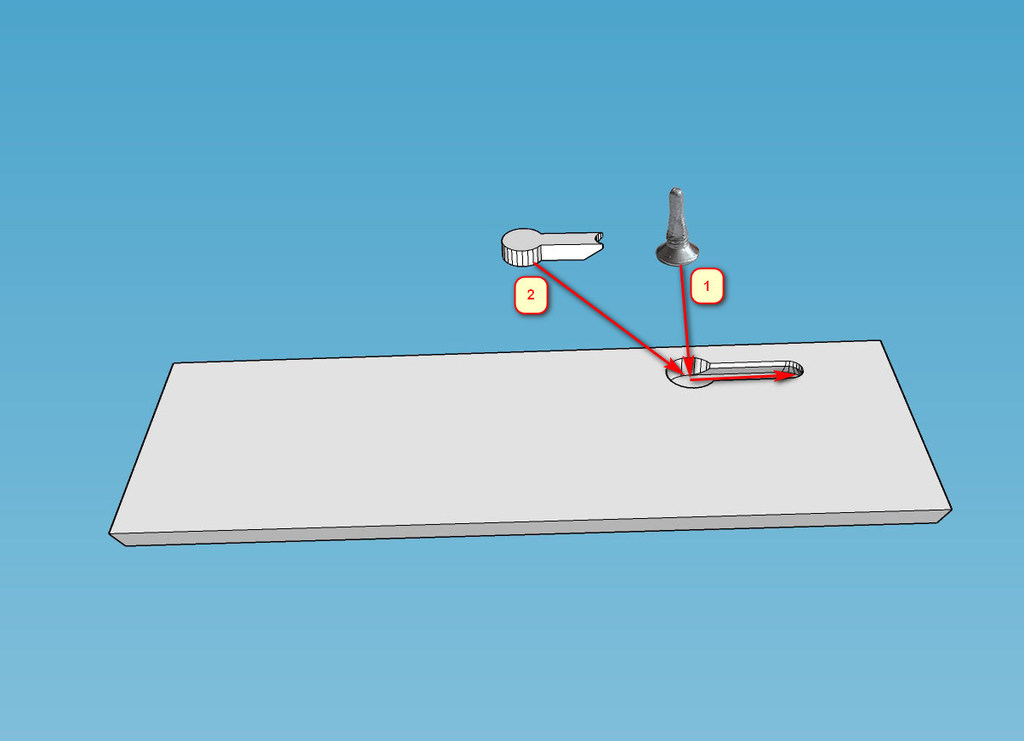

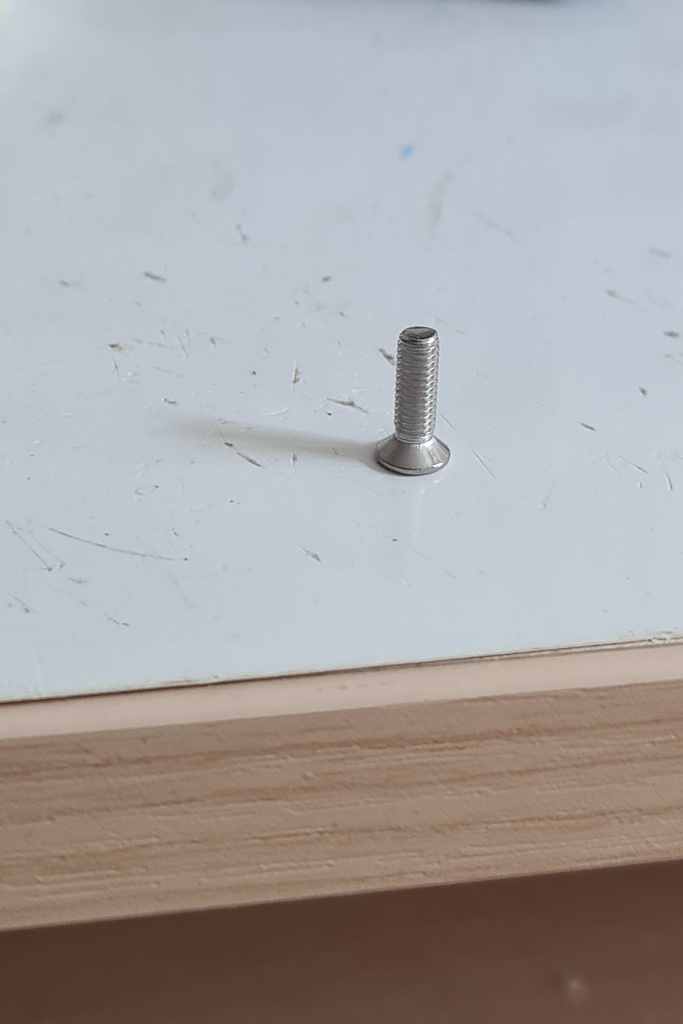

You can print the front and rear sliders only from plastic (files...Slider-V2). But if you want to make them more durable, print the sliders from the "Front-Slider" and "Rear-Slider" files and the lid for them from the Front.zip and Rear.zip files. Then take the M3x10 screw and sharpen it to a size of about 1.5-1.7mm. Insert the screw into the slider hole and secure it with glue lid.

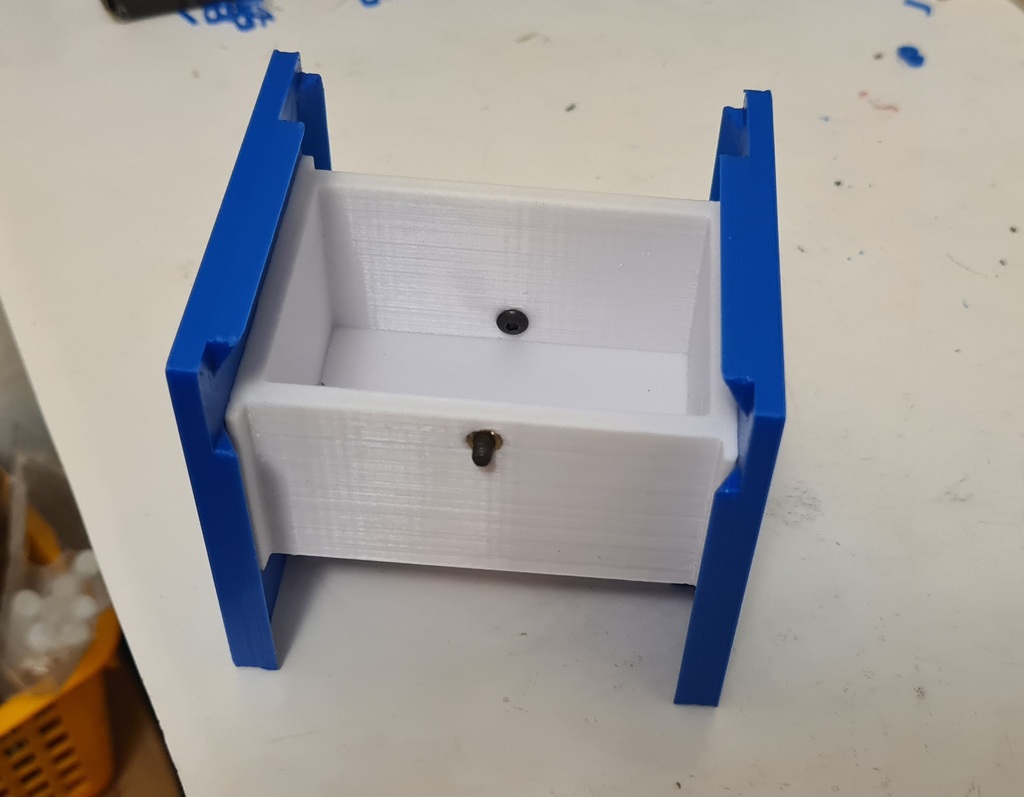

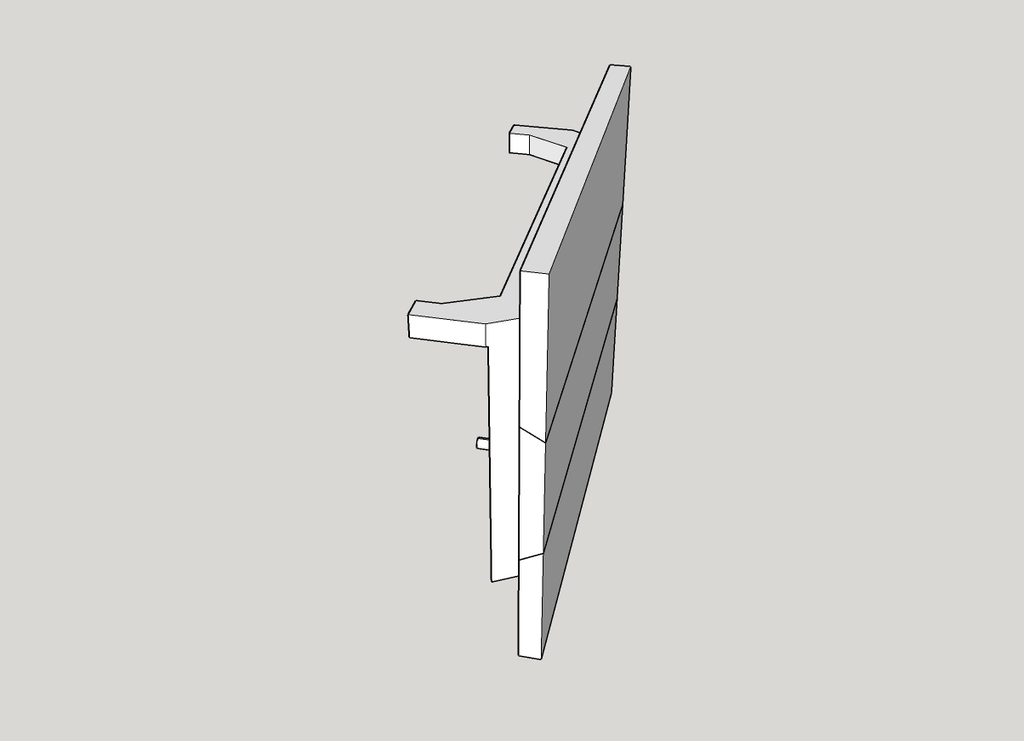

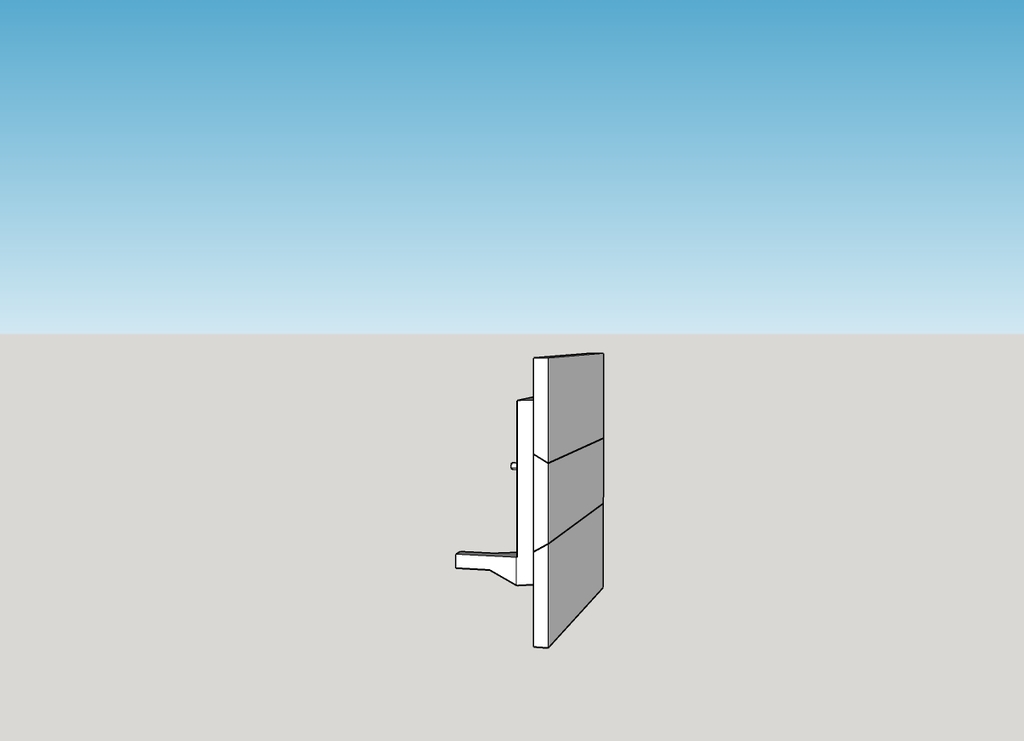

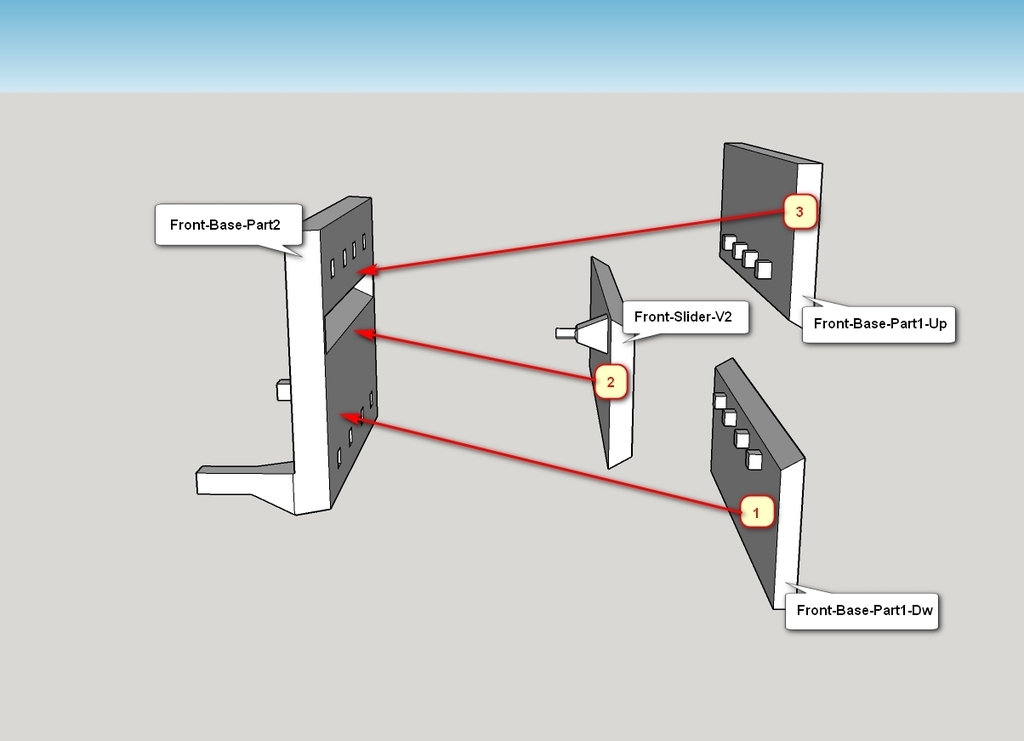

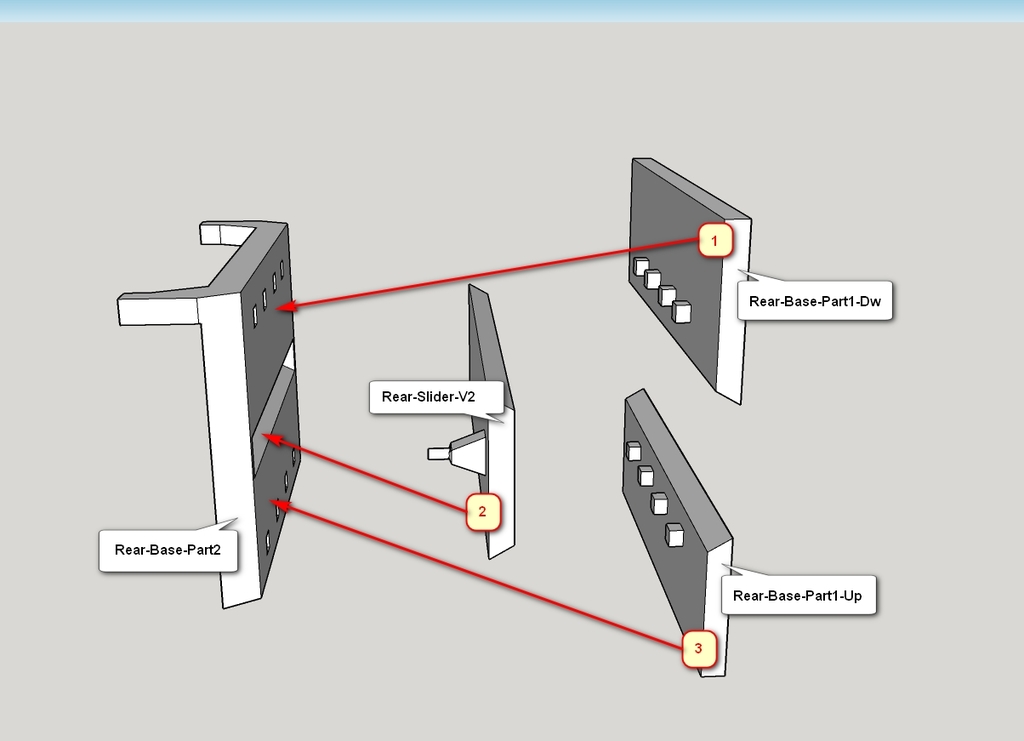

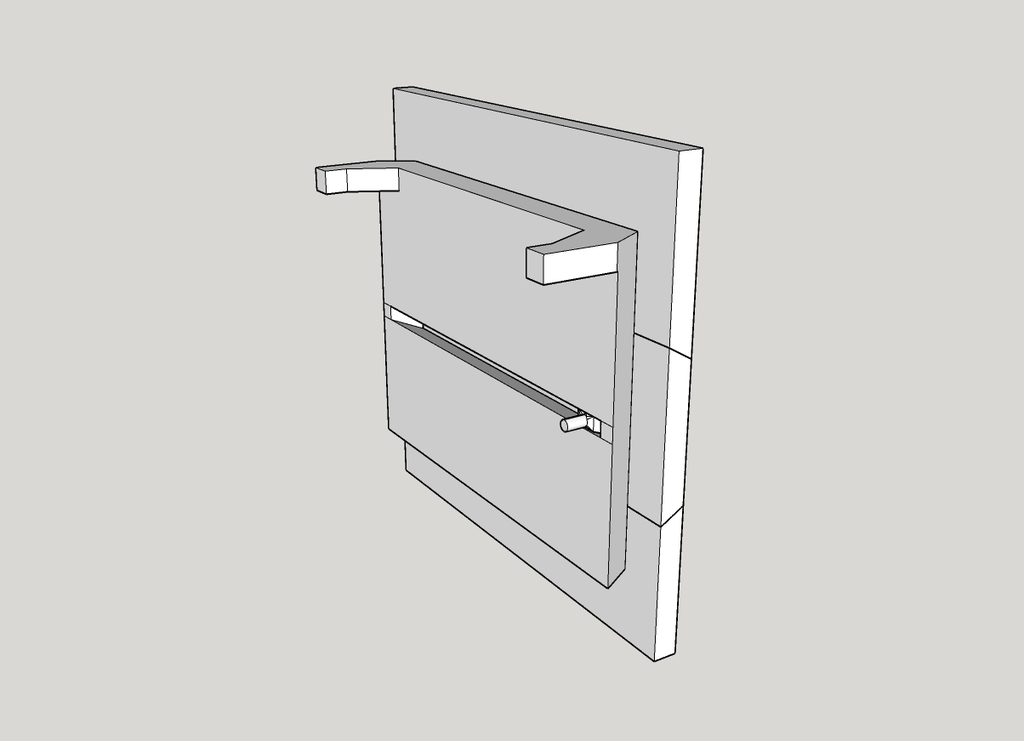

Before assembling, you need to glue the left and right sides to the middle part of the secret box. Be careful, the pins and holes are designed in such a way that they fit only in one position. Also you must to glue together all parts of the front/rear panels.

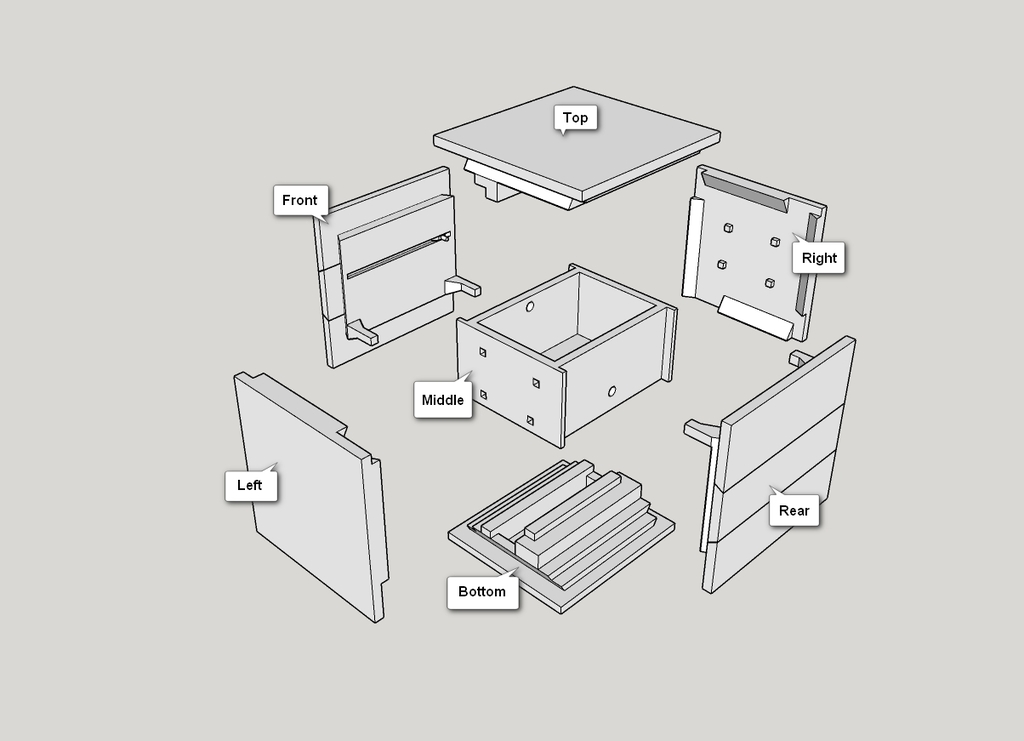

The assembly order should be clear from the attached pictures.

Print Settings

Printer Brand:

Koonovo

Printer:

Koonovo Elf

Rafts:

Supports:

Resolution:

0,15

Infill:

15%

Filament: Eryone PLA+ White, Blue, Red

Category: Puzzles
