Simple case for the cheap voltage and current displays available from various sources. There are multiple different types available, so check the wiring of yours before assembly.

I'm not completely satisfied by the aesthetics of this case- i think the design could be improved a bit, but it does work, and is easy to wire up. Maybe this will serve as inspiration for someone else to juice up the design a bit. The lid is a firm closure, but this is my preference- i don't want this popping open unintentionally.

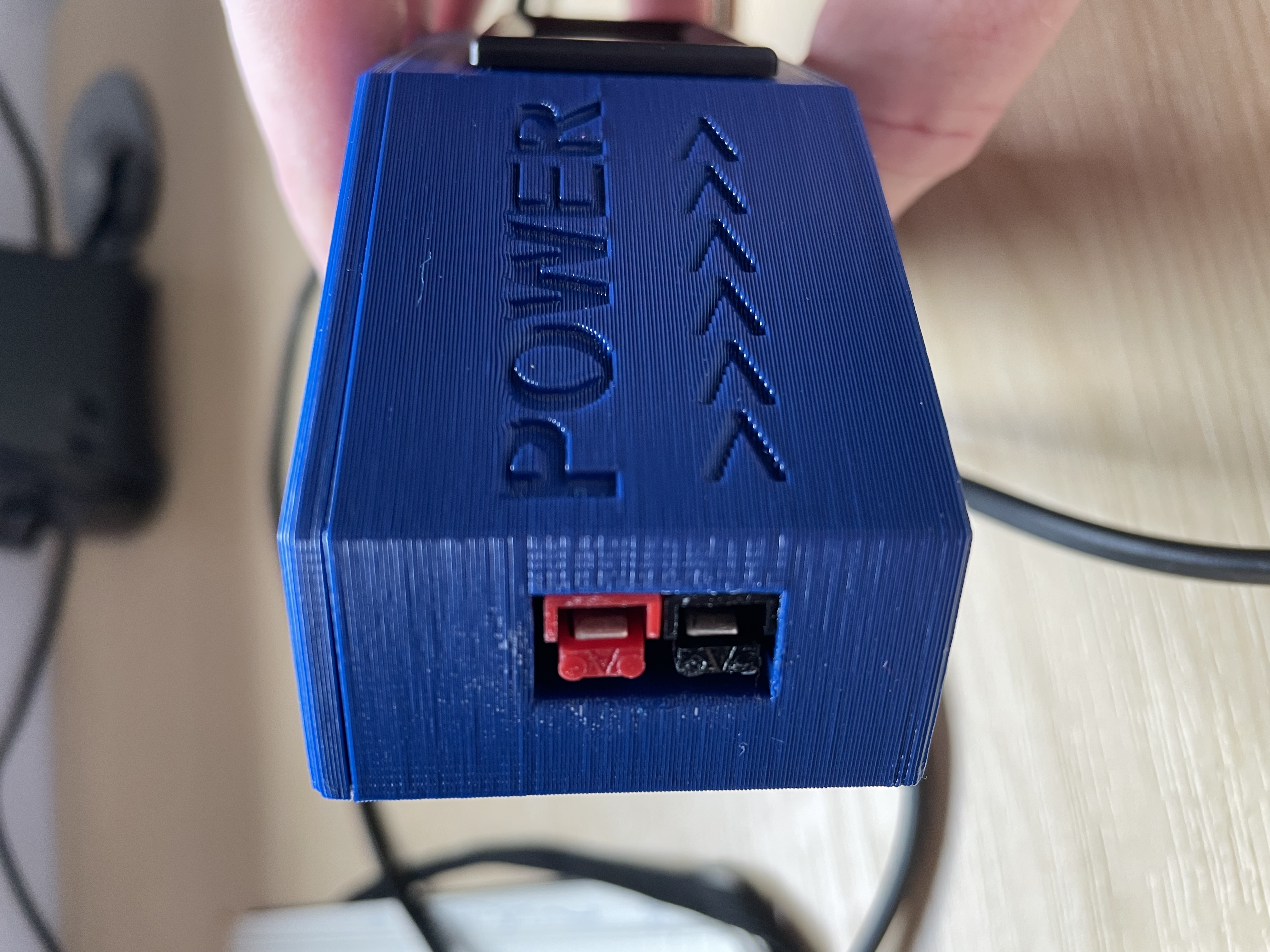

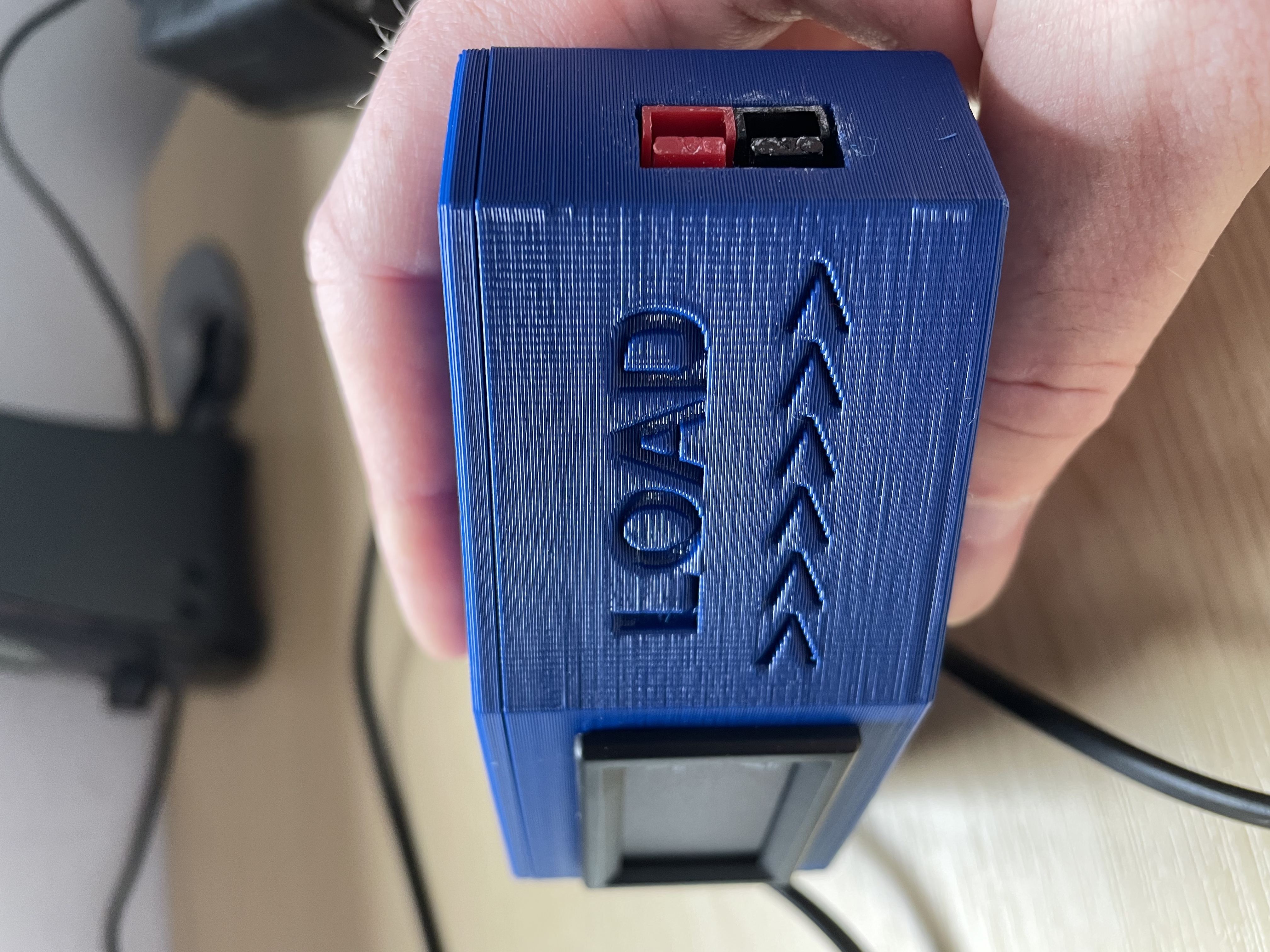

Ports on the input and output are for Anderson power pole connectors- the 30A ones as this is what i need for integration into my ham radio portable setup.

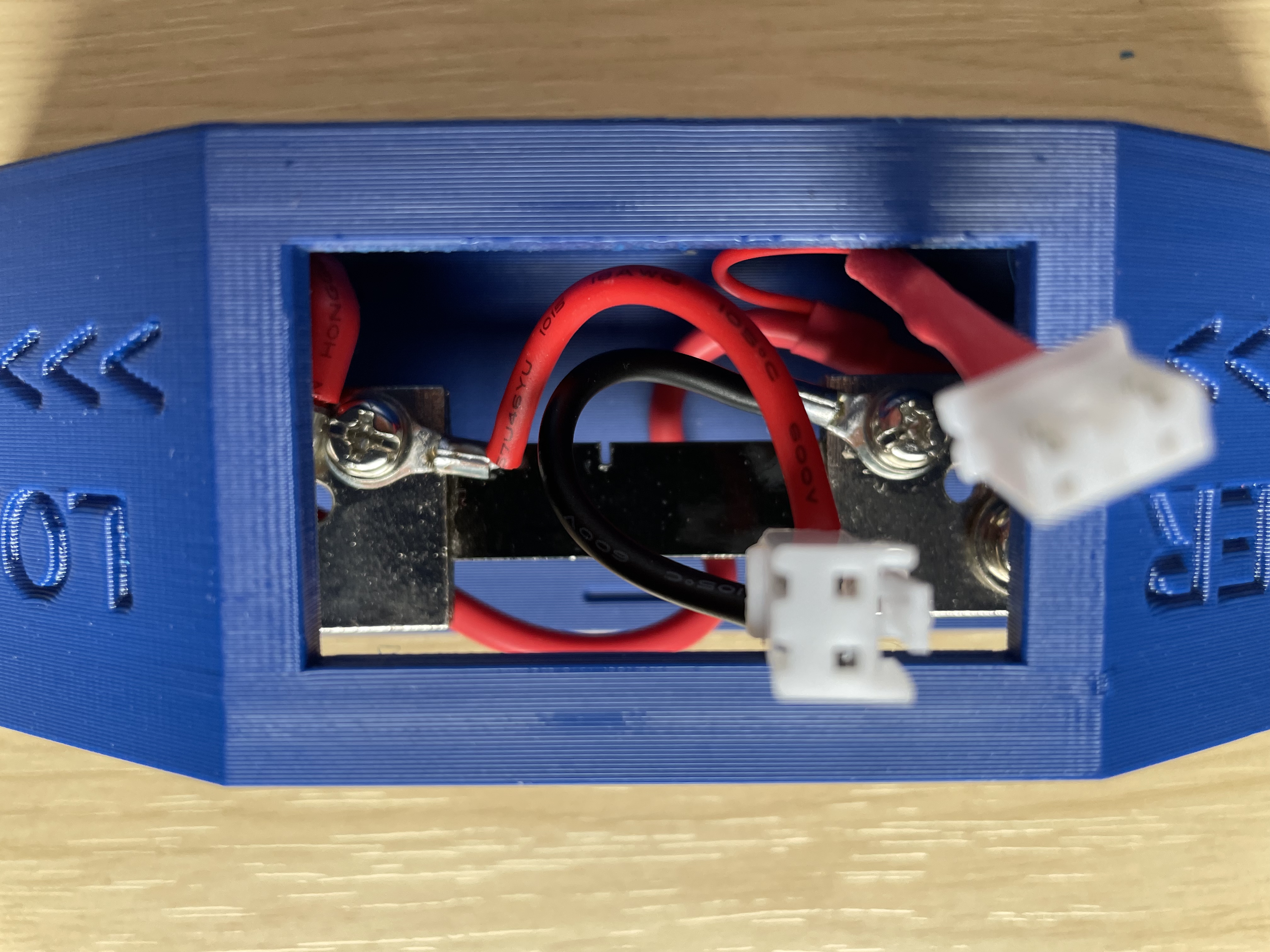

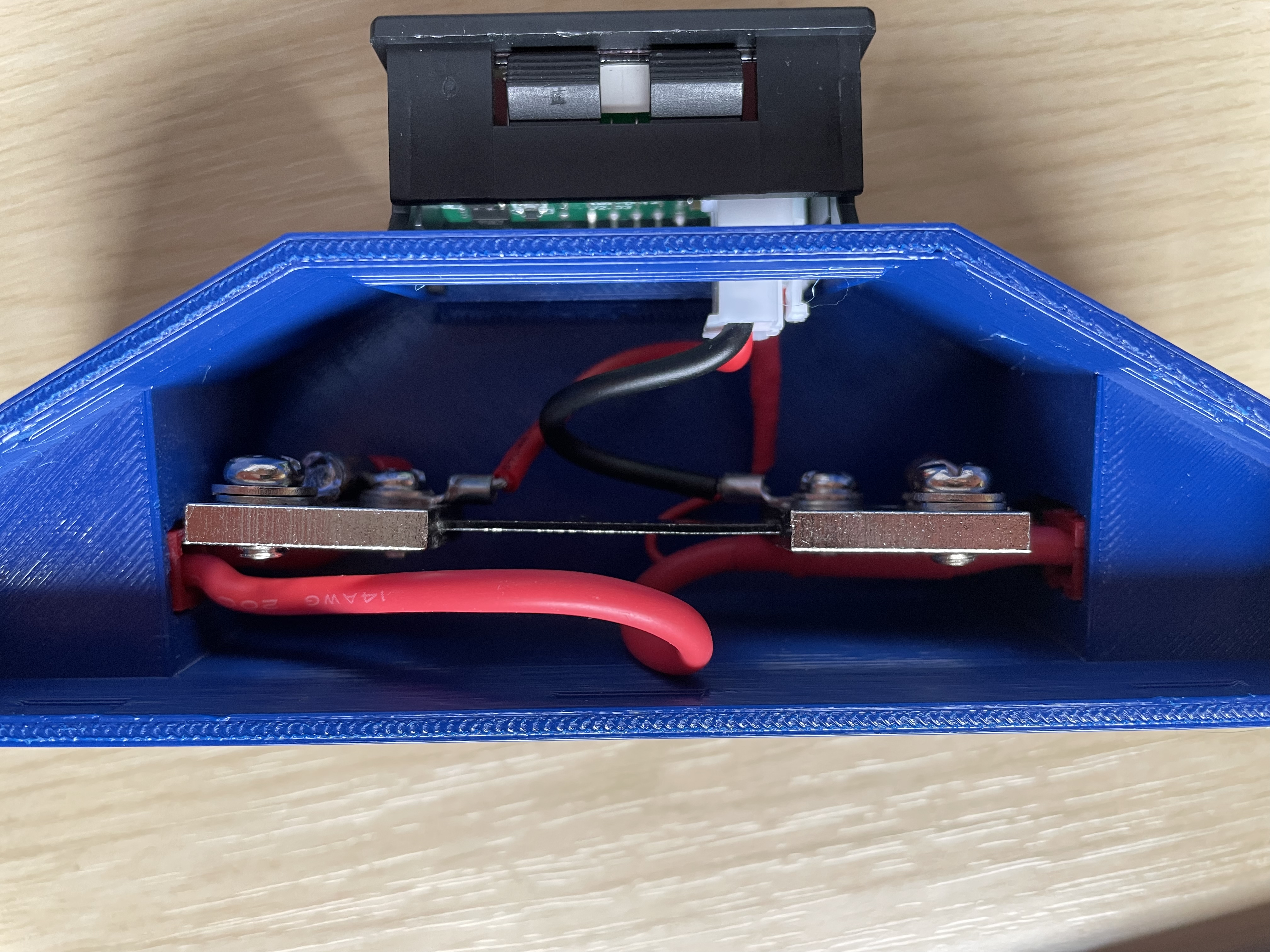

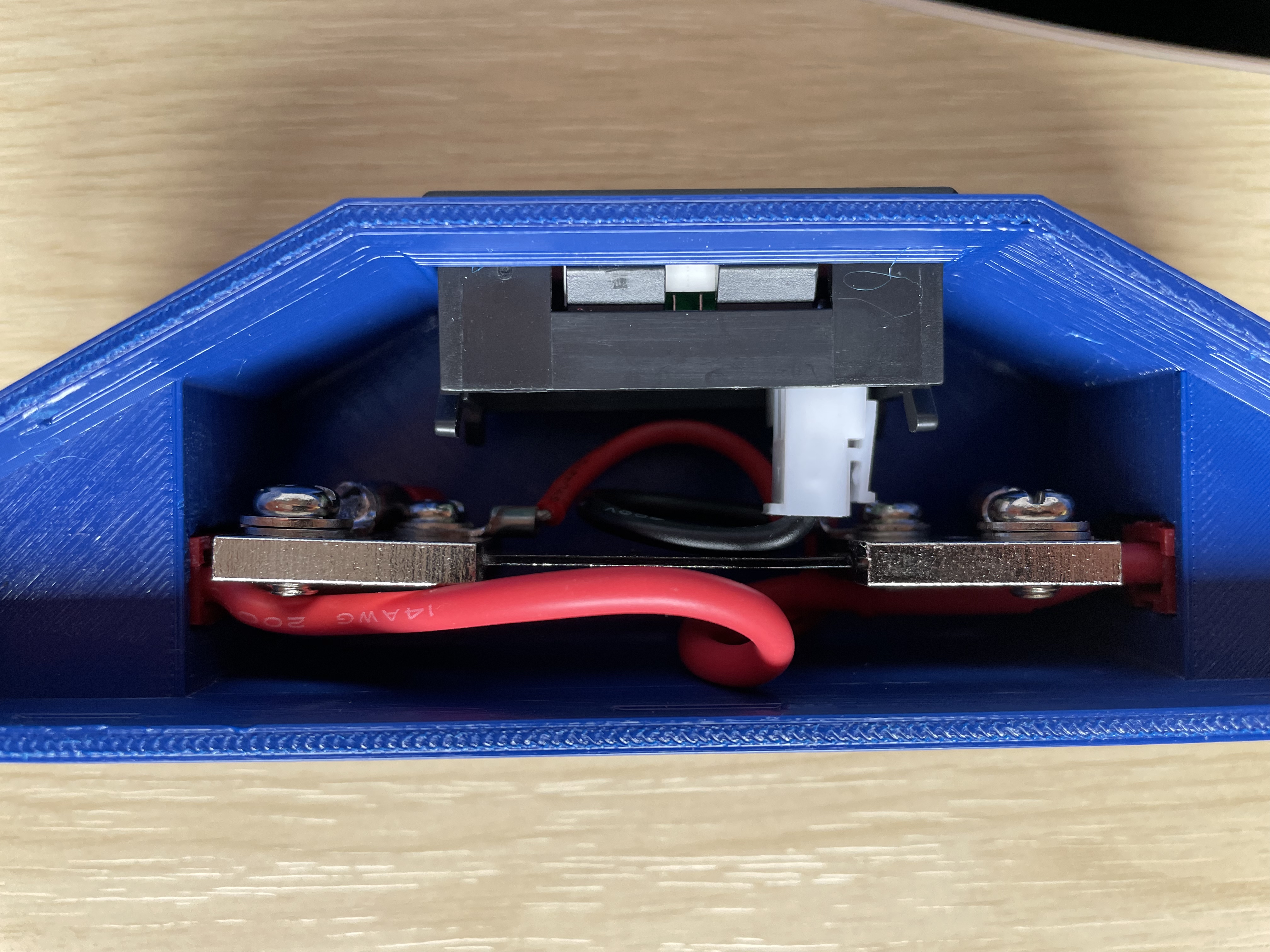

Assembly is simple, use CA glue to fix your power pole shells in place- then leave it to dry fully. Then wire up as per your VI meter's specifics.

For the Anderson power pole holes, i adapted a thingiverse item: the Anderson Power Pole Panel Mount found here: [https://www.thingiverse.com/thing:2965429](https://www.thingiverse.com/thing:2965429)  Thank you to [https://www.thingiverse.com/rdcole](https://www.thingiverse.com/rdcole)  for sharing!
