Weight stand for 20 lb (2x5lb, 2x3lb, 2x2lb) dumbbells (common found on amazon). If you purchased separately, over time, you don't get a stand (or if your stand breaks somehow). Optional clip-on handles that hide away when not in use so it can slip under chairs, etc.

print 2 each of the L and R brackets and 2 of the handles. 6 of the support bars

Print Settings

Printer Brand:

Creality

Printer:

Resolution:

.28

Infill:

Notes:

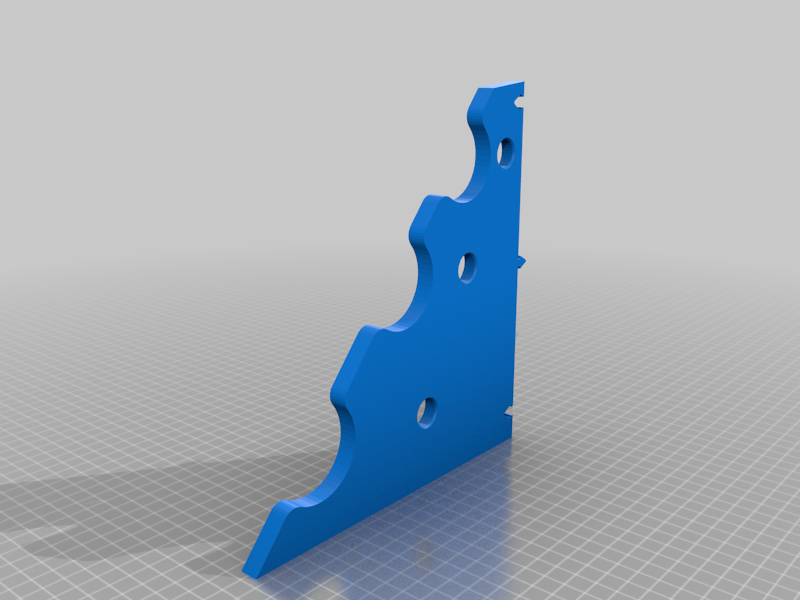

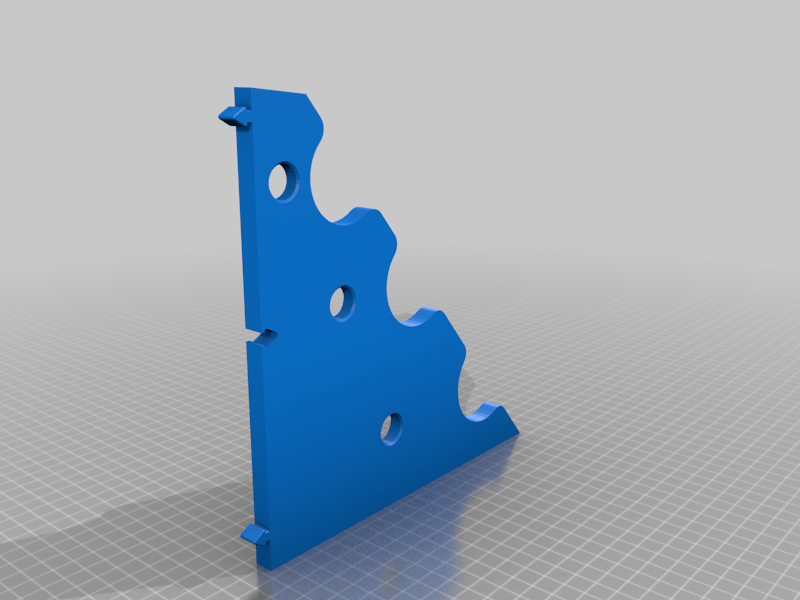

L and R brackets can fit on an ender 3 bed (220x220) but I had to remove skirt so it could fit. You can print them flat with larger hole openings to the top, but either side should print (personal preference). larger hole chamfer goes on the inside.

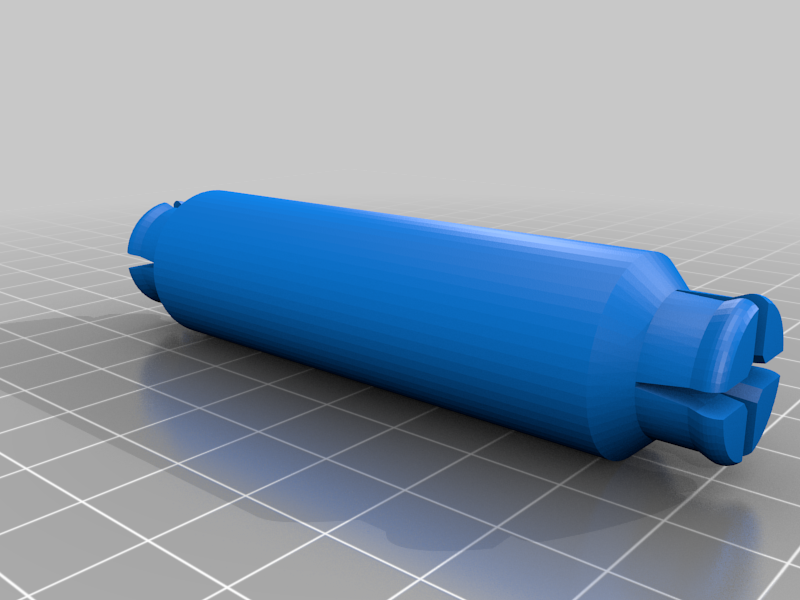

Support bars can print upright with zero supports

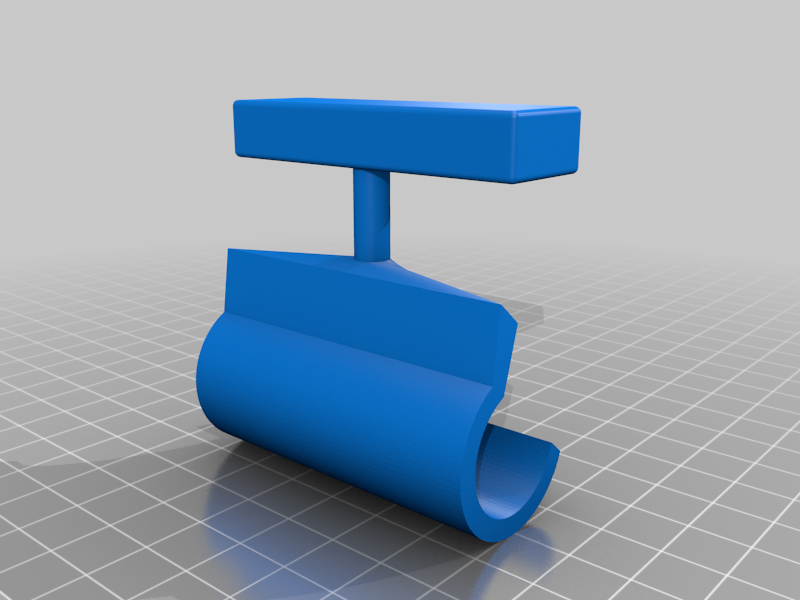

Handle should be printed on its side, I used tree supports with very little density and it popped right off without even a blemish

Post-Printing

L and R brackets are a VERY tight fit, by design. I used a rubber mallet to easily press fit them. They will fit. If not, it is a good time to calibrate for horizontal and hole expansion and elephants foot on initial layers. Very sturdy fit, does not require any glue.
