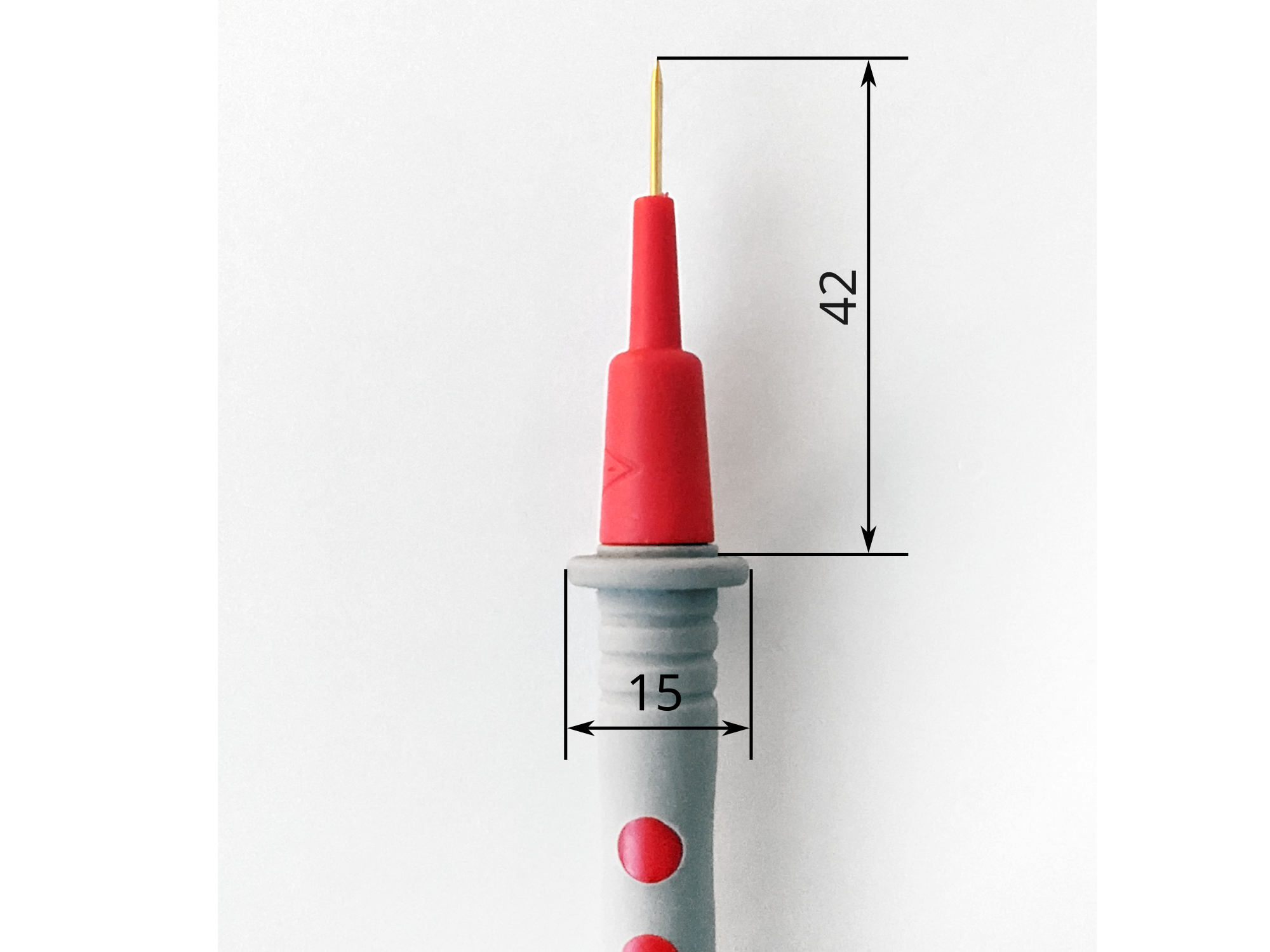

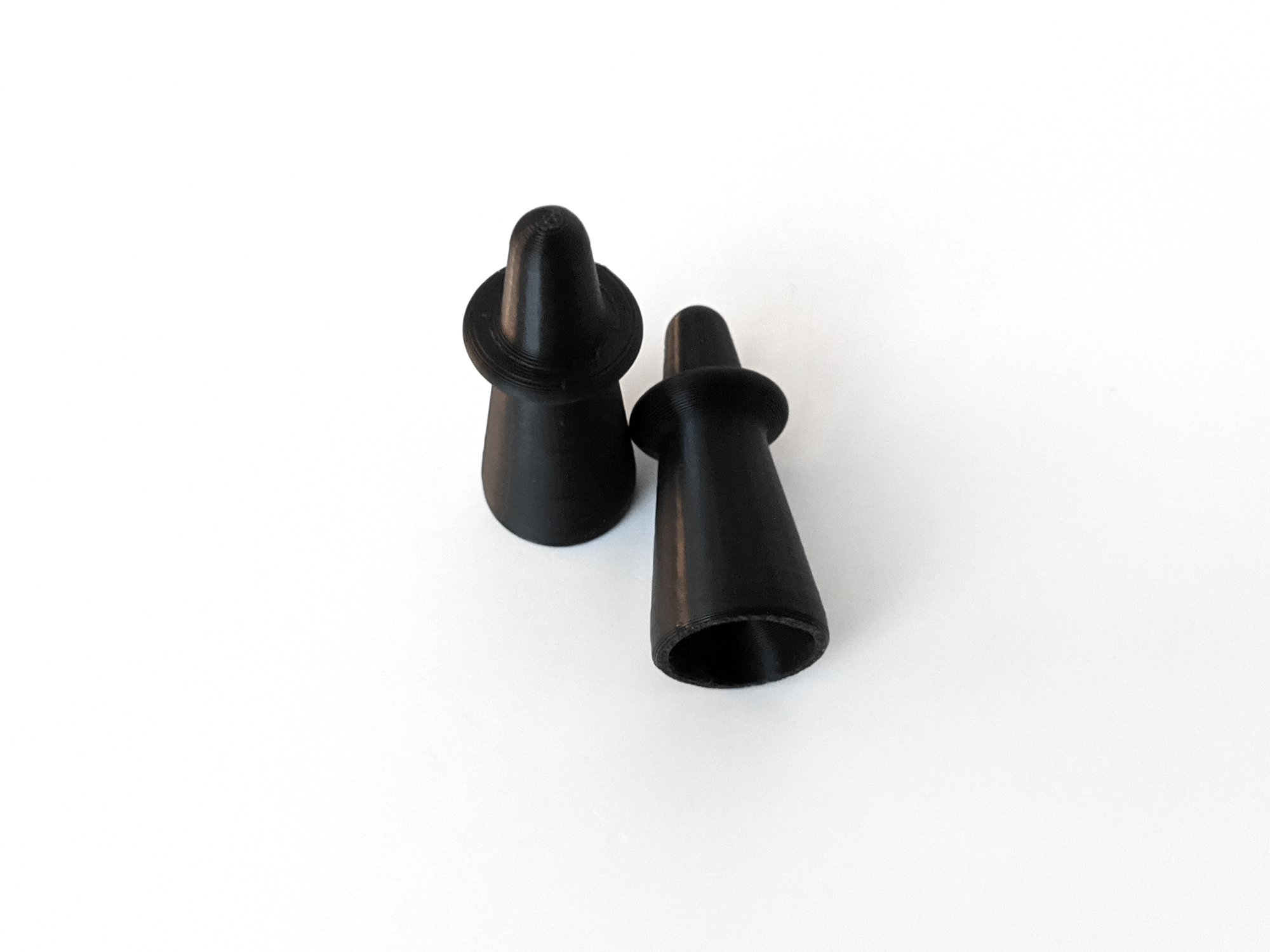

Protective caps for multimeter probes in a short and a long version. The caps are available for long pointy probes (~42 mm from collar to tip) and short regular probes (~33 mm from collar to tip) with the common collar diameter of 14.5 - 15 mm (see images for sketch).

The design is available in a version for rigid materials like PLA and PETG and one for flexibles like TPU. The main difference between these versions is the clip depth at the base of the cap. Depending on the collar diameter of your probes, you may need to scale the caps for a perfect fit. A change of 1% in the X and Y scaling results in a change of 0.16 mm in the inner diameter.

Print settings

• Layer height 0.2 mm
• Line width 0.4 mm
• 4 wall lines
• 5 top & bottom layers
• Supports not required

Approximate print time @ 60 mm/s: Long 0:25 h / Short 0:15 h
