Descrição
You will need 24 #6x1 Screws and 8 #6x1.5 Screws. I used Sheet Metal Screws with a Pan Head. @Menards
Three (Part# 88244 Handi-Pack) ¼ x 2 Compression Springs @Menards
Three (Part# 88252 Handi-Pack) ¼ x 1-1/16 Compression Springs @Menards
1/32 Rubber Gasket @Amazon
Silicone cock for value seal
Can use value stems for wrist pins and rockers.
Only Printed the Crank, Valve, Camshaft, Piston, Connecting Rod, Connecting Rod Cap, and Pins @100% infill.
Cylinder Head 2 @25% infill. The rest can be 15% infill.
Printables

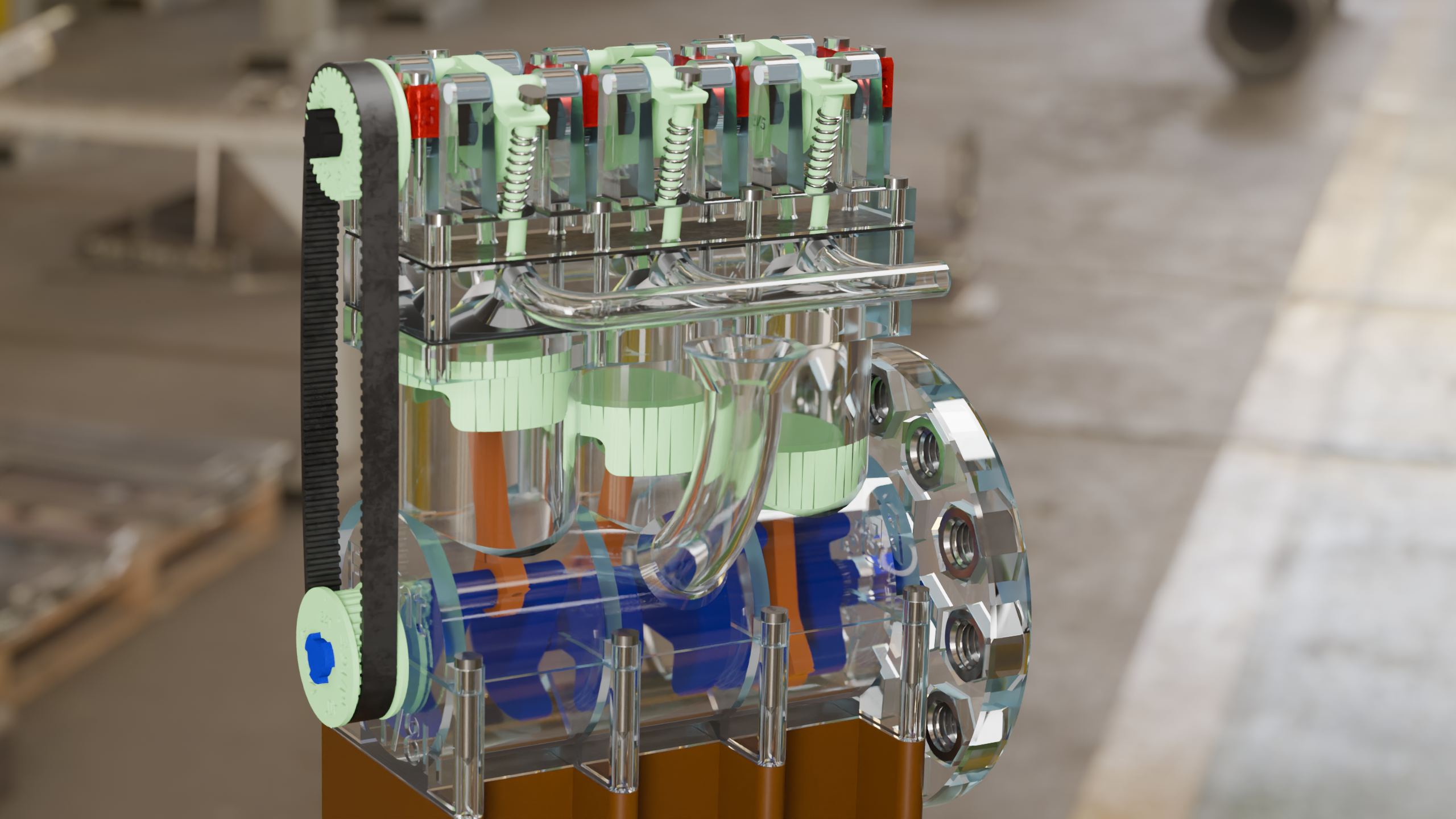

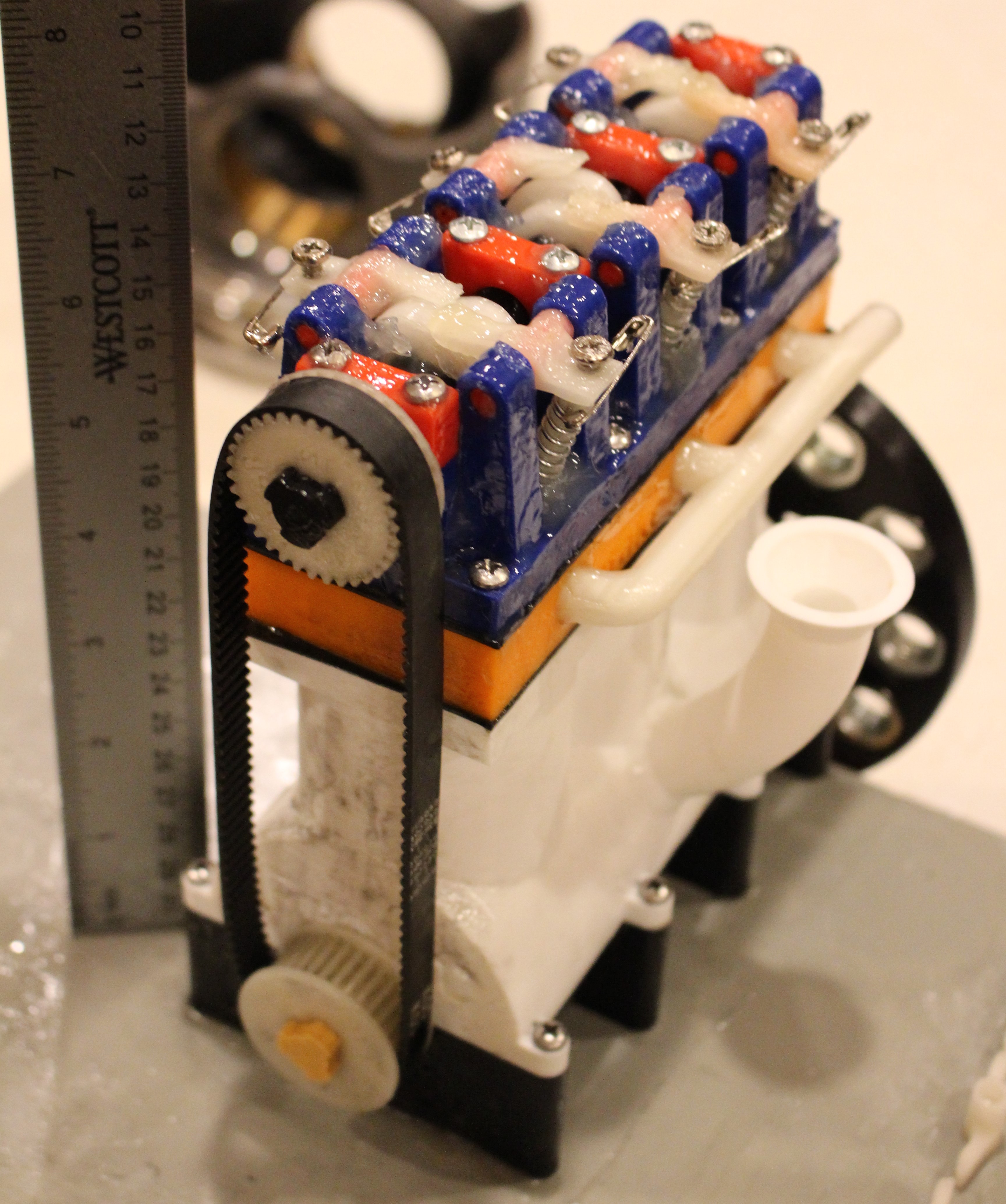

Functional Pneumatic Inline 3 Engine
Publicado em 5 de abr de 2025
60
Curtidas
208
Downloads
Categoria
Mechanical Parts
Tags
running
functional
mechanical
air
working
engine
piston
pneumatic
compressedair
airengine
inline
3cylinder
compressedairengine
functioning
inline3
Licença
Creative Commons — Attribution — Noncommercial — NoDerivatives
Arquivos (24)
Final Assembly of Engine.stl
206.3 MB
Cylinder Head 2.stl
14.7 MB
Cylinder Head 1.stl
25.3 MB
Block v3.stl
7.7 MB
Whole Crank - v3.stl
20.9 MB
Oil Pan - v2.stl
2.1 MB
Camshaft v5.stl
10.1 MB
Rocker - v7.stl
2.4 MB
Value - Value v6.stl
1.4 MB
Cam Ex - v5.stl
270.1 KB
Cam In - v5.stl
270.1 KB
Belt Timing v6.stl
1.3 MB
Belt Timing v6 NOT sliced.stl
1.5 MB
Cylinder Head 2 - Cap Middle.stl
247.7 KB
Cylinder Head 2 - Cam Cap Front and Back.stl
3.5 MB
Piston - 0R v4.stl
16.3 MB
Rocker Pin or Wrist Pin - v2.stl
70.4 KB
Connecting Rod - P1 v3.stl
7.4 MB
Connecting Rod - P2 v3.stl
2.2 MB
Intake-Ex Port2 v3 - v3.stl
21.7 MB
Piston - Wrist Pin v1 old.stl
70.4 KB
CrankF - v3 old.stl
30.1 MB
CrankM - v3 old.stl
29.8 MB
CrankB - v3 old.stl
34.1 MB
