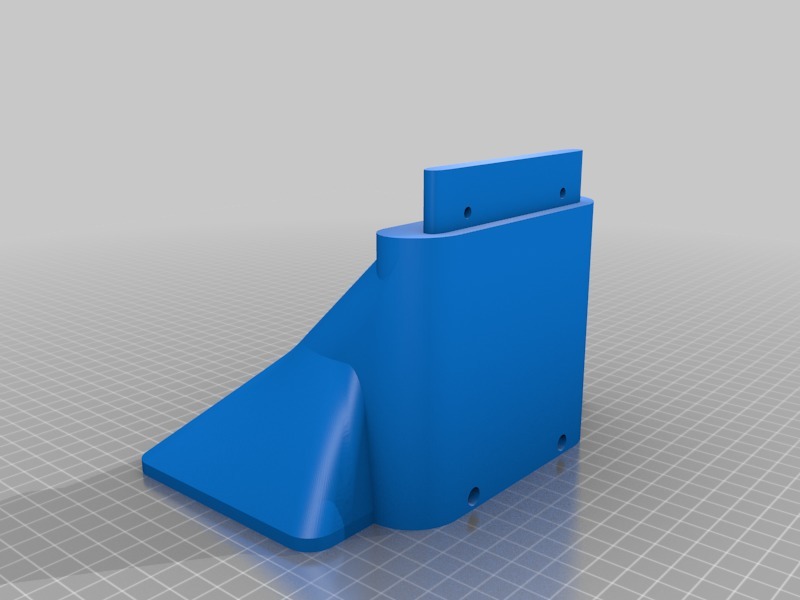

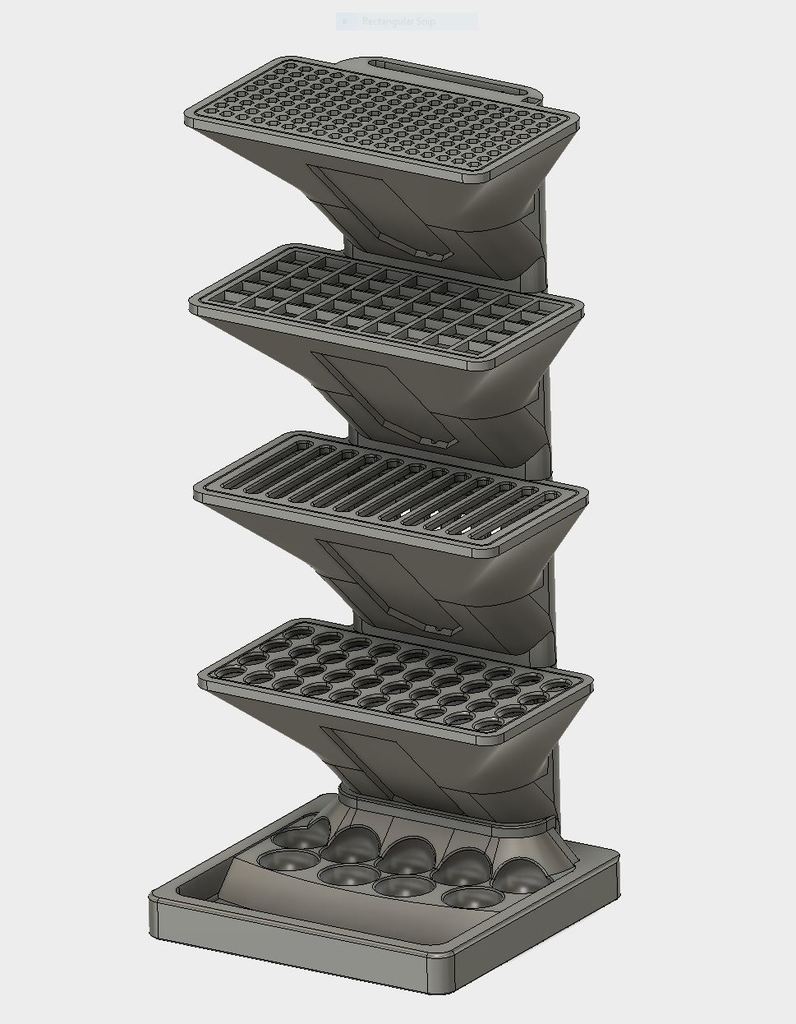

Made this is to stop hunting around for tools in drawers and to obviate the chaos on the desk. Ad as many sections as you need. Added LED lights and a touch toggle switch just because its fun. Connections between sections are made with Jst-PH 2 connectors.

Adafruit White LED Backlight Module - Large 45mm x 86mm

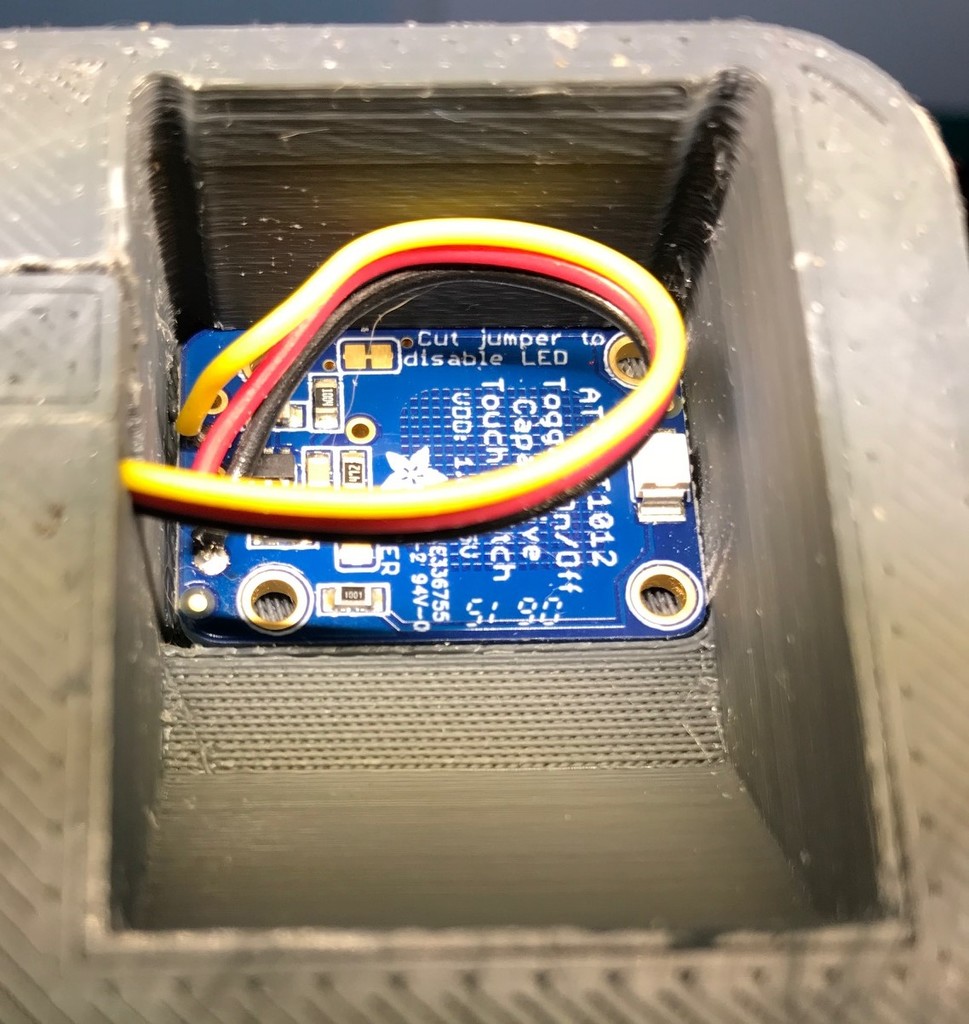

Adafruit Standalone Toggle Capacitive Touch Sensor Breakout

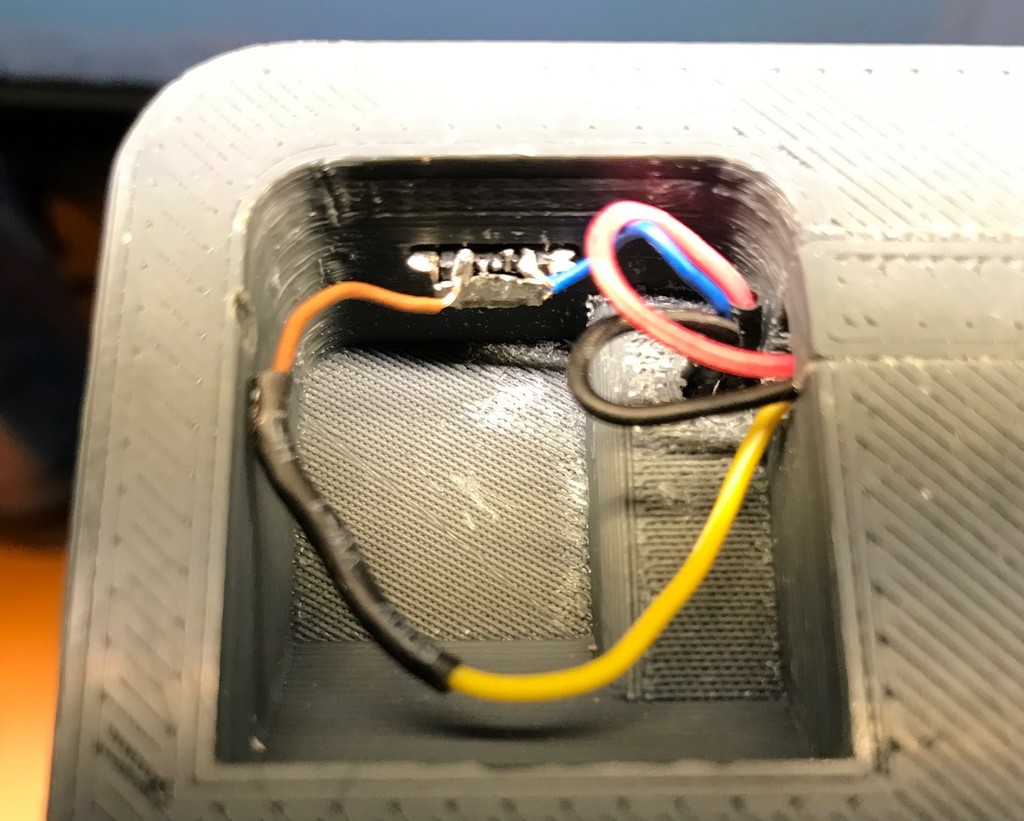

100 ohm resistors soldered to longer lead (+) on the LED. (LEDs wired in parallel)
Mini USB connector
M4 16mm screws

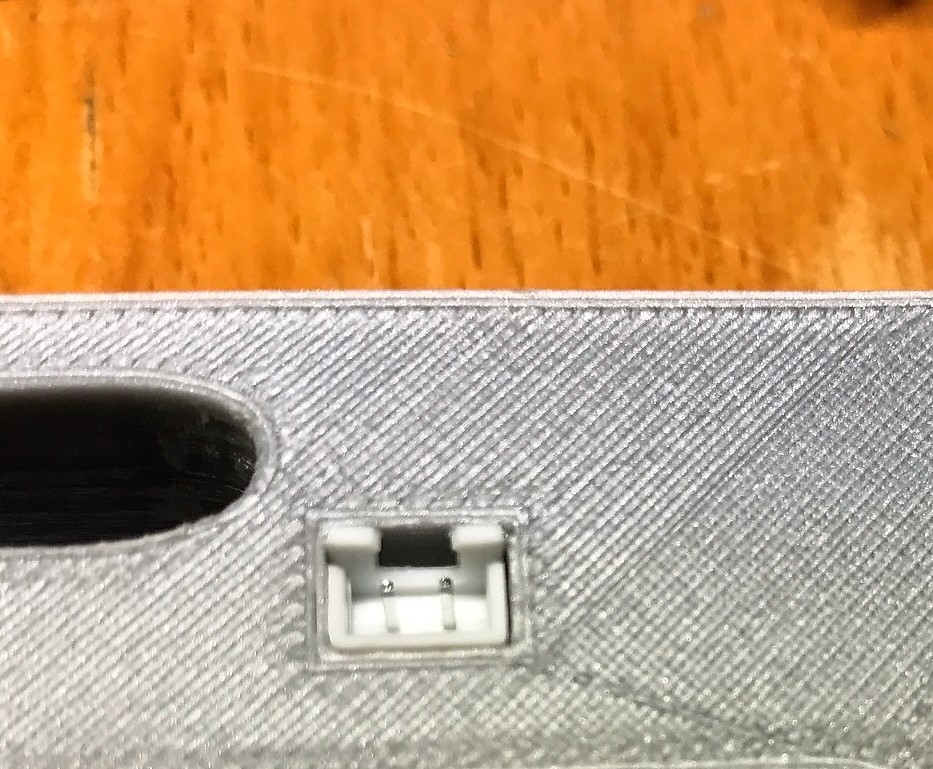

Male female Jst -PH2 connectors
24gauge cable
heat shrink tube
PLA 0.2 mm, 0.4 mm nozzle, 2 outer layers 10% infill, 20% infill for the base.

Empiricus@Dremomys

Print Settings

Printer Brand:

Wanhao

Printer:

No

Supports:

0.2

Infill:

Notes:

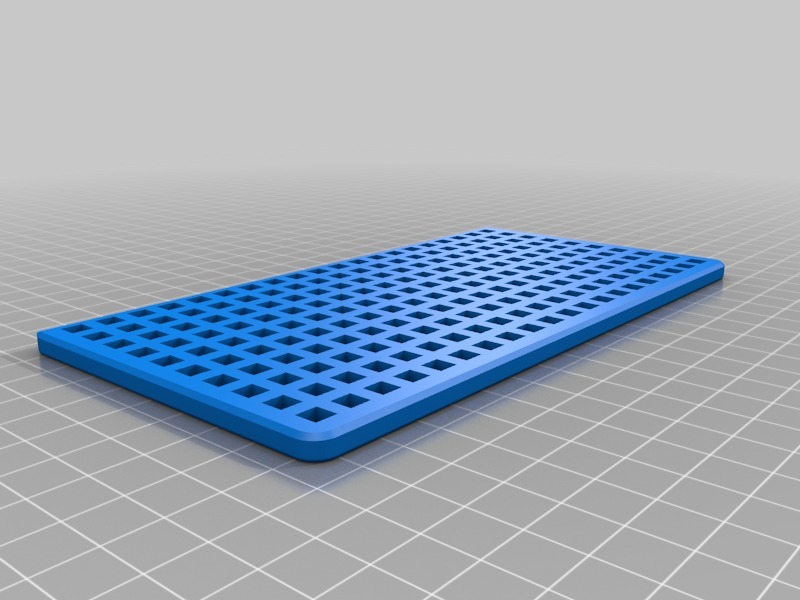

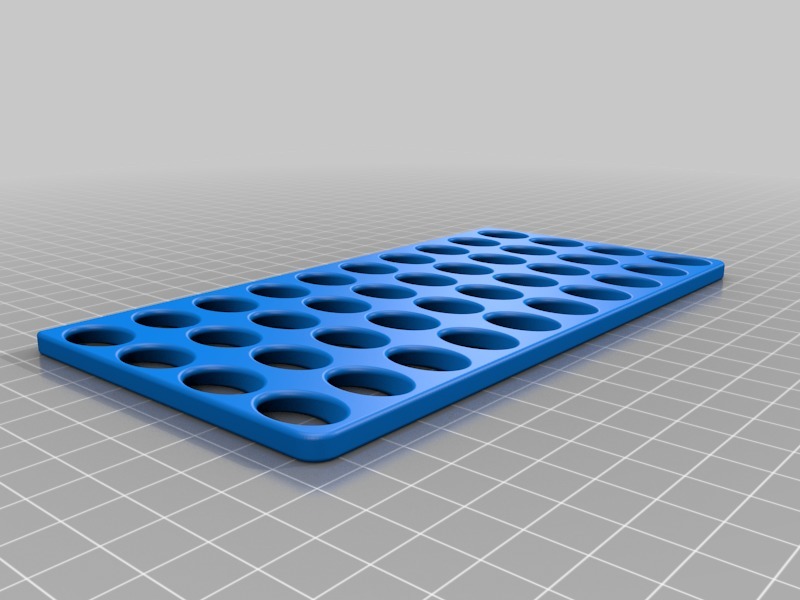

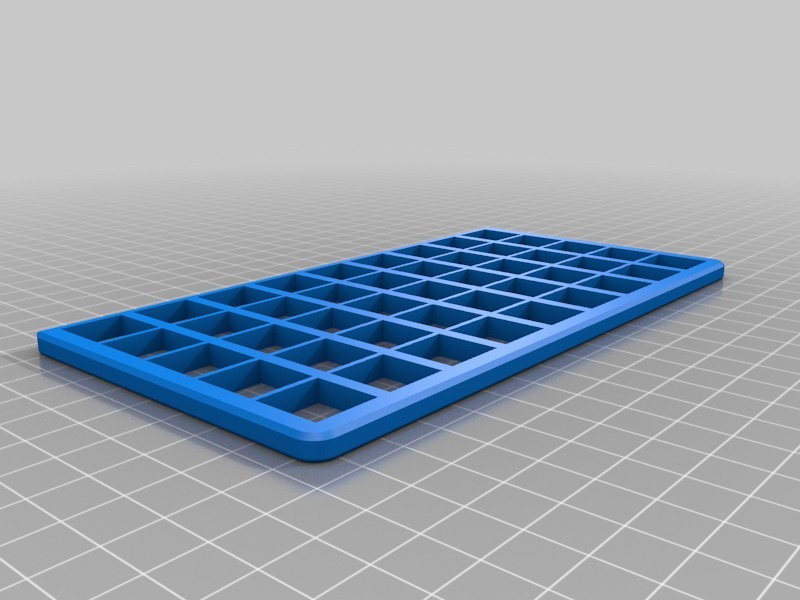

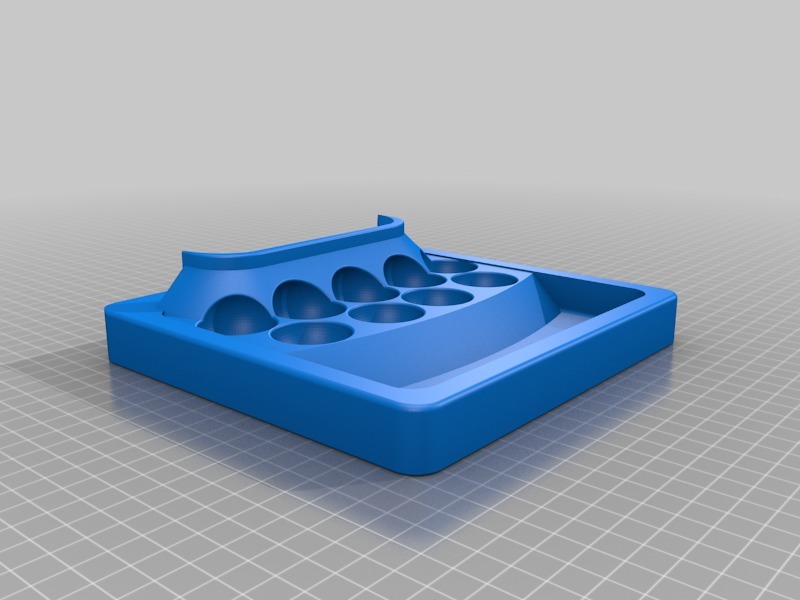

I was able to get 3 sections (10% infill), the bottom (20% infill) and 3 grids out of 1kg PLA.

Set overhang threshold to 60 degree. You only need support for the true horizontal overhangs. Printed this at 91.7mm/sec, design is simple and good for fast printing speeds.

Category: DIY
