Modelo 3D Another Needle File Handle por Mitchell no Printables

Descrição

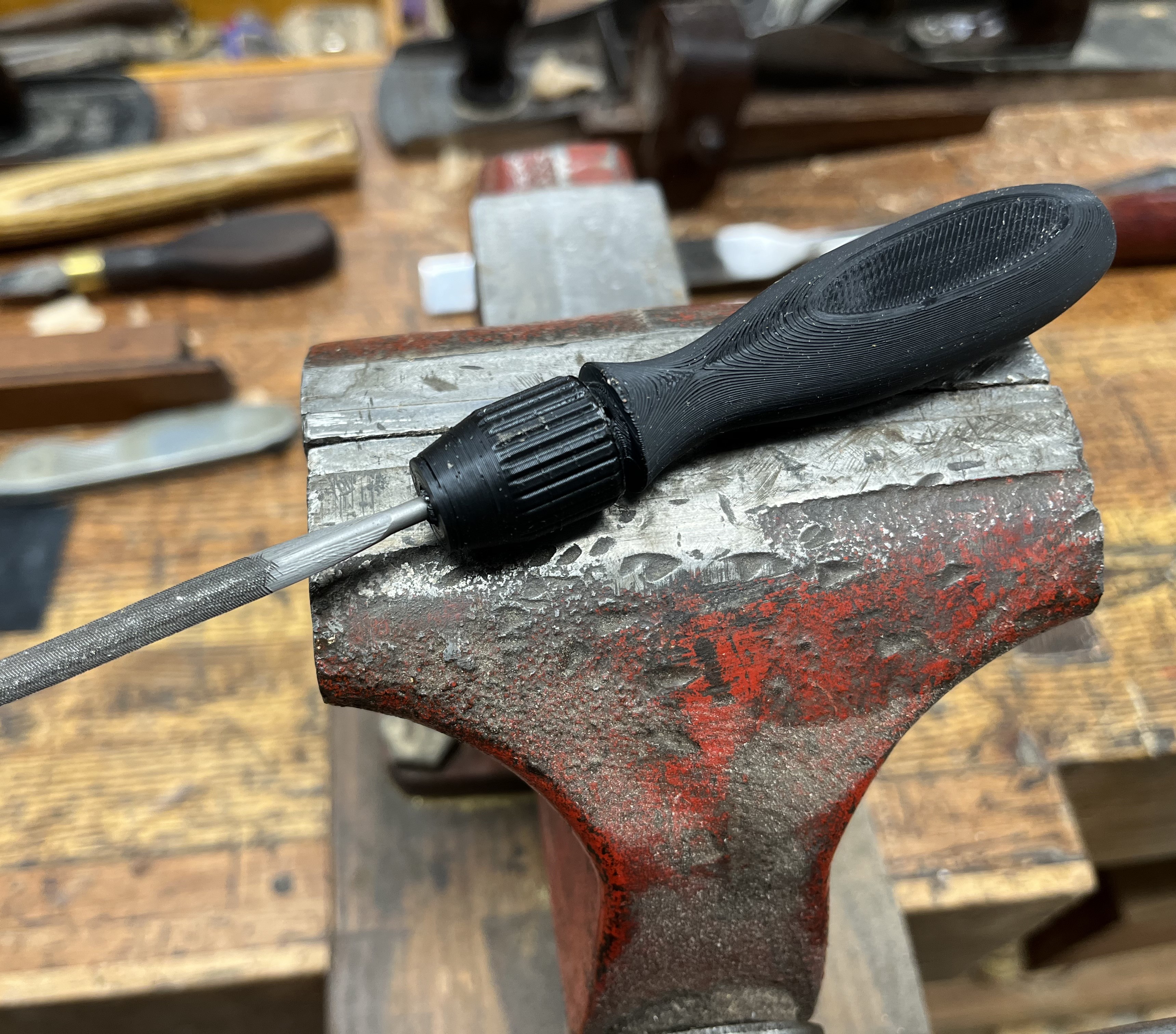

Couldn't find a needle file handle I was happy with, so I made another. The needle files from my local hardware store are 3mm (1/8") in diameter and so the handle is sized accordingly. If your files are a different size, let me know the diameter and I can export another stl file.



Features:

  • Handle is designed to print horizontally, so the fingers of the collet flex instead of breaking.
  • Beefy ½-13 UNC threads allow for a tight hold on the file
  • Clamping at the front of the front of the tang to minimize flexing and vibration during use



The nut prints just fine vertically. I use a little bit of hand soap to lubricate the threads.



Recommend settings for printing the handle horizontally:

  • Auto-generated supports: Yes
  • Support only on build plate: Yes



Update (3/11/2024):

  • Address a weak point in the nut
  • Smaller, rounder handle
  • Add tabs to make printing easier
Printables

Another Needle File Handle

Publicado em 12 de mar de 2024

306
Curtidas
752
Downloads
7
Impressões
Categoria Tools
Tags
handle file needlefile toolhandle
Licença Creative Commons — Attribution — Share Alike
Arquivos (2)
Needle file handle v4.stl 1.4 MB
Needle file nut v4.stl 224.6 KB
