Modelo 3D Parametric Rocker Switch Panel por OverMaintained no Printables

Descrição

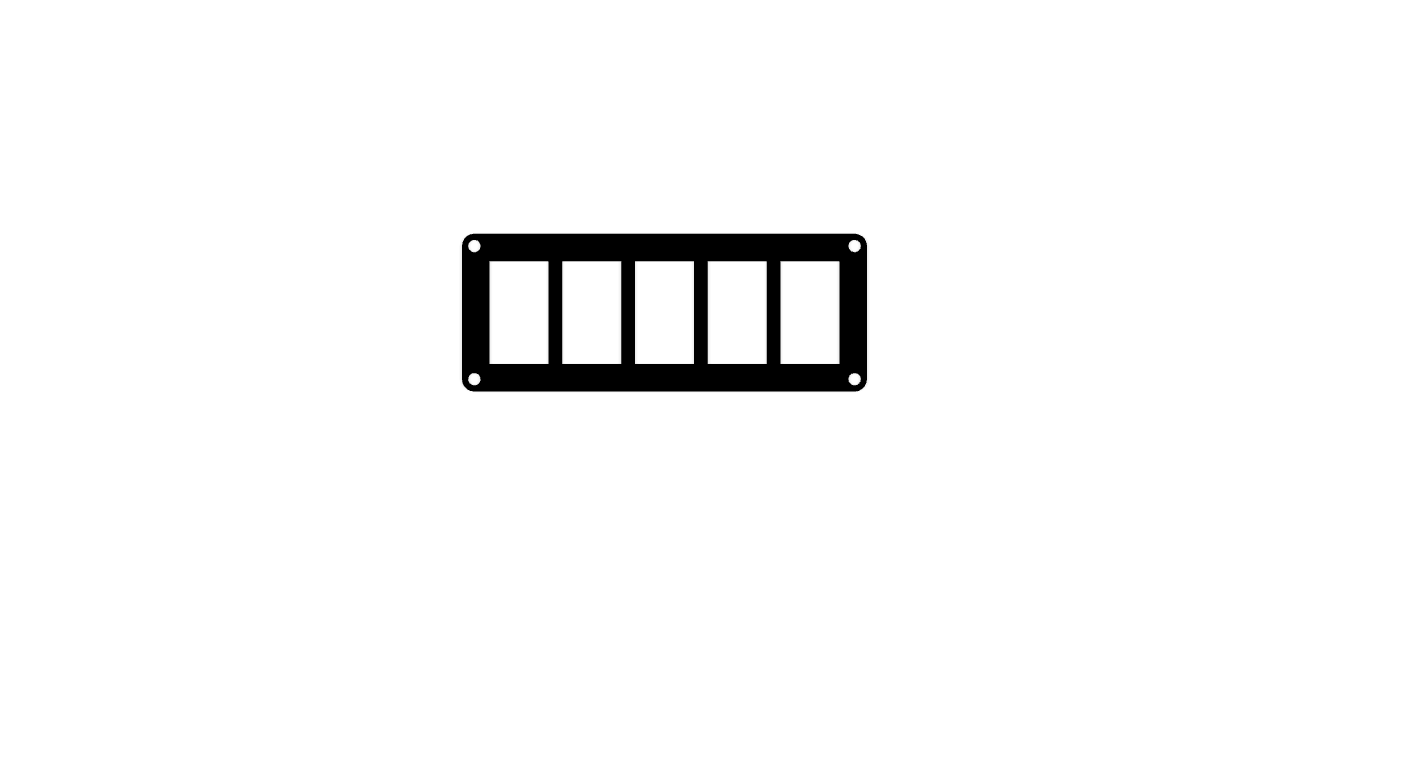

Fully parametric Rocker Switch Panel.

Created in Fusion, simply open up the “parameters” section, and punch in how many switches wide, and how many switches tall you need.  The gap between switches, screw hole size, and switch hole sizes are also fully parametric.

The STL files include panels with 5mm gaps horizontally between switches, 10mm gaps vertically between switches, a 10mm border, and 4.5mm screw holes.  The switch hole size is 21.5mmx37.5mm, fitting most standard full size rocker switches.



STL Files included for the most practical sizes.

Need a custom designed switch panel? Shoot me a message and let's work together!

NOTE: Designed & Published 3/9/24.  Has NOT been printed or tested yet.

Printables

Parametric Rocker Switch Panel

OverMaintained OverMaintained (abre em nova aba)

Publicado em 10 de mar de 2024

64
Curtidas
662
Downloads
1
Impressões
Categoria Electronics
Tags
switch panel rocker rockerswitch switchpanel rockerswitchpanel
Licença Creative Commons — Attribution
Arquivos (18)
Modular Rocker Switch Panel.f3d 112.6 KB
Modular Rocker Switch Panel.step 46.8 KB
1x1 Panel.stl 61.8 KB
2x1 Panel.stl 56.5 KB
3x1 Panel.stl 52 KB
4x1 Panel.stl 49.1 KB
5x1 Panel.stl 47 KB
6x1 Panel.stl 45.6 KB
7x1 Panel.stl 45.8 KB
8x1 Panel.stl 46 KB
1x2 Panel.stl 51.1 KB
2x2 Panel.stl 50.7 KB
3x2 Panel.stl 49.5 KB
4x2 Panel.stl 49.9 KB
5x2 Panel.stl 49.5 KB
6x2 Panel.stl 50.7 KB
7x2 Panel.stl 52.6 KB
8x2 Panel.stl 53.8 KB
