Modelo 3D Under Desk Drawer por Peter Martin no Printables

Descrição

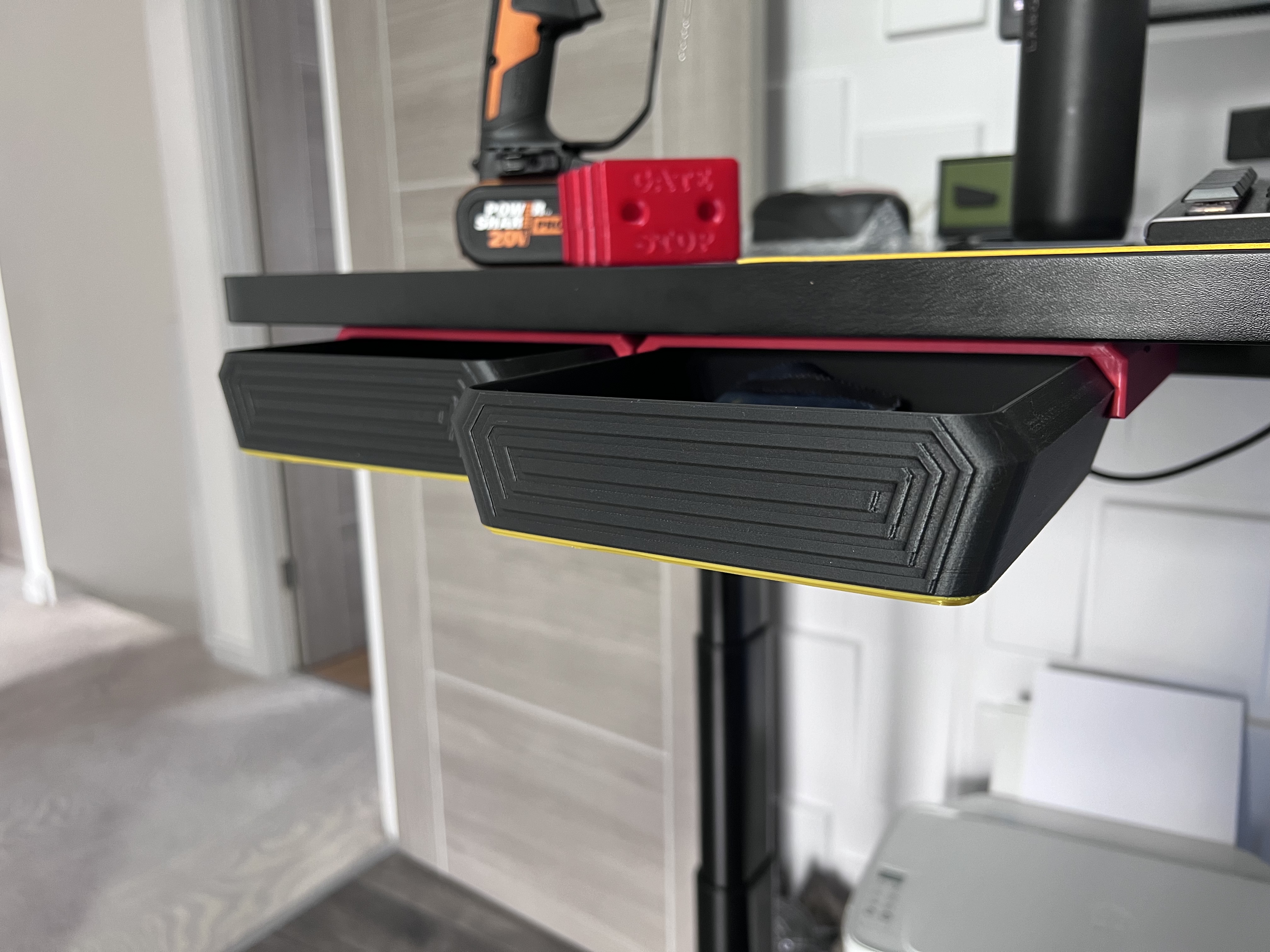

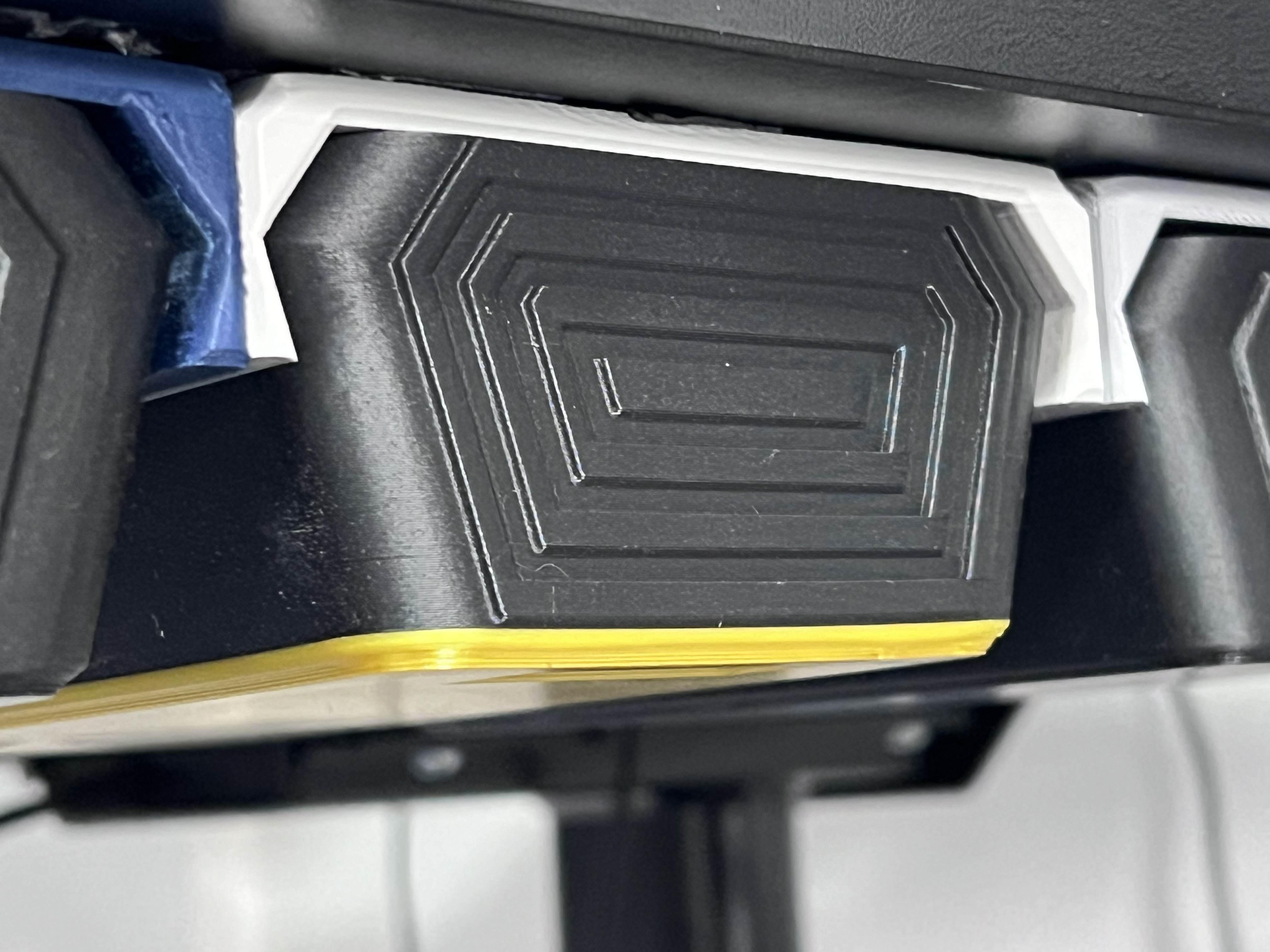

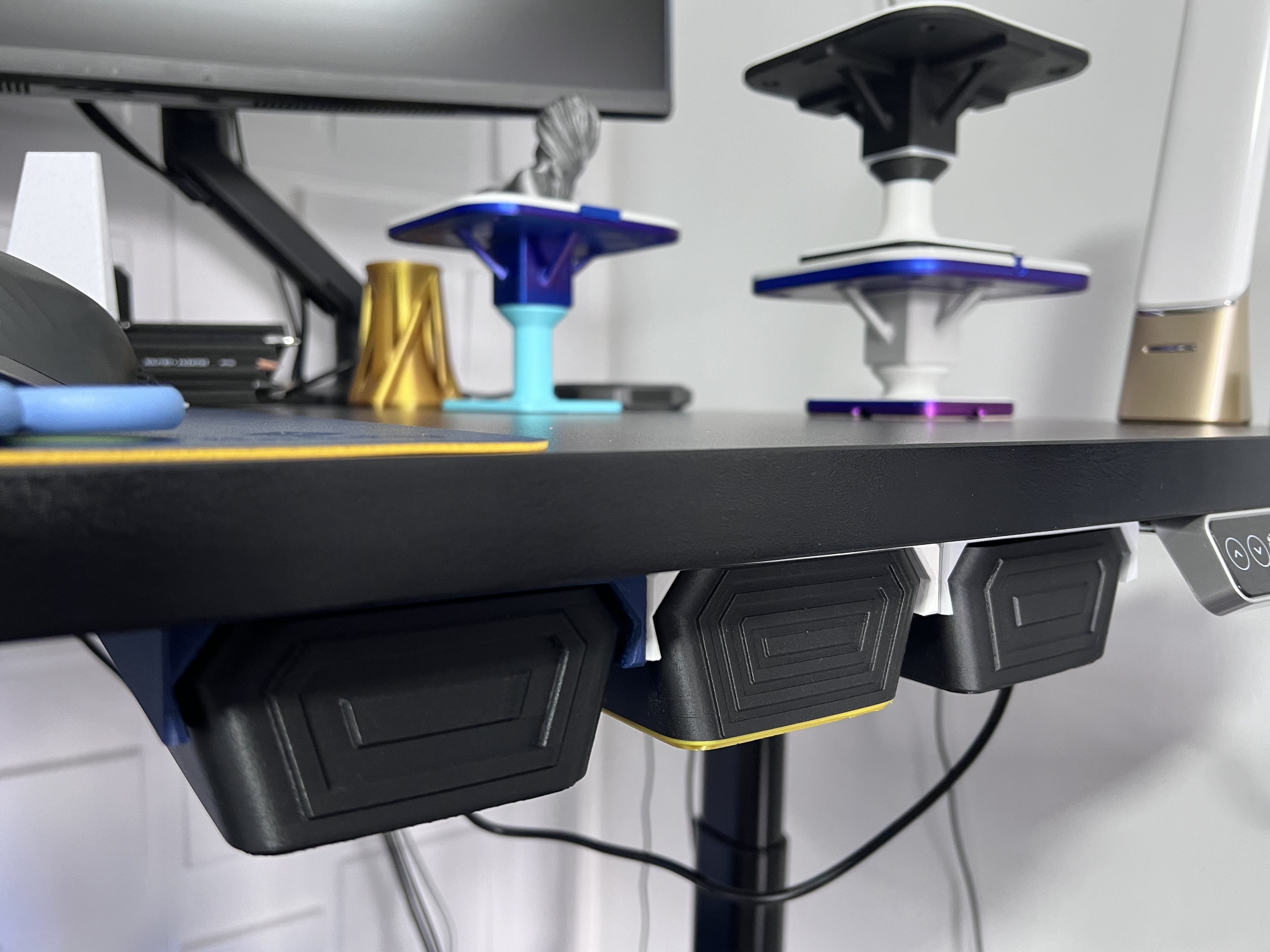

Needed bigger under desk drawers with no handles. Too many charging cables to store :)

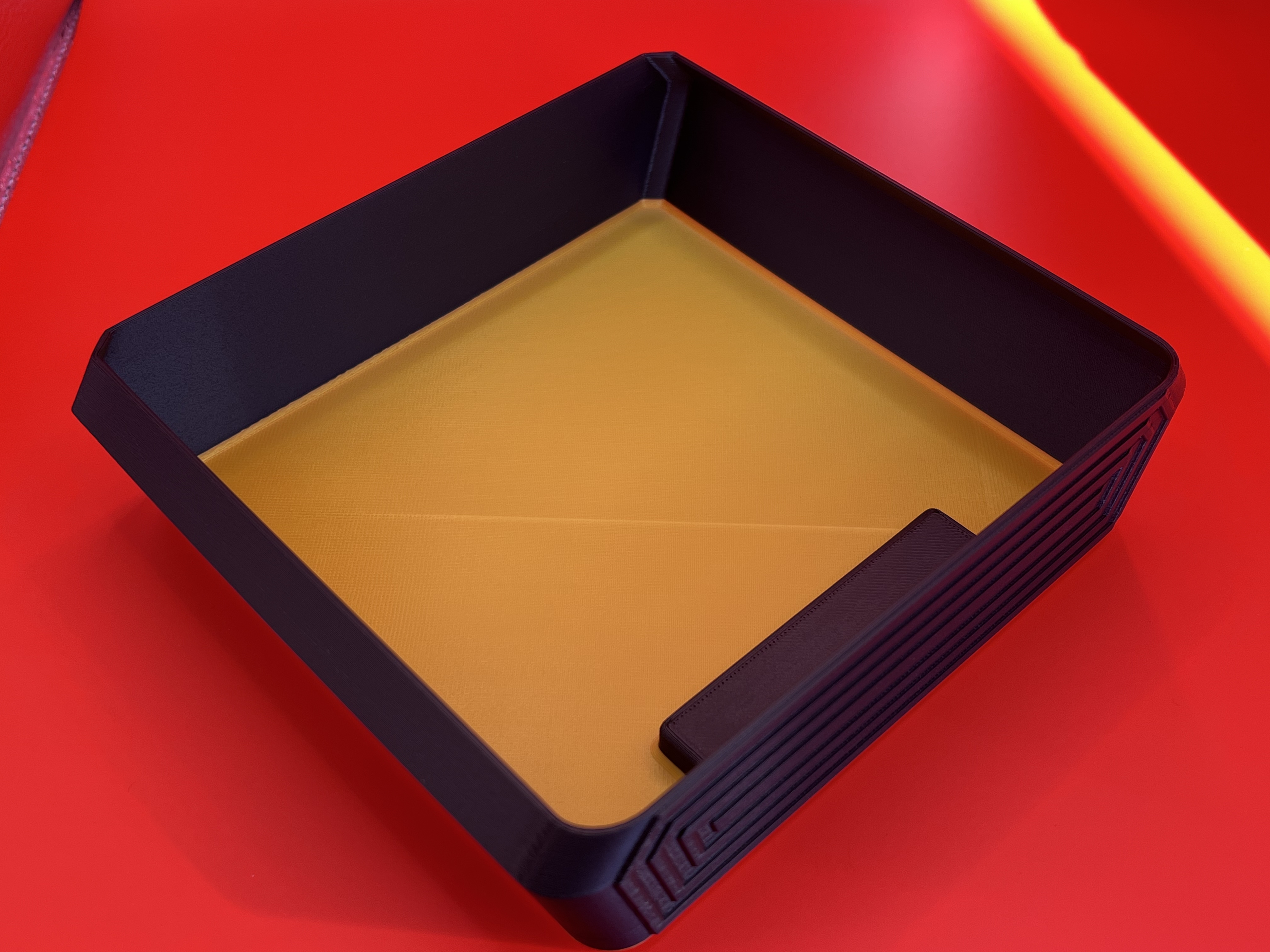

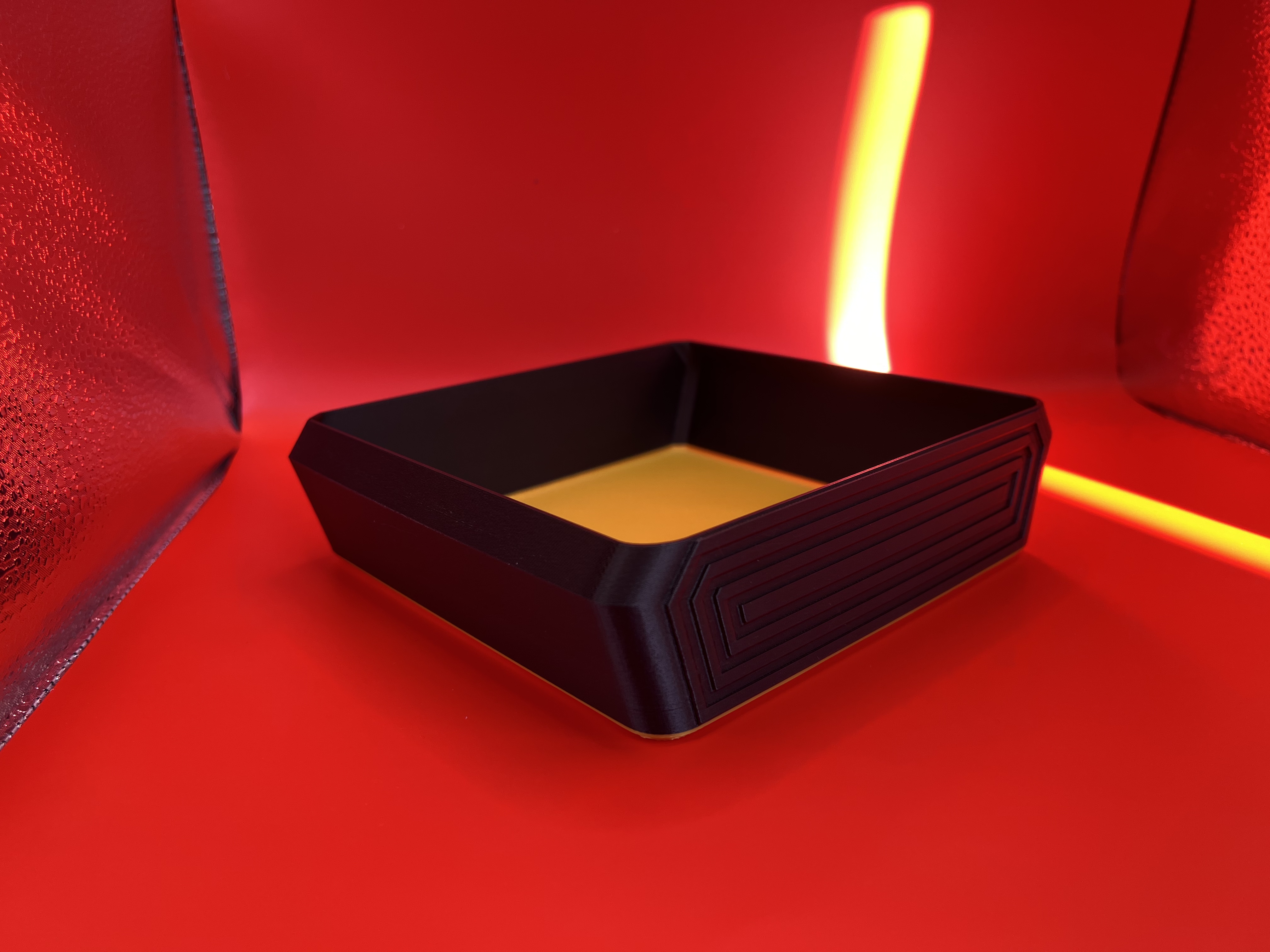

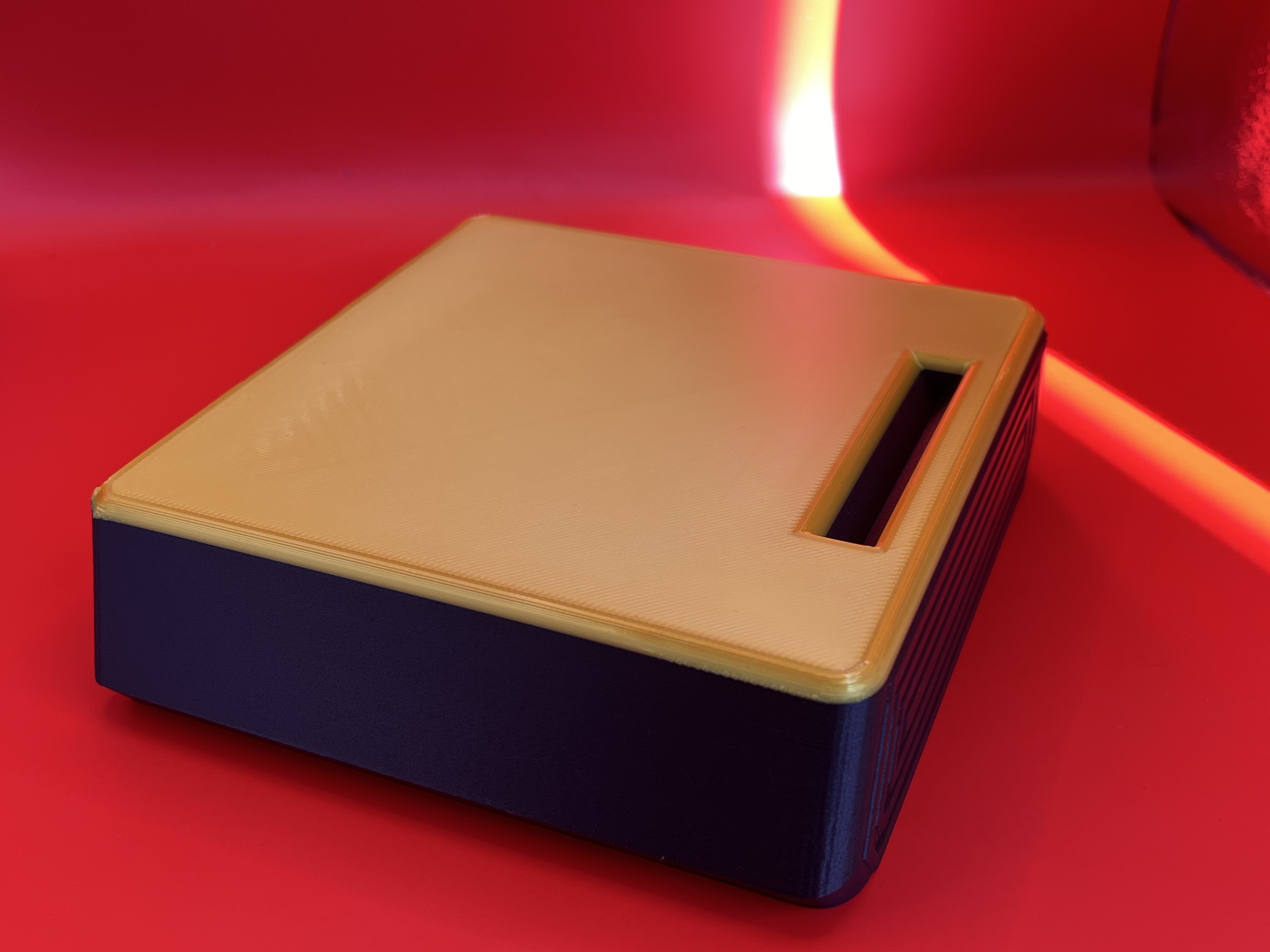

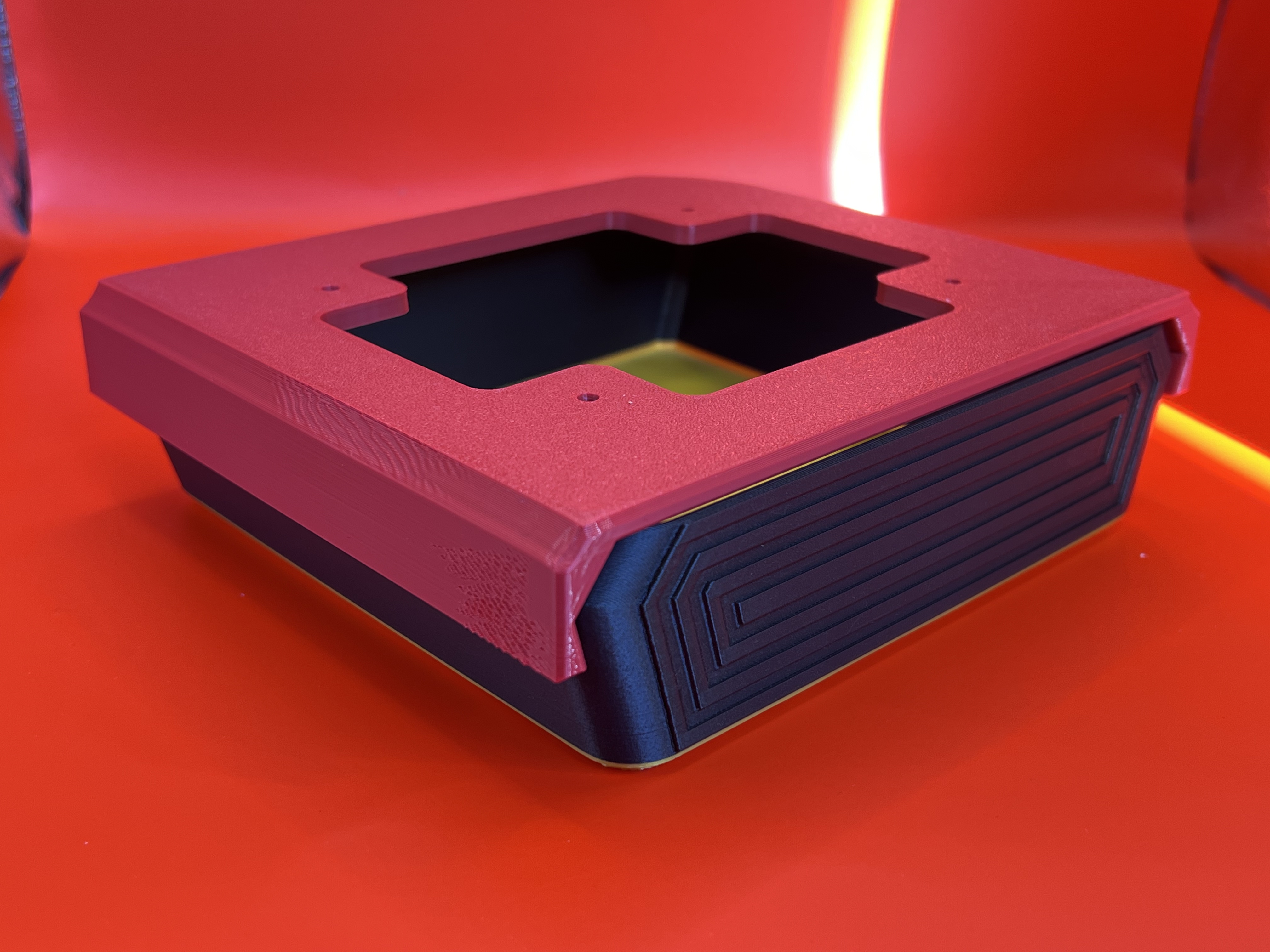

They are pretty sturdy, reasonably deep at 45mm and with the handle on the base of the drawer.

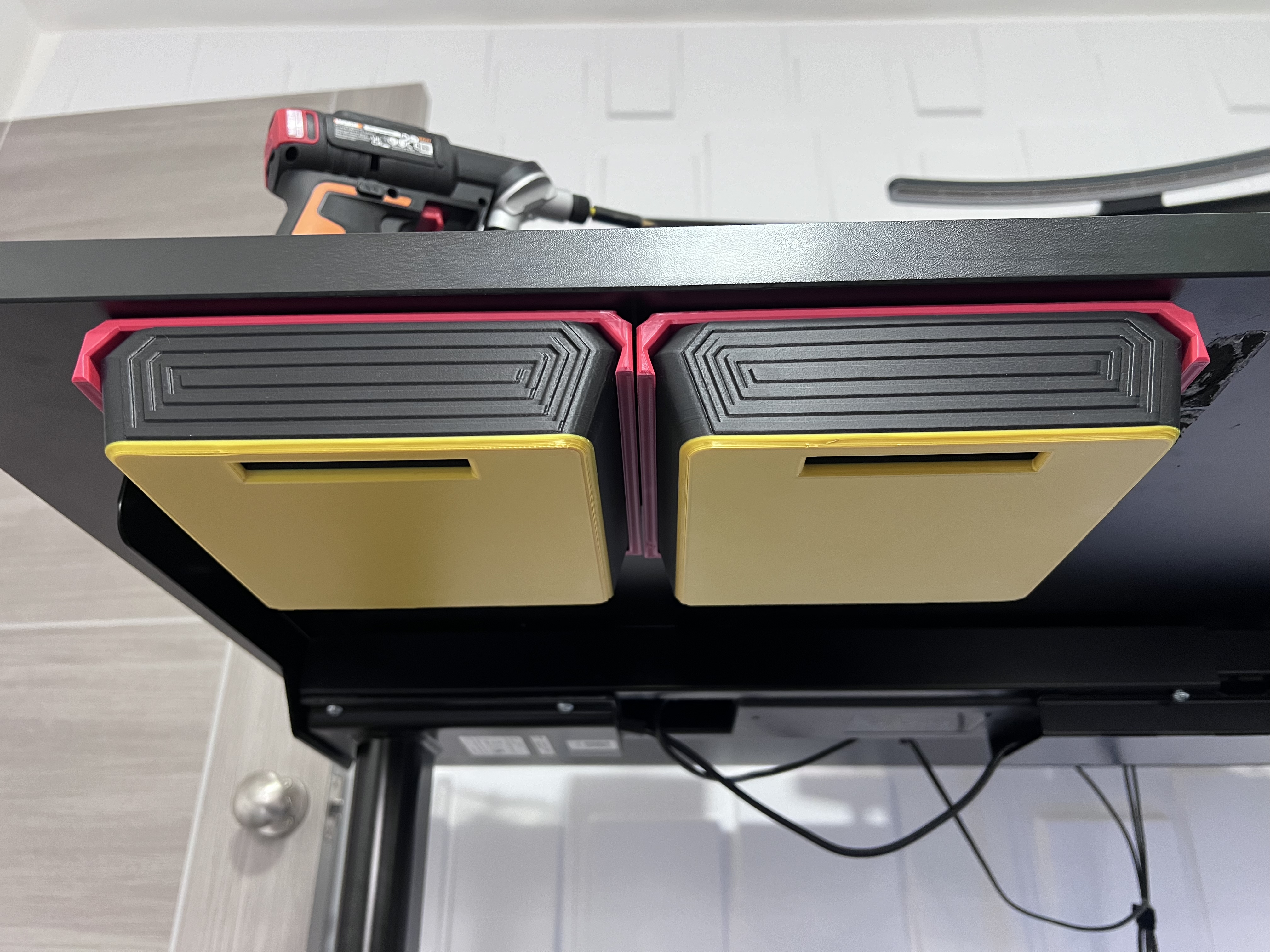

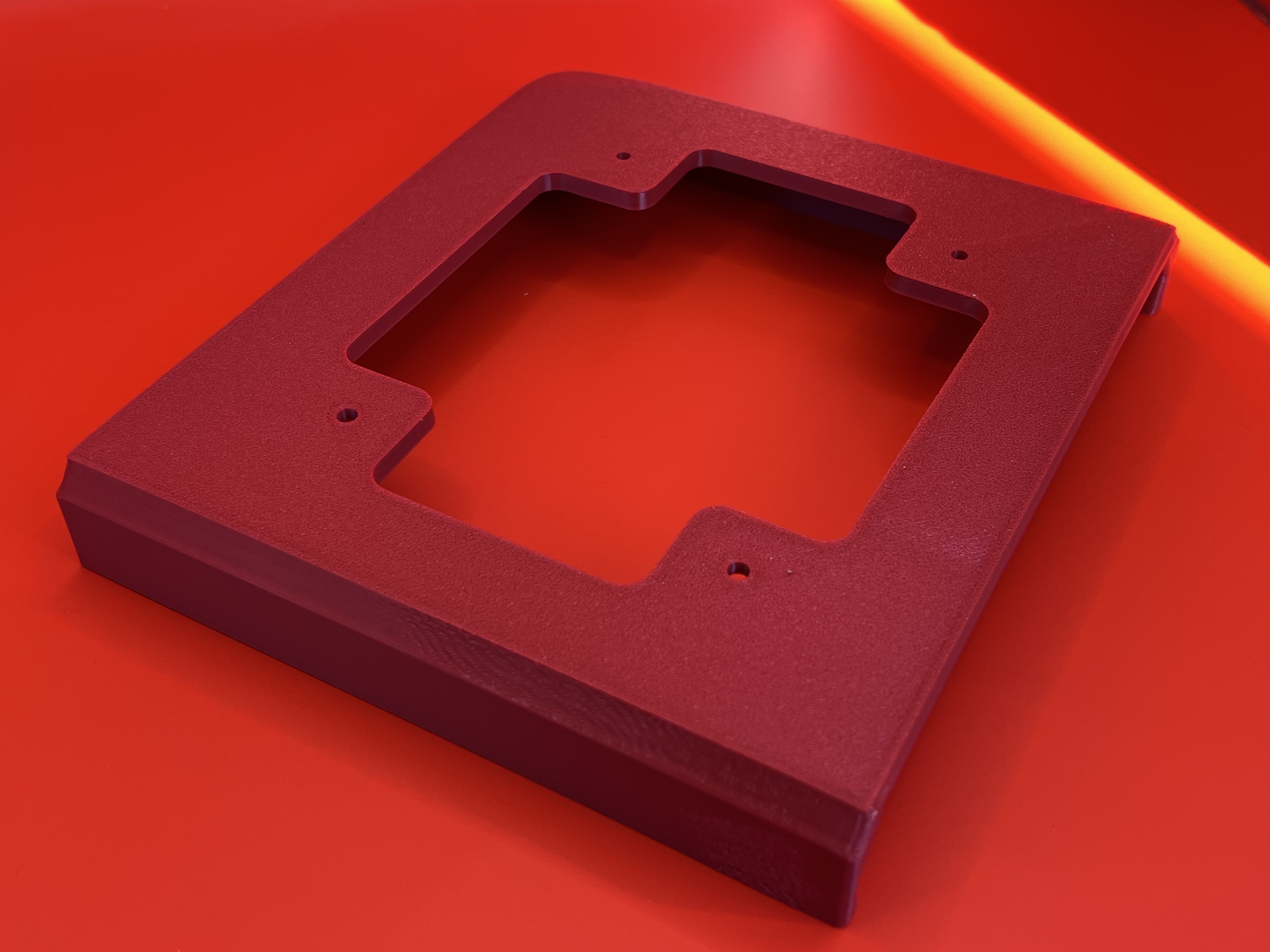

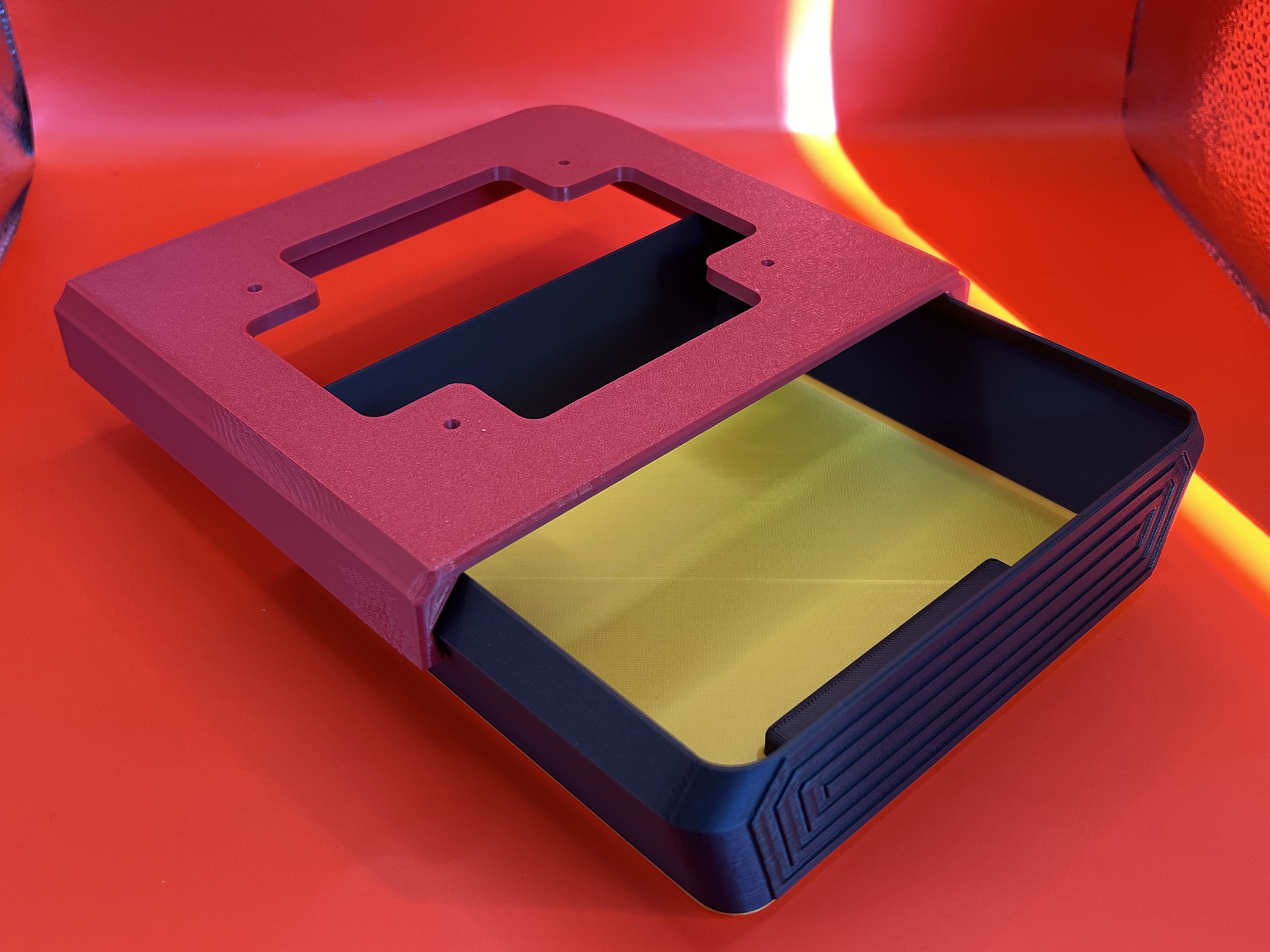

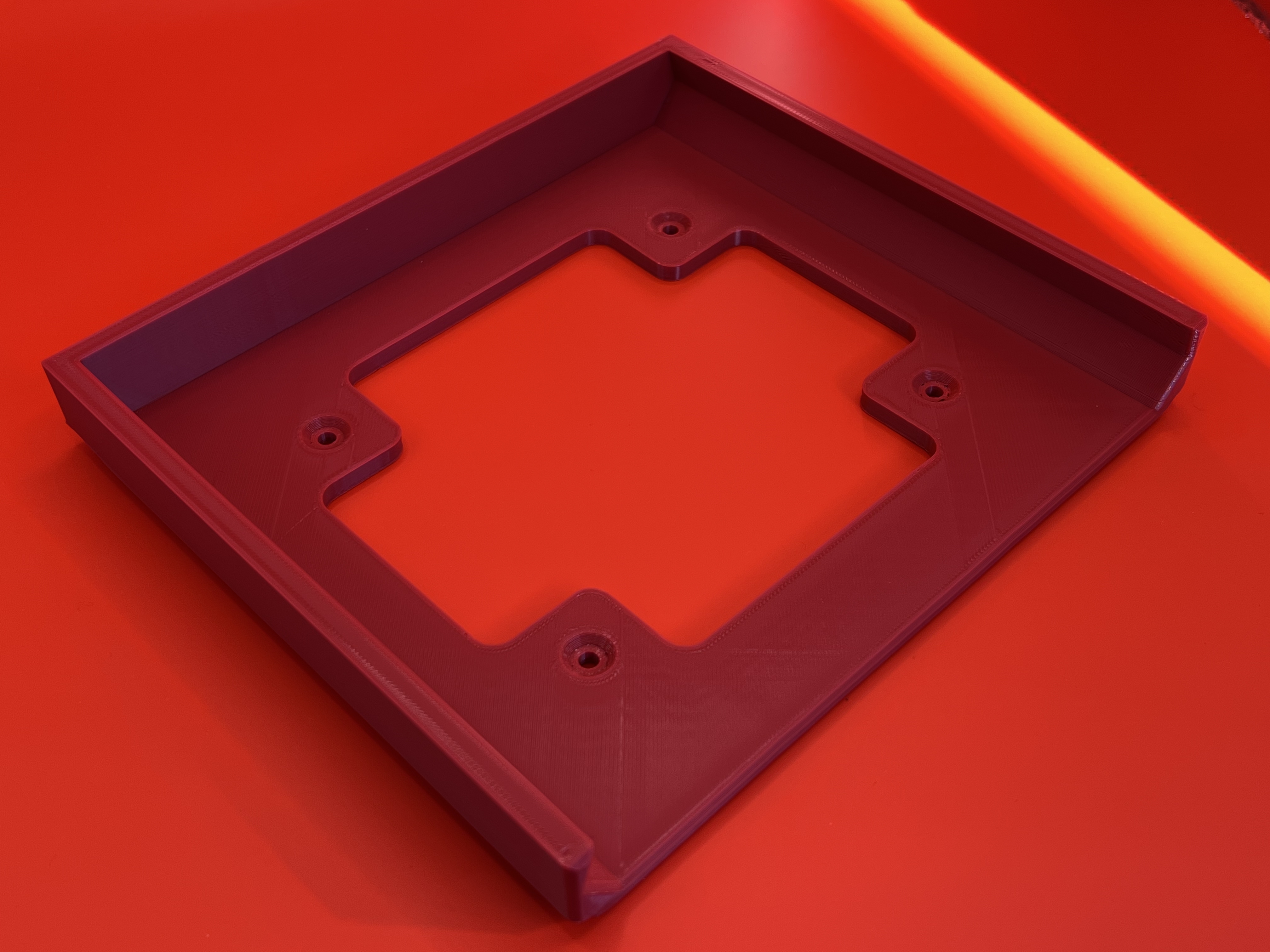

Just screw the frame into the desk using the four pre made holes. The frame is quite thick at 5mm, but don't over tighten, just till the head is flush with the frame. ( i used 6mm diameter Countersunk head screws at 20mm)

There are two sizes :-

Under Desk Drawer 75mm which is 75mm wide x 150mm length x 45mm Depth.

Under Desk Drawer 150mm which is 150mm wide x 150mm length x 45mm Depth.

Easy to print with no supports needed. All files already orientated for printing.

75mm drawer = 65g filament at 15% infill, approx. 1.5 hours print time.

75mm frame = 44g filament at 15% infill, approx. 1 hr 20 print time.

150mm drawer = 100g filament at 15% infill, approx. 2 hr 33 print time.

150mm frame = 76g filament at 15% infill, approx. 2 hr 10 print time.

approximate times are using a Prusa MK4 or Ankermake M5 / M5c.



Printables

Under Desk Drawer

Publicado em 11 de mar de 2024

1,010
Curtidas
3,801
Downloads
44
Impressões
Categoria Office
Tags
storage drawer drawerorganizer underdesk underdeskdrawer
Licença Creative Commons — Attribution
Arquivos (4)
Under Desk Frame 75mm.stl 114.3 KB
Under Desk Frame 150mm.stl 96.6 KB
Under Desk Drawer 75mm.stl 928.4 KB
Under Desk Drawer 150mm 3DT.stl 1010 KB
