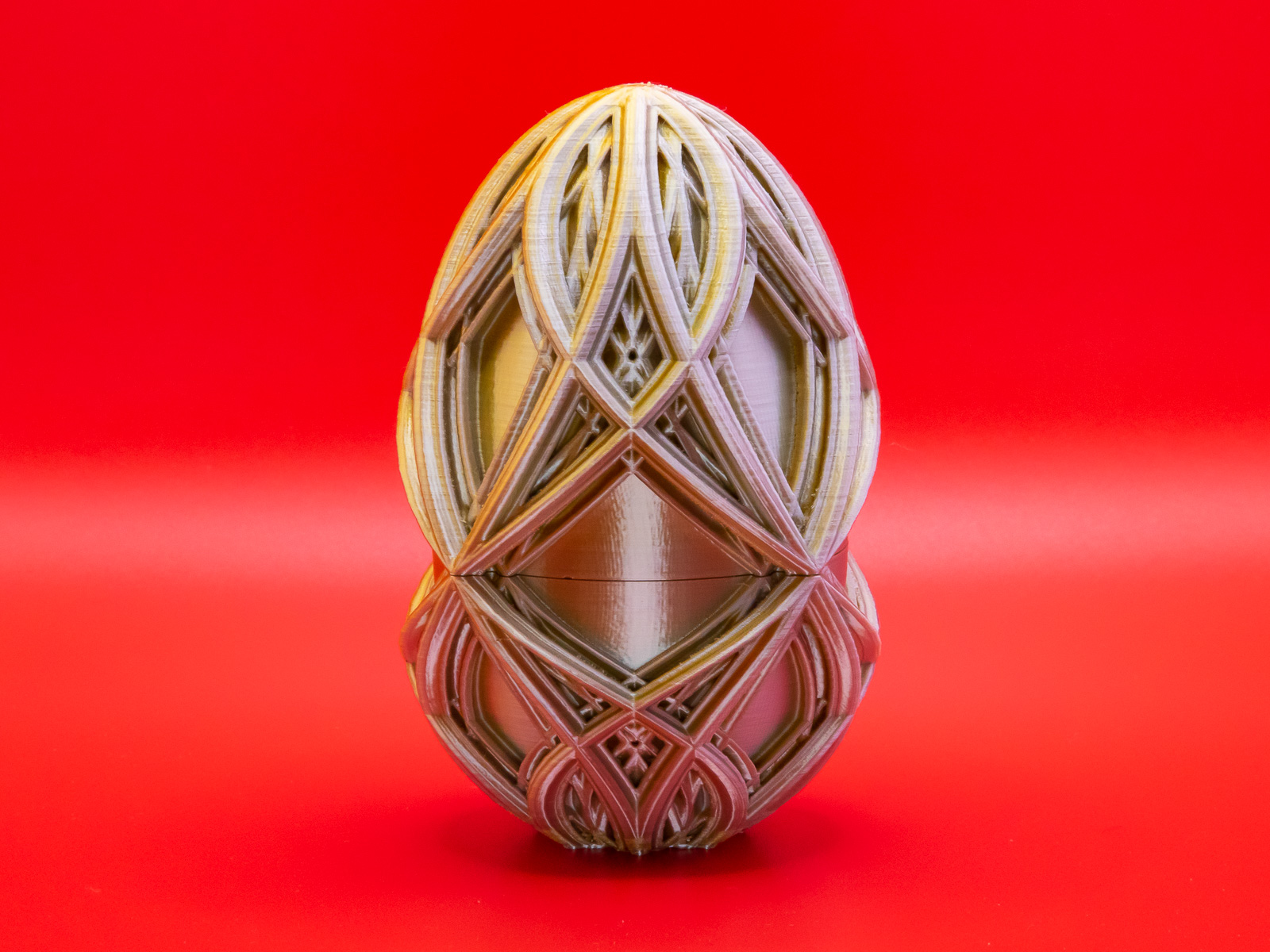

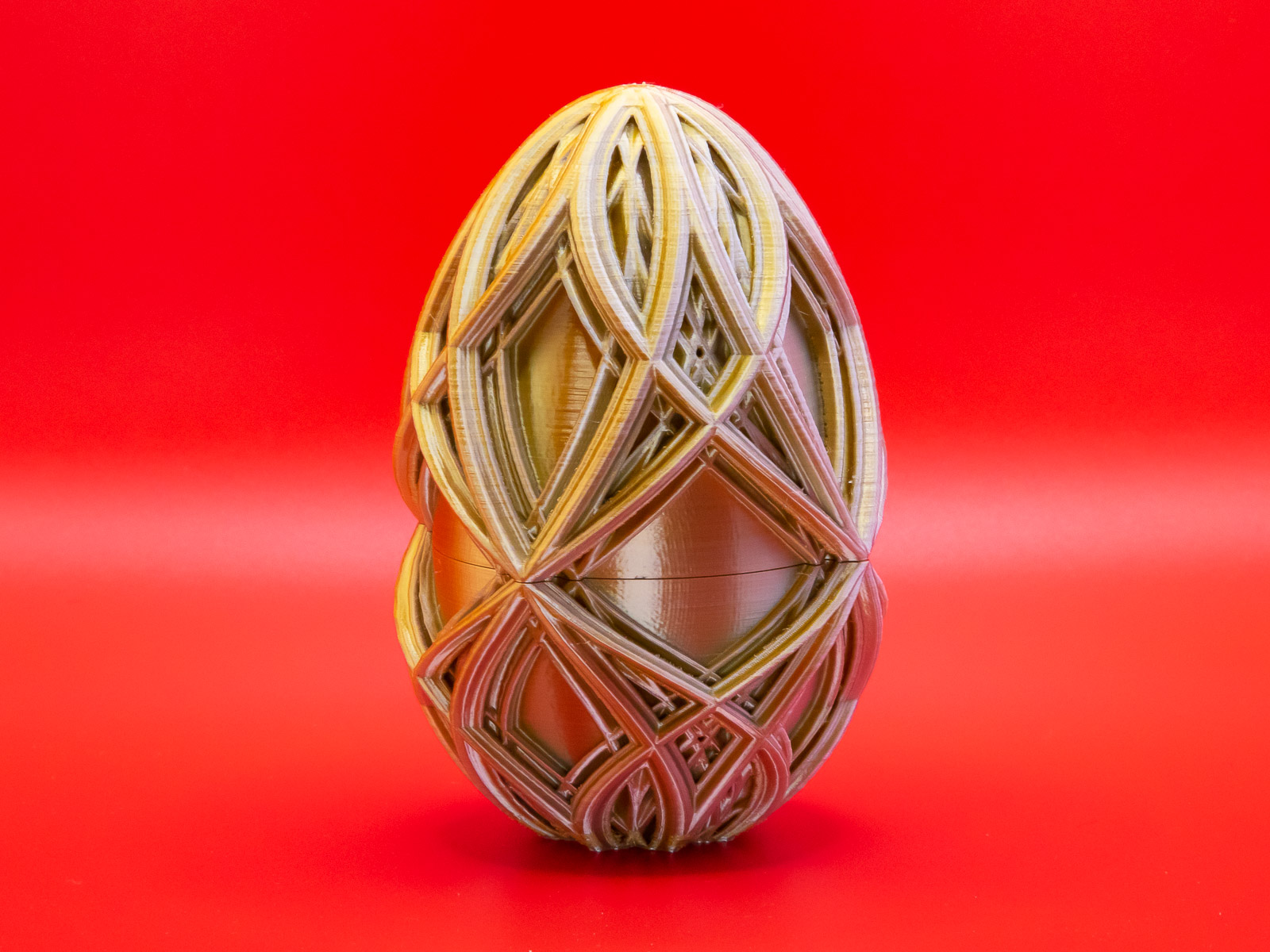

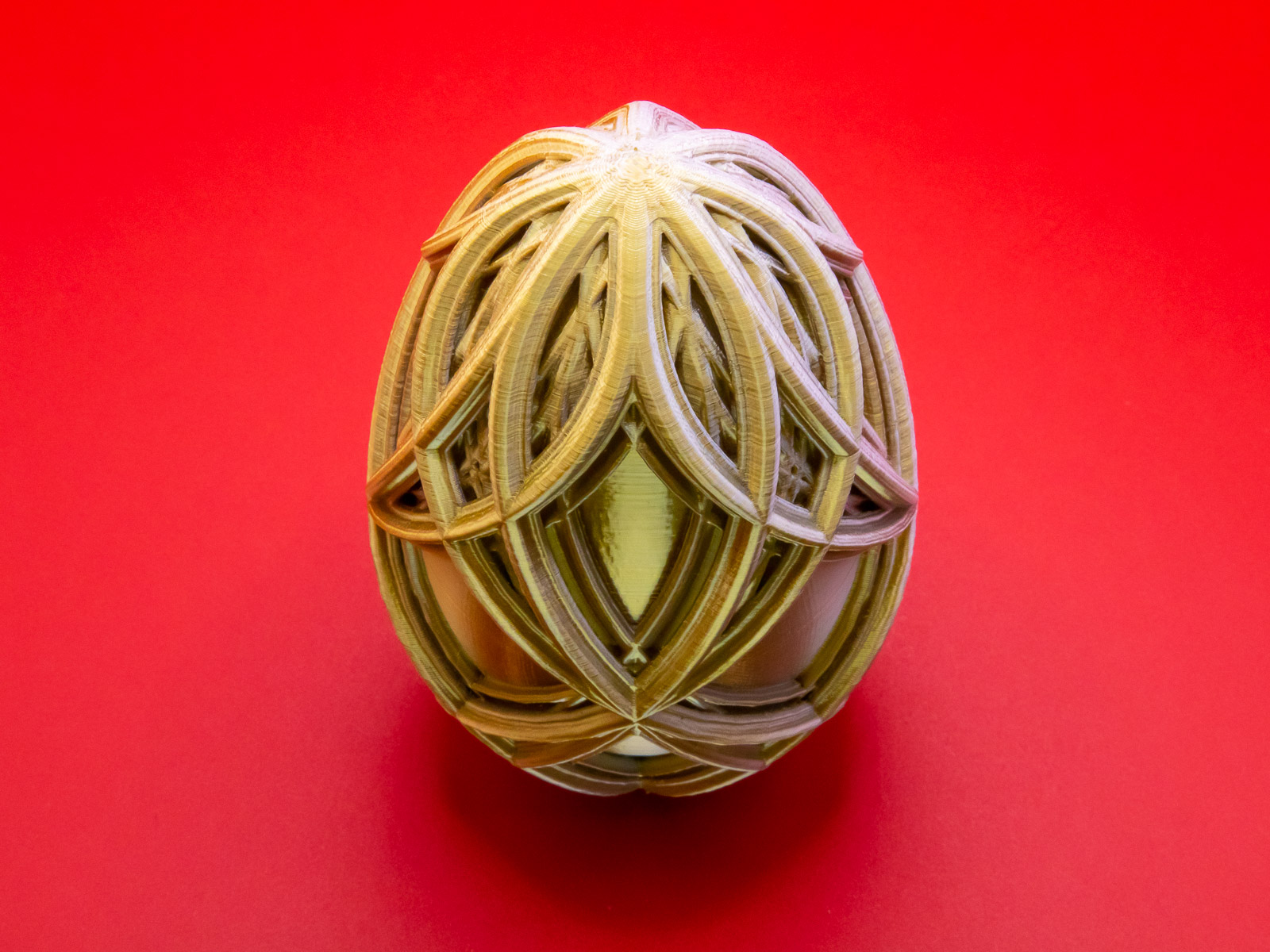

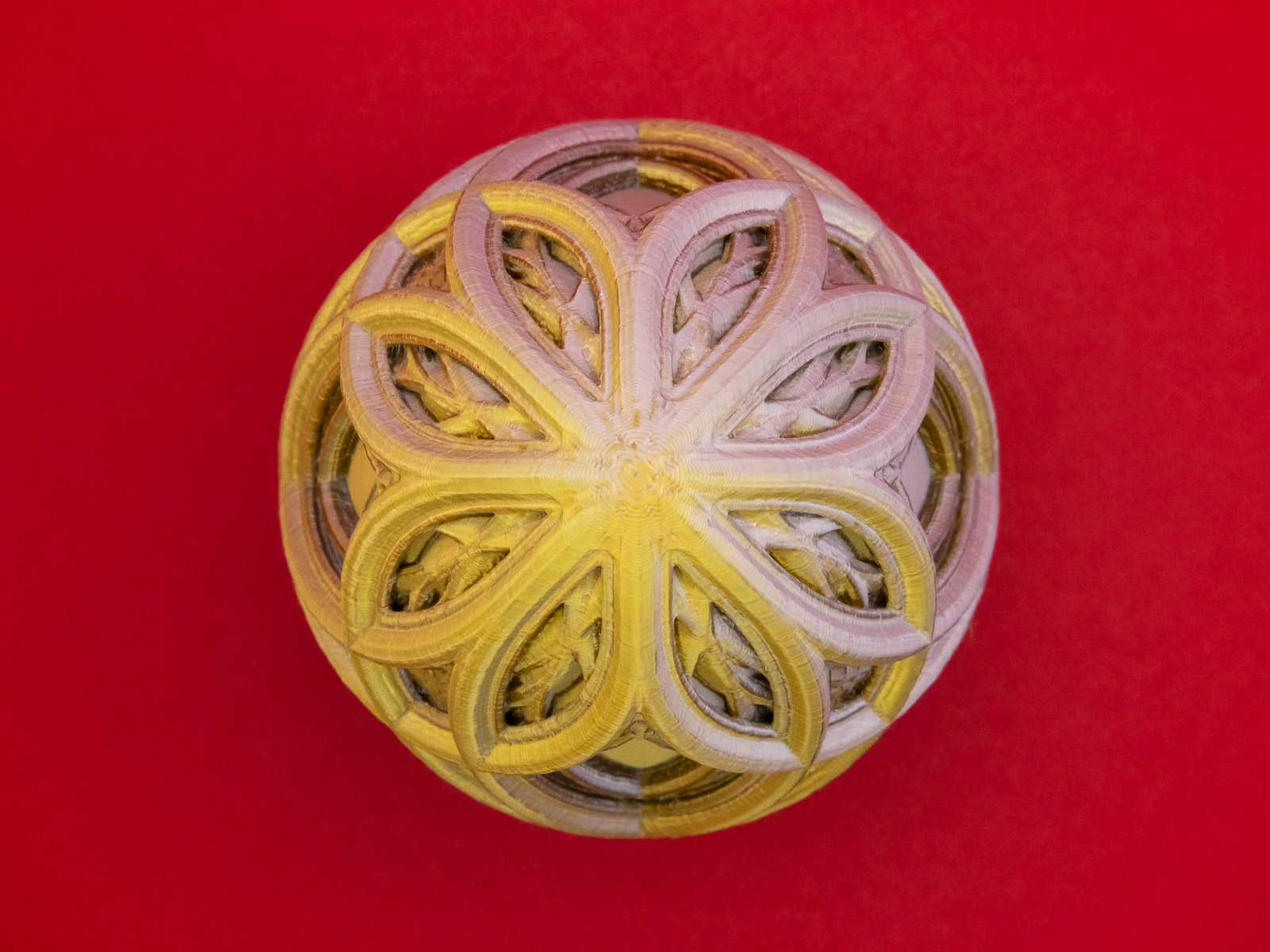

Modelo 3D Kaleidoscope Cross Easter Egg por Dazus K no Printables

Descrição

Both pieces can be printed “right side up” so you can use 3-color filament or rainbow filament and have the colors match up. Because of the complex moves the printer has to make, it may need to be printed slower than other models.

For settings, you can give it 2 perimeters, 15% infill, and default top and bottom thickness. The top prints best with supports for the inner dome and the bottom works best with a brim or supports for bed adhesion. I used PrusaSlicer's pain-on supports.

To print lighter and save time, you can use the settings I've provided in my PrusaSlicer 3MF files and MKS3+ GCODE. There, I've used layer height adjustments to vary perimeters, infill and top/bottom thickness to reduce weight and improve print time.

To print eggs that fit inside each other like Matryoshka dolls, I recommend scaling to 100%, 70% and 50%.

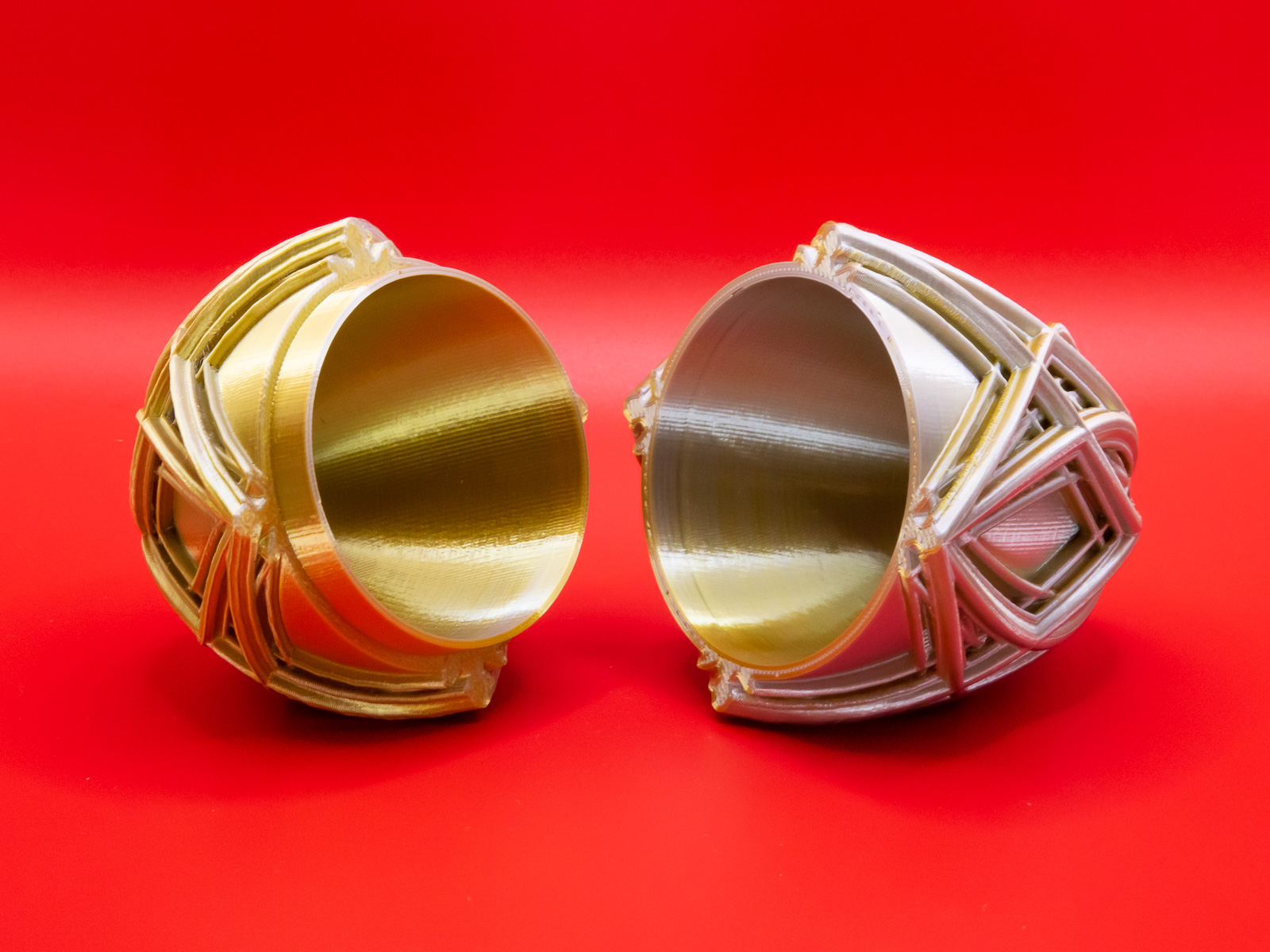

To open the egg, hold both halves, wiggle & pull apart. The bottom half has a slight ridge on 2 sides that clicks into a groove in the top. Because of that, it's easier to separate them wiggling in one direction than another. If wiggling one way doesn't work, try another direction.

You can loosen the pieces a lot just by twisting them a few times when they're together. Opening them also gets easier with use. And sandpaper is always an option. If that's not enough, consider reprinting with less flow, lower temperature, more elephant foot compensation, but first make sure you have the printer calibrated so the first layer prints well.

Printables

Kaleidoscope Cross Easter Egg

Publicado em 21 de mar de 2024

45
Curtidas
202
Downloads
Categoria Spring & Easter
Tags
toy box container geometric spring fun easter easteregg egg holiday holidaydecoration
Licença Creative Commons — Attribution — Noncommercial — NoDerivatives
Arquivos (4)
Kaleidoscope Cross Easter Egg Top.stl 2.7 MB
Kaleidoscope Cross Easter Egg Bottom.stl 2.8 MB
Kaleidoscope Cross Easter Egg Top.3mf 725.9 KB
Kaleidoscope Cross Easter Egg Bottom.3mf 761.5 KB
