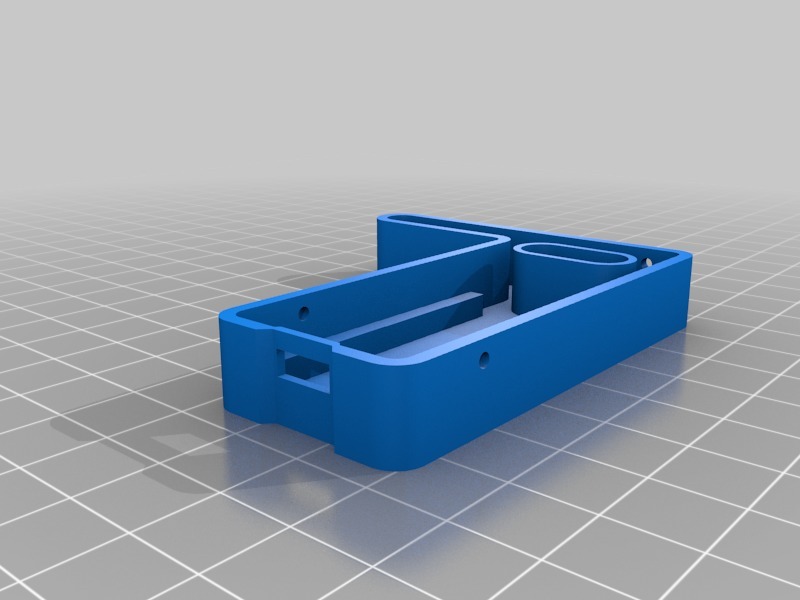

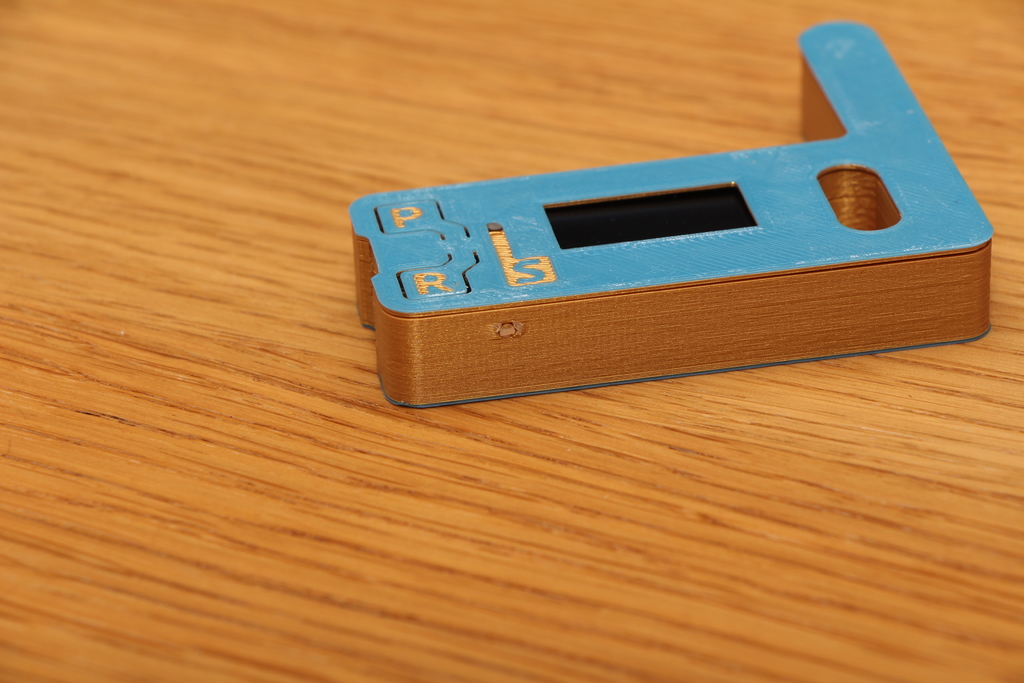

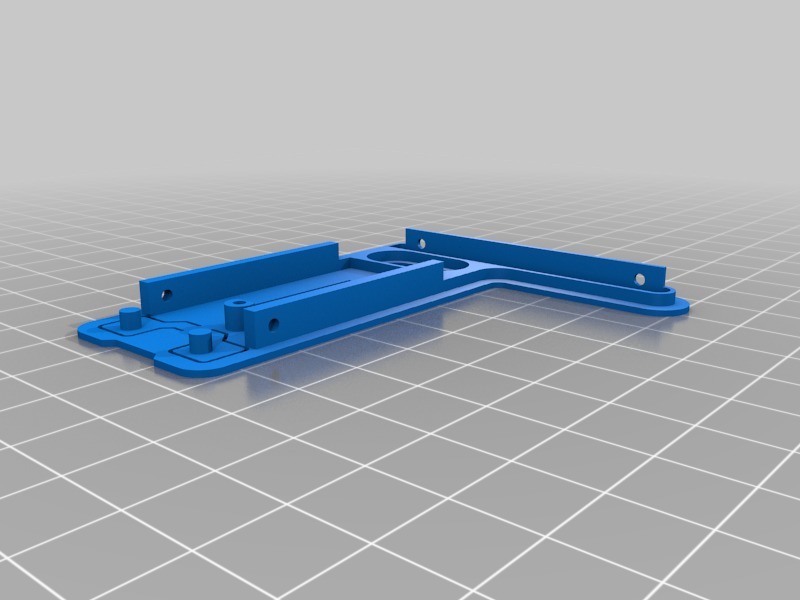

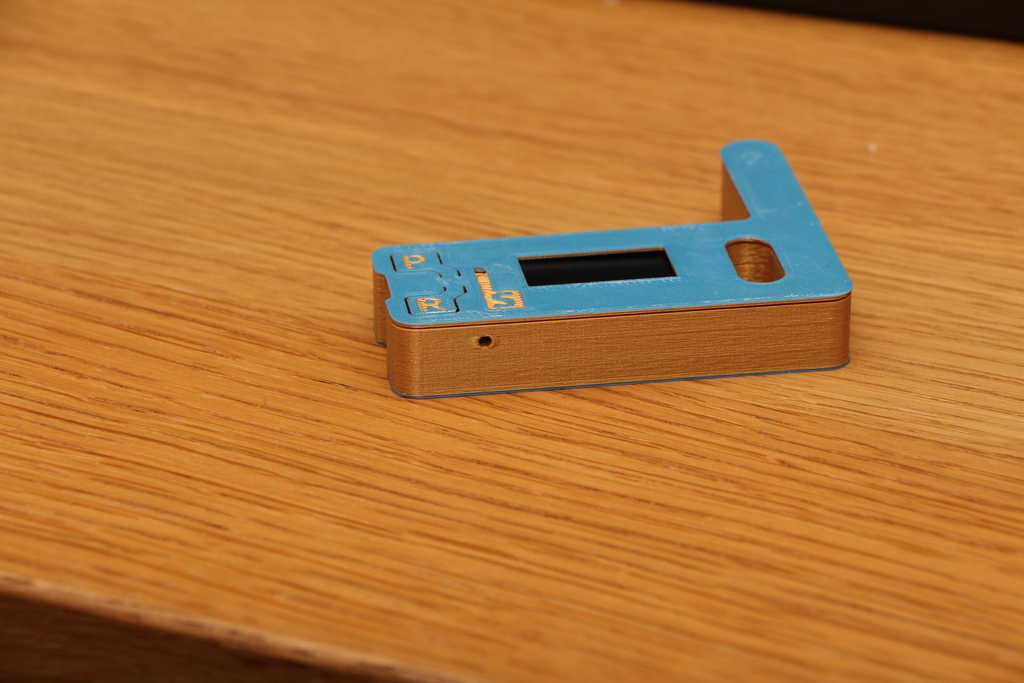

Heltec ESP32+LoRa+OLED case

This is a case for a dev board with ESP32, a LoRa chip and an OLED made by Heltec, the board might not work the most well built, but it's handy for experimenting. The board often comes with a small coil antenna with a IPEX connector so I made space for that in the case.

Designed in OnShape: [https://cad.onshape.com/documents/adbca6d97823a7cd3a33f571/w/93365e6c51e1c3a032b4445d/e/c91587cc1bf0a242e01a9f32](https://cad.onshape.com/documents/adbca6d97823a7cd3a33f571/w/93365e6c51e1c3a032b4445d/e/c91587cc1bf0a242e01a9f32)

More info about the board:
[http://www.heltec.cn/project/wifi-lora-32/?lang=en](http://www.heltec.cn/project/wifi-lora-32/?lang=en)
[https://robotzero.one/heltec-wifi-lora-32/](https://robotzero.one/heltec-wifi-lora-32/)
[https://hackaday.io/project/26991-esp32-board-wifi-lora-32](https://hackaday.io/project/26991-esp32-board-wifi-lora-32)
[https://www.youtube.com/watch?v=CJNq2I\_PDHQ](https://www.youtube.com/watch?v=CJNq2I\_PDHQ)
