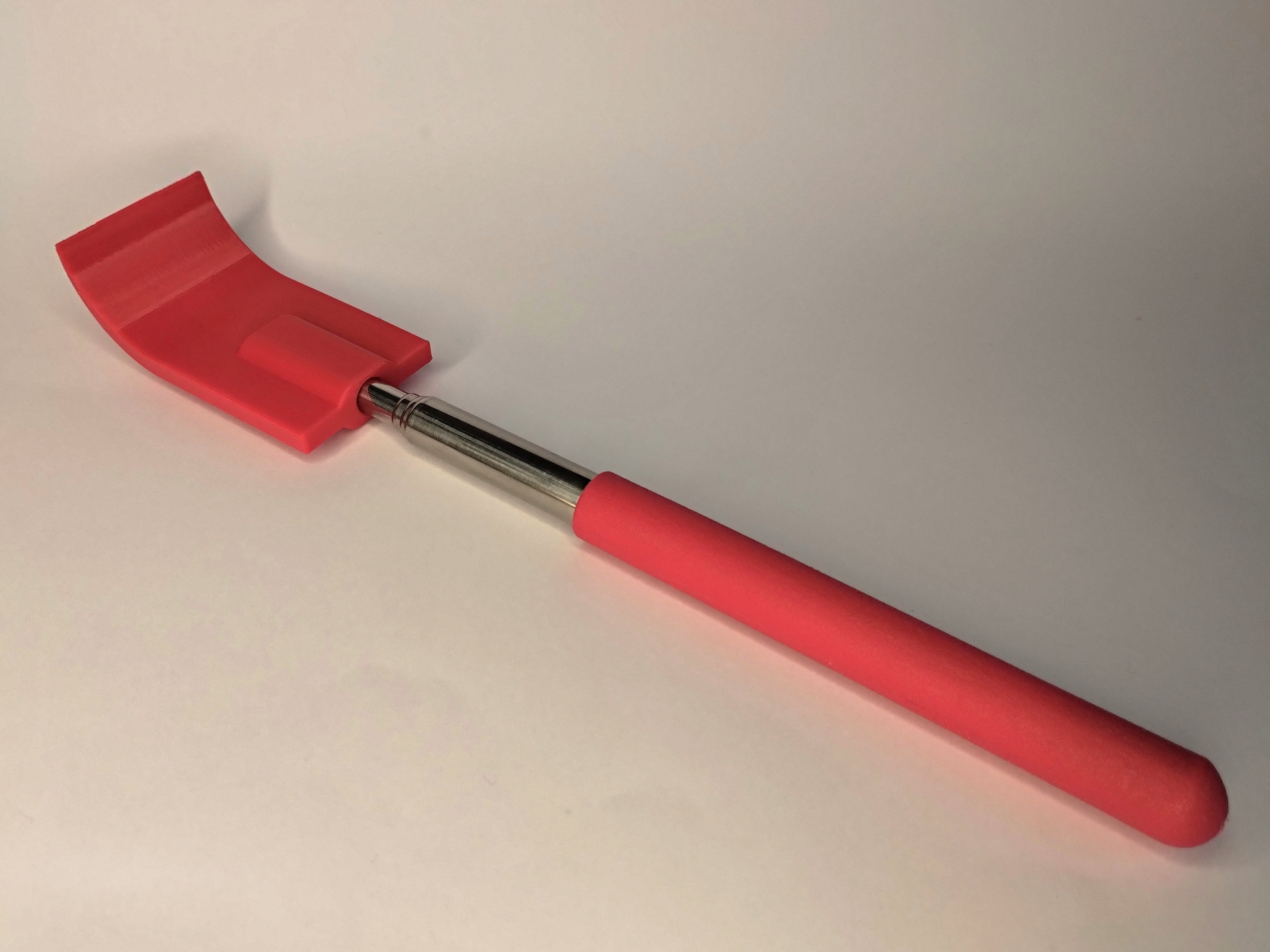

The idea of making a telescopic Back Scratcher is not bad at all. Unfortunately, the final design is bad, as usual...

Let's fix it!

Print instructions:

• Material: PLA
• Used Filament: Fillamentum PLA Extrafill - Traffic Red (RAL 3020, Pantone: P485)
• Layer: 0,2 mm
• Perimeters: 2
• Infill: 25 %
• Supports: No
• Brim: Optionally

This model does not require any special settings, more details in the attached 3MF file.

Assembly instructions:

Carefully heat up the old damaged Scratcher, this will help you get it off the rod. Clean the telescopic rod from the old glue and degrease it.

Before gluing, check whether the telescopic rod can be inserted into the Scratcher. Next, apply two-component epoxy glue to the Scratcher hole. Place the rod and let the glue set.

Custom modification:

If you want to modify the model, I am attaching the STEP file and a link to my OnShape.

You can customize the model by simply changing the parameters.

OnShape Link

Note:

Please don't forget to leave a rating or a comment. I will be glad for any feedback, so I can correct any mistakes in the design. Thank you very much.

Print visions, create reality!
