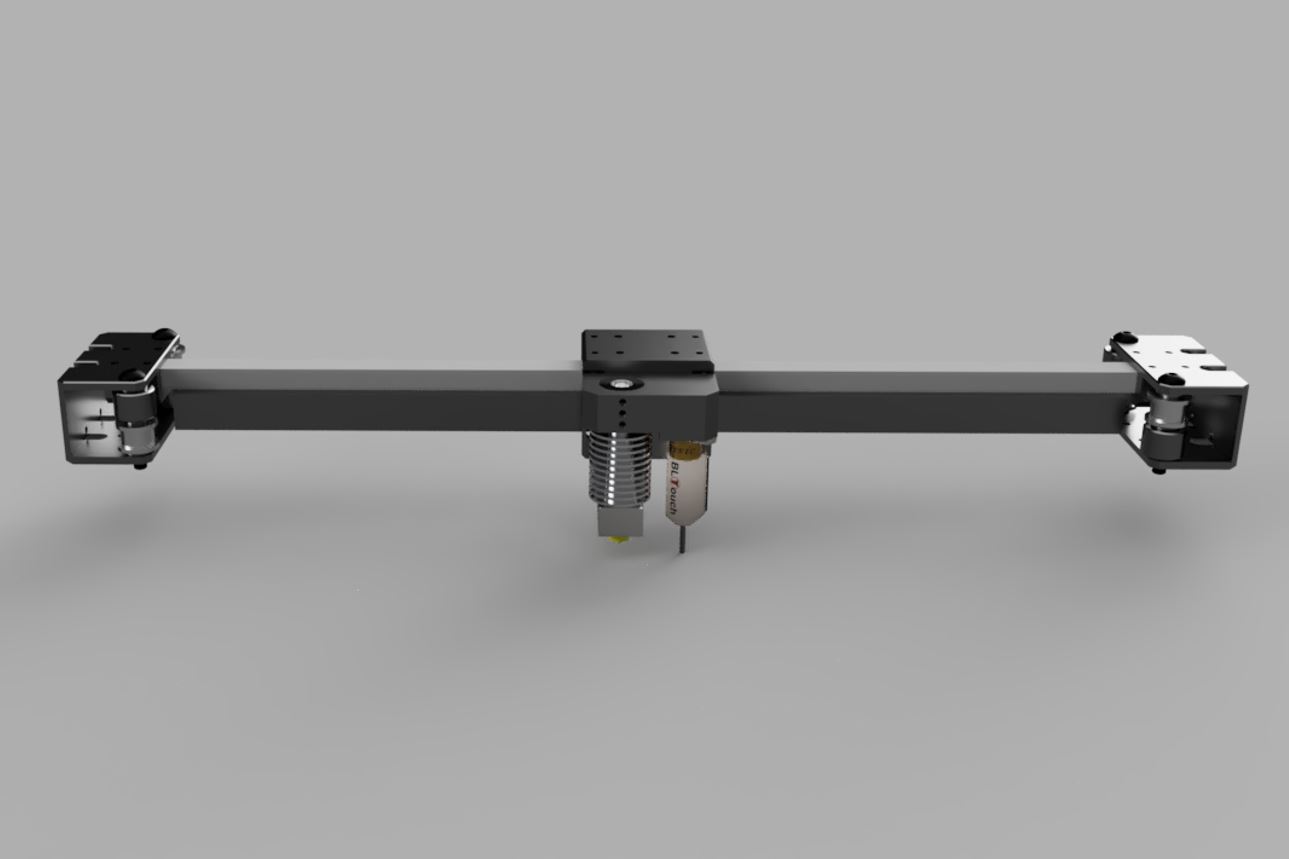

SolidCore CoreXY Gantry

This is the gantry and carriage design for the SolidCore CoreXY printer.

Gantry Design

The SolidCore Printer design currently uses a bowden tube setup to allow for higher acceleration but a direct drive extruder soon be added to allow for higher feedrate.

Aluminum Gantry / Carriage

Although the design is uses all metal parts, the carriage and gantry are designed to be light weight and strong. We currently use c-shaped aluminum stock because it reduces machining time. The reduced machining time and minimized waste helps but it’s a compromise will most likely change soon as the y-axis linear rail will be reoriented into the a vertical position similar to the RailCore. The SolidCore uses this mechanical arrangement will so it's easier to adapt an E3D Toolchanger.

X-Carriage Parts List

2 x Carriages
2 x MGN12H Rail Clamps
2 x GT2 Toothed Idlers
2 x GT2 Smooth Idlers
4 x M5 x 35mm Long Button Head Cap Screw
8 x M3 x 6mm Long Button Head Cap Screw
12 x M5 Steel Washers 1mm Thick
8 x M5 Nylon Washers
2 x GT2 Idlers
4 x 10.5mm Pulley Spacers

X-Carriage Idler Pulley Assembly & Installation

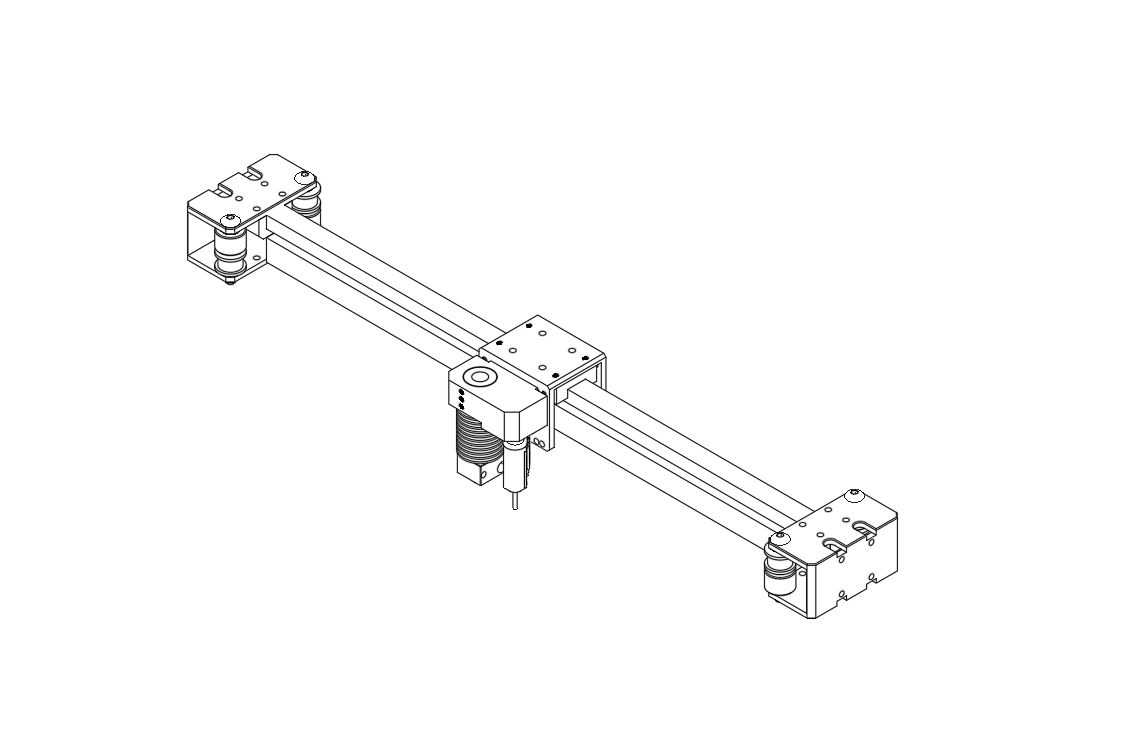

X-Carriage Assembly Diagram

Y-Carriage / Extruder Carriage

For More Information see SolidCore BOM
