Features:

• Easy to customize
• Change the sizes

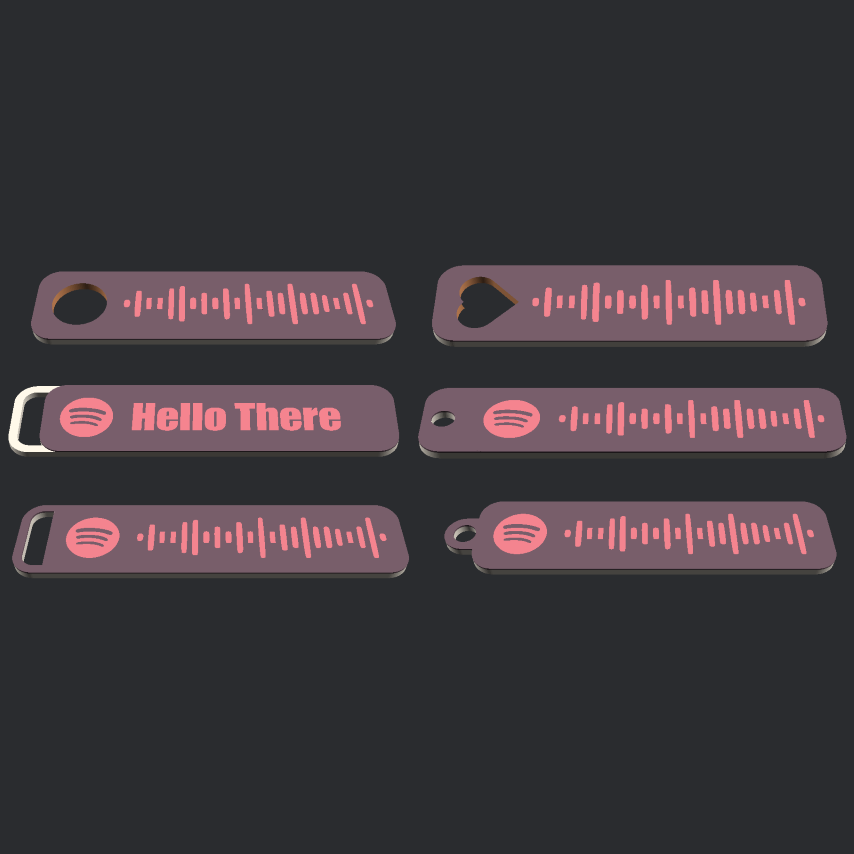

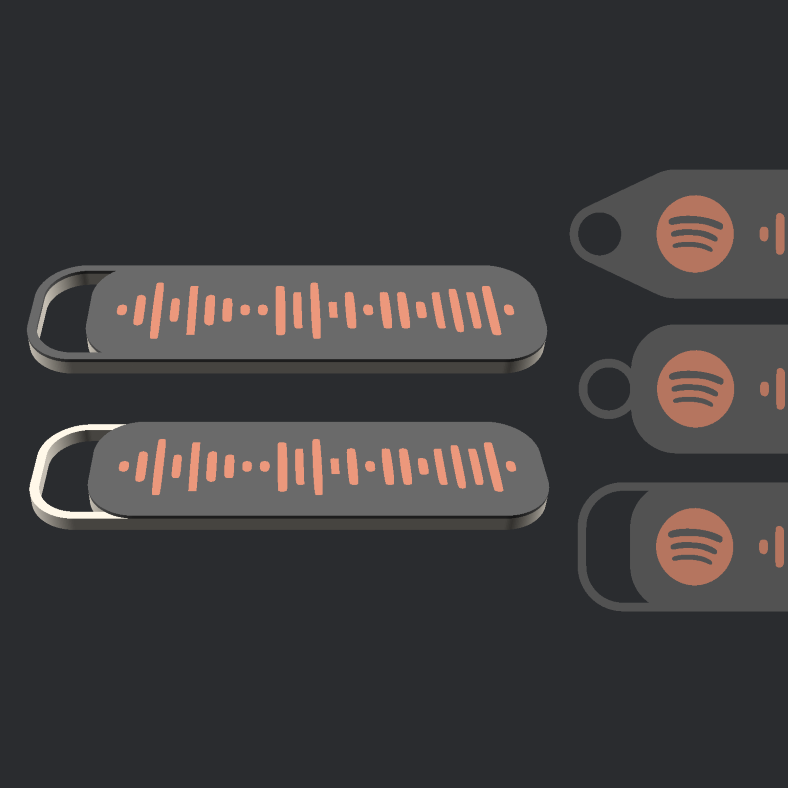

• Multiple frame options
• Change the icon
• Use text instead of a code (useful for double sided prints)

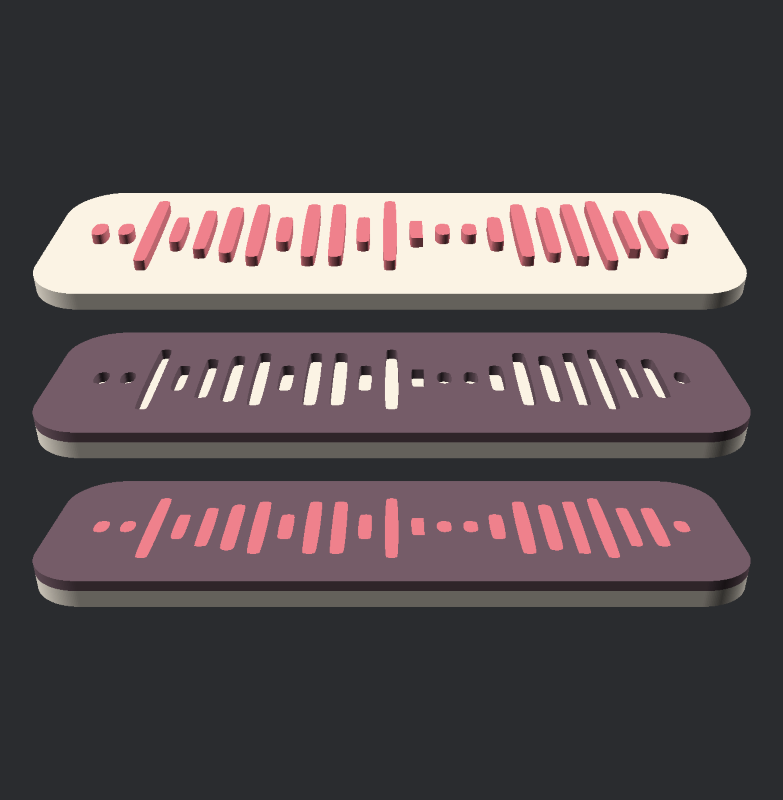

• Multi-color export (layer-change or inlay)

Notes:

I've also included the heart cutout template if you just want to use another program to add the code/some text.

The SVG file and the example STL files are obviously Rick Rolls if that's what you're here for :)
I've also uploaded a .zip file with more types

Corner & Border options:

Optimize by line size:

How to Customize

Create the Spotify Code

• Go to here - [https://www.spotifycodes.com/#create](https://www.spotifycodes.com/#create)
• Enter your Spotify URL and then click download (use the default settings)
  • You can right-click songs, artists, playlists, etc and go to Share > Copy Link To Playlist

Convert the downloaded JPEG file to an SVG

• Go to this site - [https://convertio.co/jpeg-svg/](https://convertio.co/jpeg-svg/)
• Drag the JPEG file into the window
• Click Convert. When it's finished, click download

I'm aware you can download the code as a SVG file from the first site, but this will not be formatted properly for our uses.

Tip:  Click the images to see a larger view

Customize with OpenSCAD

1. Download OpenSCAD from here and install it - [https://openscad.org/downloads.html](https://openscad.org/downloads.html)
2. Put the downloaded SVG file in the same folder as the .SCAD file from this page
3. Double-click the .SCAD file to open it
4. Click Window, then untick Hide Customizer
   Optional: Click Window, then tick Hide Editor
5. Customize the settings. After changing a setting, you may need to click outside the text box to apply the change.
   • Enter the SVG file name in the Basic settings tab or rename the file to Code.svg
6. Click Design > Render and wait for the design to render
7. Click File > Export > Export to STL
8. Save the file

Note: If you want to inlay the code/icon, you'll need to export and save both 'Multi-Color Preview' and 'Multi-Color Code' under Basic Settings.

How to use a custom icon

I suggest downloading icons from here - [https://iconmonstr.com/](https://iconmonstr.com/)

• Put the downloaded SVG file in the same folder as the .SCAD file
• Type the filename into the customizer
• Select the Custom Logo Option
• You may need to change the file scale setting

Notes

If you want to print a double sided tag, you can set Base Height to 0 and export the second side. Then just flip this over in the slicer

If you want a different color for the logo and code, you can enable Custom Logo and leave the Custom Logo File field empty. Then to get the logo, use text and just enter a space.

You can rotate the Heart Hole keyring option using the custom logo rotation settings

• If you want to rotate or invert the Spotify logo, use custom logo and one of these
  • Standard (for rotating)
  • Inverted
