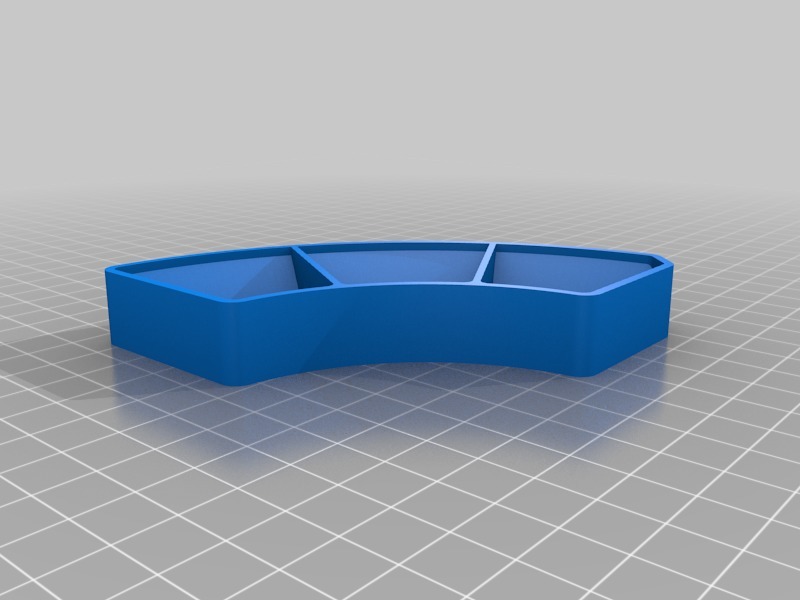

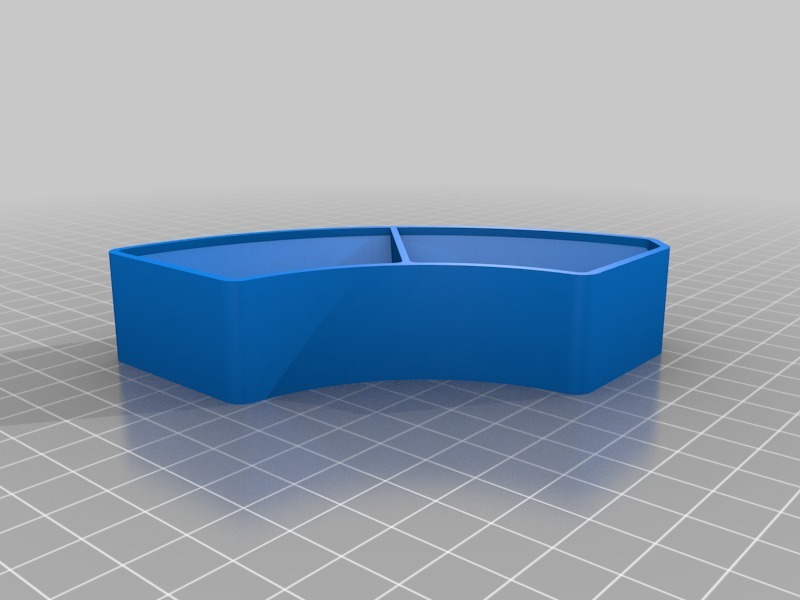

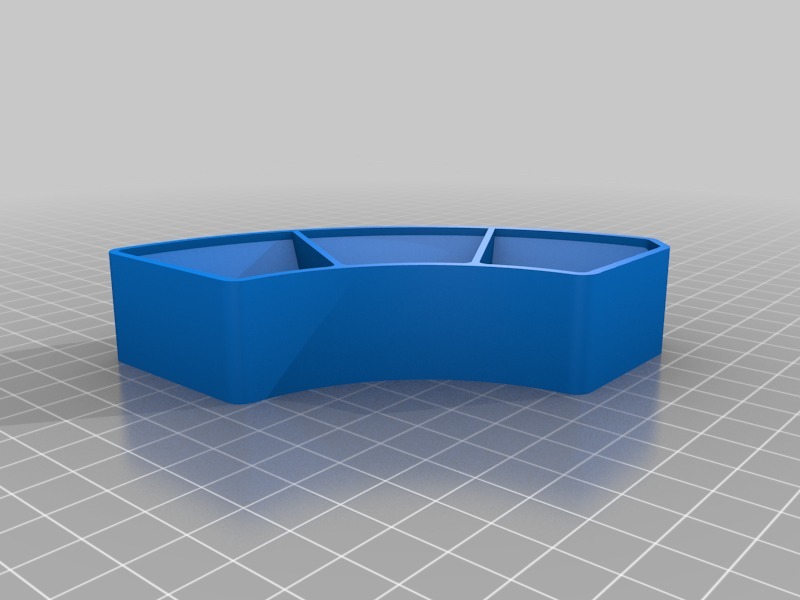

UPDATED 5/2/2019 - I have included more tray types and changed the names of the trays so hopefully they will be easier to understand. The trays are divided by height 16 mm or 24 mm. The 16mm size is 1/3 size and the 24mm is 1/2 size. The 'pockets' indicated the number of separate compartments in each tray. "SS" indicates the tray has sloping sides - for easy one-finger removal of small parts. I have also slightly changed the sloping sides so they work better.

If you have a different tray system than eSun these will still work. eSun is an average size spool so the trays should fit if you do scaling with your g-code slicer. Print the 16mm size and then determine how much you want to change the size.

Also, I suggest you print these at 0.35 layer height (for Prusa MK2.5) or 0.3 layer height (for Prusa MK 0.3). The quality will be very good and the print time greatly reduced.

UPDATED 2/17/2019 - to include trays with a sloping slides

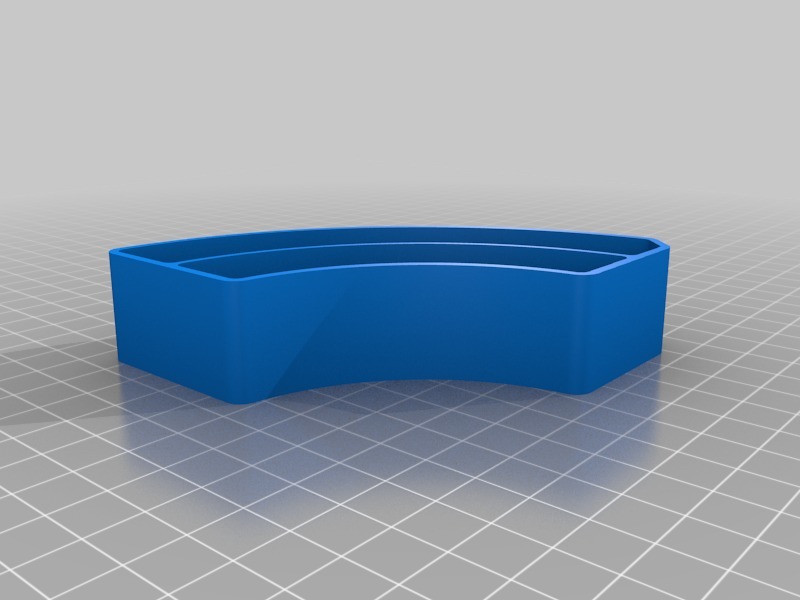

This is not a true remix but and enhancement of a great thing by ElmoC #2141153. I needed more storage for small parts, and I needed easy access. Small parts in a large bin are not easy to use! The trays are categorized as 1/2 height or 1/3 height, 0,1, or 2 dividers each, and sloping sides (SS). No 'SS' in the name indicates there are straight sides.

I have updated the files on 2/17/2019. The sloping side allows you to use one finger to reach in and grab single or multiple items and slide them out without a tool.

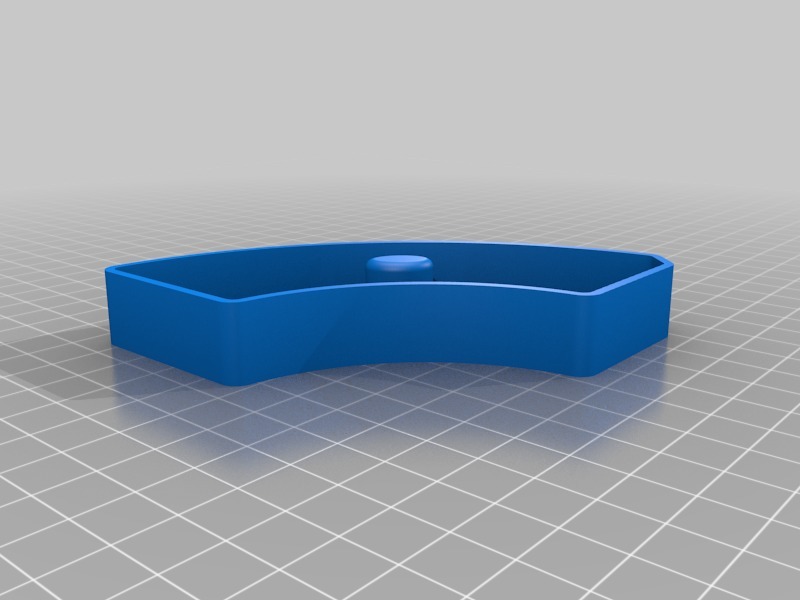

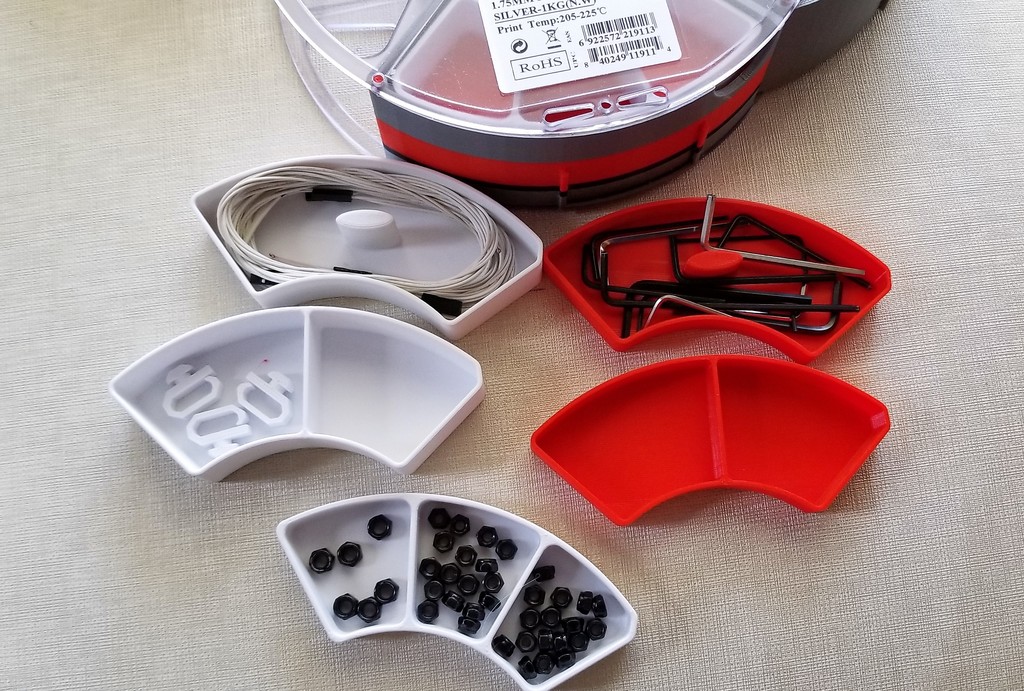

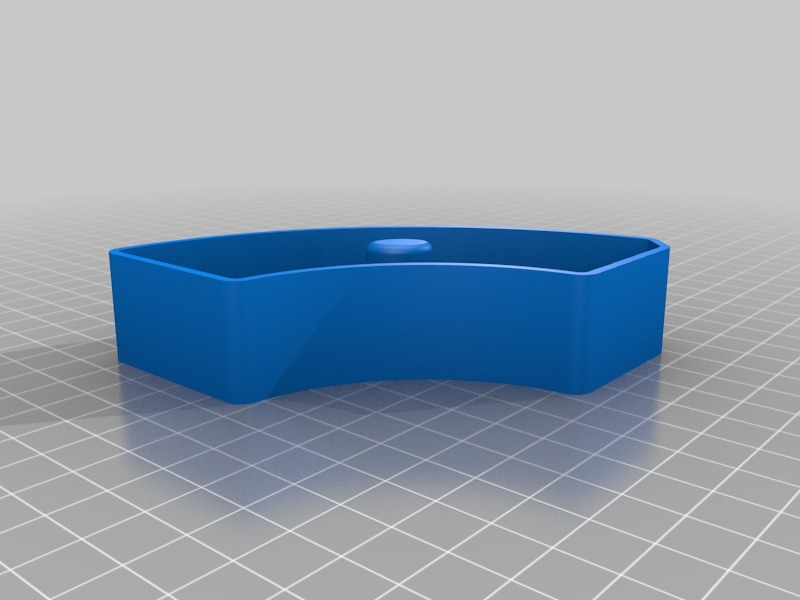

The drawers with no dividers have a center pole to grab for easy lifting. I found the 'no divider' drawer very good for Allen wrenches and small wires (I have my spare bed thermistors stored in this tray).

The trays are make with Fusion 360 and are optimized for printing at 0.2 layer height.

Print Settings

Printer Brand:

Prusa

Printer:

No

Supports:

0.2

Infill:

](http://www.amazon.com/s?url=search-alias&field-keywords=eSun+PLA&tag=thingiverse09-20)[ eSun](https://www.amazon.com/s?k=esun+filament&linkCode=ll2&tag=thingiverse09-20&linkId=ee95e18399f58ca8cf2c8c2b4b912c0c&language=en_US&ref_=as_li_ss_tl) PLA various

Notes:

best printed a 0.2 layer height

How I Designed This

Fusion 360

Category: Tool Holders & Boxes
