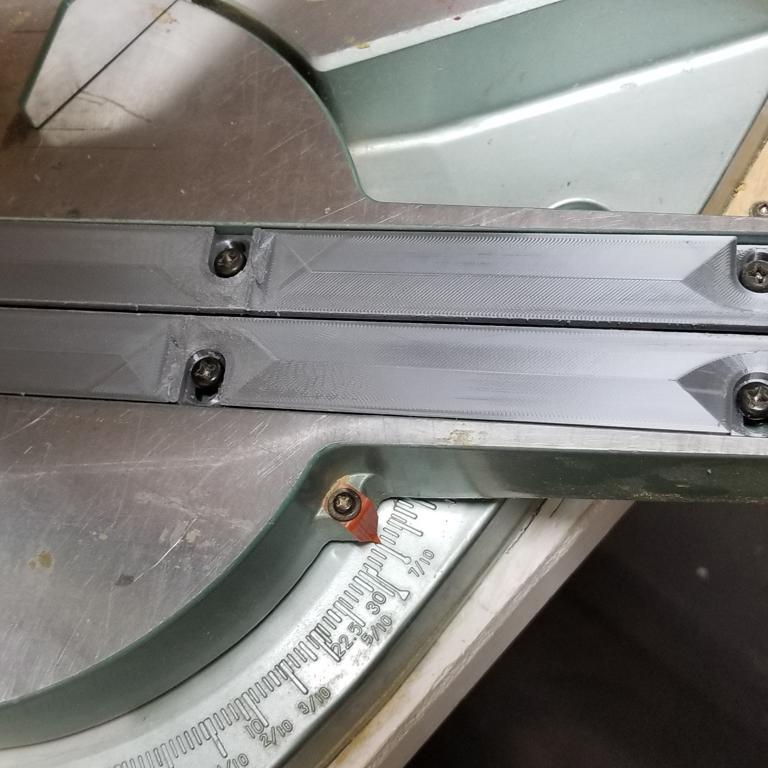

This a replacement part for a Hitachi sliding miter saw model C 10FS. This may work on other Hitachi miter saws. The table inserts become damaged after much use and need replacement.

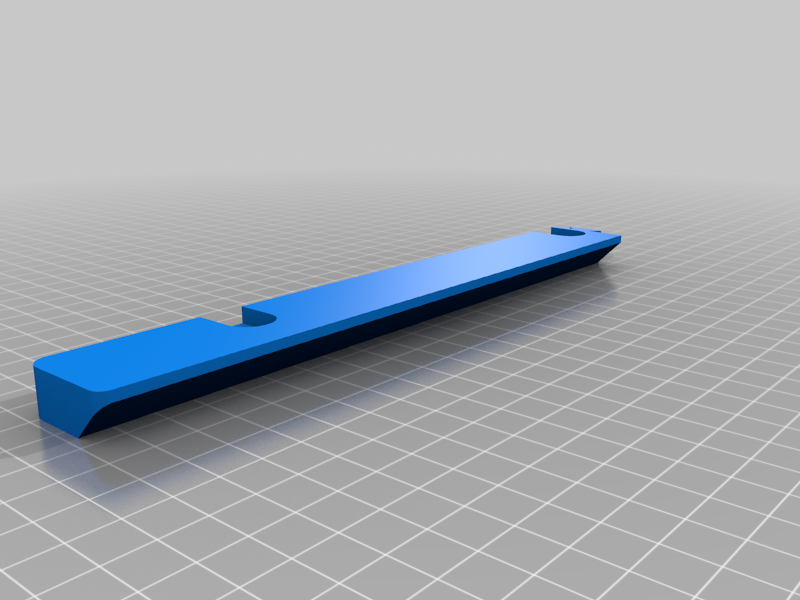

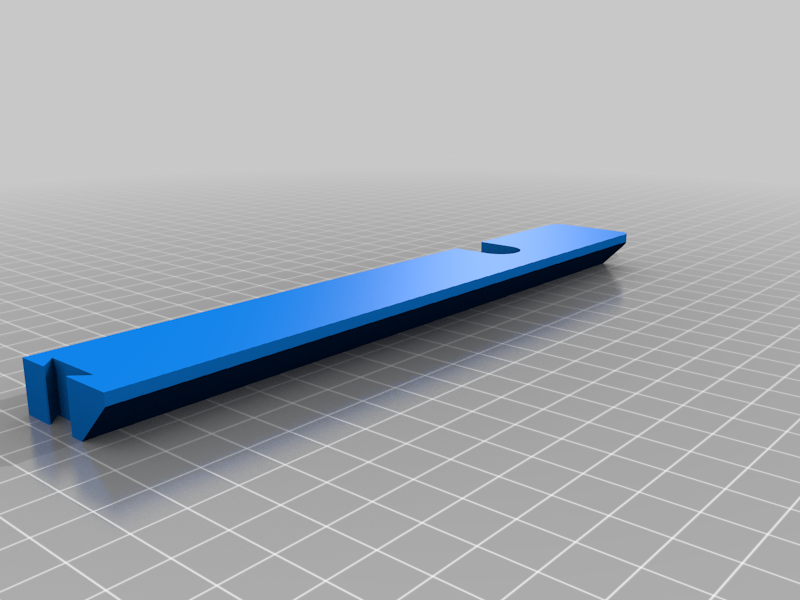

The inserts are longer than the 3D printer bed, so they are printed in two parts that are joined after printing. The joint is a very tight slip fit. Place the parts in alignment and strike together with a soft face mallet. The joint is very tight and cannot be separated.

Print as presented using Prusa slicer preferably with the variable height feature.

Print Settings

Printer Brand:

Prusa

Printer:

No

Supports:

variable height

Infill:

Notes:

Category: Tools
