Ongoing development - feedback welcome!

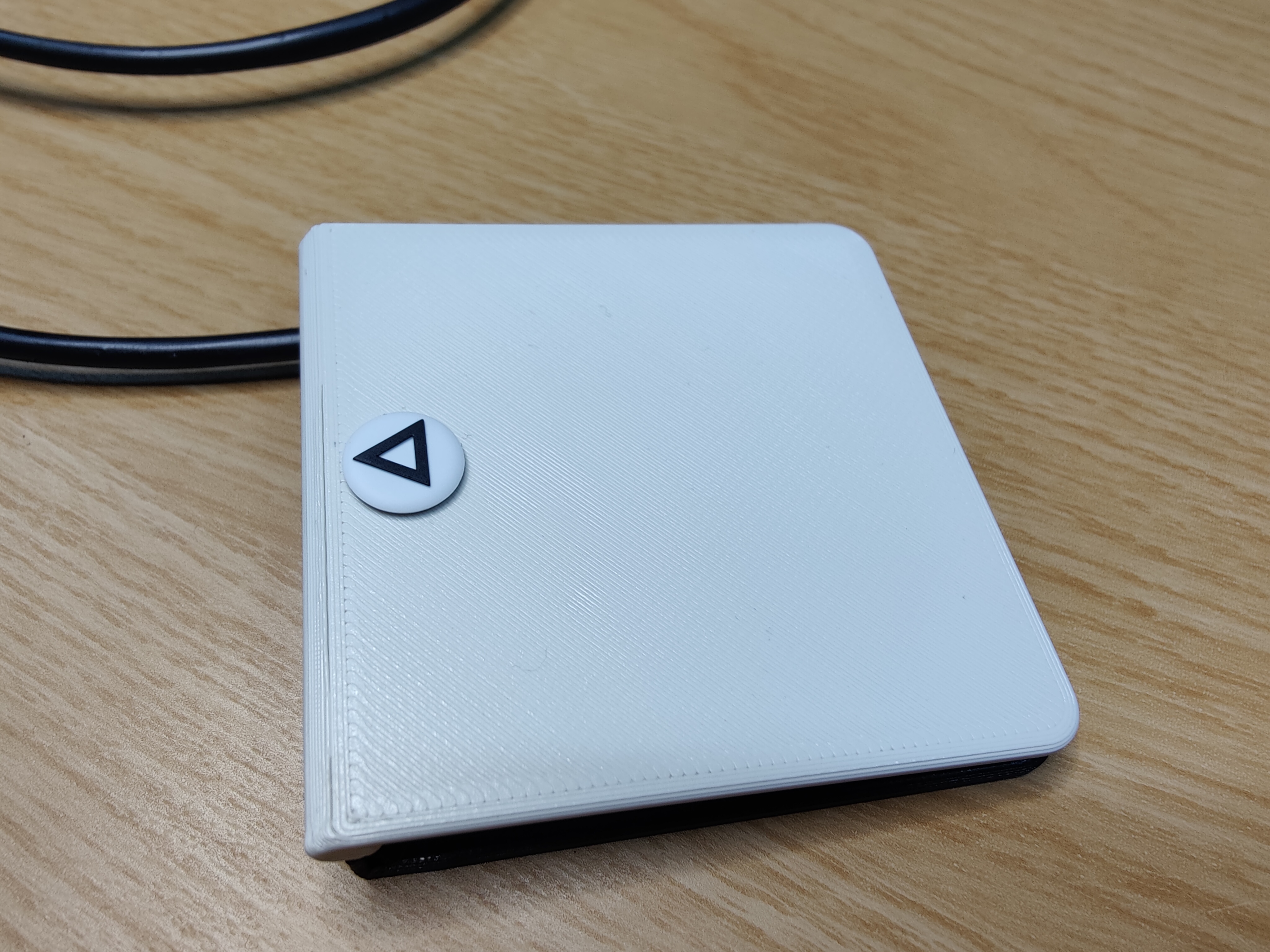

Pad switch for the Playstation Access controller, with mounting points for optional springs to adjust resistance.

Part of a collection of button caps and external switches for the Playstation Access controller:
[https://www.printables.com/@Harakan_1552161/collections/1266232](https://www.printables.com/@Harakan_1552161/collections/1266232)

To make a switch, two parts should be printed:

• Switch base
• Switch top

For each switch, you will also need:

• 12mm x 12mm x 7.3mm tactile switch (e.g. [https://www.digikey.com/en/products/detail/omron-electronics-inc-emc-div/B3F-5050/368377](https://www.digikey.com/en/products/detail/omron-electronics-inc-emc-div/B3F-5050/368377))
• 3.5mm mono cable (e.g. [https://www.digikey.com/en/products/detail/tensility-international-corp/10-00344/2350247](https://www.digikey.com/en/products/detail/tensility-international-corp/10-00344/2350247))
• (Optional) 6.5mm x 10mm spring(s)

See the attached PDF for detailed assembly instructions ("Low_Profile_Switch_Assembly_Guide.pdf").

Print settings used:

Slicer: OrcaSlicer 1.9.1
Printer: Anycubic i3 Mega S, 0.4mm nozzle
Material: PLA (light grey / black)
Quality: Standard, 0.2mm layer
Walls: "Inner/Outer" wall printing, 3 walls, precise wall
Infill: 15% rectilinear
Support: No

"PS5 Access Controller Pad Switch" designed by Harakan, licensed under CC BY-SA 4.0.
[https://creativecommons.org/licenses/by-sa/4.0/](https://creativecommons.org/licenses/by-sa/4.0/)

Revision History

Version 1.0 (22-Feb-2024)

• Initial release
