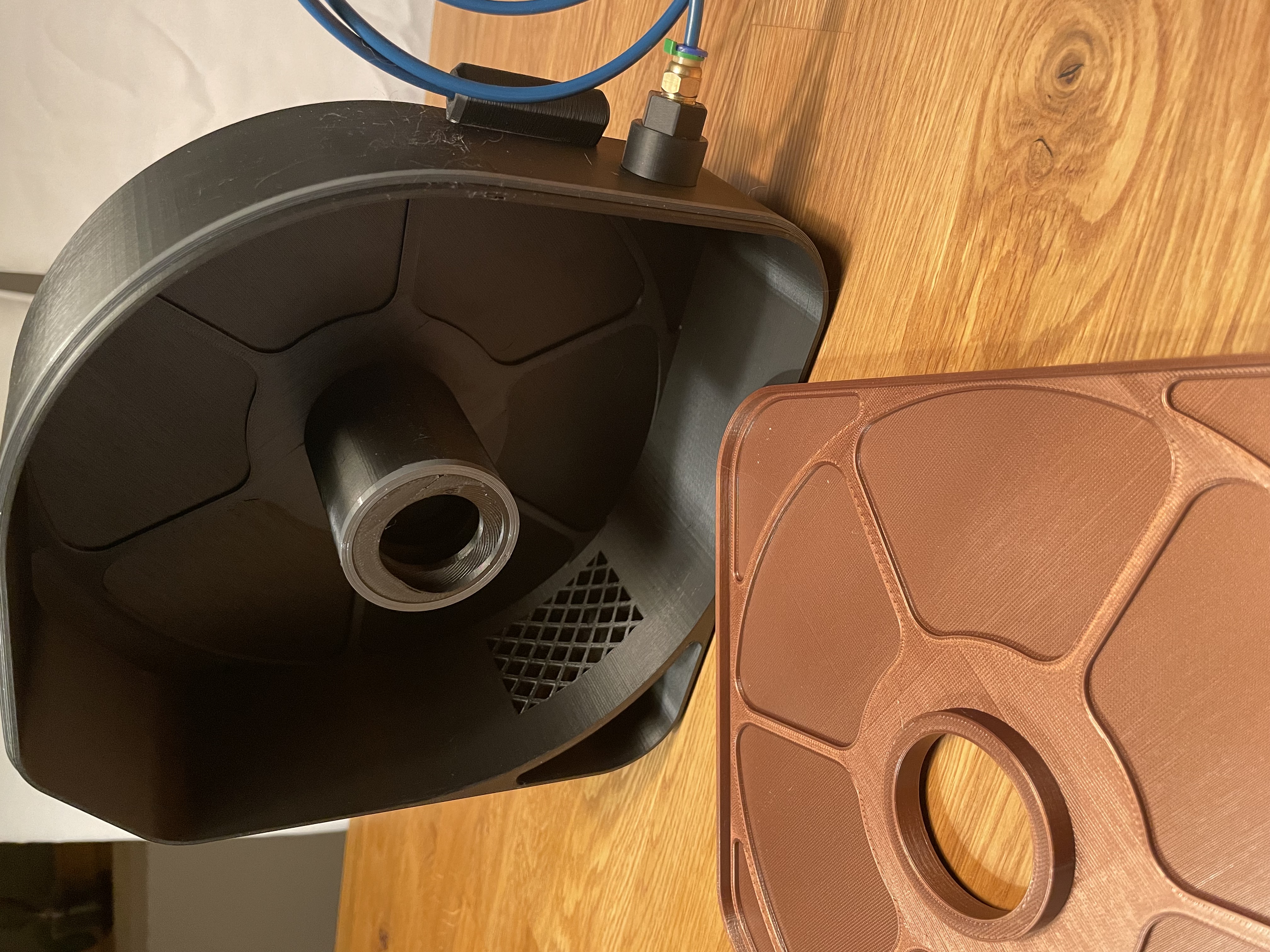

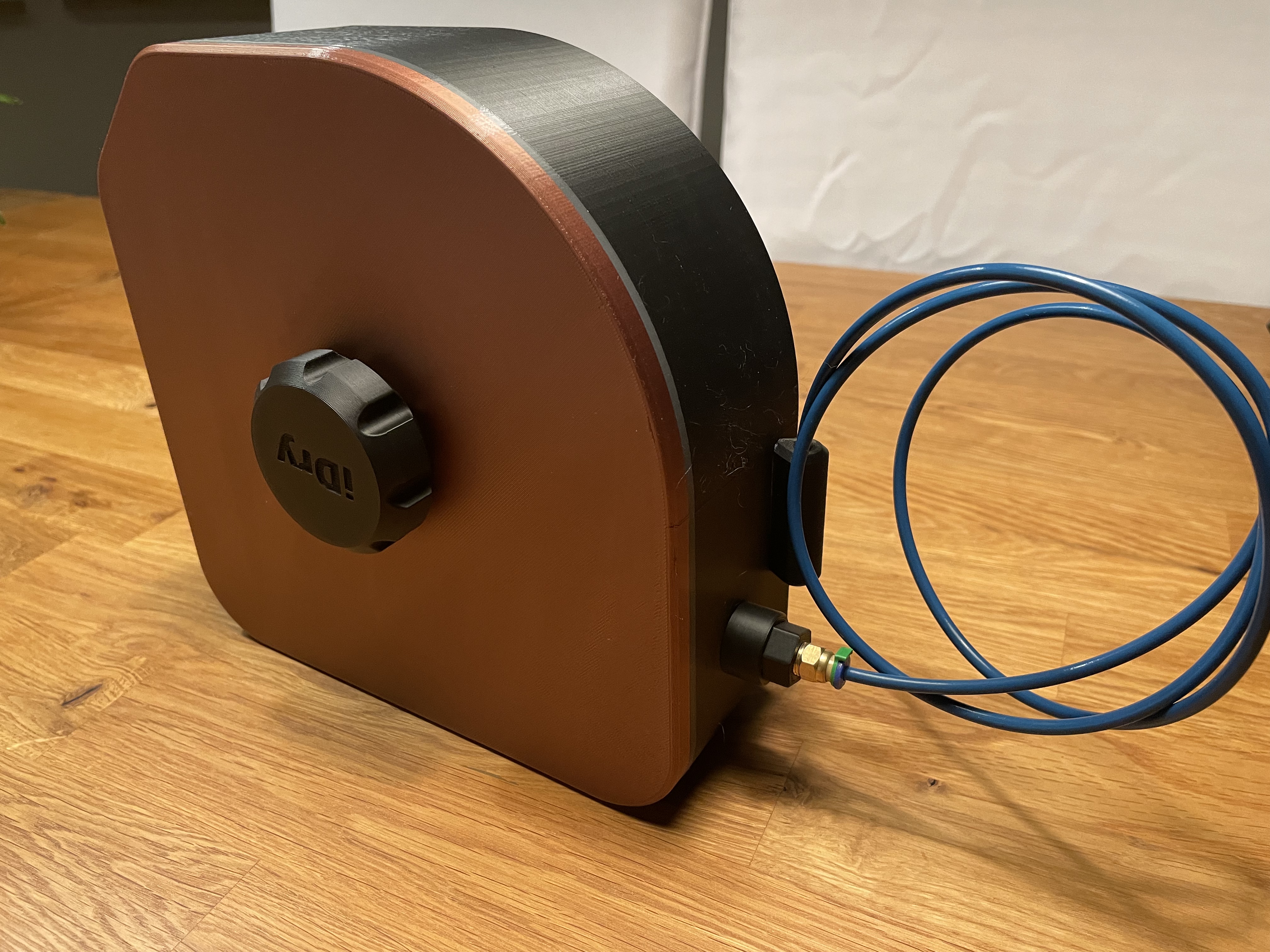

The filament box fits in its dimensions smoothly. PETG for printing is required. I added my gcodes but my recommendation is to create your own gcodes for your used filaments and printer.

Print recommendations

print cover and box in same x/y direction to cover axis calibrations

box: print it without any scale adjustments in your slicer

cover: print it without any scale adjustments in your slicer

screw: reduce the x and y dimension in your slicer by -0.2mm

seal: increase the z dimension in your slicer by +0.2mm

frame / flange / tube holder: print it without any adjustments in your slicer

needed equipment:

• glue for tube holder, frame and flange to make it airtight

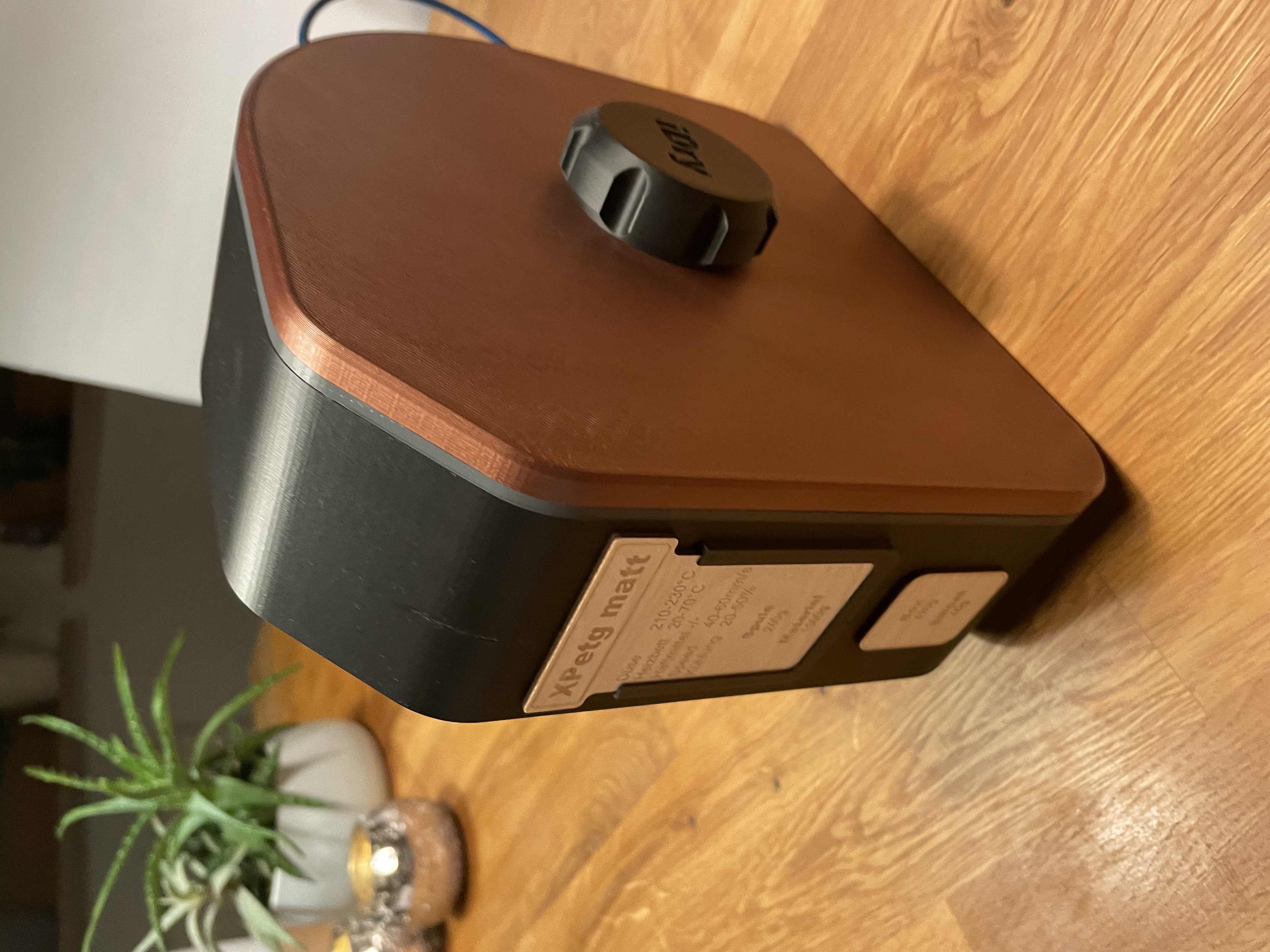

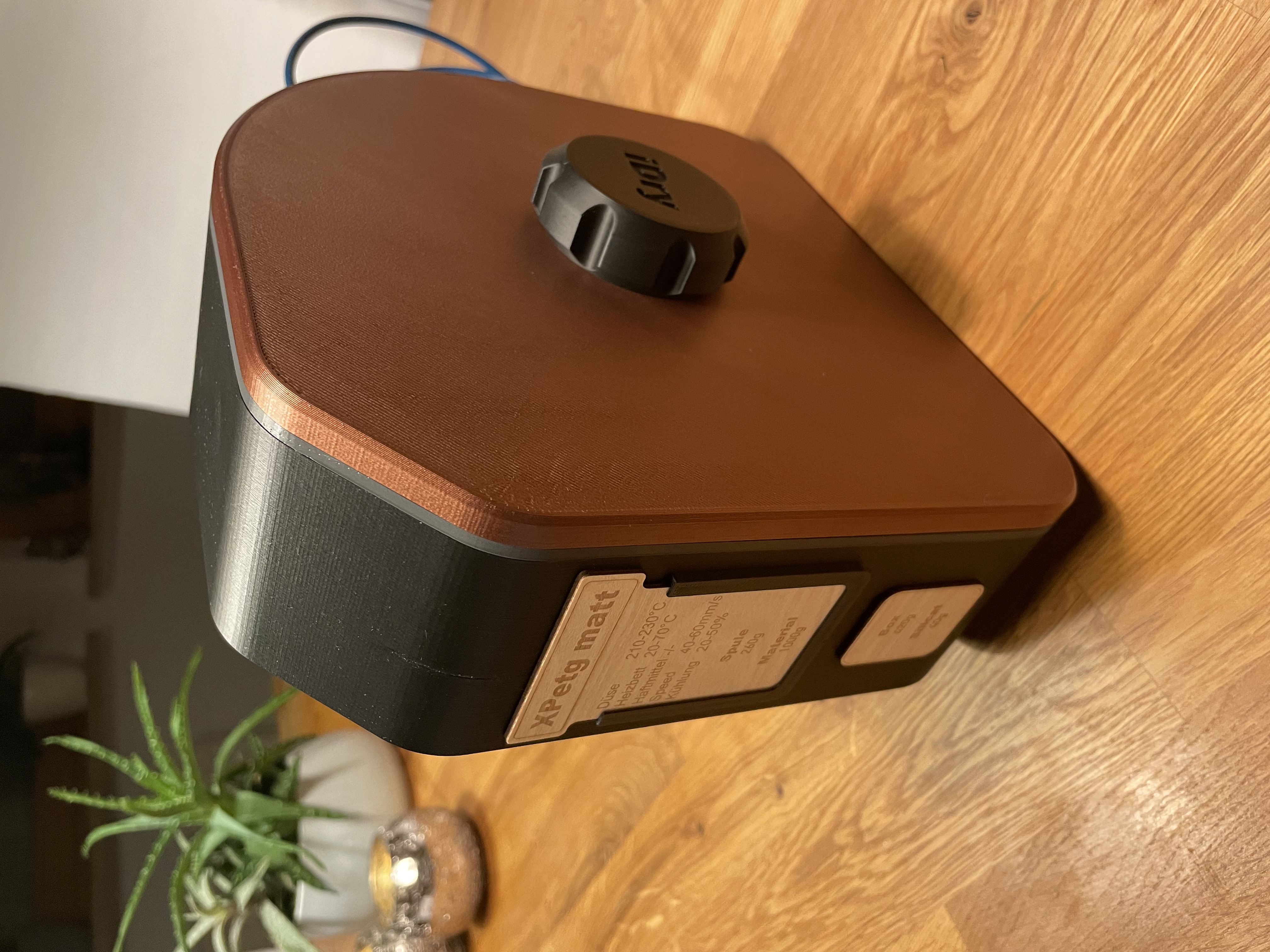

• 1mm plywood for info board - i lasered mine
• 1 quick fitting PC4-M10
• tube in your needed length - preferably Capricorn
