Descrição
K1 Small-Form-Factor ITX Case
Hardware Compatibility:
GPU Compatibility & CPU Cooler Height: | ||
max. Size: 290mm*59mm*120mm | ||
| G…PU max thickness | C…PU Cooler max height |
Variation 1 | G 43 | C 65 for NH-L9x65 |
Variation 2 | G 59 | C 49 |
Two x 240-Radiators[240 AIO] | 124x282mm x [20mm + Hat height] |
K1 is expandable in it’s height, to accommodate a variety of cooling options from Air cooling up to sophisticated custom loops. Expansion modules are sized from 5-50mm and stackable on each other. K1 starts with 20mm headspace, while the 20mm footspace should be reserved for cable organization.
| |
SFX & SFX-L PSU | 125x64x130mm |
K1 supports with a rack-slot-System both SFX and SFX-L PSUs. This system allows the PSU to be smoothly pushed into place and can easily accommodate bulky Liquid AIOs through rearranging the Headspace Above the PS.
| |
Interchangeable Sidepanels | 200x300x3 mm |
The Sidepanels are held in place by a magnet & nickel-band combo, to provide easy access and easy modification. Sized 20x30x0.3 cm you can easily order custom acrylic-glass from online laser-cut-services or design Sidepanels yourself! New Sidepanels | |
New Feets | |
Small-form-factor Forum
You will find a more detailed development log about the beginnings of the K1.
I am open for any questions or constructive criticism, message me on the above links!
Instruction Manual PDF
 |  |  |
Available Remixes
| K1 240 v2 | K1 240 v3 | K1 Max 280 |
max GPU | 290x59x120mm | 300x60x160mm | 350x80x160mm |
Printtime |
| ||
0.6 nozzle | 40h+30h | 40h +35h | 50h +40h |
| Free | 10€ | 10€ |
| This model | ||
optimized for | CPU AIO | AIOs & custom loops | |
special features |
|
| ATX PSU |
Accessories:
Check out my Kofi-Shop for more additional Parts and Accessories!
Custom Sidepanels, Grills, Feets and More!
With monetary incentive I can create more compatible add-ons with quality, instead of quantity!
Shoppinglist:
No Affiliate Links!
PCIe x16 Riser Cable(choose one) | |||
|---|---|---|---|
| pcie 3.0 | pcie 4.0 | |
Dual reverse riser | 180-200mm | ||
would recommend ADT-Link for their variety in pcie risers, for other projects | |||
Power Extension & Switch | ||
|---|---|---|
| cable length | aliexpress |
IEC320 C14 to C13 Extension cord | 30cm ~ 1ft | |
Power Button | +15cm | [22|19|16|12mm] |

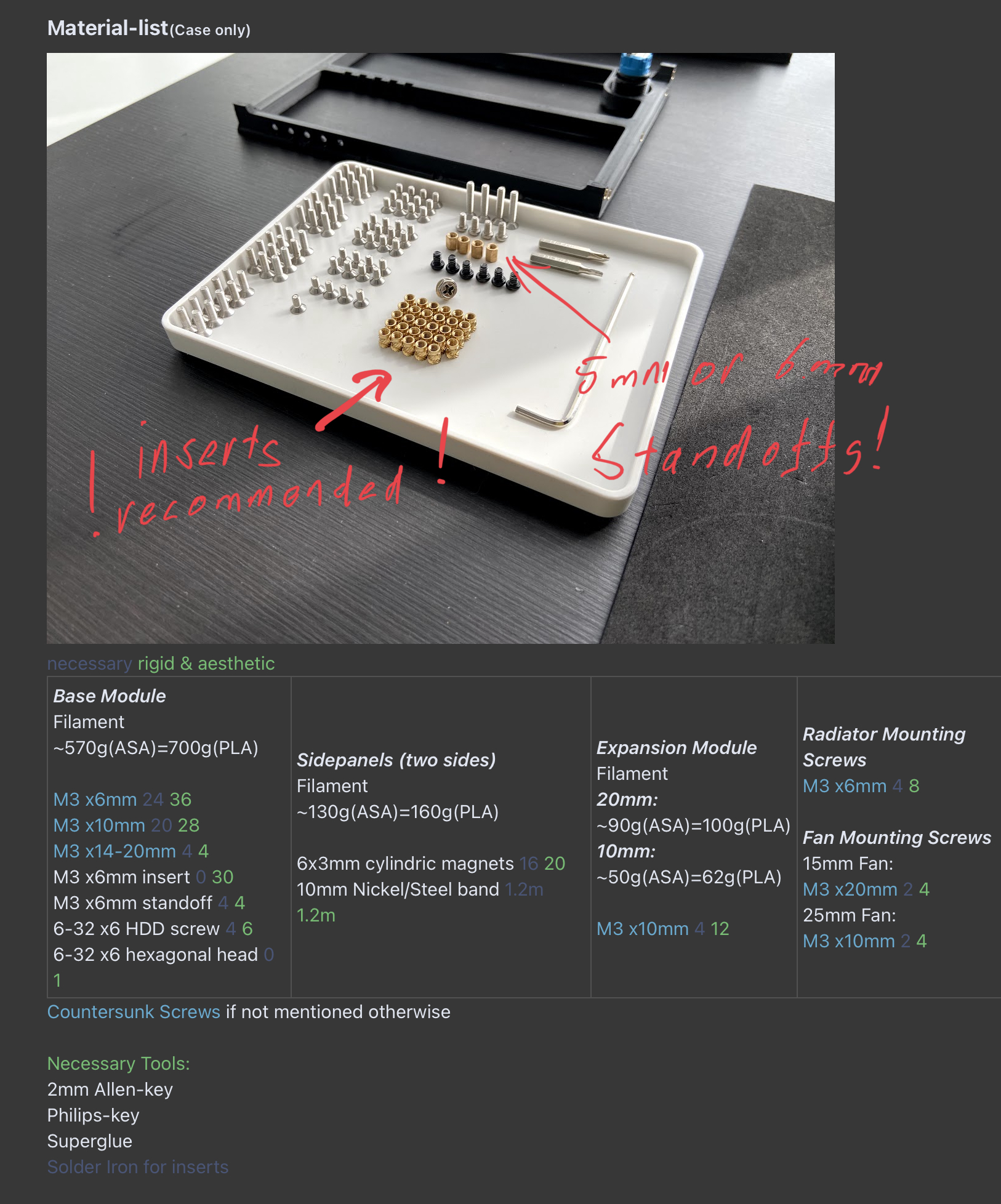

Screws | |||
CS M3x6mm | 60 | CS M3x10mm | 50 |
CS M3x20mm | 4 | M3 ruthex inserts | 20-30 |
UNC 6-32x6 hex | 1 | M3x6mm standoff | 4 |
M3x6mm pan head screw | 4 | ||
Dont want to buy standoffs and UNC-hex screws? Kofi-Shop-K1 v2 model doesn't need those! | |||
CS = Countersunk screws if not mentioned otherwise | |||
Magnets | |||
Magnet | D6x3mm | 20 | |
Nickel-Steel Band | 10x0.15mm | 1.2m | |
Doublesided tape | 3m 300lse | 1.2m | |
| |||
Filament | |||

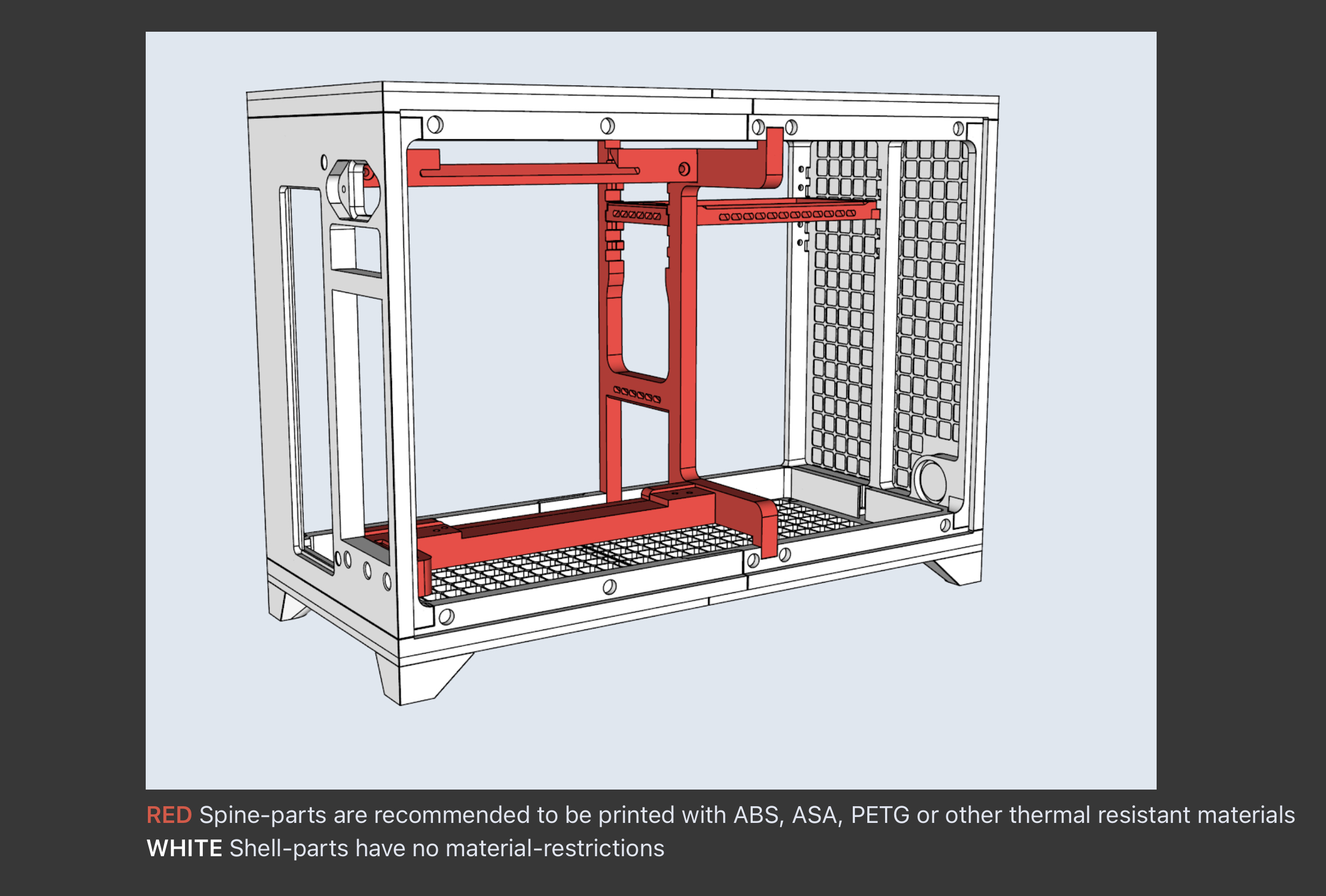

~1kg Filament (preferably heat resistent for the Barebone Parts to avoid warping) ABS ASA PETG to name a few | |||
Exact amount ⤵
Required Prints Checklist:
Barebone 60h:
☐ Front Barebone + Riser
☐ Mid GXX
☐ Backplate GXX
☐ 2x Main Beams
Cosmetics +40h:
☐ Front panel
☐ Grills
☐ Sidepanels
☐ Feet
☐ Hats
What Parts do i need to print?
———————————————
Total Printing Time: ~100h
No Supports needed!
Inserts absolutely recommended!
[ruthex-branded M3x5.7 inserts] [us|eu|de]
You can also use similar M3-inserts with the blind hole dimensioned at 4x5.7mm.
If you trust your 3D printer you could print everything out in a week of time, initiating a print every 8-12 hours.
My settings for reference only:
- Bed-adhesion: 4mm Brim
- Layerheight: 0.2mm
- Bottom/Top-thickness: 0.8mm
- Wallthickness: 1.2mm
- Innerwall Flow: 102%
- max Speed: 50mm/s
- Infill: 30%
