Model

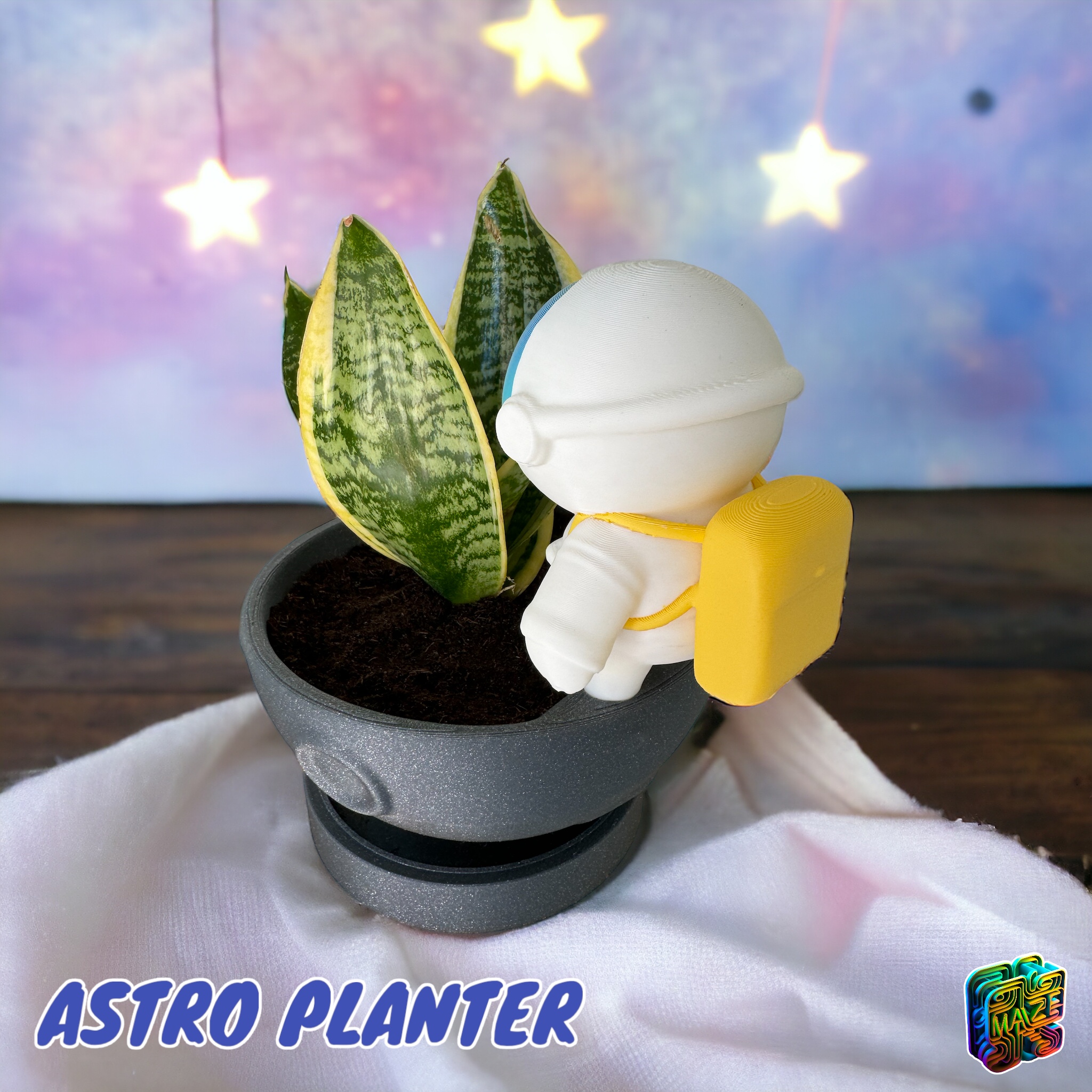

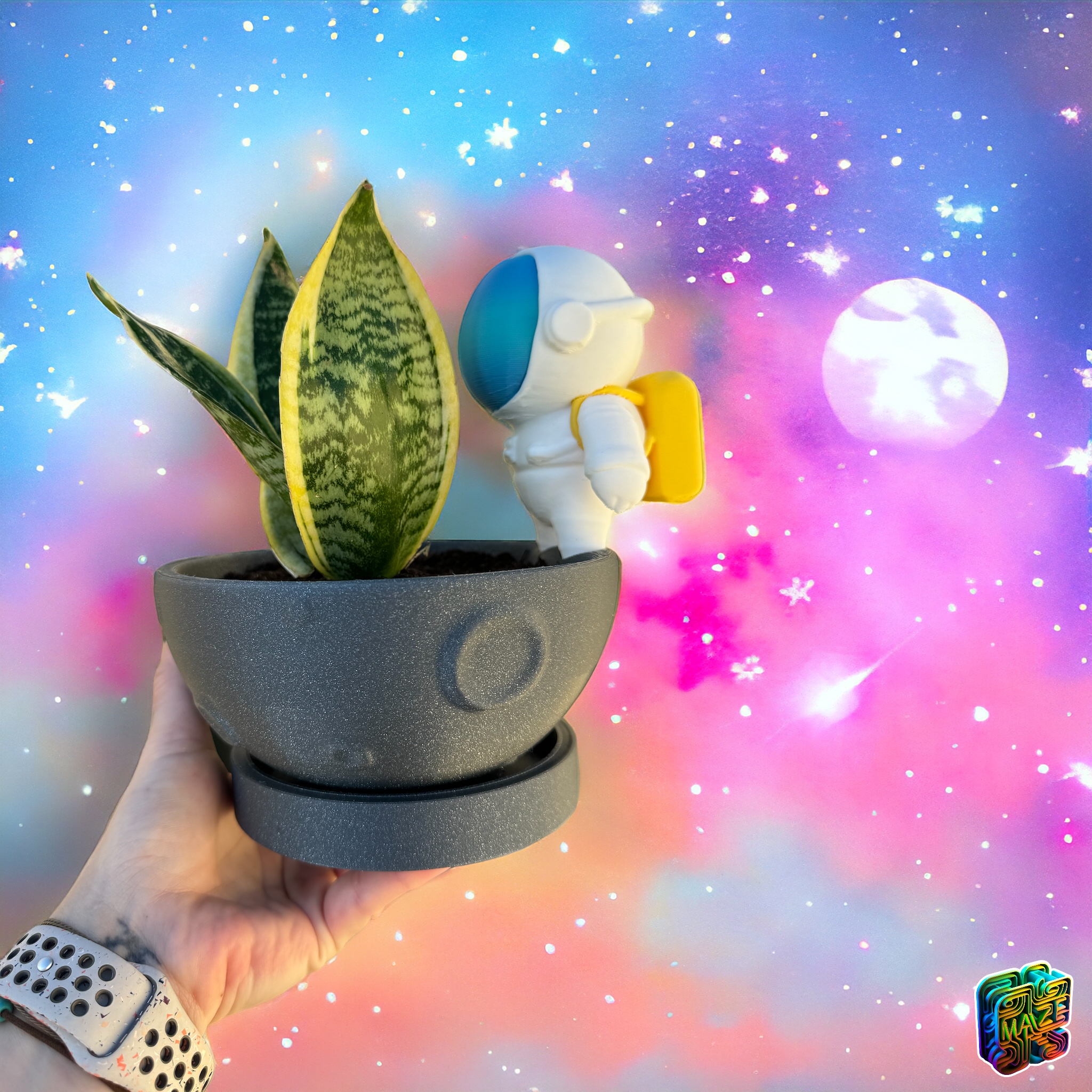

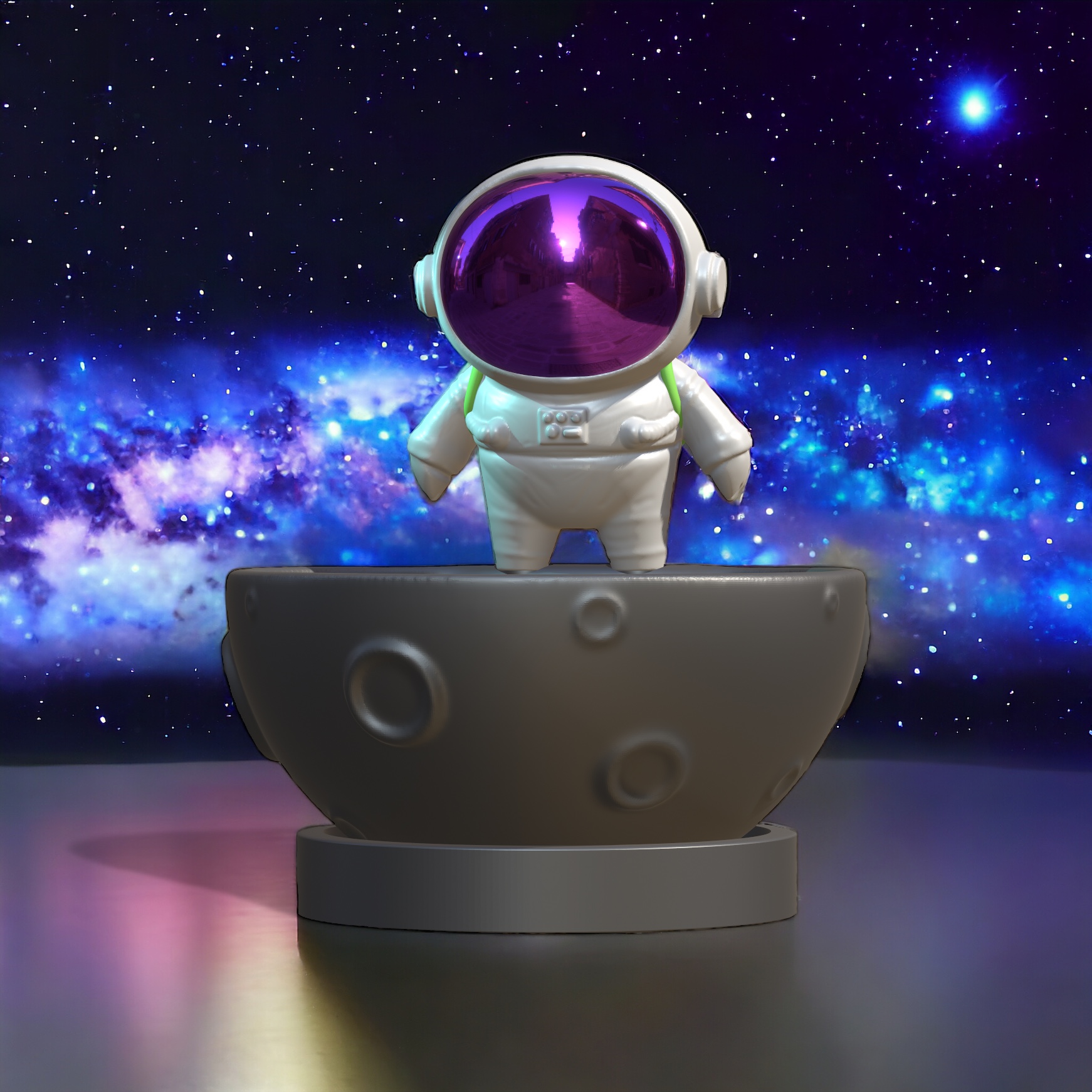

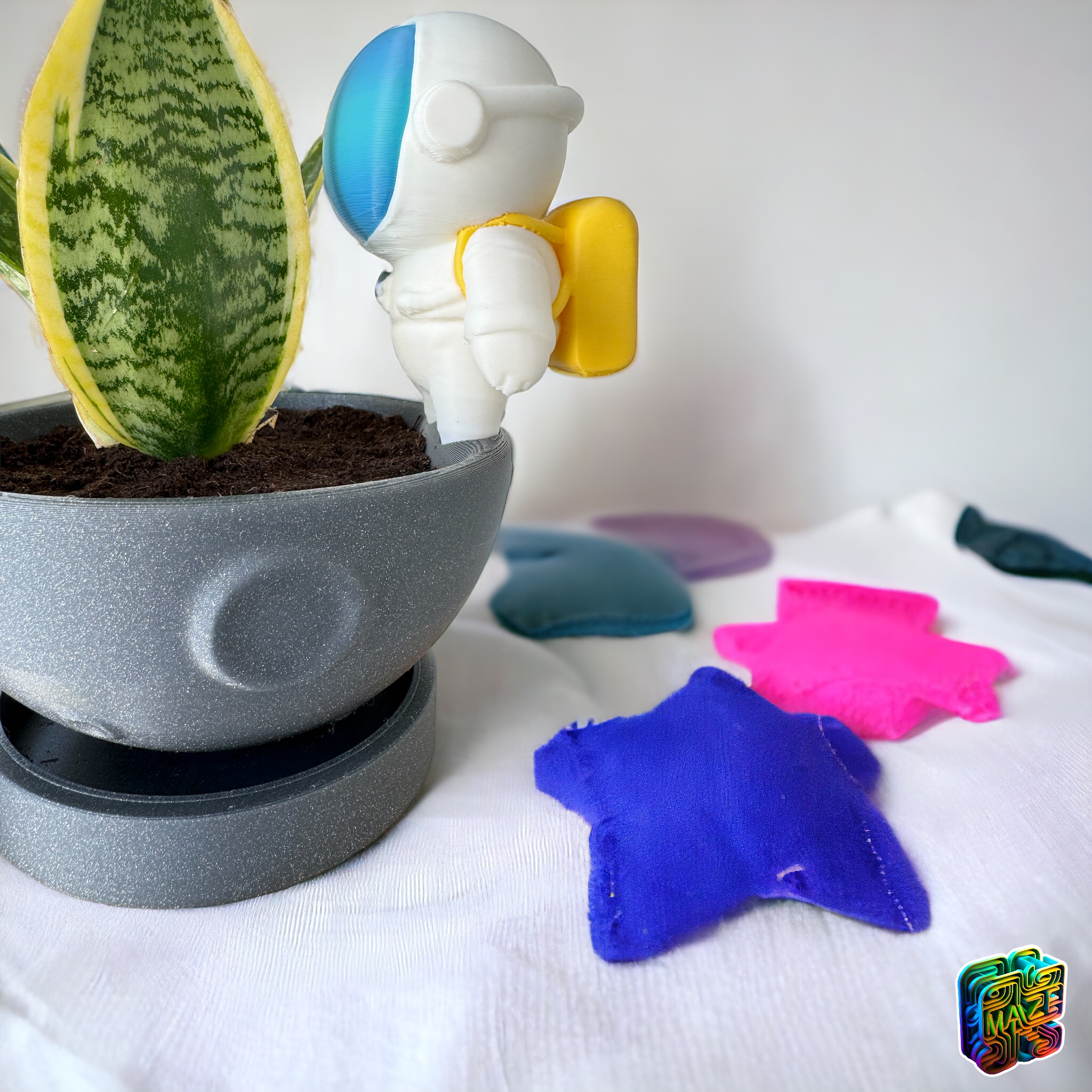

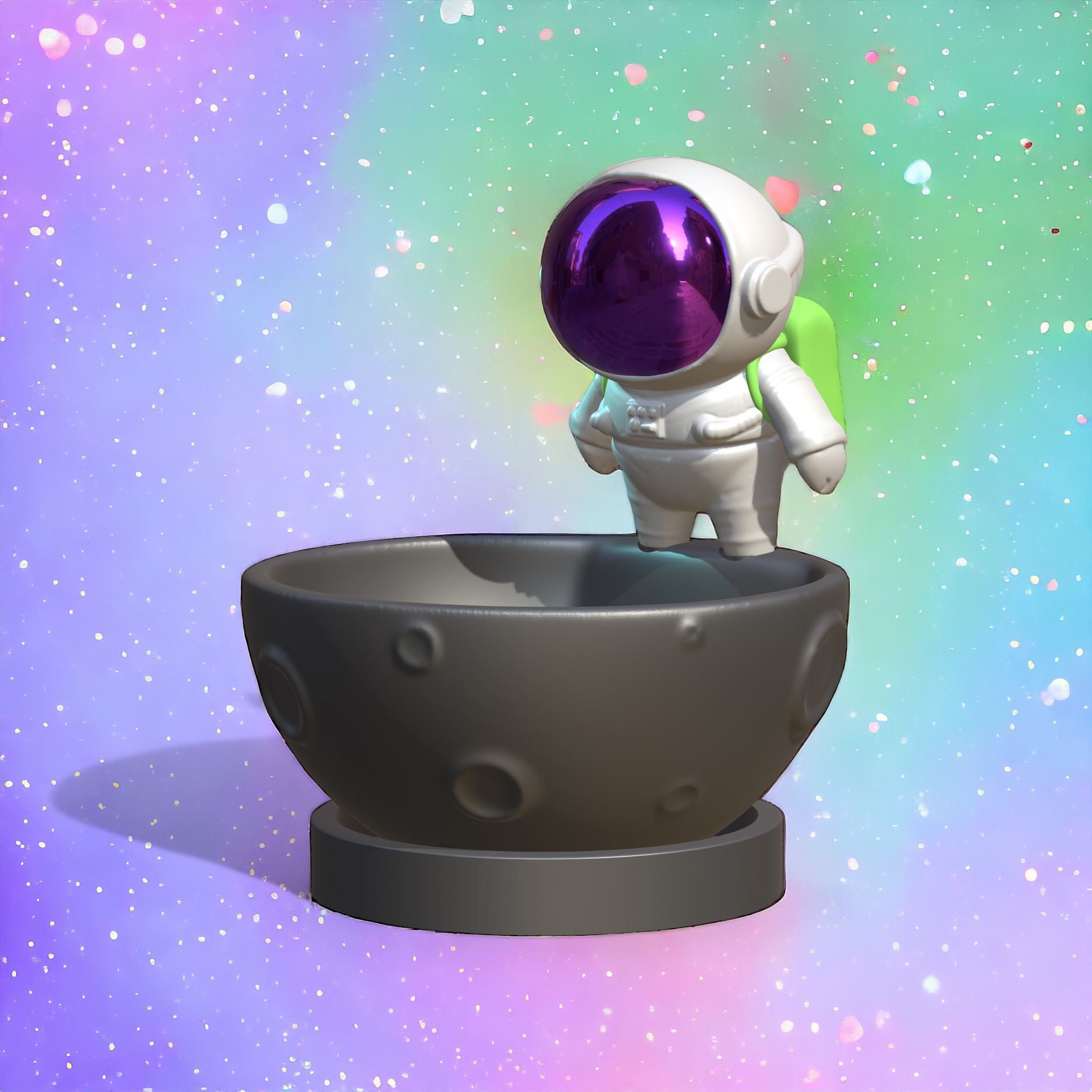

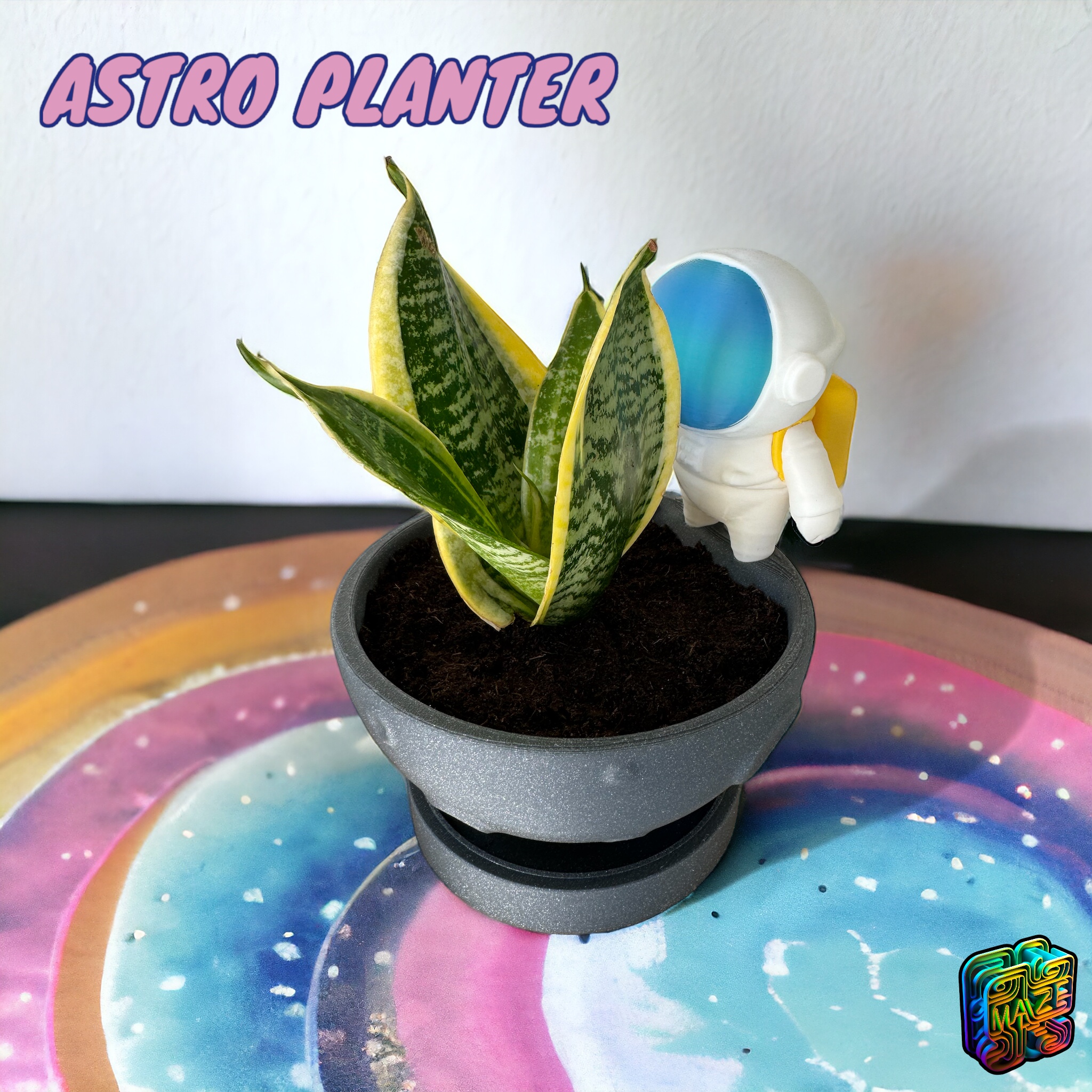

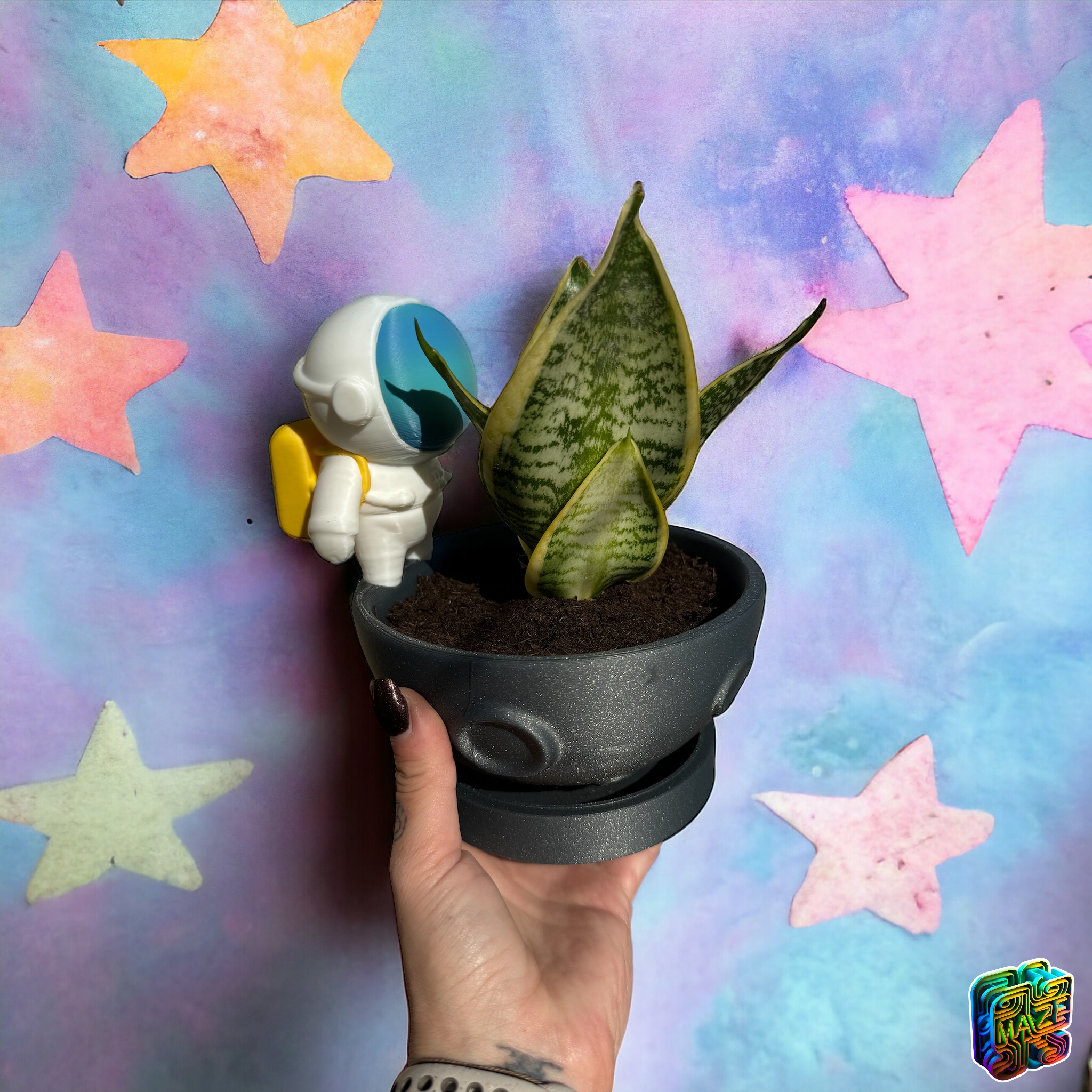

Astro-Planter - a planter in the shape of a half moon, with an astronaut on its edge.

Designed in Nomad Sculpt.

See making of:

Print Settings

Layer height: 0.28mm

Infill: 15%, gyroid

Supports on the Astronaut (Plate 1), no supports on the Moon and Plate (Plates 2-3)

Print time (Bambu P1S):

- Astronaut: 15h2m

- Moon: 3h53m

- Plate: 1h12m

Total print time: 20h8m

Filament

AMS: 4 colors for Astronaut, 1 color for Moon/Plate

Model:

- Astronaut: 111.36g

- Moon: 157.40g

- Plate: 59.62g

Flushed:

- Astronaut: 183.84g

- Moon: 0.01g

- Plate: 0.01g

Tower:

- Astronaut: 32.89g

- Moon: N/A

- Plate: N/A

Total: 545.12g

Filaments used in the pictures:

• Bambu PLA Matte - Lemon Yellow
• Bambu PLA Basic - Ocean to Meadow
• Bambu PLA Basic - Jade White
• Bambu PLA Sparkle - Slate Gray Sparkle

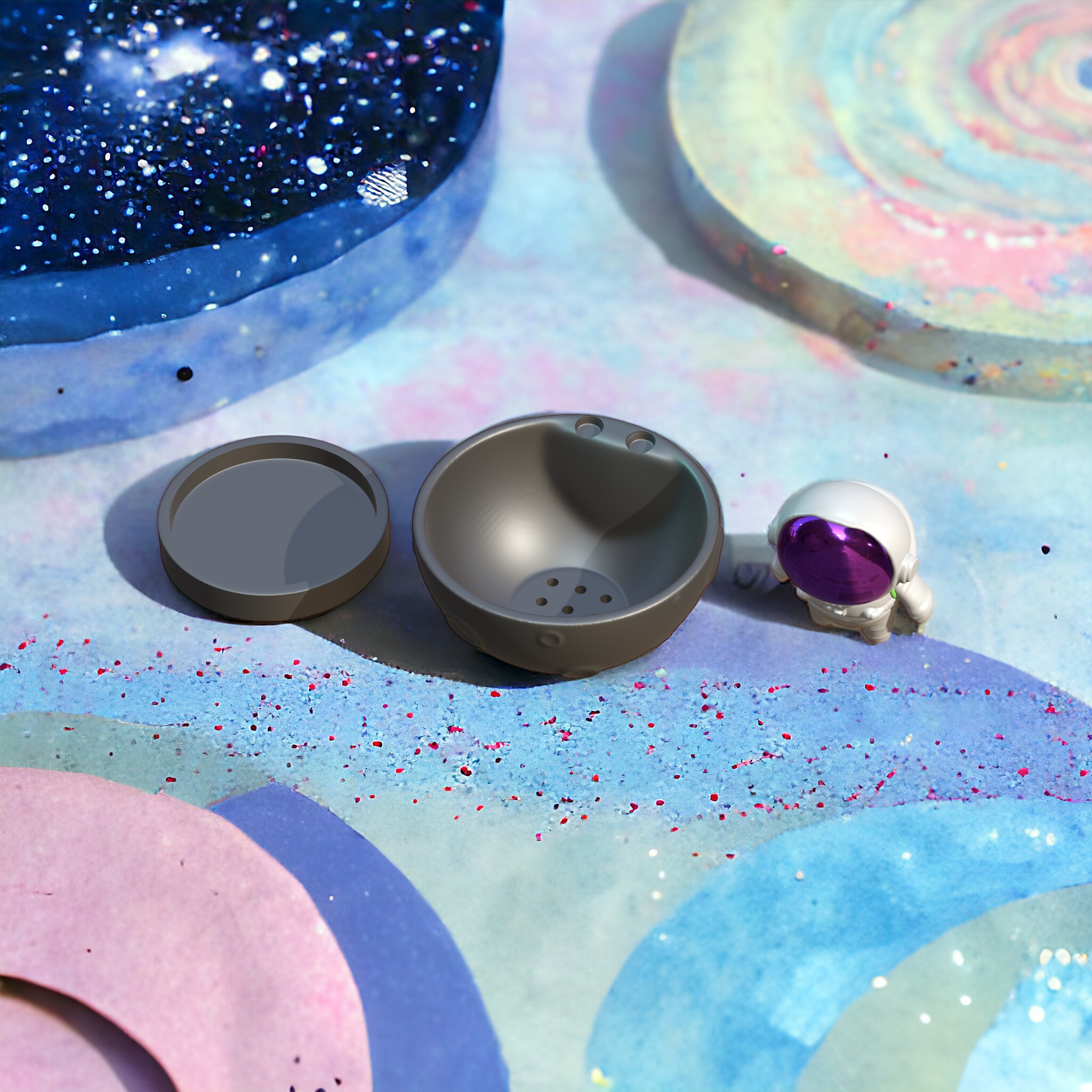

Assembly

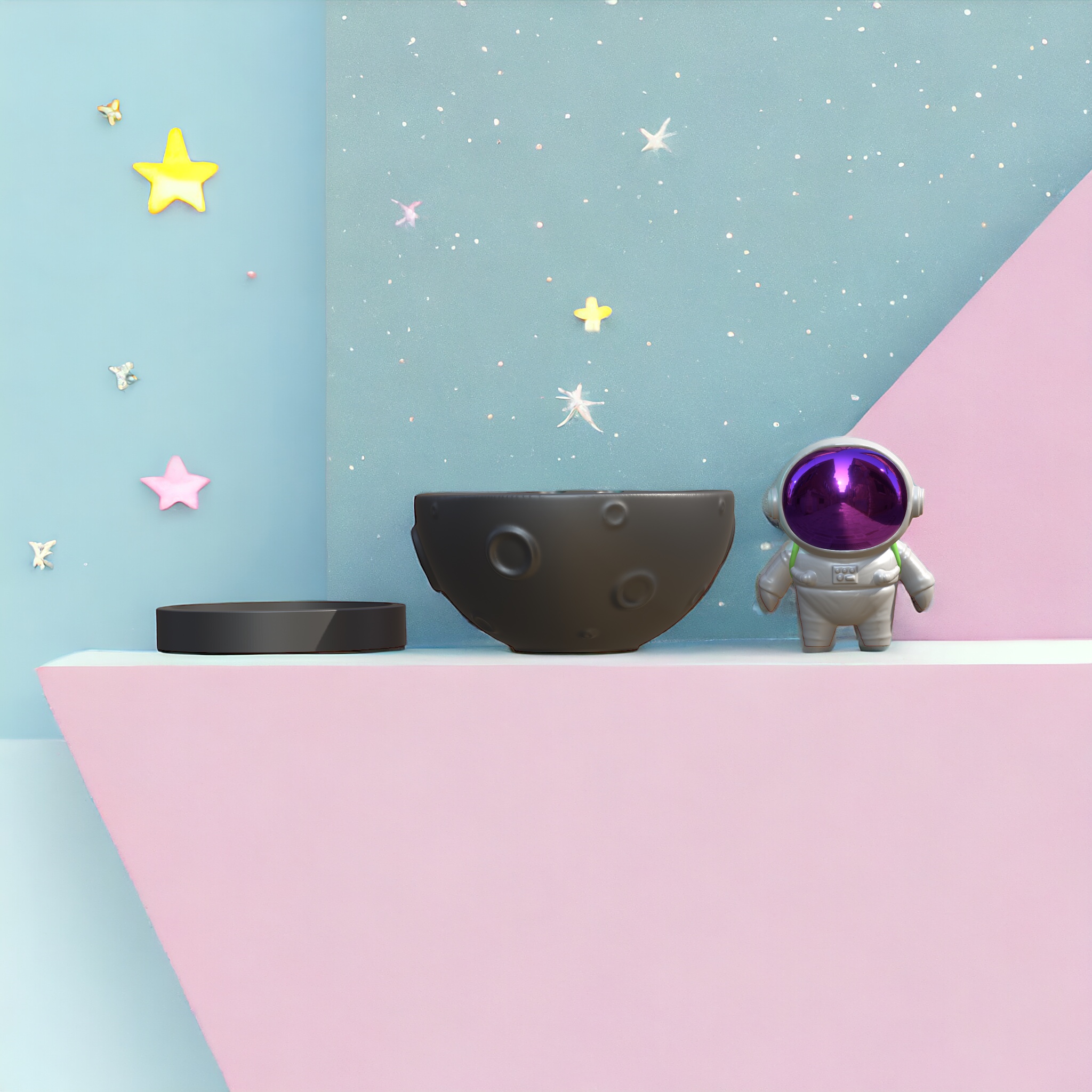

Once the 3 plates are printed, attach the Astronaut to the half-moon holes with a bit of glue, hold in place, and then place the half moon on the plate.

Then add a plant or flower with some soil in the half moon, and you're done!

Note

The astronaut may be a bit heavy once it's attached to the moon, but don't worry, once you add some soil, the planter will become sturdy and balanced.

Upon request I can upload a new profile with less infill on the astronaut and more infill on the moon, or you can adjust the infill yourself in the slicer.
