Expandable Stand for Nutdrivers

Suitable for my Imperial Nutdrivers thing:3834312 and my Metric Nutdrivers thing:3834283

Printing

Use PLA, ABS or PETG.

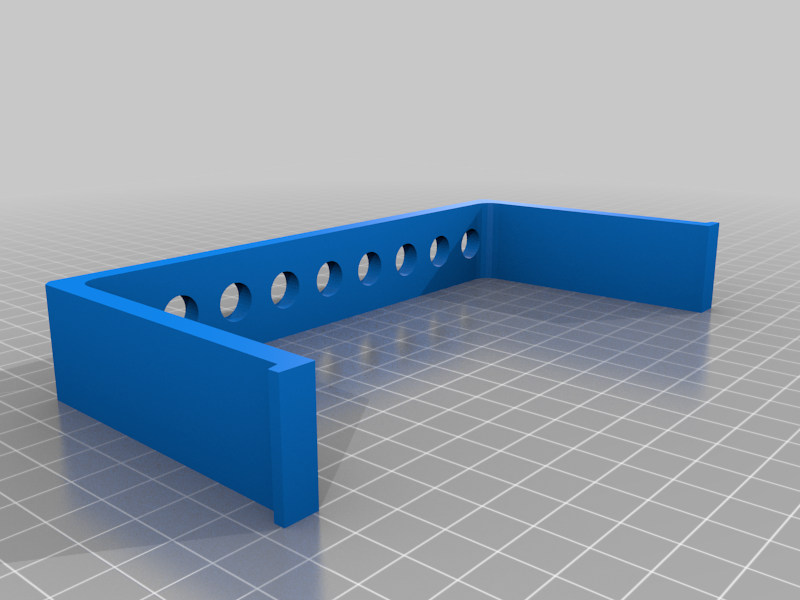

I suggest that you should print the All Tools stand first so that you can see which hole sizes that you need for your Nutdrivers. The All Tools stand has holes for one Large Tool, one Medium Large, two Medium Small and three Small Nutdrivers.
Also you you might print a Medium Small stand which will be suitable for 1/4 inch screwdriver heads.
Print two end feet and one middle foot. For each extra stand you need to print an extra middle foot.

Assembly

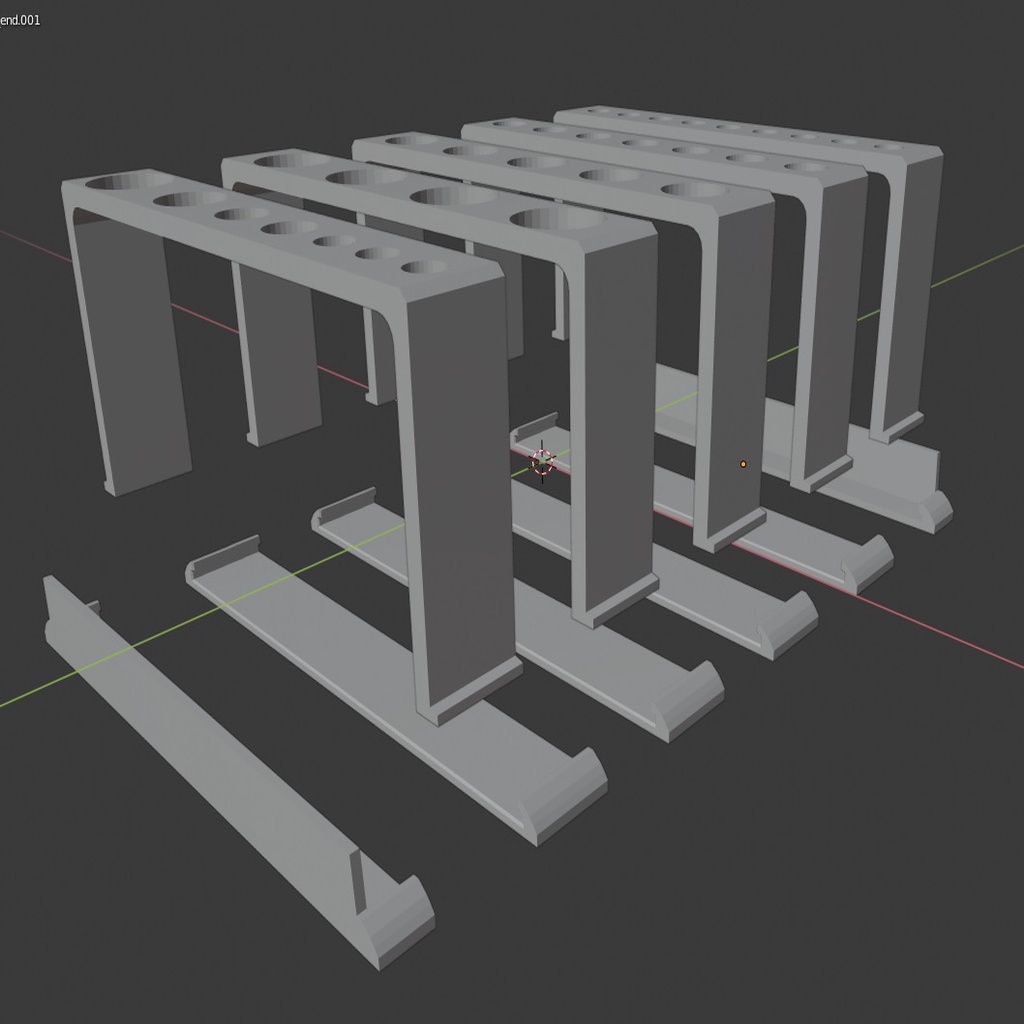

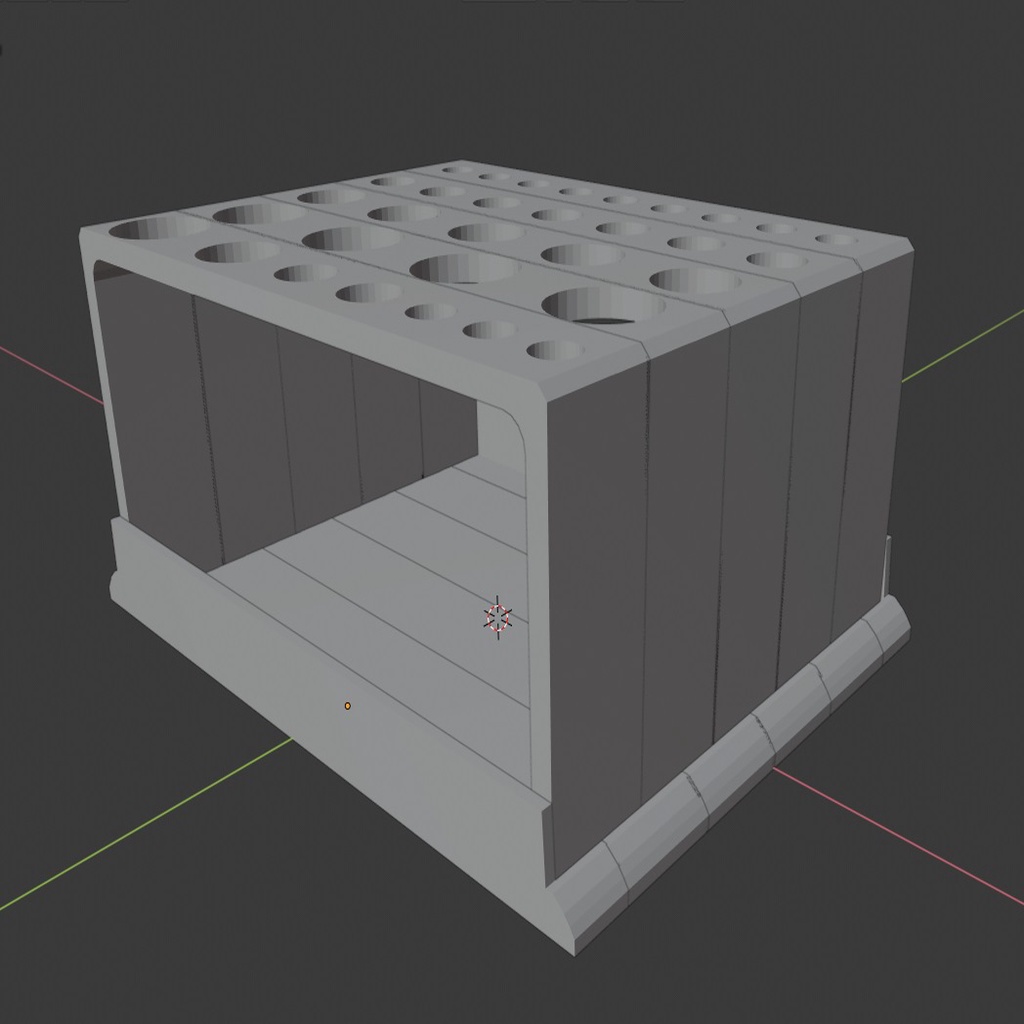

Slide one stand section into a foot end. Slide on a foot middle and then another stand section. Repeat until you have added all the stands then slide on the remaining foot end.

Expand as required until you have all the Nutdrivers that you need, The stand will probably hold together okay in use but if it tends to fall apart then glue the stand sections into the feet.

Print Settings

Printer:

Any

Rafts:

No

Resolution:

25%

Filament: . PLA or any .
