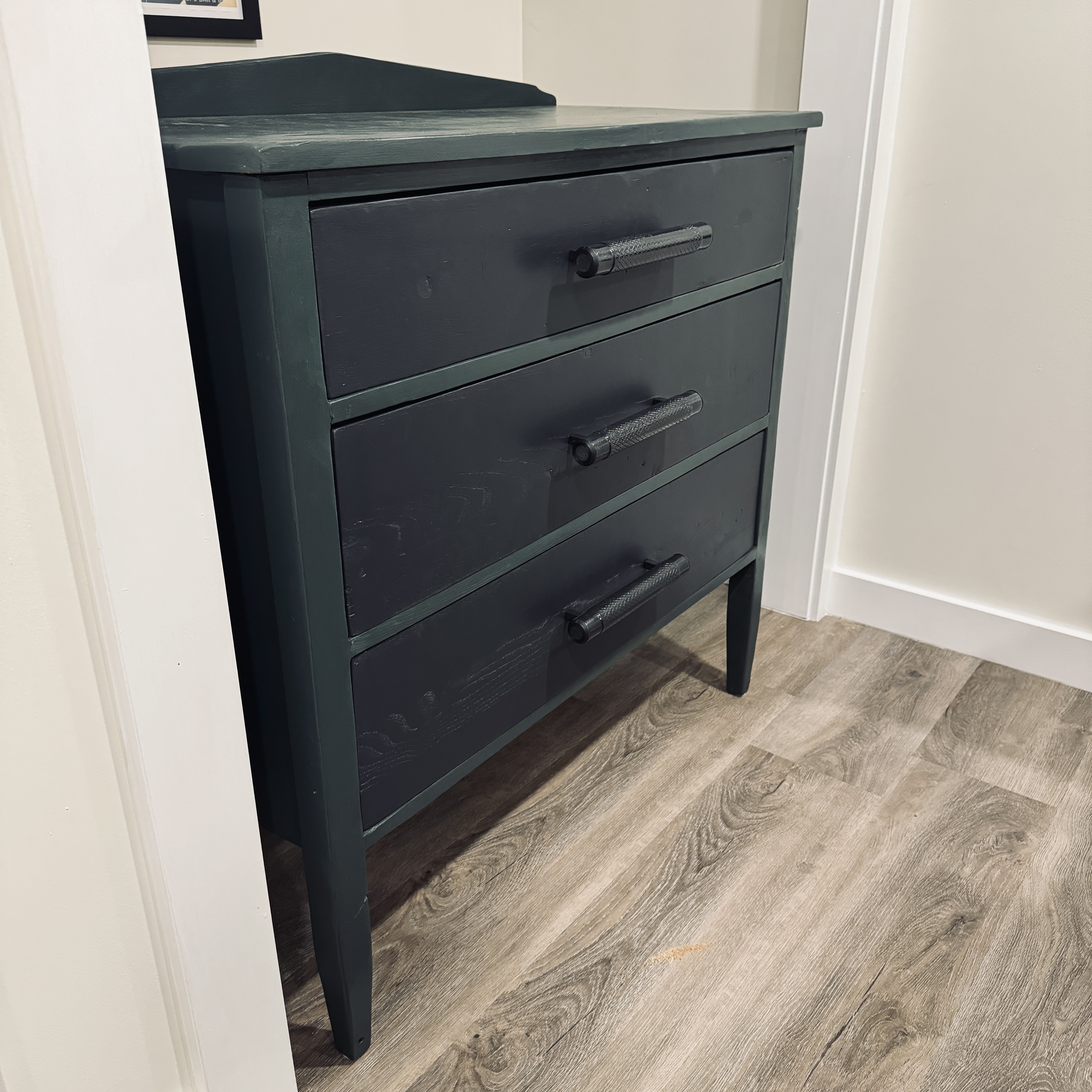

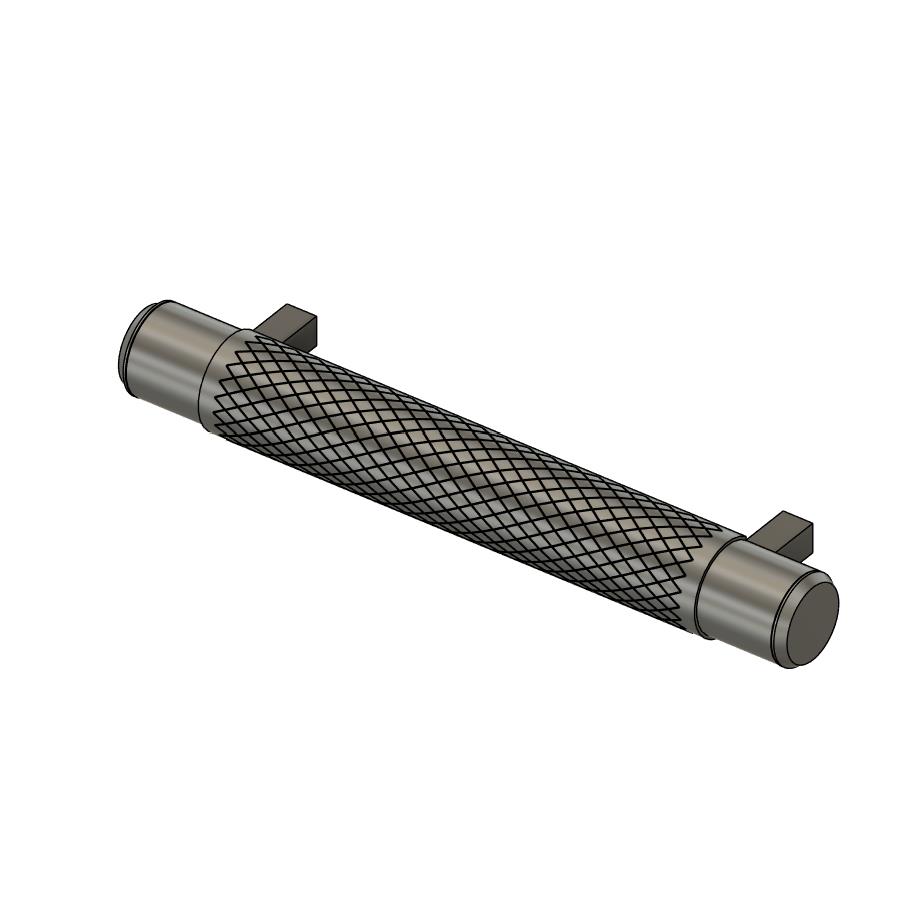

I created this handle with a knurled pattern to be used as a drawer pull.

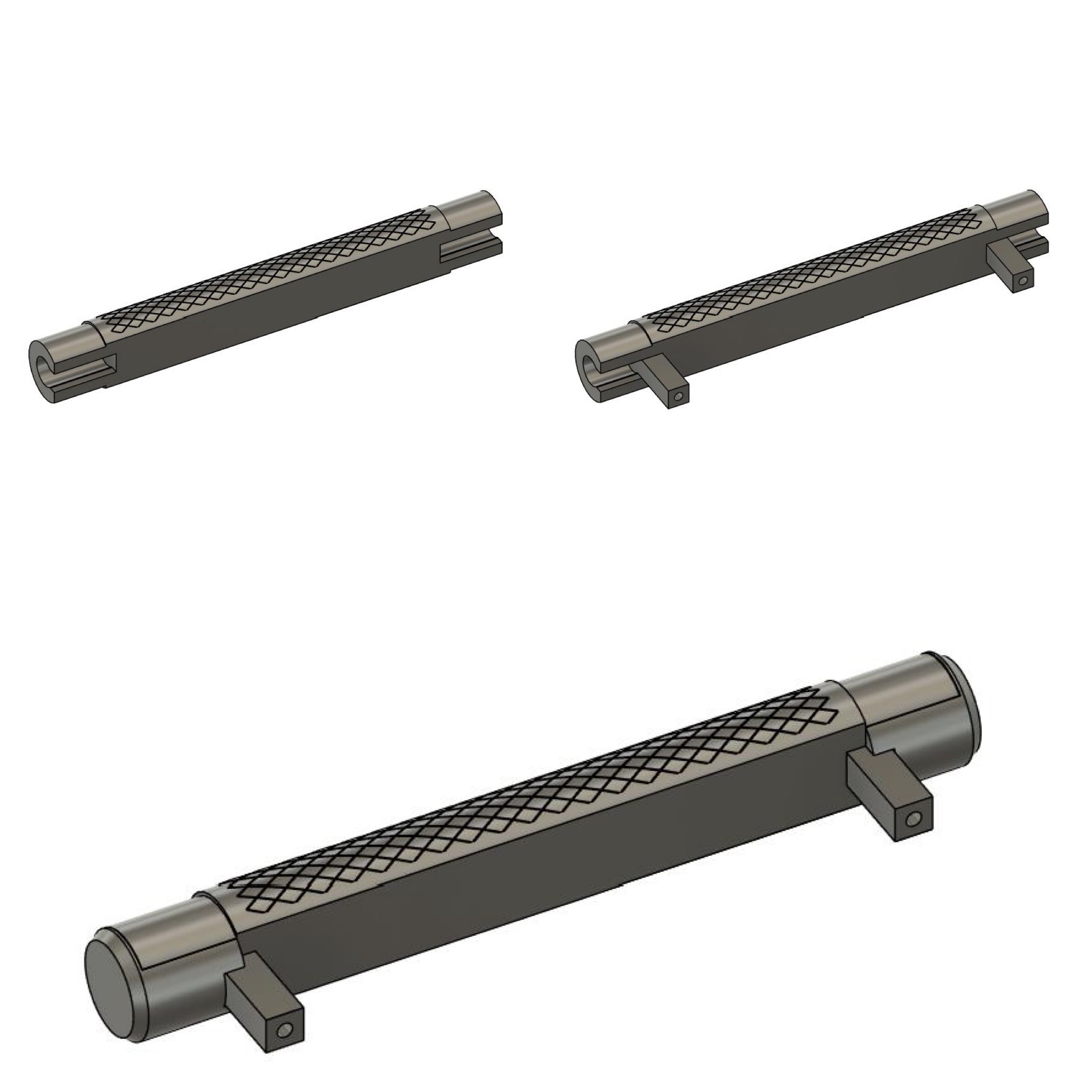

Each handle will consist of 5 pieces:

• Knurled Handle x 1
• Post x 2
• Insert x 2

The posts slide into the handle on each end and then the inserts.

I designed it this way to allow the handle to be printed horizontally.  I found it to be too long to be printed vertically, it was getting too wobbly and the quality was decreasing as the print got higher.

The posts have a hole for an M3 heat insert (old trusty) so the handle can be mounted with M3 bolts.

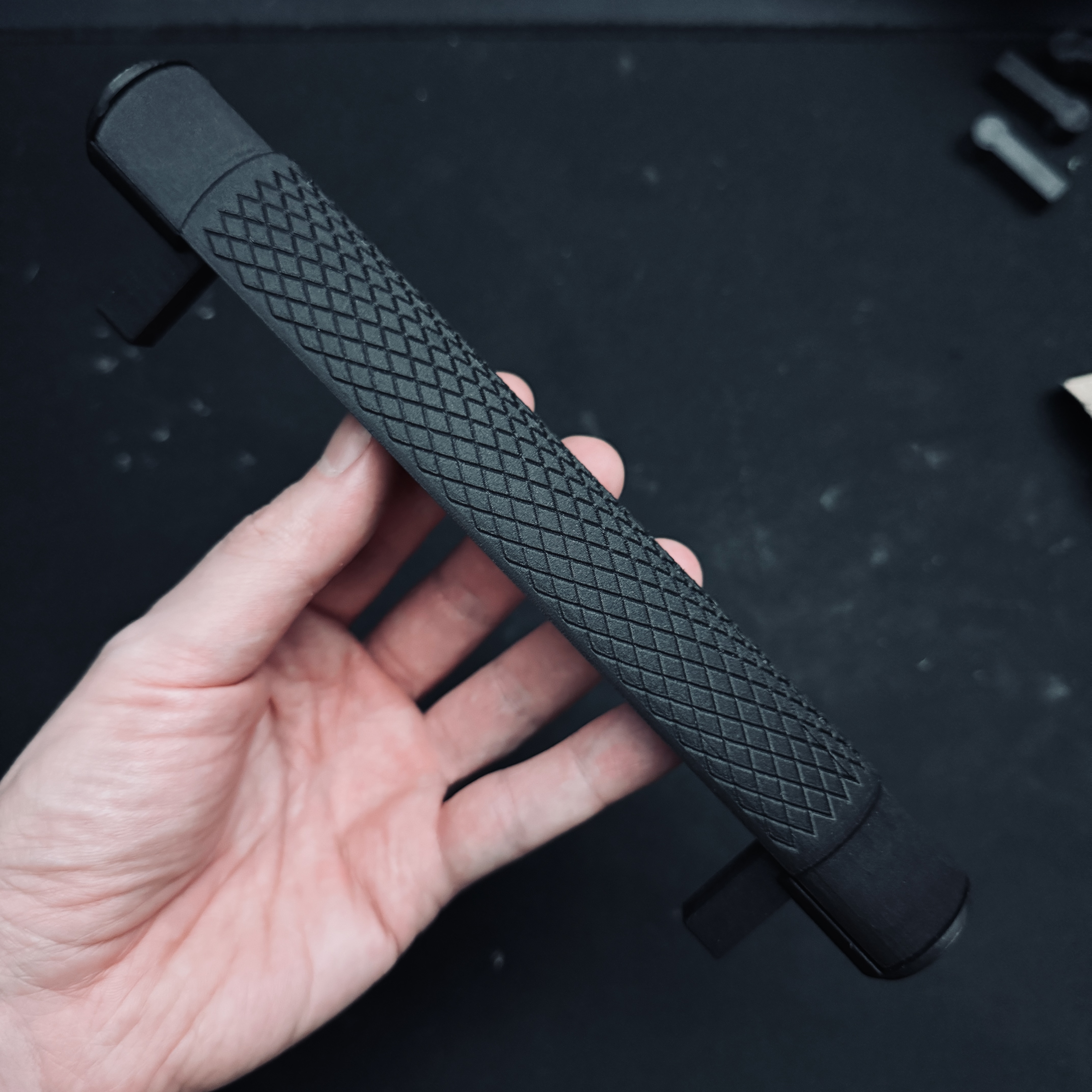

I sanded and applied epoxy to my handles and they look great.

Total width = 220mm (give or take a few mm for clearances)

Total diam = 30mm

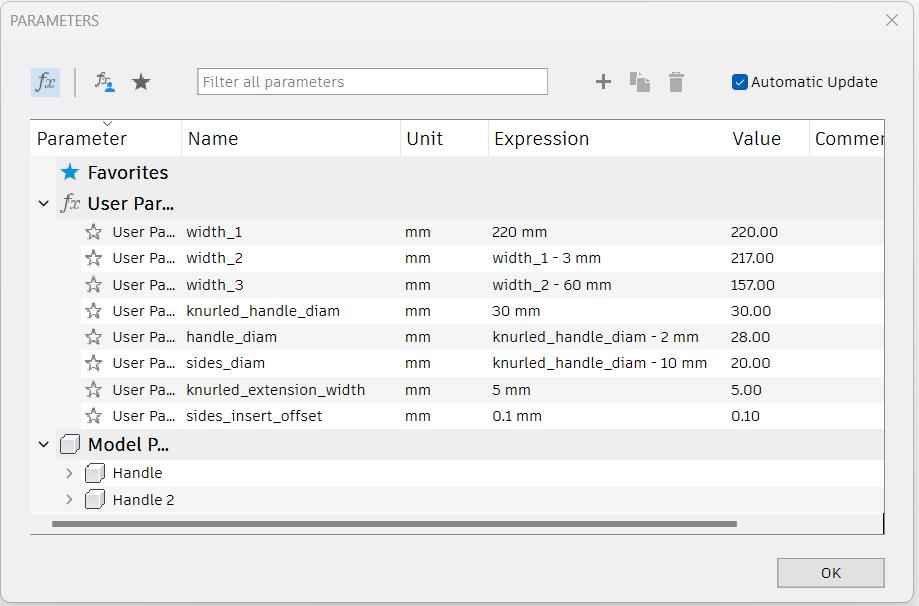

I included a screenshot of the parameters so you can see all of the dimensions.

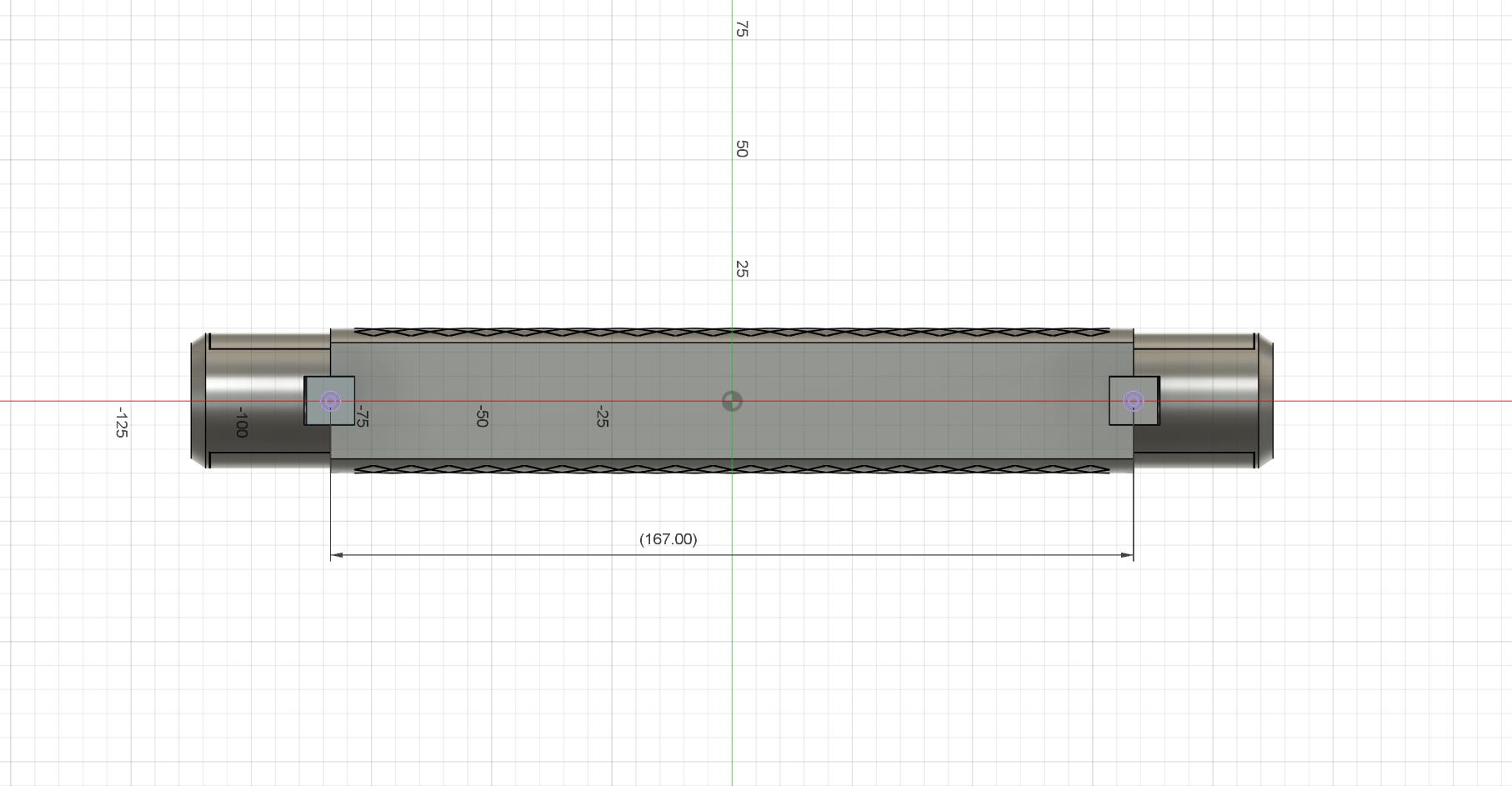

For mounting, I've included a photo showing the distance between the mounting holes in the posts.  The distance is 167mm.
