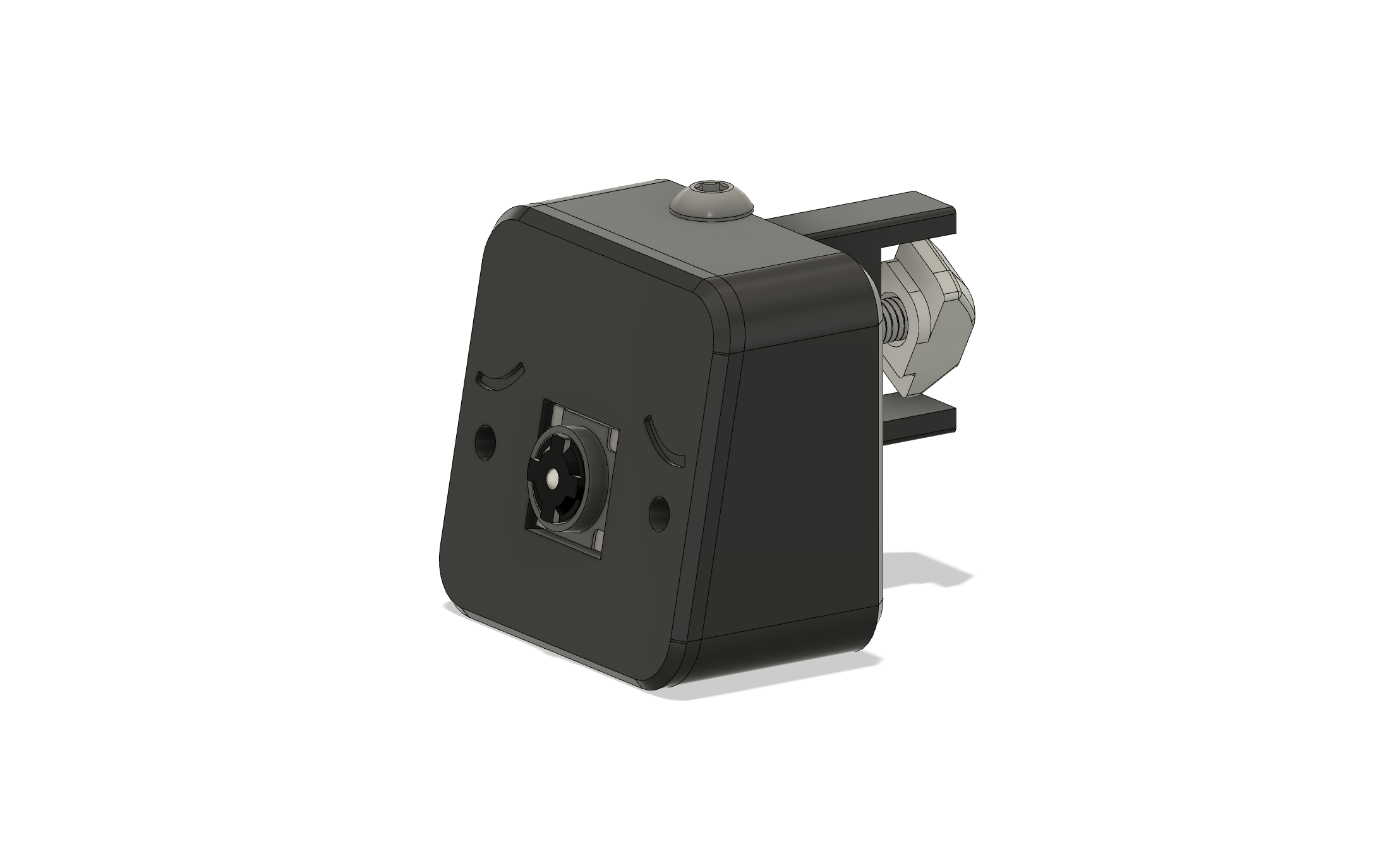

A remix of Sam Wolfson's great Raspberry Pi Camera 3 Mount.

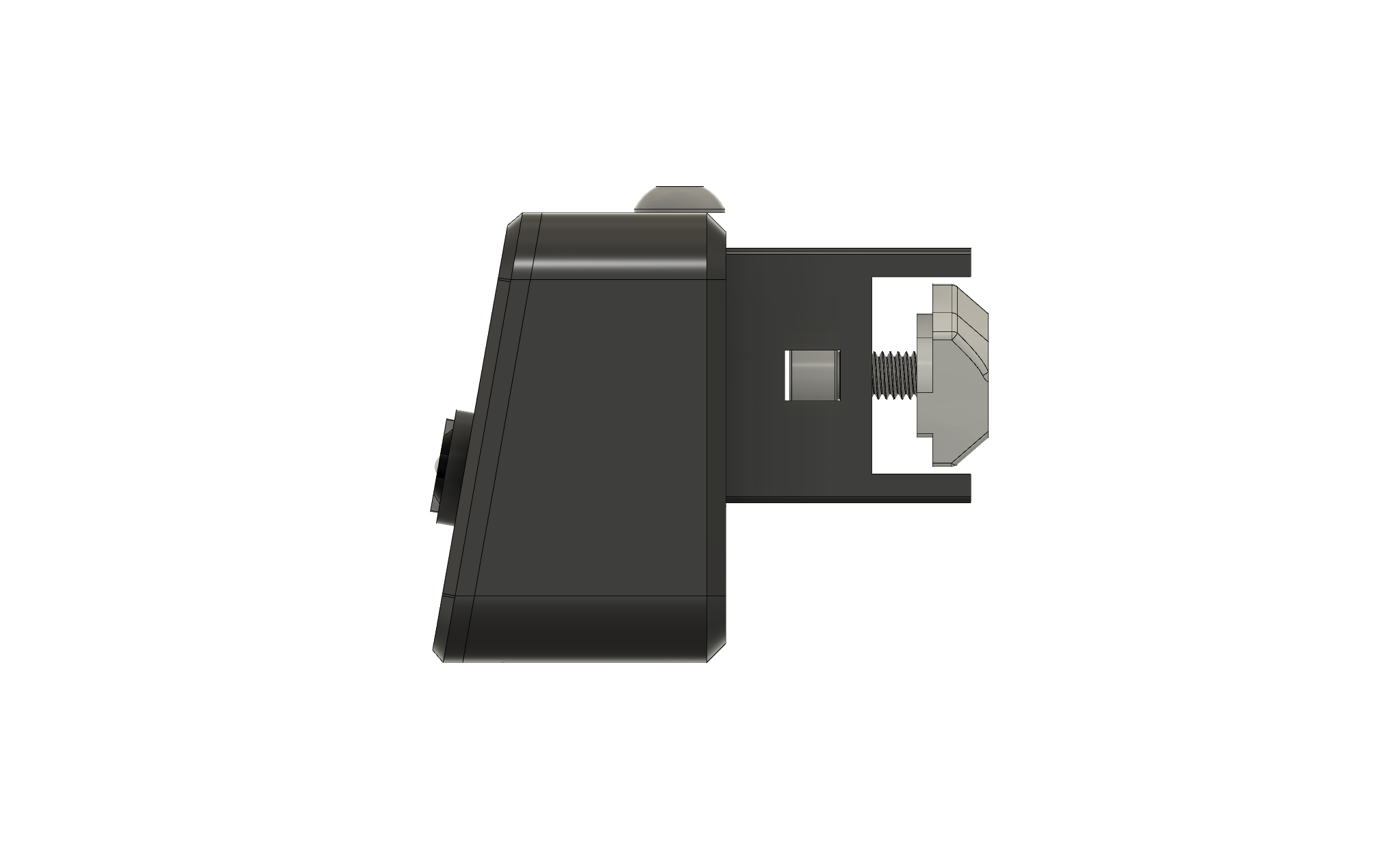

I've revised the models to suit the Raspberry Pi Camera 2.1 module better (the window for the camera lens is slightly smaller. As-well as this (likely due to the older camera's narrower field of view - see images) I've titled the camera up by 10 degrees to get a larger view of the build volume (for taller prints).

Designed for Voron 2.4, although would work for other 2020 extrusion.

Printed with standard Voron part settings. I used supports for the overhang on the case body (and blocked everything else), although this probably isn't totally necessary.

Print 1 version of "case_body" depending on which side you want the camera to be installed, 1 “hinge” and 1 "case_front". I've also included a Z Belt cover for either side that match the other z belt covers i'm using with a cut-out for the cable.

Included .step files if you wish to adapt.

Required hardware (same as original):

• 1 M3x6 SCHS screw
• 1 M3 T-nut
• 1 M3x20 BCHS screw (longer screws and SCHS are also fine)
• 2 M2x8 BCHS (SCHS is also fine)

Assembly (same as original):

• Attach the hinge, T-nut, and M3x6 screw to the extrusion first. You will not be able to access the screw after the case is connected to the hinge.
• Insert the camera board and screw on the front of the case with the M2x8 screws.
• Align the case with the hinge and screw it together with the M3x20 screw.
