Background

I have a small form factor (SFF) PC tower that I needed to put a WiFi card into. I somehow lost the one that came with the TP-Link Archer T4E WiFi card, so I made this to fit in the case :)

Model description

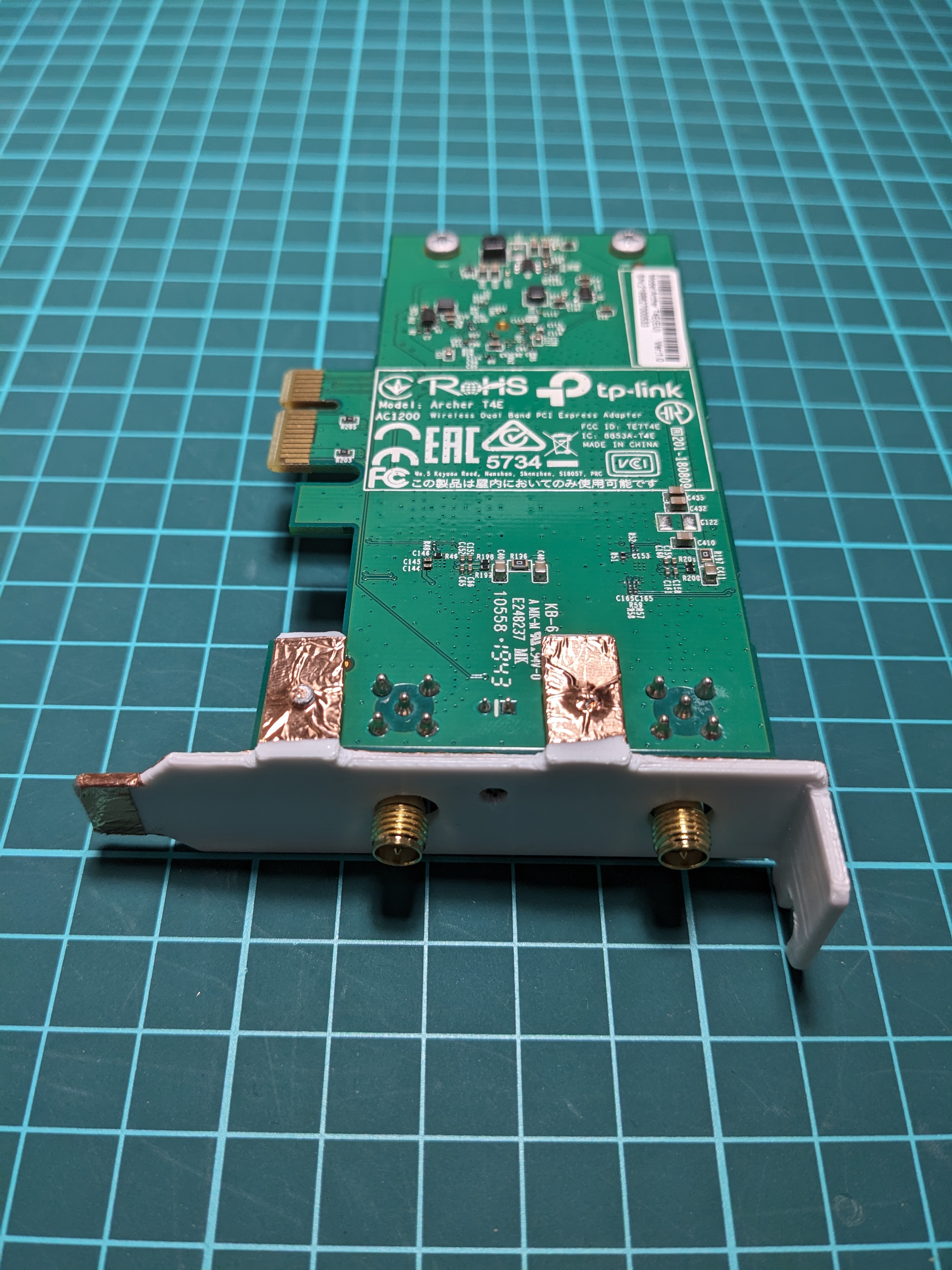

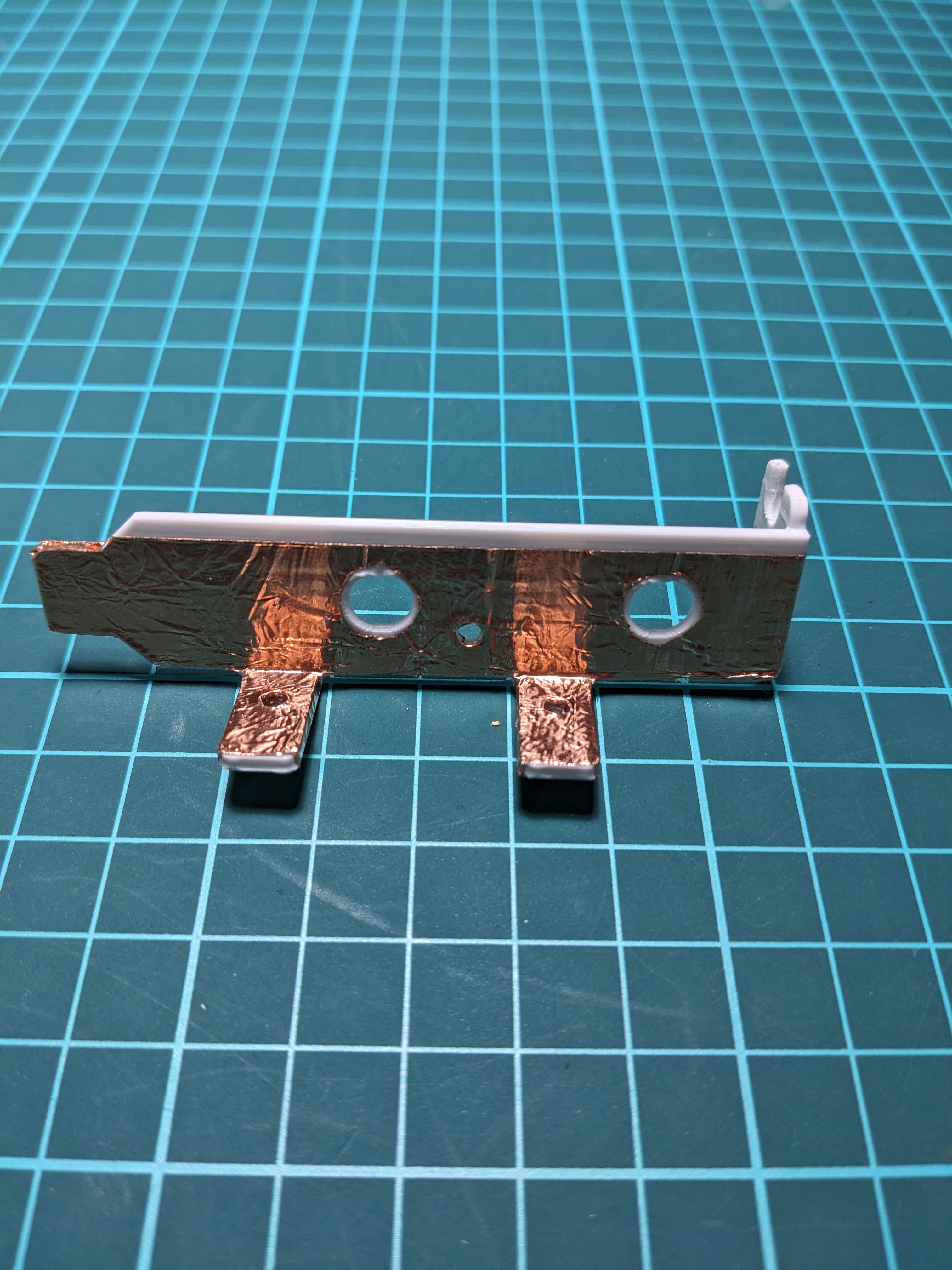

This PCI Low Profile bracket is intended to fit the TP-Link Archer T4E. It can easily be modified in Fusion to fit other expansion cards of your liking. If you are feeling fancy like I did, you can put some copper tape to reintroduce some grounding capabilities to weigh up for the bracket being 3D-printed.

Model dimensions

• Depth: 16.75 mm
• Width: 80.00 mm
• Height: 21.10 mm

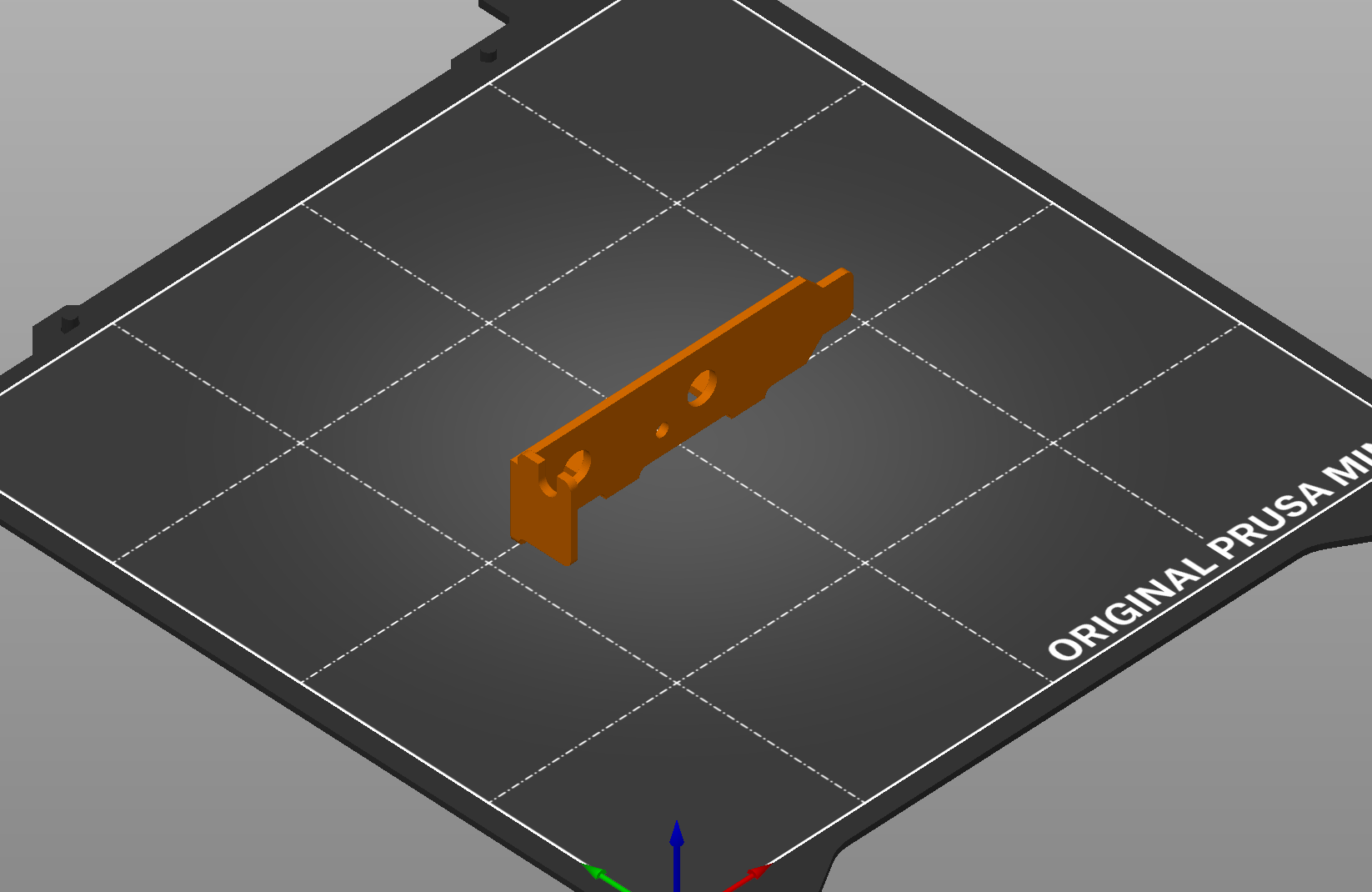

Print settings

• Layer height: 0.20 mm
• Infill: 15 %
• Brim: No
• Supports: Yes

The .step file for the design is also included, so feel free to tweak the part to your needs. Enjoy!
