The Ultimate Backscratcher

Let's face it, you're itchy! You're skin is crawlin! Help has arrived.

Features

• FOUR MODES:
  Normal - A good ol' scratch
  Aggressive - For when you just got done rolling around in fiberglass insulation
  Pinpoint - Ooowie I got an itch!
  Massage - For rubbing your neck or back in a muscle that may be sore.
• Sloped handle shape to dig into your back better.

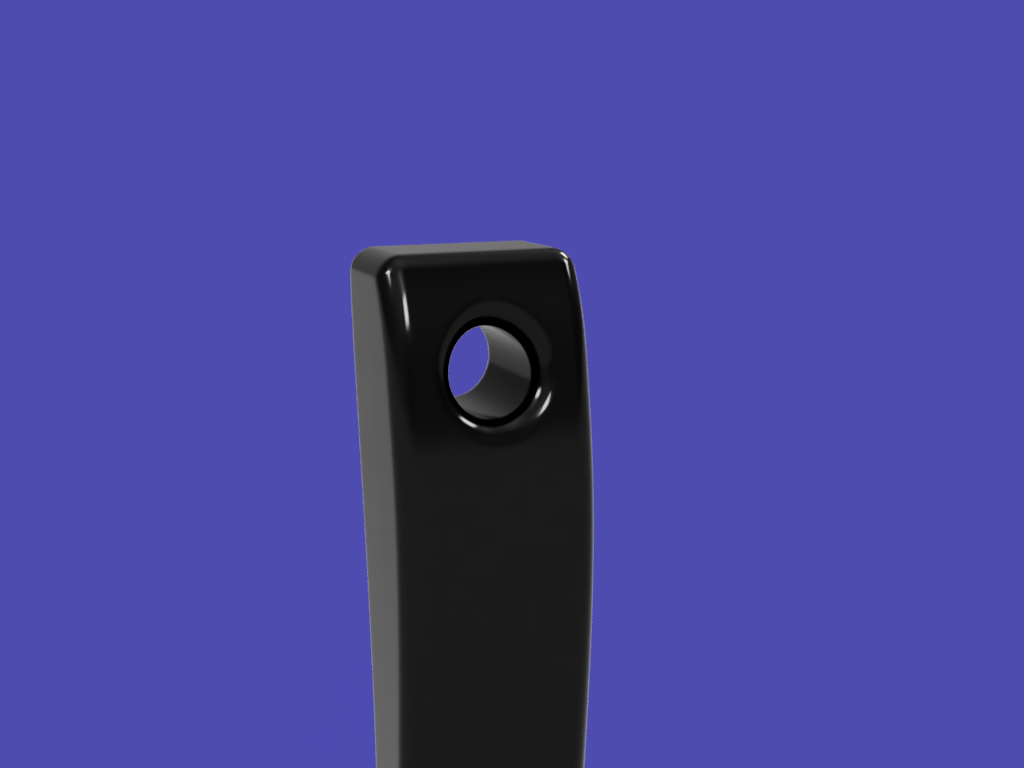

• Hole so you can hang it up

  Overview

  Print Settings

Printer Brand:

Prusa

Printer:

No

Supports:

200

Infill:

Notes:

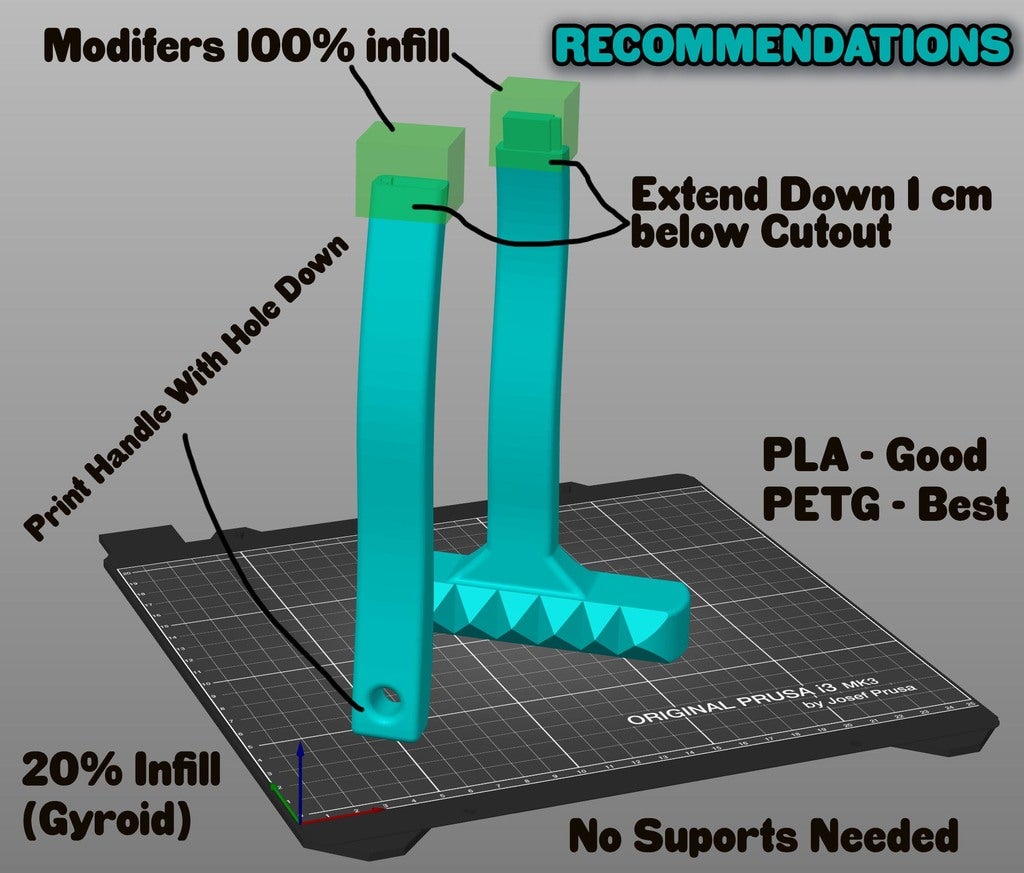

There is a picture in this post that has the tips Illustrated. Check it out.

Orientation

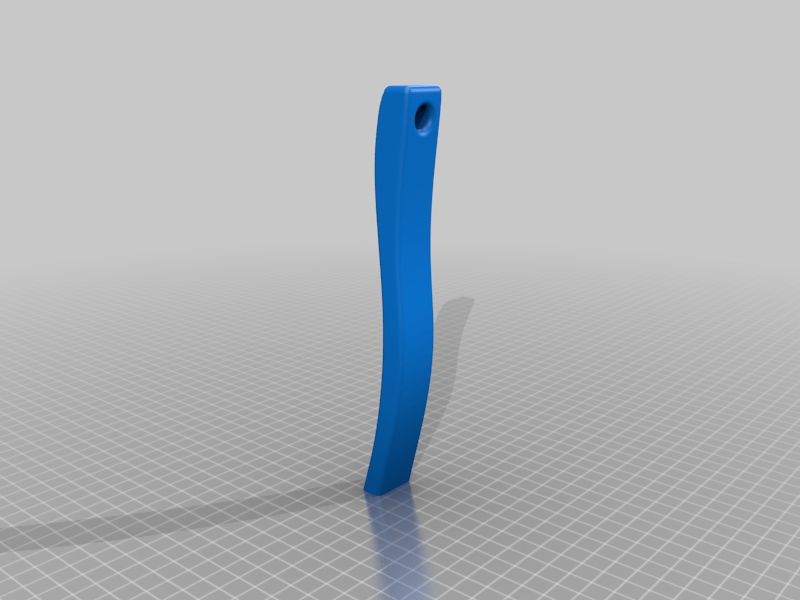

Print the base with the head down standing upwards. Print the handle with the hole side down printing upwards. If your print bed doesn't support the height you'll have to print on the side and then you would most likely need supports.

Modifiers

The two ends where they connect need reinforcement since you will be putting pressure on your back. If you don't have re-enforcements it's likely the connector could break. This can be done by putting a support modifier block over the area you want to have a different infill. I recommend a 100% infill for this area. Extend the block into the handle a bit so it has extra strength. It won't add much time since the handle isn't that wide. (see the printing pic.)

Assembly

Use a good amount of super glue on both pieces and put together. I don't recommend a gel glue because it's thicker and it may not seat correctly. The tolerances are not tight or loose so you will need to glue it.Tip: You may want to use your slicer software and just make a small print of both sides of the connection so you can practice gluing them without having to print out the whole thing.

Category: Hand Tools
