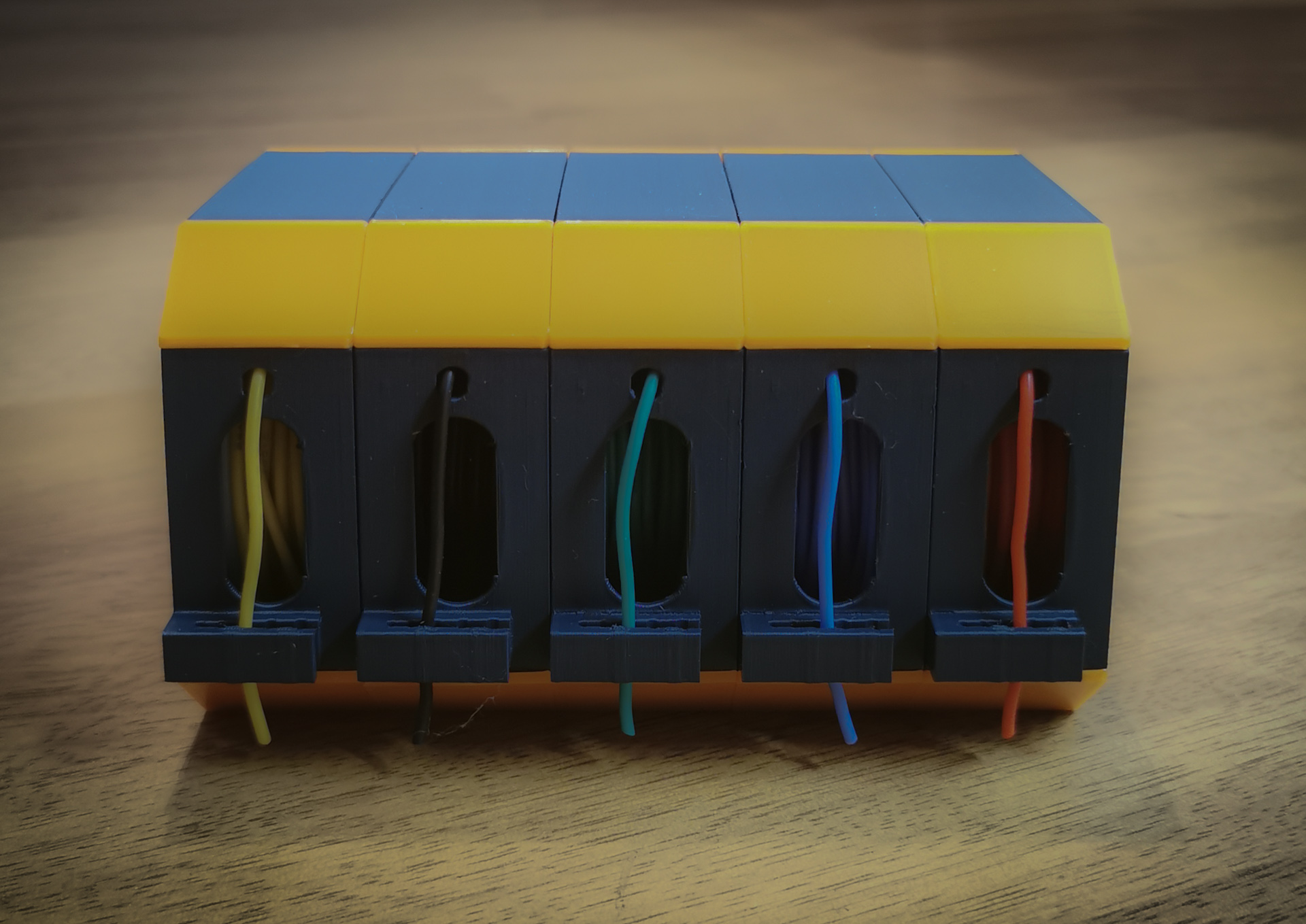

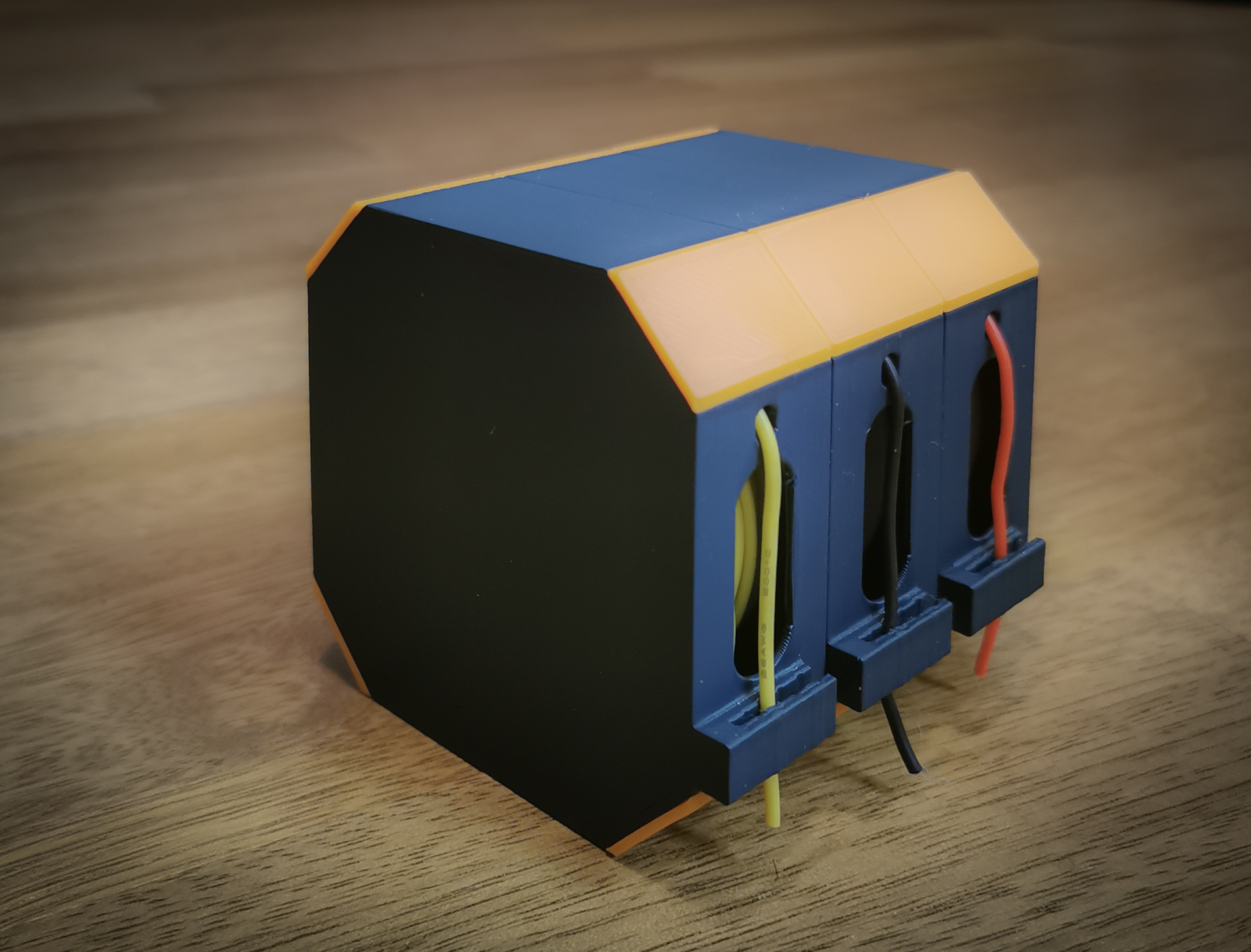

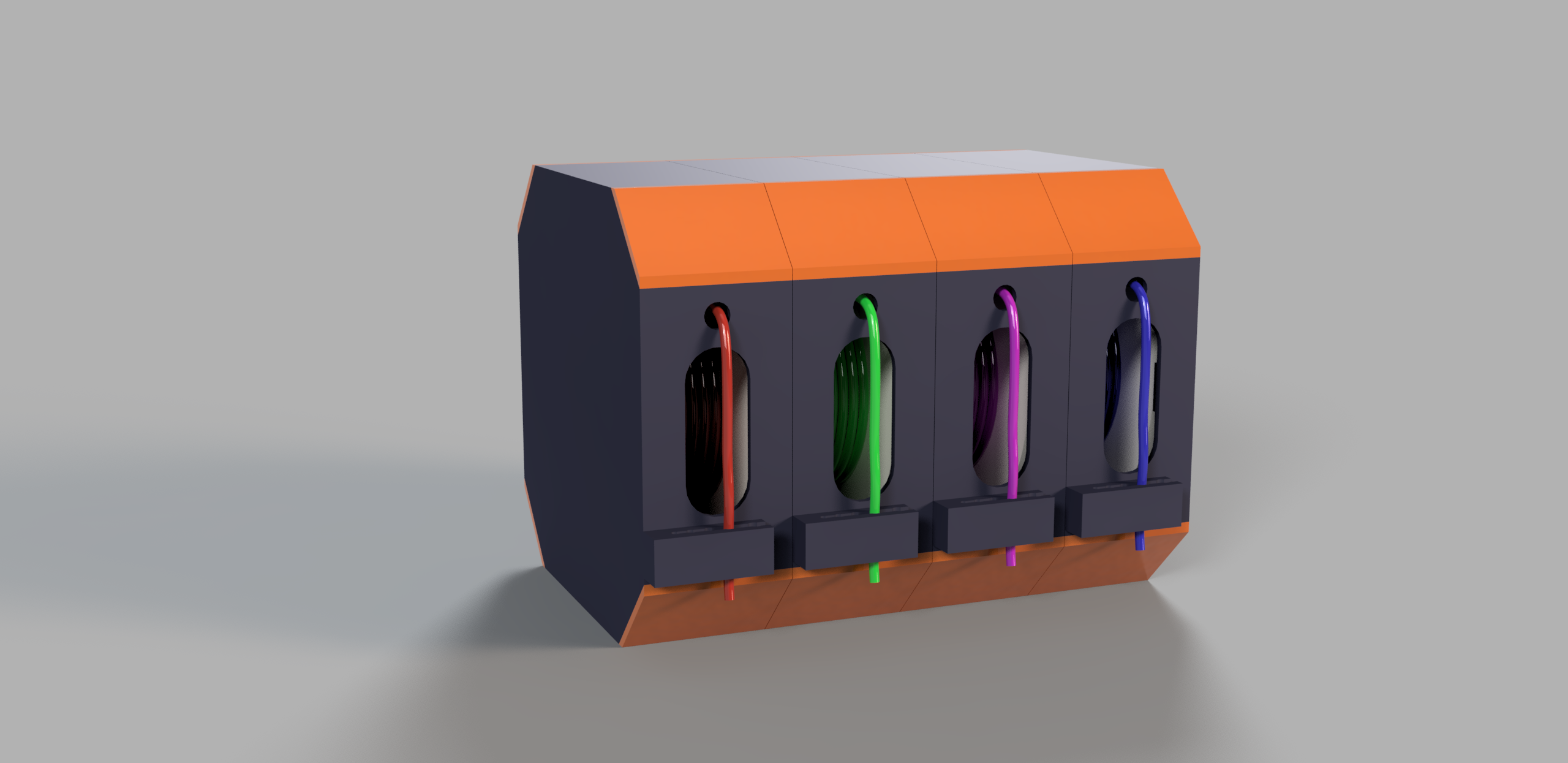

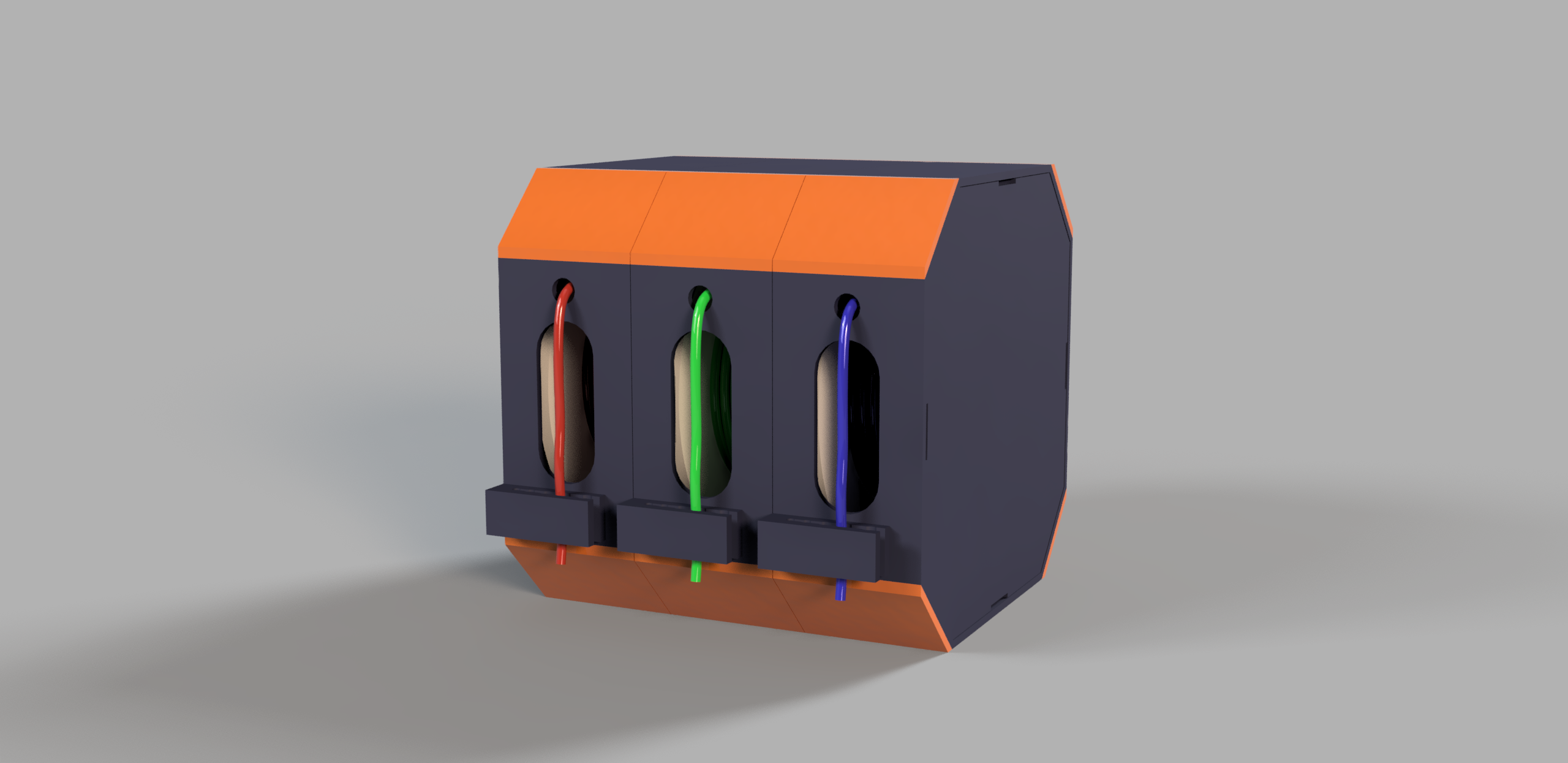

Modular 2D stackable ultra compact wire spool holder

Revision history:

02/02/24	fixed some minor issues in the F360 file
04/02/24	added STL files for a 20 x 55 mm spool
05/07/25	added f3d file for a 20 x 55 mm spool
16/08/25	fixed a bug in the F360 file that affected adaptation to wide spools

This one is inspired by the excellent design of @Noclafasm_8372 and Lego ;-), although everything is designed from scratch and the main features are different - so I guess it's not a remix.

Design goals:

compact size

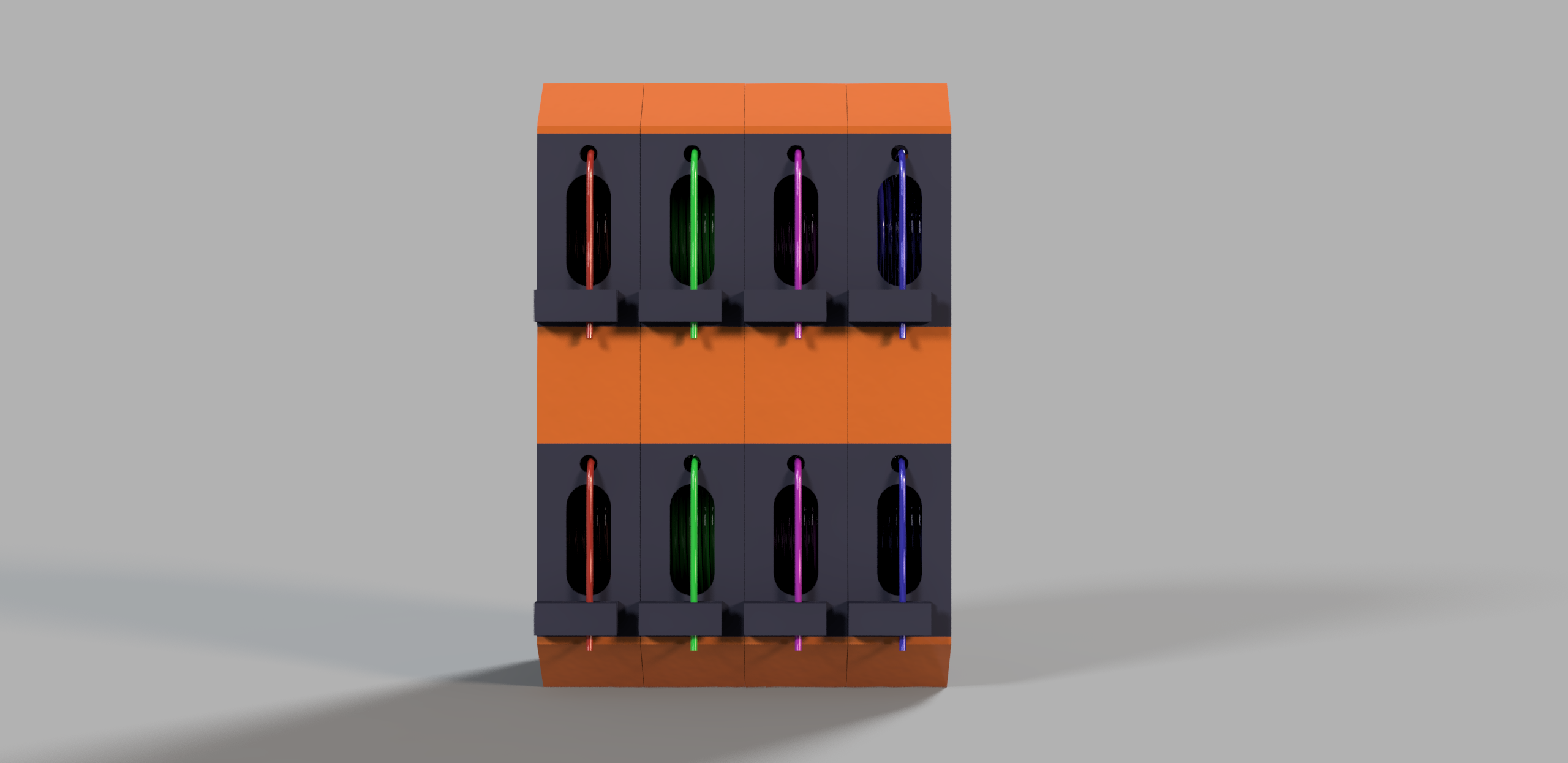

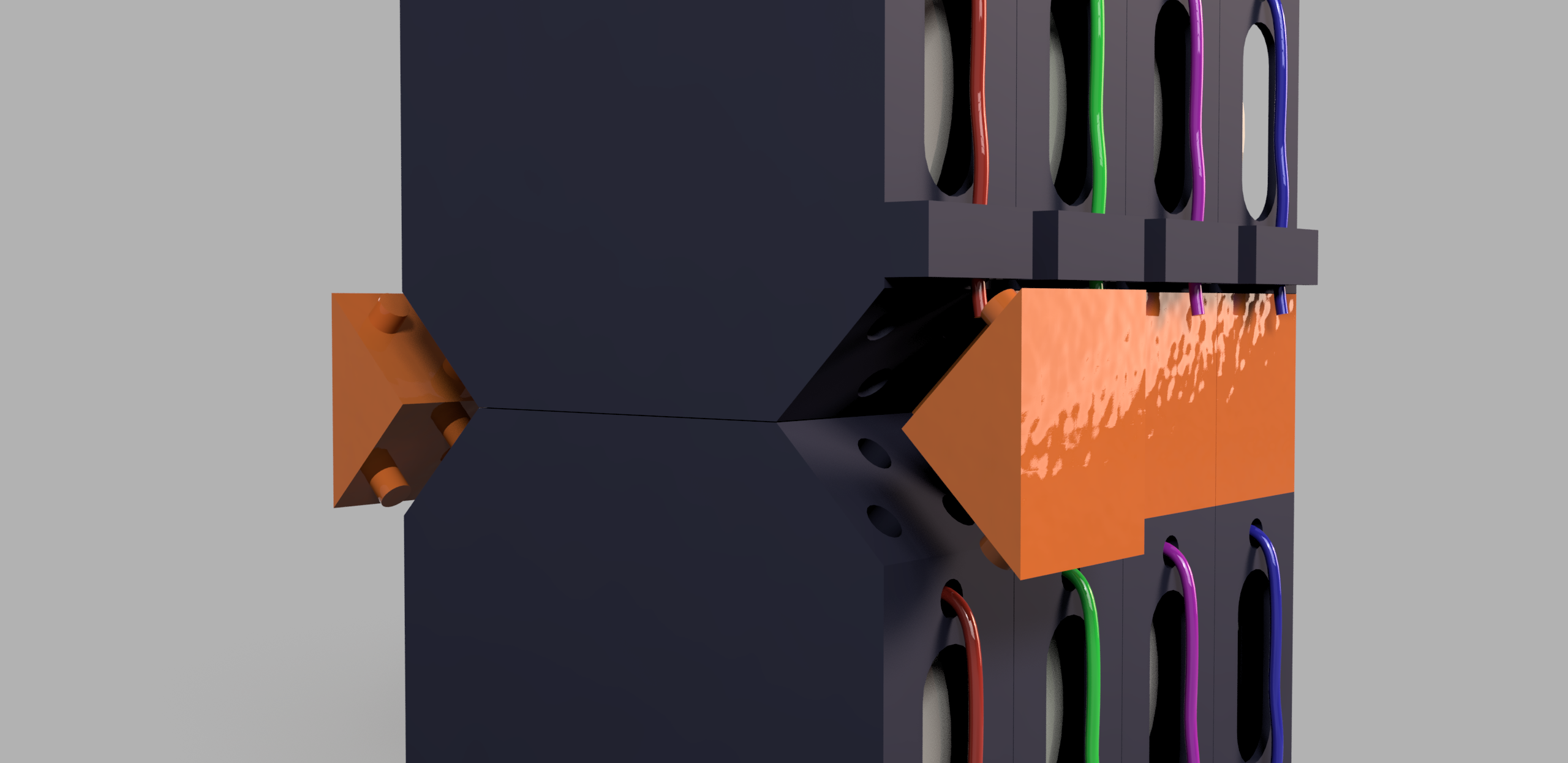

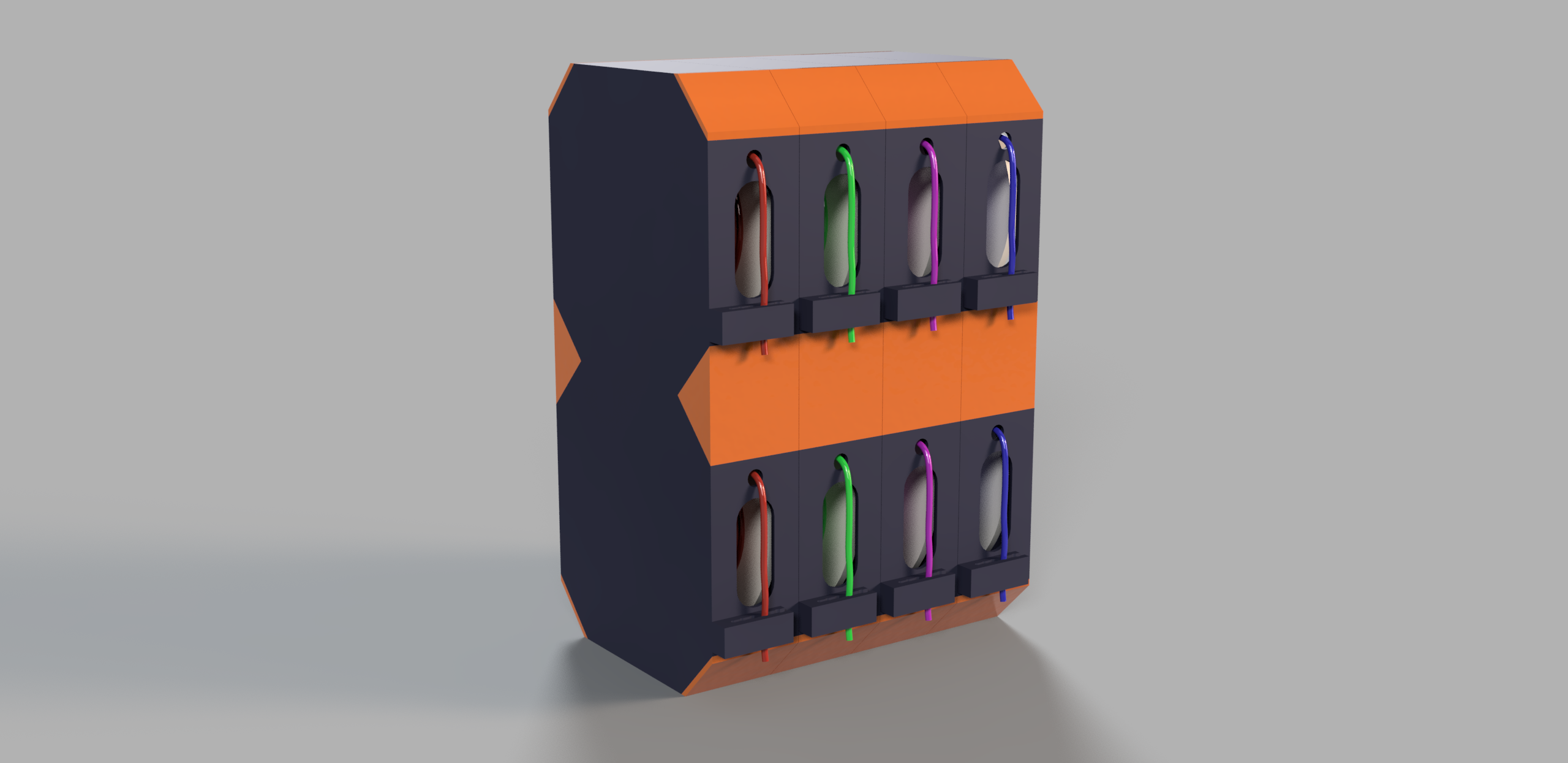

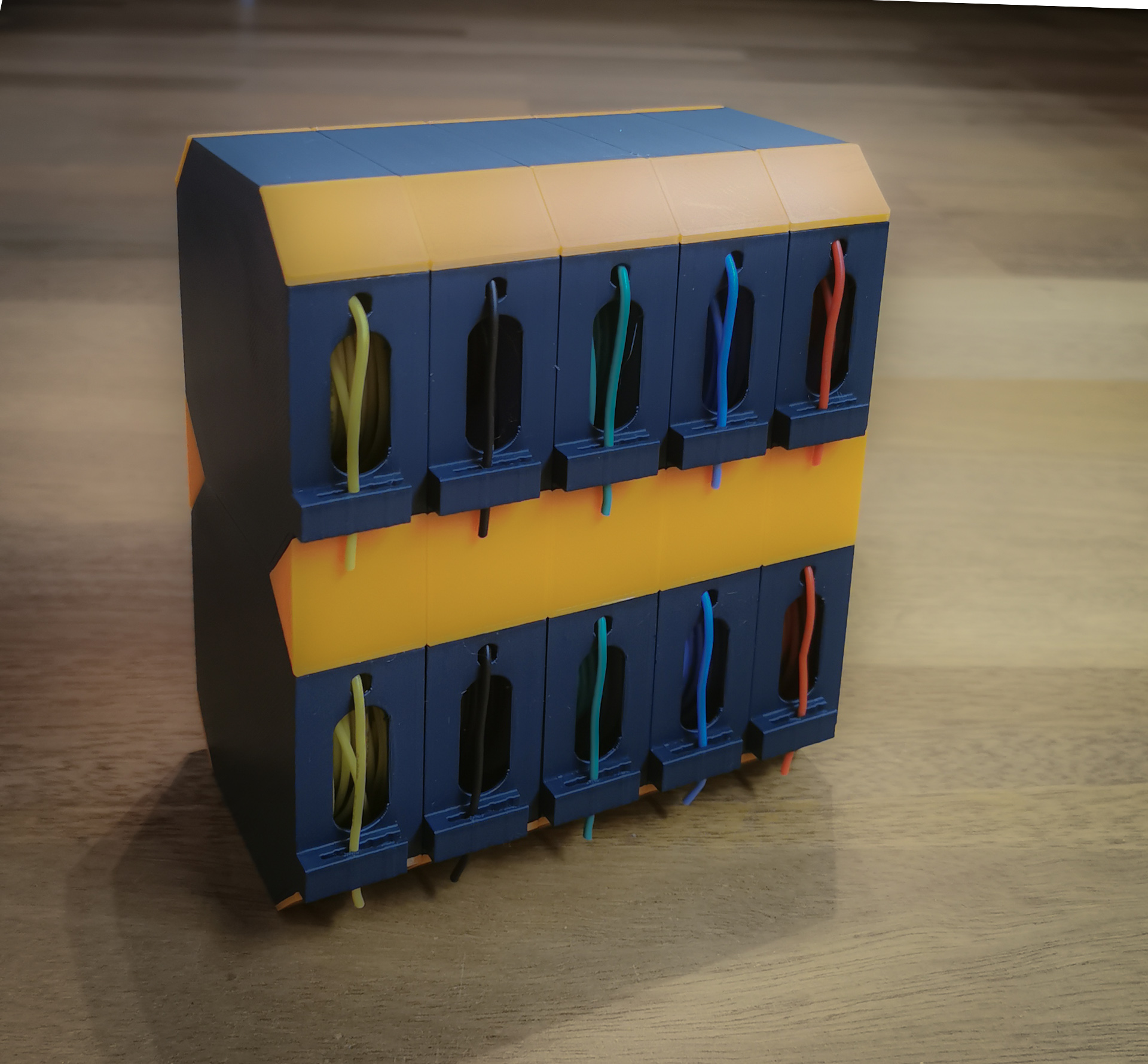

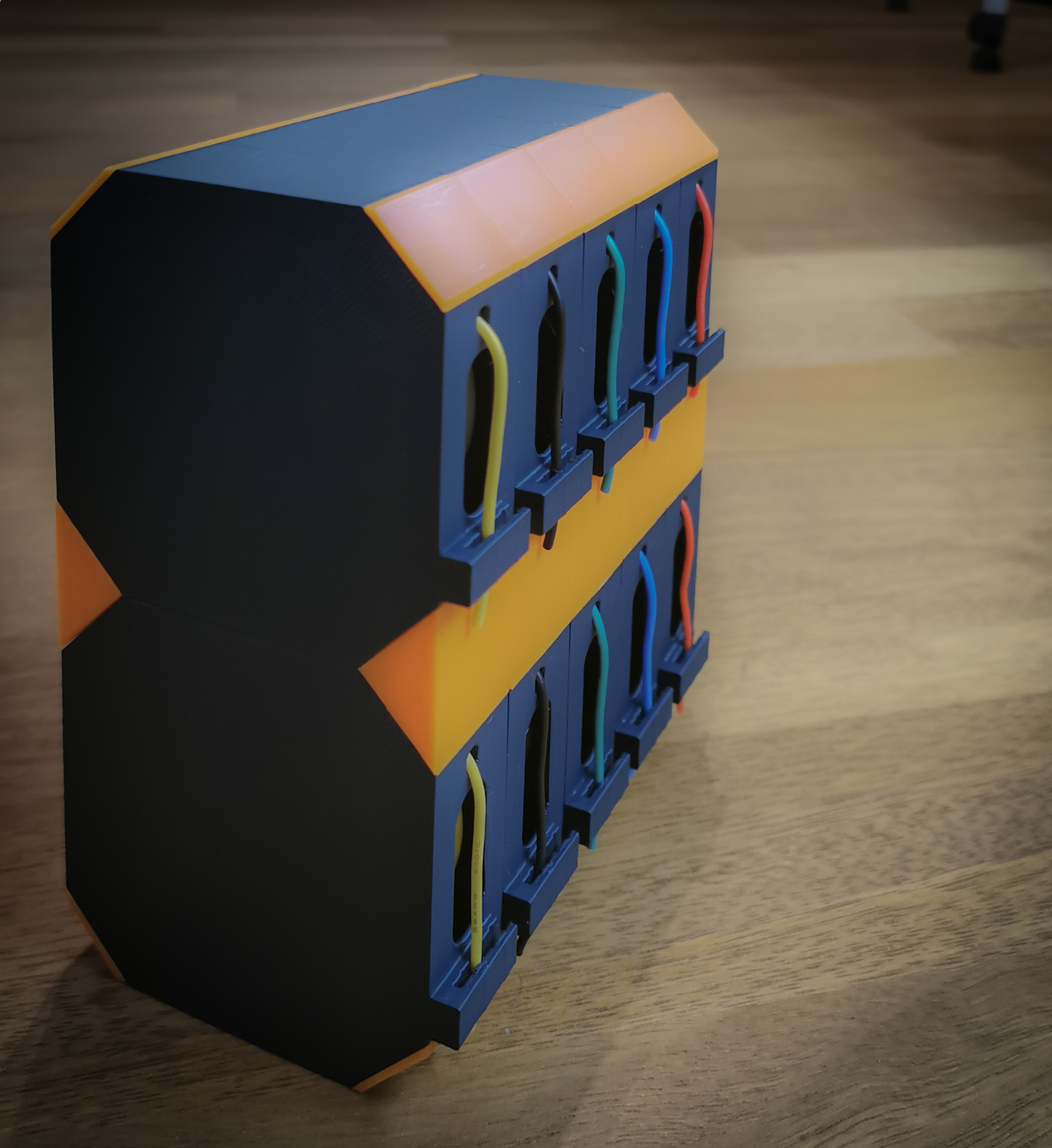

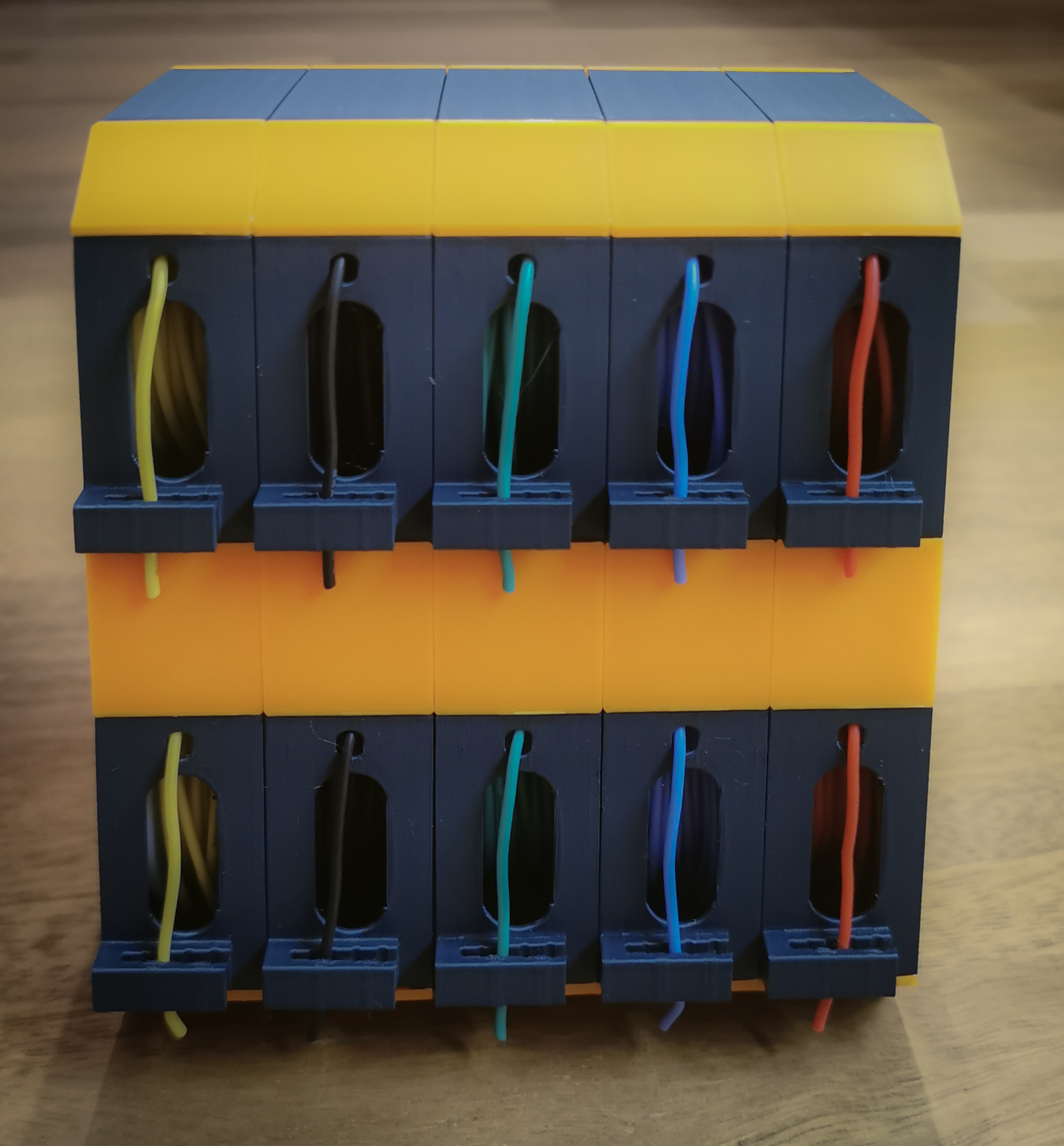

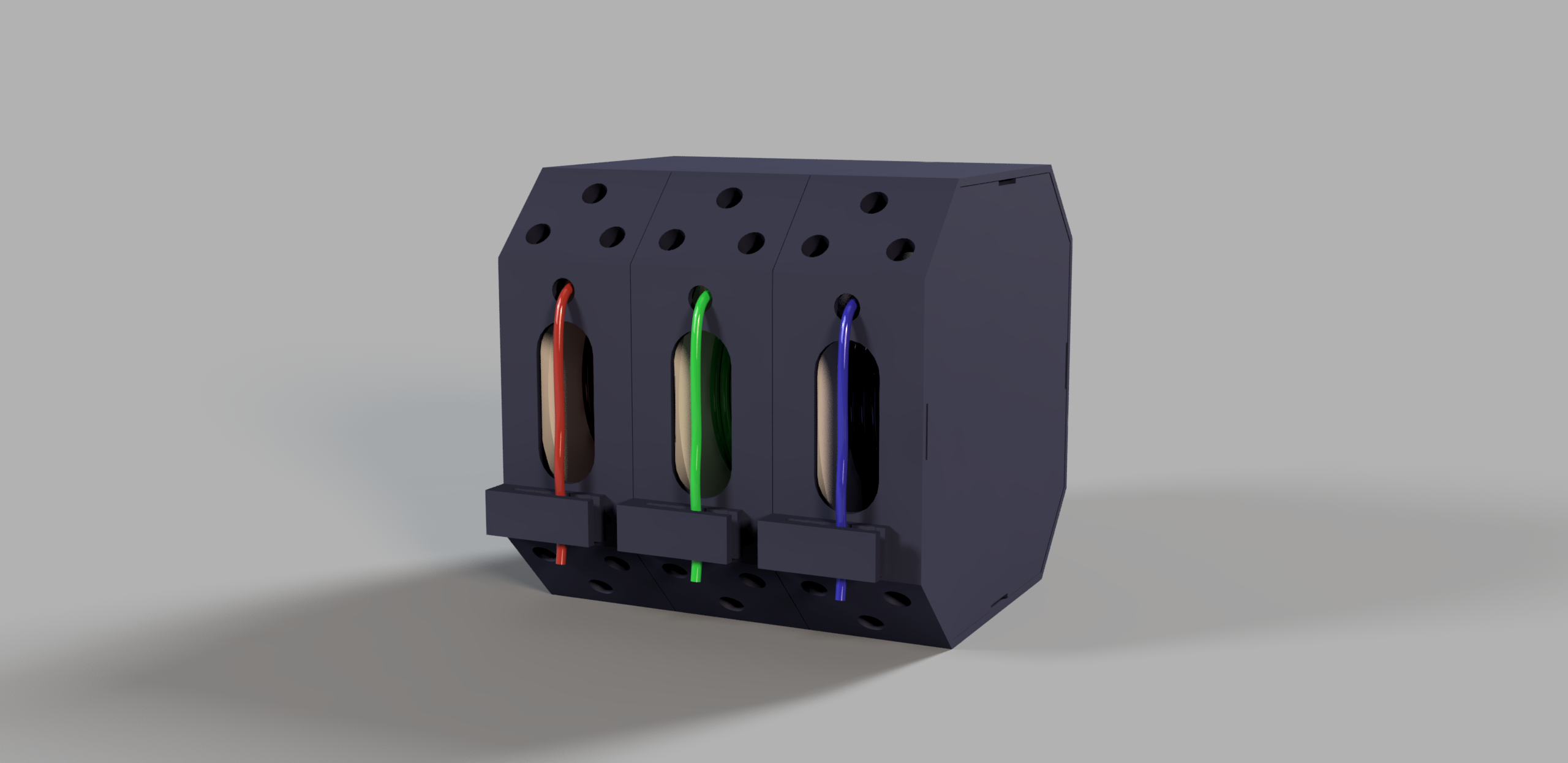

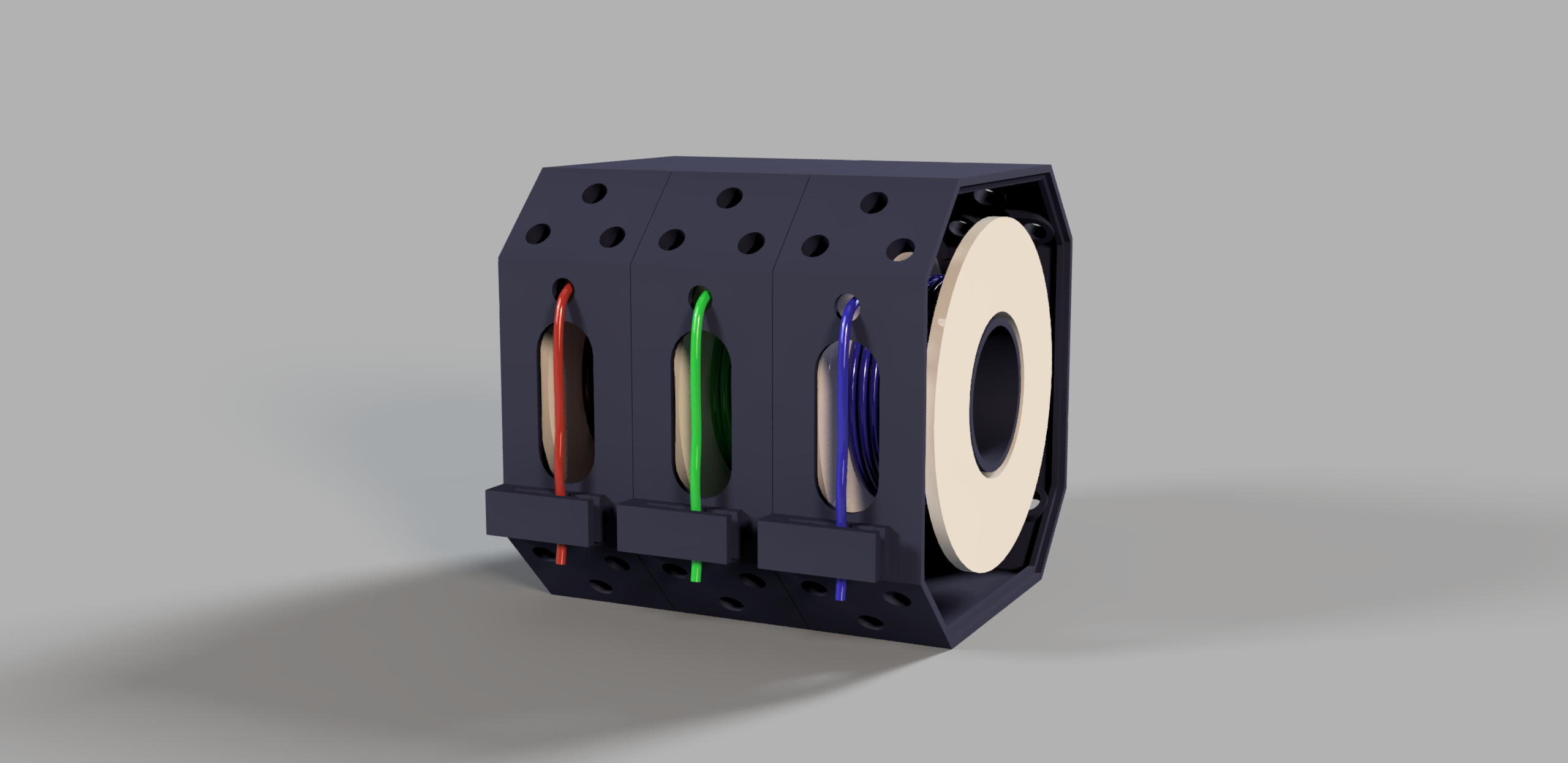

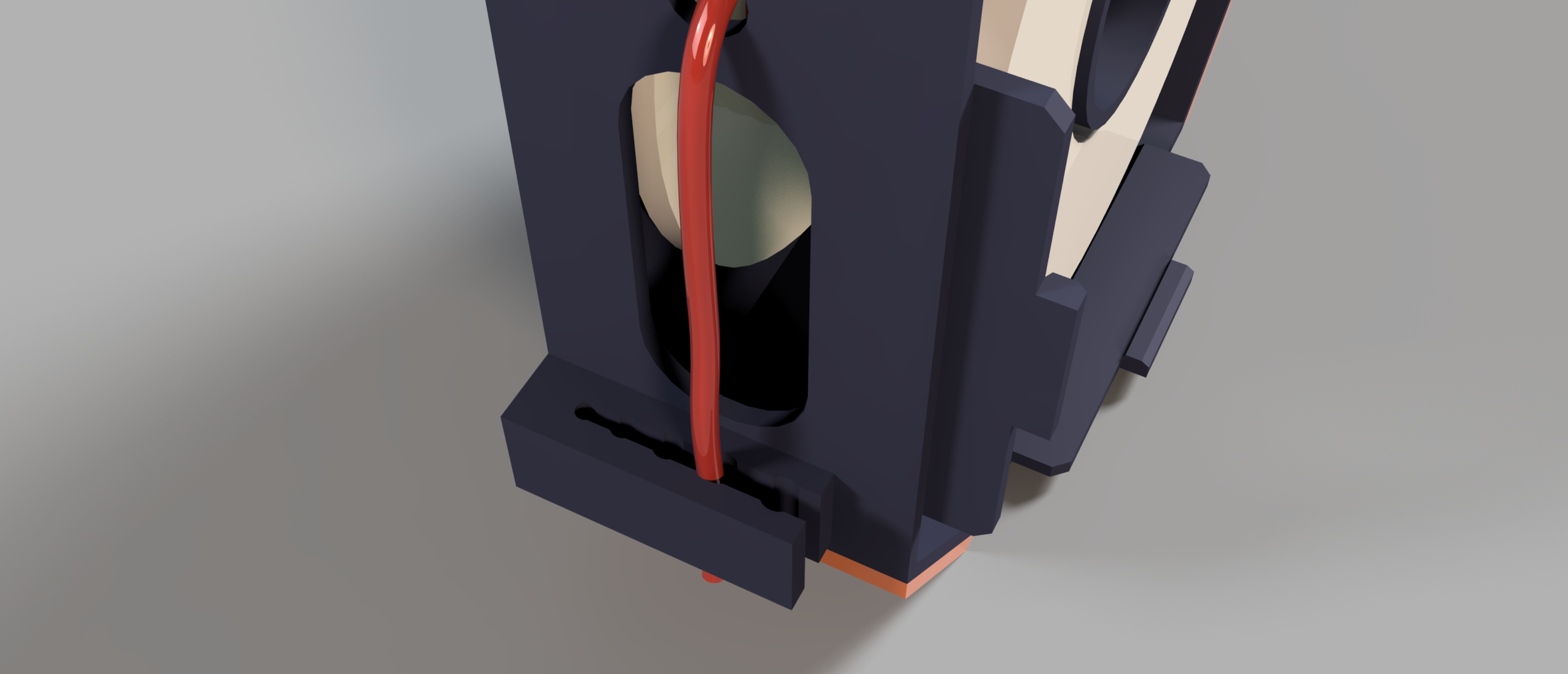

stackable, both horizontally and vertically, with a permanent joint
easy to extend
easy to assemble, no glue, screws, bolts, nails …
easy to print, no support
robust

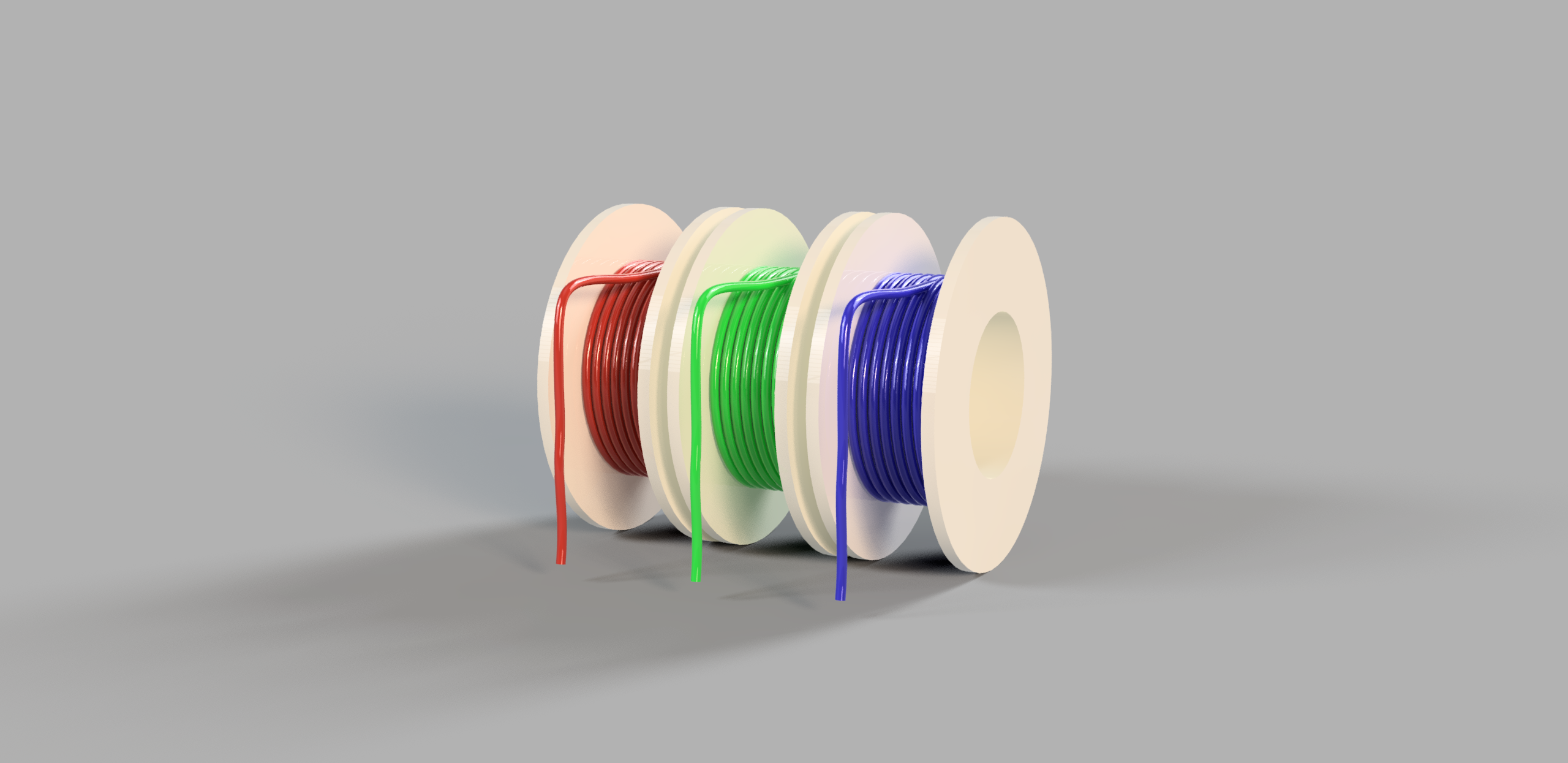

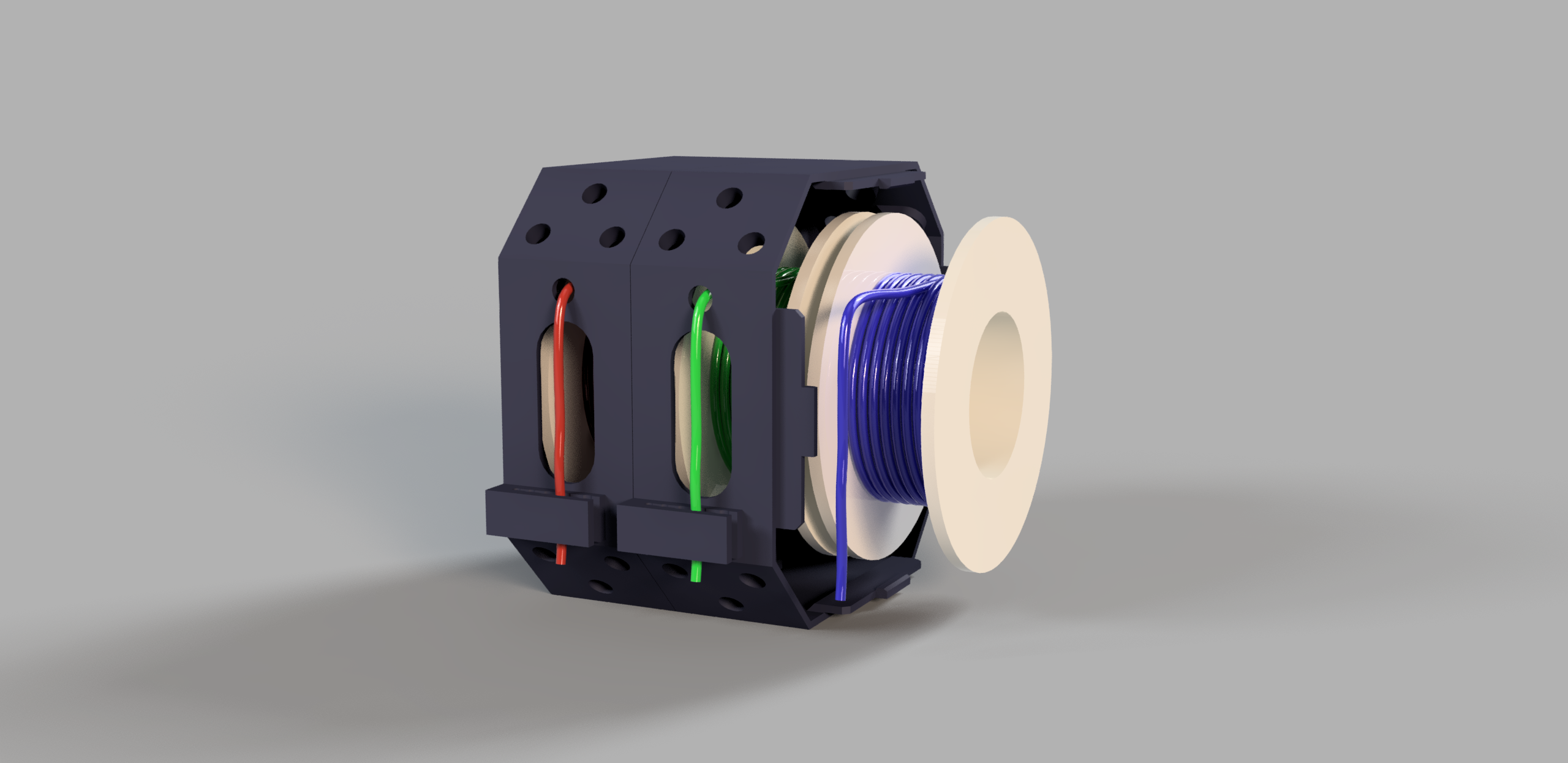

The posted model files work with the popular 20 x 55 mm spools with a 26 mm hole.

I have provided the F360 model file in case you need other spool dimensions. Just edit the spool component to your needs, everything else should adjust accordingly.

The 3MF file contains all the components in the correct orientation, but of course you need to set the correct number of instances

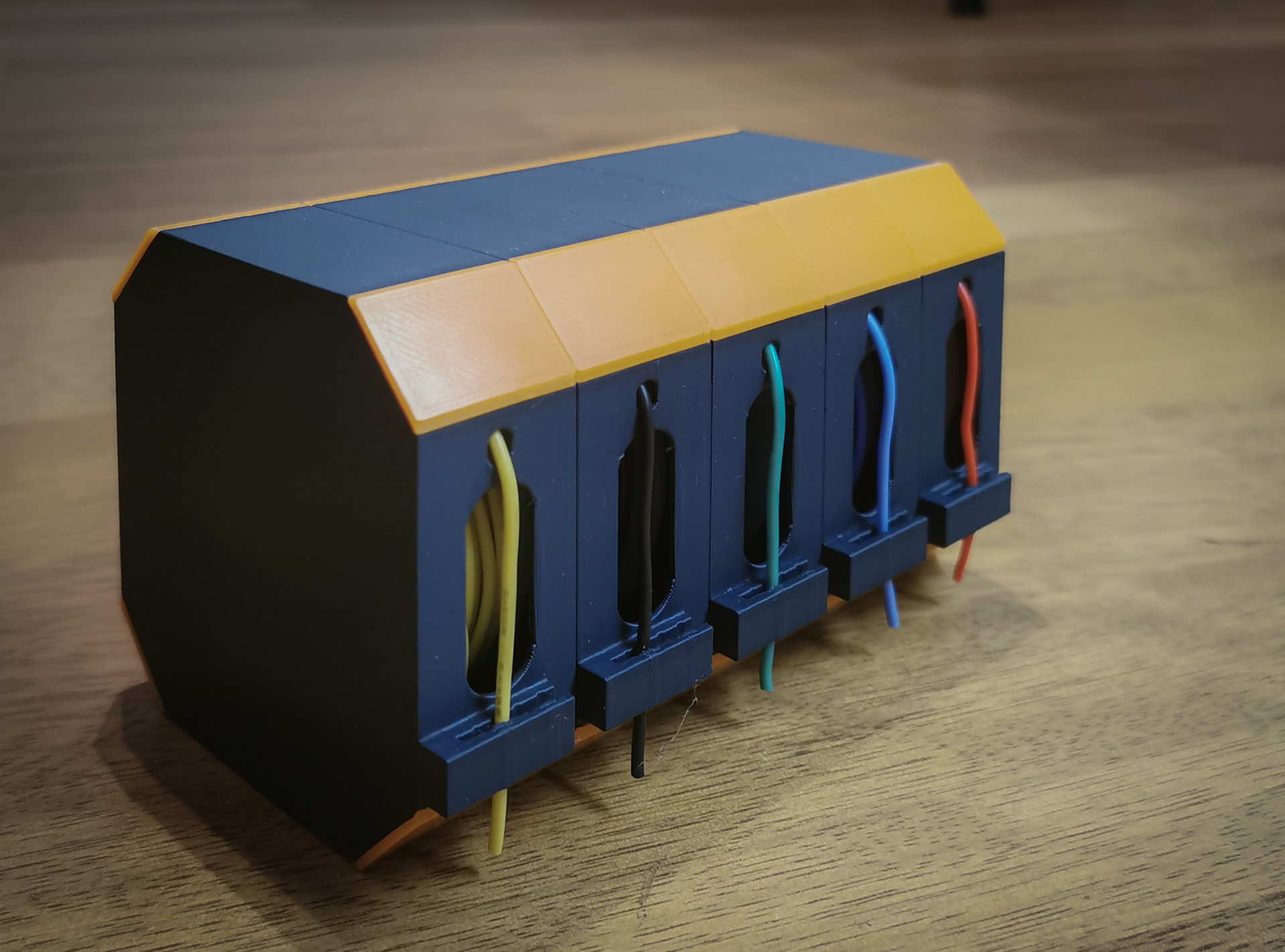

Printing is done with a layer height of 0.2 mm without support and an overall tolerance (F360 parameter) of 0.1 mm. This works like a charm on a MK4 with PLA and the default speed profile, on other printers you may have to experiment with the tolerance setting.

- enjoy -
